Printer parts diagram for: 33449-69004



33449-69004 is represented by #6 in the diagram below.

33449-69004 is represented by #6 in the diagram below.
2
RG1-0929-000CN Shutter Mirror shutter assembly - Mounts on the top cover above the toner cartridge
3
RG1-1974-000CN Control Panel Control panel assembly
4
33449-69005 Power Supply DC power supply assembly - 120VAC, 60Hz
4
RG1-1395-020CN Power Supply DC power supply assembly - 240VAC, 50Hz
5
RG1-0718-000CN PC Board Paper control board - Includes solenoids for the paper pickup roller and the registration assembly - Also includes paper out sensor PS 301 and manual feed sensor PS 302
6

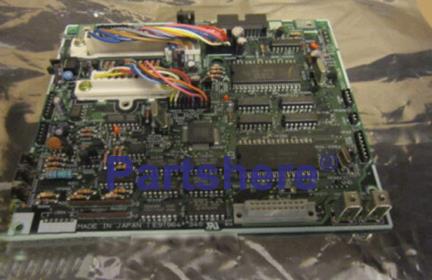

33449-69004 PC Board DC controller board
7
8120-1378 Power Cord Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
8
RH7-1122-000CN Fan Squirrel cage type fan assembly - 24VDC
9
33459-69001 Power Module AC power module assembly 100/120VAC, 60Hz
9
RG9-0750-000CN Power Supply AC power supply module assembly - 220/240VAC, 50Hz
10
33497-69001 PC Board Formatter (Main Logic) board - Includes interface connectors
11
RA1-8273-000CN Cover Bottom outer cover - Plastic
11
RF1-2577-000CN Cover Bottom cover - Inner metal bottom 'Pan' of printer
12
RG1-0945-000CN Delivery Delivery assembly - Final drive rollers for top cover output
13
RG1-0967-000CN Coupler Delivery coupler assembly - Two gear set
