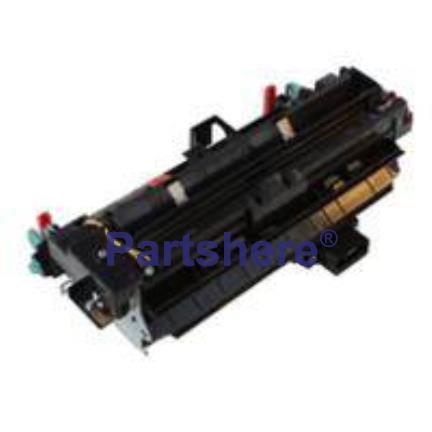

Your Fuser_Assembly 40X1871 is #1

HP parts picture diagram for 40X4357, 40X4360, 40X4379, 40X4419, 40X1871, 40X2062, 40X2072
Picture Items









Ref#
       Description (click to view price and order)


1
    Fuser assembly 220-240V type 1 - Part: 40X1871


2
    Fuser interface cable assembly - Part: 40X4419


3
    LVPS card assembly X651 X652 X654 X656 - Part: 40X2062


3
    LVPS card assembly with fan X658 - Part: 40X2072


6
    Print cartridge cooling fan cable assembly - Part: 40X4360


7
    Duplex cooling fan cable assembly - Part: 40X4357


9
    Toner density sensor cable assembly - Part: 40X4379
