Your Laser_Scanner C3150-69005 is #1

HP parts picture diagram for C3150-69005, RB1-6007-000CN, RF5-0584-000CN, RG5-1698-020CN
Picture Items

       Description (click to view price and order)

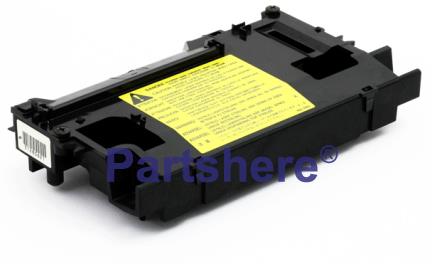

    Laser/scanner assembly - Part: C3150-69005

    Feeder guide assembly - Ribbed plastic plate with sensor lever and media roller assembly - Part: RG5-1698-020CN

    Static dissipater for lower feeder guide - Part: RF5-0584-000CN

    Rubber foot - Replacement rubber foot for the bottom of the printer (four used) - Part: RB1-6007-000CN
