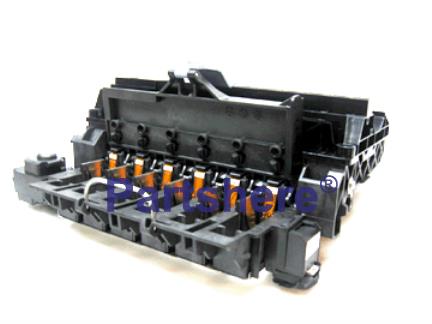

Your Carriage C6090-60236 is #1

HP parts picture diagram for Q1251-60070, Q1251-60109, Q1251-69070, Q1251-60273, Q1251-67801, Q1251-67803, Q1251-69273, C6090-60236, C6095-60184, C6090-60060
Picture Items












Ref#
       Description (click to view price and order)


1
    Printhead carriage assembly - Includes carriage, carriage height tool, cutter assembly, carriage position sensor and line sensor - Part: Q1251-60070


1
    Printhead carriage assembly - Includes carriage, carriage height tool, cutter assembly, carriage position sensor and line sensor RSTRD Q1251-60070. - Part: Q1251-69070


1
    Printhead carriage assembly - Includes carriage, carriage height tool, cutter assembly, carriage position sensor and line sensor - Part: Q1251-60273


1
    Printhead carriage assembly - Includes carriage, carriage height tool, cutter assembly, carriage position sensor and line sensor - Part: Q1251-69273


1
    Printhead carriage assembly - Includes carriage, carriage height tool, cutter assembly, carriage position sensor and line sensor - Part: C6090-60236


2
    Cutter assembly kit - Includes cutter, screw and washer - Part: Q1251-67803


3
    Trailing cable kit - Includes trailing cable only; trailing cable clip, cover cap, trailing ferrite, and screws no longer provided. - For 60-inch version - Part: C6095-60184


3
    Trailing cable kit - Includes trailing cable, trailing cable clip, cover cap, trailing ferrite, and screws - 42 inches 3cables. - Part: C6090-60060


3
    Trailing cable kit - Includes trailing cable for your Hewlett Packard DesignJet / Plotter - 42 inches with 3 cables. - Part: Q1251-67801


3
    Trailing cable kit - Includes trailing cable for your Hewlett Packard DesignJet / Plotter - 42 inches with 3 cables. - Part: Q1251-60109
