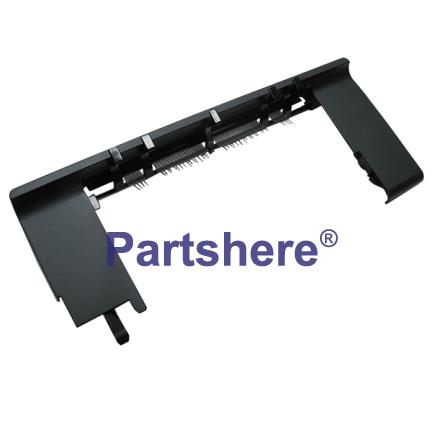

Your Bezel CC419-67904 is #9

HP parts picture diagram for RC2-4268-000CN, RC2-4269-000CN, RC2-4273-000CN, RC2-4300-000CN, RM1-5507-000CN, CC419-67904, RC2-4287-000CN, RC2-4288-000CN, RM1-5613-000CN, RM1-5632-000CN, RM1-5645-000CN
Picture Items













Ref#
       Description (click to view price and order)


1
    Left front grip - Part: RC2-4268-000CN


11
    Fan cover - Plastic cover that protects fan located on the rear part of the printer - Part: RC2-4288-000CN


12
    Left paper delivery output bin assembly - Part: RM1-5632-000CN


13
    Right handle cover assembly - Part: RM1-5507-000CN


2
    Left rear grip for HP Color LaserJet Enterprise CM4540 - Part: RC2-4269-000CN


3
    Rear cover assembly - Plastic cover that protects the rear side of the printer - Part: RM1-5613-000CN


4
    Right front cover - Plastic cover that protects the right front side of the printer - Part: RC2-4287-000CN


5
    Right rear cover - Plastic cover that protects the right rear part of the printer - Part: RC2-4273-000CN


6
    Intermediate cover assembly - Part: RM1-5645-000CN


7
    Left lower cover - Plastic cover that protects the lower left part of the printer - Part: RC2-4300-000CN


9
    Output Bin Bezel assembly - Part: CC419-67904
