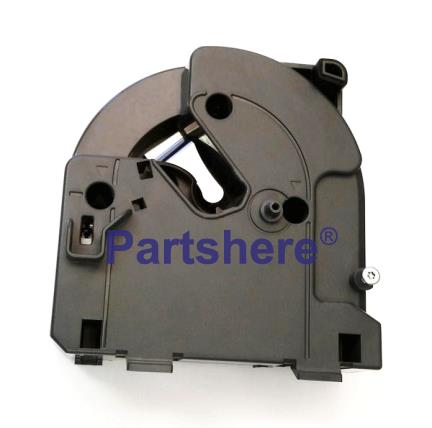

Your Support CH538-67016 is #6

HP parts picture diagram for CH538-67041, CH538-67033, CH538-67015, CH538-67016, CH538-67028, CH538-67046, CH538-67065, CH538-67029, CH539-67007, CH538-67052, CH538-67051
Picture Items













Ref#
       Description (click to view price and order)


1
    T1200/T770 Upper Right Support - Part: CH538-67028


10
    T1200/T770 Single Sheet Sensor - Part: CH538-67033


2
    T1200 Upper Left Support SV - Part: CH538-67015


2
    Upper left support - Without sensor - For the Designjet T770 printer series - Part: CH539-67007


3
    T1200 Upper Roll Cover Sensor - Part: CH538-67065


4
    T1200/T770 Wall spacers and roll - Part: CH538-67046


5
    T1200 Roll Cover Sensor w/cabl Lower left support sensor with cable - For the DesignJet T series printers - Part: CH538-67041


6
    T1200 Lower Left Support - Part: CH538-67016


7
    T1200 Roll Cover Lower Bumper - Part: CH538-67052


8
    T1200/T770 Roll Cover Upper Bu - Part: CH538-67051


9
    T1200 Lower Right Support SV - Part: CH538-67029
