Your Air_Pressure_System Q1273-60068 is #1

HP parts picture diagram for Q1273-60049, Q1273-60068, Q1273-60085, Q1273-60100, Q1273-60102, Q1273-60117
Picture Items








Ref#
       Description (click to view price and order)


1

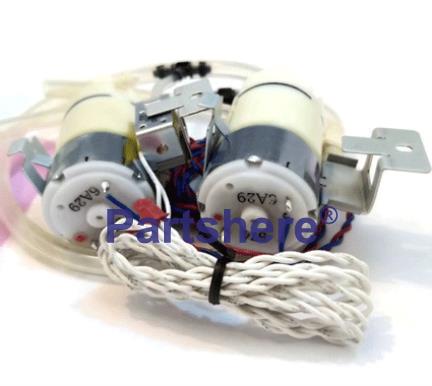

    Air pressurization system (APS) - Includes pump, valve, pressure sensor, and APS housing - Part: Q1273-60068


2
    Cartridge trays - Hold the ink cartridge assemblies - Part: Q1273-60102


3
    Ink supply station to cartridge cable connector - Part: Q1273-60117


4
    Ink Supply Station assembly - Holds the ink cartridges and pumps ink out to the printheads - Does not include air pressurization pump - Part: Q1273-60049


5
    Left bracket assembly - Connects the ink supply station to the printmech - Part: Q1273-60085


7
    Middle-left spittoon assembly - Holds expelled ink from cartridge during refresh cycle - Part: Q1273-60100
