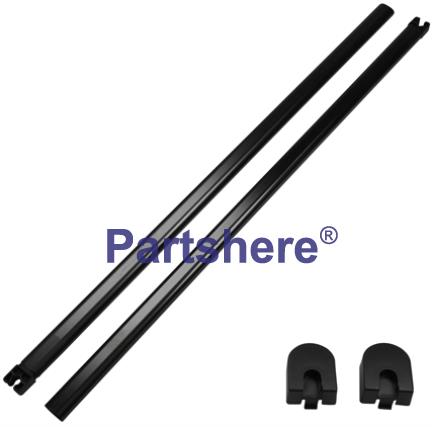

Your Tube Q5669-67063 is #5

HP parts picture diagram for Q5669-60715, Q5669-60716, Q5669-60717, Q5669-60718, Q5669-60719, Q6659-60236, Q6659-60237, Q5669-67063
Picture Items










Ref#
       Description (click to view price and order)


1
    Leg cover - Slides down outside of stand legs - Part: Q5669-60718


2
    Leg assembly - Side support for the plotter - Does NOT include the foot assembly - Part: Q5669-60716


3
    Foot assembly - Includes one foot and one support tube. (For both feet order CH639-69001). - Part: Q5669-60715


4
    Media bin (Gray) - Includes bin and support - Mounts to the printer stand legs - For 44-inch plotters - Part: Q6659-60237


4
    Media bin - Includes bin and support - Mounts to the printer stand legs (does not include Baket Tube Q5669-67063) - For 24-inch plotters - Part: Q5669-60719


5
    Basket tubes - For Hewlett Packard DesignJet printers - Part: Q5669-67063


6
    Cross-brace - Connects and supports the two stand legs - For 44-inch plotters - Part: Q6659-60236


6
    Cross-brace - Connects and supports the two stand legs - For 24-inch plotters - Part: Q5669-60717
