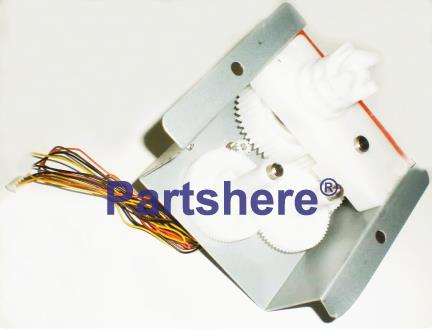

Printer parts diagram for: RG5-6228-040CN
RG5-6228-040CN is represented by #1 in the diagram below.
1
C8531-69009 Drive Assembly
2000-sheet feeder drive assembly
1
RG5-6228-040CN Drive Assembly
2000-sheet feeder drive assembly
1
RG5-6228-060CN Drive Assembly
Feed drive assembly - Includes the drive motor (M303), support bracket, and the four drive gears - Mounts in the 2,000-sheet paper feeder assembly
2
RH7-1481-020CN Motor
Deck drive motor (M303) only - Mounts in the 2,000-sheet paper feeder assembly
