Your Tray RG5-6316-000CN is #1

HP parts picture diagram for RB2-8054-000CN, RF5-3674-000CN, RG5-6316-000CN
Picture Items

       Description (click to view price and order)

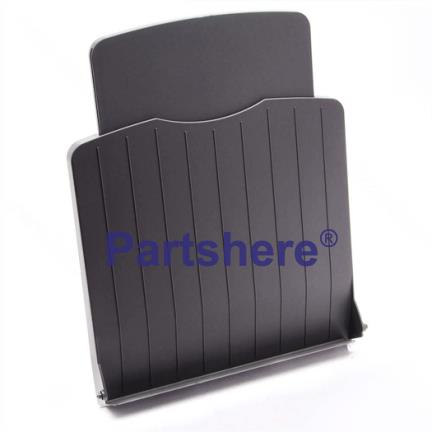

    ADF paper output tray - Includes the tray with pull-out extension - Receives scanned pages from the ADF assembly - Mounts on the left side of the ADF/scanner assembly - Part: RG5-6316-000CN

    Left side cover - Serves as the mounting bracket for the ADF paper output tray - Mounts on the upper left side of the scanner assembly - Part: RB2-8054-000CN

    Roller cover - Covers the exit delivery roller on the left side of the scanner assembly - Part: RF5-3674-000CN
