Your Fan RK2-2416-000CN is #3

HP parts picture diagram for RM1-5737-000CN, RC2-4895-000CN, RC2-4916-000CN, RK2-2506-000CN, RK2-2508-000CN, RM1-5714-000CN, RM1-5721-000CN, RK2-2416-000CN, RC2-5943-000CN
Picture Items











Ref#
       Description (click to view price and order)


1
    Fusing connecting cable assembly - Part: RM1-5714-000CN


2
    Door stopper right link - Part: RC2-4916-000CN


3

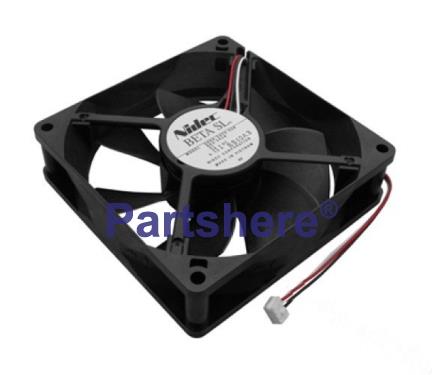

    Low voltage power supply fan (FM1) - Part: RK2-2416-000CN


4
    Switch arm for HP Color LaserJet CP3525 - Part: RC2-5943-000CN


5
    Scanner flat flexible cable (FFC) - Connects the laser scanner connector (J110) to the DC controller board through (J501) - Part: RK2-2506-000CN


6
    Rear cable assembly - Connects the DC controller board with the upper high voltage power supply - Part: RM1-5721-000CN


7
    Scanner flat flexible cable (FFC) - Connects the laser scanner connector (J111) to the DC controller board through (J503) - Part: RK2-2508-000CN


8
    Right door rear hinge - Part: RC2-4895-000CN


9
    Multipurpose/tray 1 sensor cable assembly - Part: RM1-5737-000CN
