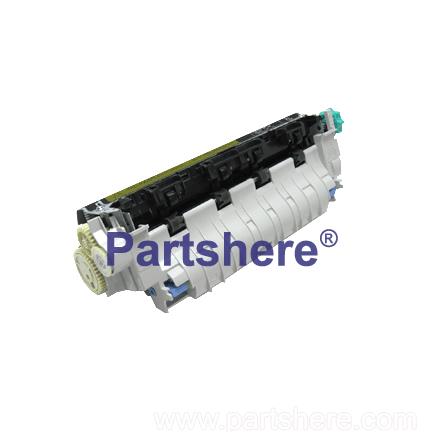

Your Fuser_Assembly RM1-1044-080CN is #1

HP parts picture diagram for CB425-69003, RC1-0245-000CN, RC1-0392-000CN, RC1-2881-000CN, RC1-2901-000CN, RC1-3063-000CN, RC1-3124-000CN, RM1-1043-040CN, RM1-1044-000CN, RM1-1046-020CN, WC4-5139-000CN, RM1-1044-040CN, RM1-1044-080CN, RM1-1110-000CN, RM1-1397-000CN, RM1-1022-000CN, RM1-1043-080CN, RM1-1045-000CN, RM1-1046-000CN, RM1-1193-000CN, XB2-7300-607CN
Picture Items























Ref#
       Description (click to view price and order)


1
    LJ 4345 220V Fuser, Fusing assembly - For 220 VAC operation - Bonds toner to paper with heat - Part: CB425-69003


1
    Hp fuser assembly 110v - Part: RM1-1043-040CN


1
    Hp fuser assembly 220-240v, Fusing assembly - For 220 VAC operation - Bonds toner to paper with heat - Part: RM1-1044-000CN


1
    Fuser Assembly - 220 volts, Fusing assembly - For 220 VAC operation - Bonds toner to paper with heat - Part: RM1-1044-040CN


1
    Fuser Assembly - 220/240 VAC - Bonds toner to paper with heat - Part: RM1-1044-080CN


1
    Fuser Assembly - For 100-127 VAC - Bonds toner to paper with heat - Part: RM1-1043-080CN


10
    Transfer roller assembly - Long black spongy roller - Transfers charge to paper - Part: RM1-1110-000CN


11
    Door sensor assembly - 500 sheet feeder assembly access door open sensor switch assembly - Part: RM1-1045-000CN


12
    Handle cover - Lower right side cover handle - Part: RC1-2881-000CN


13
    Screw spacer - Washer used with screws to secure bottom plate to printer - Two used - Part: RC1-0392-000CN


14
    Entrance guide - Fuser paper entrance guide - Part: RM1-1046-020CN


14
    Entrance guide - Fuser paper entrance guide - Part: RM1-1046-000CN


15
    M3X6mm screw with captured washer - Part: XB2-7300-607CN


2
    Reversing assembly - Reverses paper orientation of output tray - Part: RM1-1022-000CN


3
    Door switch holder - Secures top cover switch (SW101) to frame - Part: RC1-3063-000CN


4
    Top cover interlock access switch - Part: WC4-5139-000CN


5
    Hinge shaft stopper - Holds the right side door hinge pin in place - Part: RC1-3124-000CN


6
    Door switch cable - From DC Controller PCA to top cover switch (SW101) - Part: RM1-1397-000CN


7
    Connector case - Envelope feeder connector case - Plastic piece that secures the envelope feeder connector to the printer - Part: RC1-0245-000CN


8
    Envelope feeder cable - From DC Controller board to envelope feeder connector - Includes envelope feeder connector - Part: RM1-1193-000CN


9
    Door hinge - Right side door hinge - Two used - Part: RC1-2901-000CN
