Printer parts diagram for: RM1-4216-000CN



RM1-4216-000CN is represented by #3 in the diagram below.

RM1-4216-000CN is represented by #3 in the diagram below.
1
RM1-4209-000CN Fuser Assembly Fusing Assembly - Bonds toner to paper with heat - For 220-240VAC (+/- 10%) operation
2
RM1-4627-000CN PC Board Engine control PC board - Control and power supply board for the printer (for 110-127VAC operation)
2
RM1-4628-000CN PC Board Engine control PC board - Control and power supply board for the printer (for 220-240VAC operation)
3

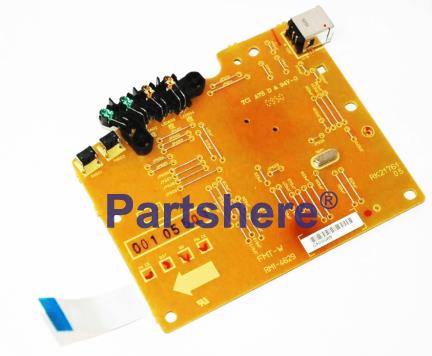

RM1-4216-000CN PC Board Formatter (Main logic) board - For the LaserJet P1505 printer (base model only)
6
XA9-1420-000CN Screw M3 pan head phillips screw with captive flat and split-lock washers - 8mm long
