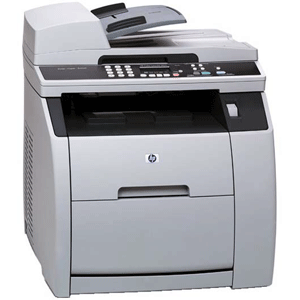

Q3948A - Color LaserJet 2820 All-In-One

Support Page for Hewlett Packard Q3948A HP Color LaserJet 2820 All-In-One troubleshooting, parts diagrams, printer specs, supplies, and HP printer repair parts.


Q3948A HP Color LaserJet 2820 All-In-One Parts


 | ADF_Assembly
 | Airflow_Guide
 | Belt  | Bezel  | Bushing  | Cable  | Cable_Interface  | Cartridge  | Clip  | Cover  | DRUM  | Flag  | Fusing_Assembly  | Gear  | Gear_Assembly  | Guide  | Heating_Roller  | Hinge  | Holder  | Insulator  | Interface_Product  | Label  | Lever  | Link  | Memory_DIMM  | Memory_Product  | Motor  | Mount  | Pad  | Paper_Product  | PC_Board  | Plate  | Power_Cord  | Power_Supply  | Roller  | Roller_Assembly  | Roller_Kit  | Screw  | Shaft  | Sideplate  | Spring  | Support  | TONER  | Tray | Other 1 | 2 | 3



Q3948A HP Color LaserJet 2820 All-In-One Supplies

Part Number Description Price
YEILD BLACK TONER (COMPATIBLE) $51.31
YIELD CYAN TONER $89.91
YIELD YELLOW TONER $89.91
YIELD MAGENTA TONER $89.91
ADF paper seperation pad assembly - Mounts in the center of the ADF separation pad frame assembly at the rear of the paper input tray RFQ
Automatic document feeder (ADF) and flatbed scanner lid - Includes the lid, and the ADF feed mechanism - Does not include ADF input tray $74.39
Paper pickup roller kit - Includes the 'D' shaped the paper pickup roller assembly and the separation pad assembly - For the multipurpose front input tray (tray 1) $15.99
HI YEILD BLACK TONER (COMPATIBLE) $60.37
HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) $131.89
HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) $138.51
HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) $138.51
Imaging drum/transfer assembly cartridge - Inserts into printer through the top door - Life expectancy is 20,000 pages for black print only, 5,000 pages for color (typical combined life is approximately 8,000 to 10,000 pages) $181.00
HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density $56.23
YEILD MAGENTA TONER (COMPATIBLE) $38.66
Laser/scanner assembly $280.44
Fusing film assembly (for 110VAC to 127VAC operation) - Includes the heater assembly and the fusing film tube $178.60
(Outright Refurb) Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and $205.00
FIXING ASSY 110-127V Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover/face-up output tray - Bonds the toner to the paper with heat - For 110V to 127VAC operation $288.29
YIELD BLACK TONER $74.63
YEILD MAGENTA TONER (COMPATIBLE) $61.81
128MB, 100-pin SDRAM DIMM memory module $180.00
128MB, 100-pin SDRAM DIMM memory module $155.00
Automatic document feeder (ADF) and flatbed scanner lid - Includes the lid, the ADF feed mechanism, and scanner 50-page input tray (not included) $89.35
Automatic document feeder (ADF) and flatbed scanner lid - Includes the lid, the ADF feed mechanism, and scanner 50-page input tray (not included) $92.34
HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density (not for Europe) $114.82
HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density (Europe) $114.82
HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density (Europe) $131.89
HI YEILD CYAN TONER (COMPATIBLE) $72.72
HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density $105.78
DRUM UNIT (COMPATIBLE) $126.28
HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density (not for Europe) $102.15
HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density (not for Europe) $102.15
Fusing assembly upper cover - Ribbed cover with end caps $11.93
Fusing film assembly (for 220VAC to 240VAC operation) - Includes the heater assembly and the fusing film tube $178.60
FIXING ASSY 110-127V Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover/face-up output tray - Bonds the toner to the paper with heat - For 110V to 127VAC operation $288.29
Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 220V to 240VAC operation $250.00
Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 220V to 240VAC operation $250.00
Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 220V to 240VAC operation $200.93
Cooling fan (Panaflo Model FBA08T24H - 80mm X 80mm X 15mm high, DC brushless, 24V DC, 190mA) $16.03
ADF pick roller assembly - Includes two rollers in a bracket assembly - Moves the first few top pages of the input stack where the top page is picked off and feed to the pre-scan drive rollers - Mounts in the middle of the ADF assembly $45.32
HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) $138.51
HP Color LaserJet smart Yellow print cartridge - Will print approximately 4,000 pages based on a 5% print density $105.78
HP Color LaserJet smart Magenta print cartridge - Will print approximately 4,000 pages based on a 5% print density (not for Europe) $138.51
HI YEILD MAGENTA TONER (COMPATIBLE) $72.72
HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) $102.15
HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages based on a 5% print density $76.23
YEILD YELLOW TONER (COMPATIBLE) $38.66
Transfer roller assembly - Long black foam type roller - Transfers static charge to paper $15.93
Fusing assembly cable (for 110VAC to 127VAC operation) $16.52
Fusing assembly cable (for 220VAC to 240VAC operation) $12.37
Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 110V to 127VAC operation $210.00
Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 110V to 127VAC operation $210.00
YEILD CYAN TONER (COMPATIBLE) $61.81
YEILD YELLOW TONER (COMPATIBLE) $61.81
Flatbed scanner assembly - Does NOT include the ADF assembly $192.83
ADF pick roller assembly replacement kit - Includes the pickup roller assembly (two rollers in a bracket), separation pad, mounting screws, and illustrated replacement instructions $13.24
HP Color LaserJet smart Black print cartridge - Will print approximately 5,000 pages based on a 5% print density $87.81
HP Color LaserJet smart Cyan print cartridge - Will print approximately 4,000 pages based on a 5% print density $105.78
HI YEILD YELLOW TONER (COMPATIBLE) $72.72
HP Color LaserJet smart Cyan print cartridge - Will print approximately 2,000 pages at based on a 5% print density (not for Europe) $102.15
YEILD CYAN TONER (COMPATIBLE) $68.66
HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) $102.15
HP Color LaserJet smart Yellow print cartridge - Will print approximately 2,000 pages based on a 5% print density $56.23
HP Color LaserJet smart Magenta print cartridge - Will print approximately 2,000 pages based on a 5% print density (Europe) $102.15
32MB, 100-pin SDRAM DIMM memory module $82.94
(Outright Refurb) Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and $200.00
Fusing assembly - Includes the fusing mechanism, lower rear cover (with the two locking levers), and the rear cover / face-up output tray - Bonds the toner to the paper with heat - For 220V to 240VAC operation $250.00
Rotary motor assembly - (DCM703) Rotates the four color toner cartridges in the carousel to position one of them for printing $25.65



Q3948A HP Color LaserJet 2820 All-In-One Specs

Print Speed:  20ppm
Resolution:  600 X 600 dpi Color
Capacity:
Memory:  96MB
Connectivity:  USB/EIO
Compatability:  PC and Mac Compaitble
Warranty:  1 Year
Hard_Drive:  Optional
Weight:
Duty_Cycle:
Duplexing:  NO
Network:  YES
