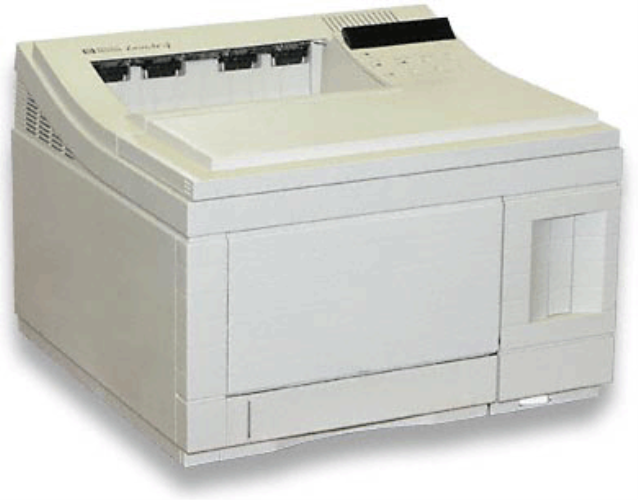

C2021A LaserJet 4M Printer

HP LaserJet 4M (C2021A)

MFG Part Number: C2021A

HP parts list for C2021A HP LaserJet 4M Printer

5188-6700 Adapter - Universal AC power adapter - wide-range, 40c - Requires separate country-specific power cord with C7 connector
RB1-2133-000CN Arm - Paper out sensor arm
RB1-2615-000CN Arm - Cassette sensor arm
RB1-2118-000CN Base - Base structure - For the power switch actuator assembly - Does NOT include the power switch
RG5-0467-060CN Base - Tray 1 base assembly - Attachment point for MP input tray
XF9-0410-000CN Belt - Timing belt for HP LaserJet 4M Plus Series
RB1-2237-020CN Brush - Brush - Static eliminating
RB1-2260-000CN Brush - Cleaning brush - For cleaning the antistatic teeth
RB1-2119-000CN Button - Power switch button (Rocker)
17255D Cable - RS-232C serial cable - 25-pin (M) to 25-pin (F) - 1.2m (3.9ft) long
17302A Cable - RS-232C serial cable - 25-pin (M) to 8-pin (M) DIN - 1.5m (4.9ft) long
24540-80010 Cable - Centronics (parallel) cable - 36-pin (M) to 25-pin (M) - 2.0m (6.6ft) long
24542G Cable - RS-232C serial cable - 25-pin (M) to 9-pin (F) - 3.0m (9.8ft) long
5063-1256 Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long
5063-1257 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 3.0m (9.8ft) long
92215S Cable - RS-422 serial cable - 8-pin (M) to 8-pin (M) - 2.0m (6.6ft) long
A6144-63008 Cable - RS-232C serial cable - 25-pin (M) to 9-pin (F) - 3.0m (9.8ft) long
C2913A Cable - RS-232C serial cable - 25-pin (M) to 25-pin (F) - 1.2m (3.9ft) long
C2950A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long
C2951A Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m (9.8ft) long
C2990A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36-pin (M) Centronics (type B) - 1.8m (6ft) long
C2991A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36-pin (M) Centronics (type B) - 3.0m (10ft) long
RG5-0519-000CN Cable - Cable assembly for HP LaserJet 4 Series
RG5-0520-000CN Cable - Cable assembly - From DC controller to scanner assembly
RG5-0521-000CN Cable - Cable assembly for HP LaserJet 4 Series
RG5-0522-000CN Cable - Cable assembly - From DC controller to delivery sensor (PS3)
RG5-0524-000CN Cable - Cable assembly - From DC controller to paper control board
RG5-0526-000CN Cable - Cable assembly - From DC controller to AC power supply
RG5-0529-000CN Cable - Cable assembly for HP LaserJet 4
RG5-0530-000CN Cable - Cable assembly - From paper control board to connector for the optional lower cassette sheet feeder assembly
RG5-0538-000CN Cable - Cable assembly - From DC controller to main motor
RG5-0556-000CN Cable - Cable assembly - From DC controller to laser assembly
140198A Cartridge - 98a yield black toner
140198X Cartridge - 98x hi yield black toner
6R903 Cartridge - 98a yield black toner
6R904 Cartridge - 98x hi yield black toner
RG5-0478-000CN Control Panel - Control panel assembly (for 220V/240V operation ONLY) - Includes the display (Overlay NOT included)
RG5-0533-000CN Control Panel - Control panel assembly (for 100V/120V operation) - Includes the display and an english overlay
RB1-2141-000CN Cover - Inner cover plate - Removed when installing envelope feeder
RB1-2226-000CN Cover - High voltage cover - Plastic `Pan` for high voltage board
RB1-2343-000CN Cover - SIMM access cover plate - Mounts on formatter shield assembly
RB1-2346-000CN Cover - Right side cover
RB1-2347-000CN Cover - Left side cover
RB1-2366-000CN Cover - Empty slot cover - For option board - Attaches to the I.O panel
RG5-0458-000CN Cover - Top cover assembly - Includes hinges, top cover, and top door
RG5-0459-000CN Cover - Right front cover assembly - Includes spring loaded font door
RB1-2322-000CN Door - Door - On top of printer - Lift-up printer access cover
RB1-2351-000CN Door - MP door - On front panel - Does NOT include tray extension
RF5-0533-000CN Door - Rear door assembly - Includes support strap, latch, and spring
RG5-0481-000CN Drive Assembly - Lower cassette drive assembly (drive motor and gears)
RG5-1099-000CN Drive Assembly - Lower cassette drive assembly (drive motor and gears)
RH7-1143-000CN Fan - Tubexial fan for HP C2021A
RH7-1144-000CN Fan - Tubeaxial fan for HP LaserJet 4
C2082-67901 Feeder - Power envelope feeder - Holds 75 envelopes for Hewlett Packard LaserJet printer.
C2082B Feeder - Power envelope feeder - Holds 75 envelopes for Hewlett Packard LaserJet printer.
92296T Film - Film (Transparency) for LaserJet II, LaserJet III, LaserJet 4 Series, LaserJet 4L Series
92296U Film - Film (Transparency) for LaserJet 33x0 MFP Seriess, LaserJet 4100 Series, LaserJet P2xxx Printer, Color LaserJet CM1015 MFP
RB1-2114-000CN Foot - Rubber foot - Non-slip replacement rubber foot
RB1-2620-000CN Foot - Rubber foot - Replacement rubber foot for the bottom of the (optional) lower cassette base
5181-2256 Fuser Assembly - Fusing assembly (For 240V, 50Hz operation) - Bonds the toner to the paper with heat - In quantity price break packaging (Contains five new fusing assemblies)
5181-2257 Fuser Assembly - Fusing assembly (For 240V, 50Hz operation) - Bonds the toner to the paper with heat - In quantity price break packaging (Contains ten new fusing assemblies)
C2001-69003 Fuser Assembly - Fusing assembly (120V, 60Hz) - Bonds toner to paper by heat
C2001-69004 Fuser Assembly - Fusing assembly (240v,50Hz) - Bonds toner to paper by heat
RG5-0454-000CN Fuser Assembly - Fuser Assembly (120V, 60Hz) - Bonds Toner to Paper by Heat
RG5-0454-060CN Fuser Assembly - Fuser Assembly (120V, 60Hz) - Bonds toner to paper by heat
RS5-0230-000CN Gear - Fusing roller drive gear - 34 tooth
RS5-0231-000CN Gear - Fuser drive gear - 19 tooth
RS5-0232-000CN Gear - Fuser output gear - 23 tooth
RG5-0457-000CN Gear Assembly - Gear cluster (drive train) assembly
RB1-2107-000CN Guide - Cassette guide - Paper cassette assembly support
RB1-2131-000CN Guide - Paper guide (Plastic piece with ribs) - Guides paper out of tray 1
RB1-2236-000CN Guide - Feeder guide - Ribbed (Gray) metal plate at top of printer
RF5-0532-000CN Guide - Upper delivery guide - On top of paper output assembly
RF5-1079-000CN Guide - Right cassette guide (L-shaped) - Has a hole in the rear for the power cord connector
RG5-0468-000CN Guide - Transfer guide assembly - Ribbed paper guide for the high voltage transfer roller (Does NOT include transfer roller)
RG5-0469-020CN Guide - Transfer guide assembly - Plate between toner cartridge and fusing assembly
RB1-2125-000CN Holder - Latch holder (White) - for MP tray/front door
RB1-2181-000CN Holder - Guide roller holder (U-shaped) - In center of paper feed assembly
RB1-2259-040CN Holder - Rear paper holder - Attaches to bottom of high voltage cover
RF5-0369-040CN Holder - Front paper holder - Attaches to bottom of high voltage cover
5021-0377 Kit - Manual Kit for 5000 C40, LaserJet 6P Series, DesignJet 450, DesignJet 430
C2001-90912 Kit - LaserJet 4 and 4M manual set (English) - Includes users manuals and quick reference guide
C3916-67909 Kit - Self paced training kit for LaserJet 4, 4M, 4+, 4M+, 5, 5M, and 5N - Includes service manual, NTSC format video (VHS)
C3916-67910 Kit - Self paced training kit for LaserJet 4, 4M, 4+, 4M+, 5, 5M, and 5N - Includes service manual, PAL format video (VHS)
92296E Label - LaserJet printer shipping labels - 8.47cm (3.33in) x 10.2cm (4.00in) labels - Six per sheet - 100 sheets per box
92296F Label - LaserJet printer return address labels - 1.27cm (0.50in) x 4.45cm (1.75in) labels - 80 per sheet - 25 sheets per box
92296G Label - LaserJet printer file folder labels - 1.69cm (0.67in) x 8.73cm (3.44in) labels - 30 per sheet - 25 sheets per box
92296H Label - LaserJet printer labels for 3.5-inch diskettes - 7.00cm (2.75in) x 7.00cm (2.75in) labels - Nine per sheet - 70 sheets per box
92296J Label - LaserJet printer labels for 5.25-inch diskettes - 3.81cm (1.50in) x 10.2cm (4.00in) labels - 12 per sheet - 70 sheets per box
92296K Label - LaserJet printer full sheet label - A size (8.5 x 11-inches) label - One per sheet - 100 sheets per box
92296L Label - LaserJet/DeskJet printer labels - 9.91cm (3.90in) x 3.81cm (1.50in) labels on A4 size (21.0cm x 29.7cm) sheet - 14 per sheet - 100 sheets per box
92296M Label - LaserJet/DeskJet printer labels - 9.91cm (3.90in) x 3.38cm (1.33in) labels on A4 size (21.0cm x 29.7cm) sheet - 16 per sheet - 100 sheets per box
92296N Label - LaserJet/DeskJet printer labels - 6.35cm (2.52in) x 3.81cm (1.50in) labels on A4 size (21.0cm x 29.7cm) sheet - 21 per sheet - 100 sheets per box
92296P Label - LaserJet/DeskJet printer labels - 10.0cm (3.94in) x 5.10cm (2.01in) labels on A4 size (21.0cm x 29.7cm) sheet - 10 per sheet - 100 sheets per box
92296R Label - LaserJet/DeskJet printer labels - 20.0cm (7.86in) x 28.9cm (11.4in) labels on A4 size (21.0cm x 29.7cm) sheet - One per sheet - 100 sheets per box
RH7-4047-000CN Lamp - Fusing heat lamp (120v, 60Hz)
RH7-4049-000CN Lamp - Fusing heat lamp (240v, 50Hz)
C2001-69006 Laser Scanner - Laserjet 4/4m laser/scanner assembly
RG5-0449-000CN Laser Scanner - Laser/scanner assembly
RB1-2335-000CN Latch - Rear door latch
XZ9-0379-000CN Latch - Door latch insert (Black)
RB1-2138-000CN Lever - Top cover interlock lever - Engages switch on paper control board
C2001-67912 Maintenance Kit - Maintenance kit (120V) - Includes multipurpose tray pickup roller upper and lower cassette pickup rollers separation pad transfer roller and Fuser Assembly
C2001-67914 Maintenance Kit - Maintenance kit (120V) - Includes multipurpose tray pickup roller, upper and lower cassette pickup rollers, separation pad, transfer roller, and Fuser Assembly (120V)
C2001-69012 Maintenance Kit - Maintenance kit (120V) - Includes multipurpose tray pickup roller, upper and lower cassette pickup rollers, separation pad, transfer roller, and Fuser Assembly
C2001-69013 Maintenance Kit - Maintenance kit (240V) - Includes multipurpose tray pickup roller, upper and lower cassette pickup rollers, separation pad, transfer roller, and Fuser Assembly (240V)
5021-8943 Manual - LaserJet quick reference guide - Covers LaserJet Classic, II series, III series, 4 sereis, 5 series, 6 series and 5Si - Volume 1 of 2 volume set
5090-3390 Manual - LaserJet Quick Reference Guide - Covers 1100, 2100, 3100, 4000, 5000 and 8000 series printeres - Volume 2 of 2 volume set
C2001-90901 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (English)
C2001-90902 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Danish)
C2001-90903 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Dutch)
C2001-90904 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Finnish)
C2001-90905 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (French)
C2001-90906 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (German)
C2001-90907 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Italian)
C2001-90908 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Norwegian)
C2001-90909 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Spanish)
C2001-90911 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Portuguese)
C2001-90946 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Turkish)
C2001-90947 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (Polish)
C2001-90951 Manual - C2001A/C2021A LaserJet 4/4M printer set-up guide (European English)
C2021-90901 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (English)
C2021-90902 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Danish)
C2021-90903 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Dutch)
C2021-90904 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Finnish)
C2021-90905 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (French)
C2021-90906 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (German)
C2021-90907 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Italian)
C2021-90908 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Norwegian)
C2021-90909 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Spanish)
C2021-90910 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Swedish)
C2021-90911 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Portuguese)
C2021-90912 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (Turkish)
C2021-90913 Manual - C2021A LaserJet 4M printer set-up guide for Apple/Macintosh (European english)
C3916-90984 Manual - Manual for LaserJet 4 Series, LaserJet 4, LaserJet 4 Plus Series, LaserJet 4M Plus Series
C6072-60301 Manual - HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (English)
C2065A Memory - 4MB, 80nS, 36-bit SIMM memory module - For HP Plotters, LaserJet IIISi, 4/4M, 4Si/MX and other models.
C2066A Memory - 8MB, 80nS, 36-bit SIMM memory module - For HP LaserJet IIISi, 4/4M, 4Si/MX
C3132-67901 Memory - 4MB, 70nS, 36-bit parity SIMM memory module
C3146-67901 Memory - 16MB SIMM memory module
D2150-69001 Memory - 1MB, 80nS, 36-bit SIMM memory module
D2152-63001 Memory - 8MB, 80nS, 36-bit SIMM memory module
D2152-69001 Memory - 8MB, 80nS, 36-bit SIMM memory module
D2156-69001 Memory - 4MB, 80nS, 36-bit SIMM memory module
D2381-63001 Memory - 2MB, 80nS, 36-bit SIMM memory module
J2382-69003 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors
J2383-61005 Module - External token ring interface module - Has DB-9 connector
J2590-69001 Module - External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and three parallel (DB-25) output connectors
J2592-69001 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector
J2593-69001 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) input connectors and three parallel (DB-25) output connectors w/power supply.
J3258-61021 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector
J4102-61021 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector
J4102-69022 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector
RH7-1152-000CN Motor - Main motor assembly
RH7-1197-000CN Motor - Paper pickup motor
C2001-40001 Overlay - Control panel overlay (English)
C2001-40002 Overlay - Control panel overlay (French)
C2001-40003 Overlay - Control panel overlay (German)
C2001-40004 Overlay - Control panel overlay (Italian)
C2001-40005 Overlay - Control panel overlay (Spanish)
C2001-40006 Overlay - Control panel overlay (Norwegian)
C2001-40007 Overlay - Control panel overlay (Swedish)
C2001-40008 Overlay - Control panel overlay (Danish)
C2001-40009 Overlay - Control panel overlay (Finnish)
C2001-40010 Overlay - Control panel overlay (Dutch)
C2001-40011 Overlay - Control panel overlay (Polish)
C2001-40012 Overlay - Control panel overlay (Turkish)
C2001-40013 Overlay - Control panel overlay (Portuguese)
C2001-00906 Packaging - Packaging (Shipping Box) Kit
RF5-0343-000CN Pad - Separation pad (Rectangular) - For multipurpose tray input
RF5-0355-000CN Panel - I/O panel plate (Sheet metal) - Has cutouts for I/O boards
RG5-0456-180CN Paper Output Unit - Paper output assembly - Belt driven
C2002-67901 PC Board - Formatter (Main Logic) board
C2037-69004 PC Board - DC controller board
J2338-60001 PC Board - LAN interface board with EtherTwist - Has 10Base-T and ThinLAN 10Base-2 connectors - For LAN manager networks
J2339-69001 PC Board - AppleTalk (EtherTalk) interface board with EtherTwist - Has 10Base-T and ThinLAN 10Base-2 connectors
J2340-69001 PC Board - LAN interface board with EtherTwist - Has 10Base-T and ThinLAN 10Base-2 connectors - Connects to UNIX network
J2371-69001 PC Board - EtherTwist 10Base-T interface board
J2373-60001 PC Board - Token ring interface board - Has DB-9 connector
J2550-69013 PC Board - EtherTwist 10Base-T LAN interface board
J2555-69013 PC Board - JetDirect Card Token RingToken ring LAN interface board - DB-9 and RJ-45 connectors
J4100-69001 PC Board - JetDirect 400N modular input/output (MIO) internal print server - Provides 10/100Base-TX or 10Base-2 network connection using RJ45 or BNC connectors
J4106-69001 PC Board - JetDirect 400N modular input/output (MIO) internal print server - Provides 10Base-T network connection using RJ45 connector
RG5-0512-070CN PC Board - Paper control board - On right side of paper feed assembly
RG5-0514-000CN PC Board - Sensor board - Narrow board w/ sensors
RG5-0515-000CN PC Board - Interconnect board - Includes cable to A/C power module - Connects DC controller and high voltage power supply to fusing assembly
RG5-0541-000CN PC Board - Drive board for HP LaserJet 4 Series
RG5-0966-030CN PC Board - DC controller board
RG5-1086-000CN PC Board - Drive board for HP LaserJet 4 Series
5183-3804 PC Board Interface - JetDirect 400N modular input/output (MIO) - Internal print server - Provides 10/100Base-T or 10Base-2 network connection using RJ45 or BNC connectors
J2552B PC Board Interface - LAN and LocalTalk interface - Has EtherTwist (10Base-T) , ThinLAN (10Base-2) , and LocalTalk (DIN-8) connectors
J2555B PC Board Interface - JetDirect Card Token RingToken ring LAN interface board - DB-9 and RJ-45 connectors
J2556B PC Board Interface - EtherTwist (10Base-T) or 100Base-TX LAN interface board - Has an RJ-45 connector
J2590A PC Board Interface - External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and 3 parallel (DB-25) output connectors
J2591-69001 PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors
J2591A PC Board Interface - External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors
J2594-69001 PC Board Interface - External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and three parallel (DB-25) output connectors
J3258-61041 PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN
J3258B PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN
J3264A PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45) LAN
J3265-69001 PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T and ThinLAN) (10Base-2) input connectors and three parallel (DB-25) output connectors
J3265G PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN
J4100-60002 PC Board Interface - JetDirect 400N modular input/output (MIO) - Internal print server - Provides 10/100Base-T or 10Base-2 network connection using RJ45 or BNC connectors
J4100A PC Board Interface - JetDirect 400N modular input/output (MIO) - Internal print server - Provides 10/100Base-T or 10Base-2 network connection using RJ45 or BNC connectors
J4101B PC Board Interface - HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network
J4102B PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T) connector
J4105A PC Board Interface - JetDirect 400N modular input/output (MIO) internal print server - Provides token ring network connection using RJ45 or DB9 connectors
J4106A PC Board Interface - JetDirect 400N modular input/output (MIO) internal print server - Provides 10Base-T network connection using RJ45 connector
C2001-69005 Pickup Assembly - Paper pickup (Feeder) assembly (Motor driven)
C2080-69001 PostScript - Postscript SIMM module - Includes 35 adobe fonts
C2080A PostScript - Adobe's postscript (Level 2) SIMM module - Includes 35 fonts
8120-1351 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, Malaysia, and Brunei)
8120-1369 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in Australia, New Zealand, and China)
8120-1378 Power Cord - Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
8120-1689 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Europe, Bangladesh, Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam)
8120-2104 Power Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Switzerland)
8120-2956 Power Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Denmark)
8120-4211 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in South Africa and India)
8120-4753 Power Cord - Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 100V in Japan)
8120-6302 Power Cord - Daisy chain power cord (Dove Gray) - 18 AWG, 1.2m (4.0ft) long - Has C14 (M) plug for power input and C13 (F) plug for power output
0950-3169 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.
0950-3171 Power Module - Power supply module - 220-240VAC input, 47-53Hz - 13VDC output, 300mA (U. K. and Hong Kong)
0950-3172 Power Module - Power supply module - 240VAC input, 47-53Hz - 13VDC output, 300mA (Australia)
0950-3350 Power Module - Wall mount power supply module (Leader Electronics 48130625HK) - 200VAC input, 48-52Hz - 13VDC output, 625mA (Hong Kong)
0950-3352 Power Module - Wall mount power supply module (MEI-AH ED12010) - 100VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for use in Japan)
0950-3354 Power Module - Wall mount power supply module (MEI-AH ED12010) - 220-250VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts (South Africa)
0957-2197 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.
0957-2340 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.
0957-2481 Power Module - Pwra brk uni 12vdc 15w
5188-5676 Power Module - Power module (wall mount) - Input voltage 100VAC, 47/63Hz - Output voltage 13VDC, 800mA, 10.4 watts (for use in Japan)
9100-5176 Power Module - Pwer supply, 13v/300ma jpn
0950-2623 Power Supply - Switching power supply (Delta DPS-158ABA) - 100-240VAC input, 47-63Hz - Four DC outputs (5.15V, +12V, -12V, 24V) - 158 watts - Includes upgrade sticker
0957-2192 Power Supply - Power supply module - 209-253VAC input, 47-53Hz - 13VDC output, 800mA (Europe and Israel)
0957-2194 Power Supply - Wall mount power supply module (MEI-AH ED12009) - 220VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (South Korea)
0957-2228 Power Supply - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.
0957-2229 Power Supply - Power module (wall mount)- Input voltage 220-250VAC, 47/53Hz - Output voltage 13VDC, 800mA, 10.4W (Worldwide)
5188-5673 Power Supply - Universal AC power adapter - wide-range, 40c - Requires separate country-specific power cord with C7 connector Power supply module - 120VAC input, 60Hz - 12VDC output, 1.0A
C2001-69007 Power Supply - Power supply assembly - 100/120VAC
C2001-69008 Power Supply - Power supply assembly - 220/240VAC
RG5-0513-000CN Power Supply - High voltage power supply assembly PCA
RG5-0553-000CN Power Supply - Power supply assembly - 220/240VAC
J2341-60128 Print Server - AppleTalk (LocalTalk) interface board - Has DIN-8 connector
J2371-60001 Print Server - EtherTwist (10Base-T) Interface Board (J2371A)
J4101-61011 Print Server - External JetDirect LAN interface module with EtherTwist 10Base-T/100BaseTX connector
J4169-61001 Print Server - JetDirect 610N Internal Print Server (10Base-T and 100Base-TX) LAN Interface Board - Has one RJ-45 connector
C2021A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
RB1-2352-000CN Rod - Power switch rod - From main switch assembly to power supply
RB1-2126-000CN Roller - Pickup roller (Quarter circle shaped) - For upper cassette
RB1-2127-000CN Roller - Pickup roller (Oval shaped) - For multipurpose tray
RB1-2182-000CN Roller - Guide roller - In center of paper feed assembly
RB1-2253-000CN Roller - Guide roller - Fits on paper guide/high voltage contact plate
RB1-2263-000CN Roller - Fusing roller - Hollow roller - Heat lamp goes in its core
RB1-2264-000CN Roller - Lower pressure roller - Hard rubber roller - Located in fusing assembly
RB1-2299-030CN Roller - Delivery roller - Double roller in paper output assembly
RB1-2616-000CN Roller - Guide roller - Mounts in the lower cassette base assembly
RB1-2632-000CN Roller - Pickup roller (oval shaped) - Located in the lower cassette base assembly
RB1-2632-020CN Roller - Pickup roller (oval shaped) - Located in the lower cassette base assembly
RB1-2650-000CN Roller - Pickup roller (oval shaped) - Located in the lower cassette base assembly
RF5-0349-000CN Roller - Transfer roller - Goes in paper guide/high voltage contact plate assembly
RF5-0425-040CN Roller - Output roller and holder
RF5-0747-000CN Roller - Roller for LaserJet 4 Plus Series
RF5-1077-030CN Roller - Lower delivery roller - Shaft with 4 double rollers on it
RF9-1326-000CN Roller - Upper delivery roller - Shaft with 7 rollers on it
RG5-0466-000CN Sensor - Leading edge registration sensor and PC paper out sensor
RG5-0475-060CN Sensor - Paper exit (Delivery) sensor assembly
RY7-5080-000CN Sensor - Photo sensor - Includes (one photo sensor) photo sensors PS 1,3,5 and 6
WG8-0291-000CN Sensor - Photo sensor - Includes (one photo sensor) photo sensors PS 1,3,5 and 6
C2021A-Manual_Laser Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.
RF5-0471-000CN Shield - Formatter RFI shield
RB1-2080-000CN Shutter - Laser shutter - Attaches to bottom of laser/scanner assembly
C6072-60304 Software - HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (German)
C6072-60305 Software - HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (French)
C6072-60306 Software - HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (Spanish)
C6072-60307 Software - HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (Italian)
RH7-5071-000CN Solenoid - Pickup solenoid (SL1) - For the paper cassette paper pickup (feed) roller
RH7-5075-000CN Solenoid - Pickup solenoid (SL2) - For multipurpose tray pickup roller
RB1-2302-000CN Spring - Delivery roller spring (U-shaped)
RS5-2185-000CN Spring - Spring - For delivery roller holder in paper output
RS5-2219-000CN Spring - Rear door spring - Fits under rear door latch
RB1-2370-020CN Stop - Stop plate - For paper length in 250 page universal cassette
RF5-0430-000CN Stop - Stop plate - For paper width in 250 page universal cassette
RF5-0446-000CN Stop - Stop plate - For paper length in 500 page lower cassette
RB1-2354-000CN Strap - Support strap for rear door - Supports door when open
RB1-2105-030CN Support - Toner cartridge support - Black plastic bar that attaches above the toner cartridge
RA2-1999-000CN Tab - Corner tab for universal cassette, LaserJet 4 - Prevents paper wrinkling and misfeeds
RH7-7045-000CN Thermistor - Thermistor assembly - Includes cable
RG5-0474-000CN Thermoswitch - Thermoswitch assembly (fuser temperature switch) - At end of fusing roller
5961-0882 Training - Training Test for LaserJet 4 Plus Series, LaserJet 4M Plus Series, LaserJet 4MP Series, LaserJet 4
C3916-90995 Training - Additional self paced training test - Contains 5 tests for the LaserJet 5 series - Also covers the LJ 4, 4+, 4M, and 4M+
C2084A Tray - HP LaserJet 4 and 4M Multi-size 500-sheet tray
C2084C Tray - HP LaserJet 4, 4M, 4+, and 4M+ Multi-size 500-sheet tray
C2084D Tray - HP LaserJet 4, 4M, 4+, and 4M+ Multi-size 500-sheet tray - Holds letter, legal Executive, and A4 size paper
C2085A Tray - LaserJet 4 and 4M Multi-size 250-sheet tray, HP 250 Sheet Multi-Size Tray - Legal, Letter, Executive & A4
C2085B Tray - HP LaserJet 4 and 4M Letter paper input tray
C2085C Tray - HP LaserJet 4 and 4M A4 paper input tray - Holds 250 sheets of 8.3inch x 11.7inch A4 size paper
RB1-2143-000CN Tray - Multi-Purpose tray extension
RG5-0472-000CN Tray - Multi-Purpose input tray - Attaches to front door
C2083-69001 Upgrade Kit - Lower cassette upgrade (500 sheet feeder) - With 500 sheet multi-size paper tray
C2083D Upgrade Kit - Lower cassette upgrade (500 sheet feeder) - With 500 sheet multi-size paper tray
RB1-2627-020CN Weight - Weight - Clips on to paper pickup drive shaft of the lower cassette base drive assembly

LaserJet 4M Printer parts list
bottom bar
