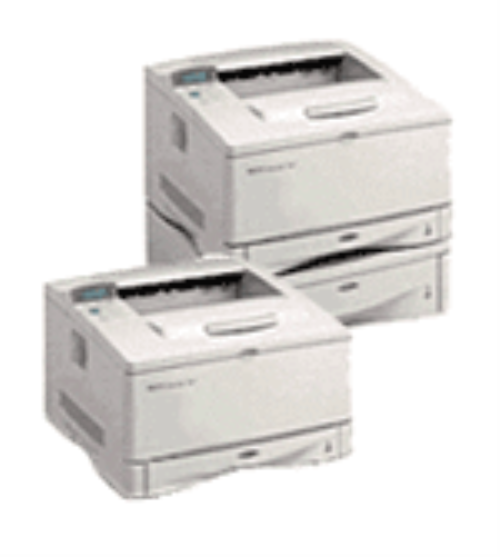

HP c30/c30d cut sheet printer (C4002A)

MFG Part Number: C4002A

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

HP parts list for C4002A HP c30/c30d cut sheet printer

53020031KT Actuator - A' actuator assembly

53020032KT Actuator - 'B' actuator assembly

54020053KT Actuator - 'C' actuator assembly

5188-6700 Adapter - Universal AC power adapter - wide-range, 40c - Requires separate country-specific power cord with C7 connector

53020183KT Arm - Stacker arm assembly

21420412KT Belt - Fuser drive belt

21420413KT Belt - Paper feed drive belt

21420894KT Belt - Vacuum transport belt

51020072KT Belt - Cleaner unit drive belt

53020069KT Belt - Timing belt for the high capacity input/output unit

54020125KT Belt - Timing belt for HP 5000 C30

55020024KT Belt - Duplex timing belt

55020025KT Belt - Duplex timing belt

55020214KT Belt - C stepper motor assembly - Includes duplex registration motor, duplex route solenoid, and timing belt

53020194KT Brush - Antistatic brush - Eliminates static charge on paper

5063-1256 Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long

5063-1257 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 3.0m (9.8ft) long

C2950A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long

C2951A Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m (9.8ft) long

C2990A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36-pin (M) Centronics (type B) - 1.8m (6ft) long

C2991A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36-pin (M) Centronics (type B) - 3.0m (10ft) long

C4015A Cartridge - Developer unit - Toner cartridge installs into this unit

C4011A Cleaner - Cleaner unit - Main charger slides into center of this unit

61020150KT Corona - Transfer Corona assembly - Installs into the upper/lower paper guide assembly

51020058KT Counter - Usage counter - Reflects number of pages printed

54020058KT Door - Front door assembly - Part of 1200 sheet paper input unit - Open this door to access paper loading tray

11000130KT Drive Assembly - 1.44MB 3.5-inch floppy drive

21420401KT Drive Assembly - Pickup roller drive assembly - Dual/cluster gear assembly that meshes between pickup and feed roller assemblies

51020056KT Drive Assembly - Fuser drive assembly - Geared assembly that is found by opening rear cover of printer and looking in the upper left corner

51020057KT Drive Assembly - Cleaner unit drive assembly - Gear/idler arm assembly that one end of the cleaner drive belt is routed around

61020013KT Drive Assembly - Main drive assembly (60Hz) - Geared assembly that fuser drive and cleaner unit drive belts are routed around

61020028KT Drive Assembly - Main drive assembly (50Hz) - Geared assembly that fuser drive and cleaner unit drive belts are routed around

51020682KT Fan - Main cooling fan

C4675A Fuser Assembly - Fusing assembly (100-127v) - Bonds toner to paper by heat

C4676A Fuser Assembly - Fusing assembly (200-240v) - Bonds toner to paper by heat

51020342KT Gear - Exit (Eject) gear

55020594KT Gear Assembly - Duplex drive gear assembly

C4679A Hard Drive - 170MB hard disk drive - For font storage

73820027KT Job Offset - Job offset assembly

5021-0377 Kit - Manual Kit for 5000 C40, LaserJet 6P Series, DesignJet 450, DesignJet 430

51020018KT Lamp - Erase lamp assembly

54224034KT Lever - Replacement paper size lever (is NOT the original color) - For selecting size of paper in the input unit

51020874KT Lubricant - Molycote grease - Used to lubricate printer

51020875KT Lubricant - Red grease - Used to lubricate printer

51020876KT Lubricant - Machine/gear oil - Used to lubricate printer

61030058KT Maintenance Kit - Maintenance kit - Replacement parts after 1 million pages

D2974-63001 Memory - 4MB, 70nS, 36-bit parity SIMM memory module

D2974A Memory - 4MB, 70nS, 36-bit parity SIMM memory module

D2975-69001 Memory - 8MB, 70nS, 36-bit parity SIMM memory module

D3577A Memory - 8MB, 70nS, 36-bit parity SIMM memory module

61020023KT Module - Vacuum transport assembly - Includes rollers, belts, and blower motor with speed sensor

J2382-69003 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors

J2383-61005 Module - External token ring interface module - Has DB-9 connector

J2590-69001 Module - External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and three parallel (DB-25) output connectors

J2592-69001 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

J2593-69001 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) input connectors and three parallel (DB-25) output connectors w/power supply.

J3258-61021 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

J4102-61021 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

J4102-69022 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

21423825KT Motor - Toner supply motor

51020866KT Motor - Main drive motor

53020090KT Motor - Elevator gear assembly - Includes motor, worm gear, belt, pulley and drive gear

53020095KT Motor - Elevator motor assembly

53020141KT Motor - Slide assembly - Includes 2 jogging motors and jogging block

51020088KT PC Board - Power control board

51020089KT PC Board - Jogging motor power control board

55020014KT PC Board - PCL board for HP 5000 C30

55020020KT PC Board - Duplex control board (#1)

56220006KT PC Board - EIGS controller board

60020004KT PC Board - Output control board

60020005KT PC Board - Input control board

61020072KT PC Board - Signal interface board - Has serial/parallel I/O connectors

62020046KT PC Board - Control panel PC board - Does NOT include housing or overlay

J2590A PC Board Interface - External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and 3 parallel (DB-25) output connectors

J2591-69001 PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors

J2591A PC Board Interface - External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors

J2594-69001 PC Board Interface - External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and three parallel (DB-25) output connectors

J3258-61041 PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN

J3258B PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN

J3264A PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45) LAN

J3265-69001 PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T and ThinLAN) (10Base-2) input connectors and three parallel (DB-25) output connectors

J3265G PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN

J4101B PC Board Interface - HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network

J4102B PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

C4682A PhotoConductor - Photoconductor assembly - Includes main charger and ozone filter

55020482KT Plug - Strapping plug - Configures AC power supply for 120V input

55020489KT Plug - Strapping plug - Configures AC power supply for 220V input

55020490KT Plug - Strapping plug - Configures AC power supply for 230V input

55020491KT Plug - Strapping plug - Configures AC power supply for 240V input

8120-1351 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, Malaysia, and Brunei)

8120-1369 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in Australia, New Zealand, and China)

8120-1378 Power Cord - Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)

8120-1689 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Europe, Bangladesh, Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam)

8120-2104 Power Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Switzerland)

8120-2956 Power Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Denmark)

8120-4753 Power Cord - Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 100V in Japan)

8120-6302 Power Cord - Daisy chain power cord (Dove Gray) - 18 AWG, 1.2m (4.0ft) long - Has C14 (M) plug for power input and C13 (F) plug for power output

0950-3169 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0950-3171 Power Module - Power supply module - 220-240VAC input, 47-53Hz - 13VDC output, 300mA (U. K. and Hong Kong)

0950-3172 Power Module - Power supply module - 240VAC input, 47-53Hz - 13VDC output, 300mA (Australia)

0950-3350 Power Module - Wall mount power supply module (Leader Electronics 48130625HK) - 200VAC input, 48-52Hz - 13VDC output, 625mA (Hong Kong)

0950-3352 Power Module - Wall mount power supply module (MEI-AH ED12010) - 100VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for use in Japan)

0950-3354 Power Module - Wall mount power supply module (MEI-AH ED12010) - 220-250VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts (South Africa)

0957-2197 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0957-2340 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0957-2481 Power Module - Pwra brk uni 12vdc 15w

5188-5676 Power Module - Power module (wall mount) - Input voltage 100VAC, 47/63Hz - Output voltage 13VDC, 800mA, 10.4 watts (for use in Japan)

9100-5176 Power Module - Pwer supply, 13v/300ma jpn

0950-2623 Power Supply - Switching power supply (Delta DPS-158ABA) - 100-240VAC input, 47-63Hz - Four DC outputs (5.15V, +12V, -12V, 24V) - 158 watts - Includes upgrade sticker

0957-2192 Power Supply - Power supply module - 209-253VAC input, 47-53Hz - 13VDC output, 800mA (Europe and Israel)

0957-2194 Power Supply - Wall mount power supply module (MEI-AH ED12009) - 220VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (South Korea)

0957-2228 Power Supply - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0957-2229 Power Supply - Power module (wall mount)- Input voltage 220-250VAC, 47/53Hz - Output voltage 13VDC, 800mA, 10.4W (Worldwide)

5188-5673 Power Supply - Universal AC power adapter - wide-range, 40c - Requires separate country-specific power cord with C7 connector Power supply module - 120VAC input, 60Hz - 12VDC output, 1.0A

53020124KT Power Supply - HCI/O power supply

55030024KT Power Supply - AC power supply

61020022KT Power Supply - High voltage power supply

61020281KT Power Supply - DC power supply assembly

J4101-61011 Print Server - External JetDirect LAN interface module with EtherTwist 10Base-T/100BaseTX connector

51020795KT Printhead - LED printhead assembly

C4002A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

11000246KT Roller - Feed roller assembly - For upper paper input tray

11000249KT Roller - Lower pickup roller assembly - For lower paper input tray

51020062KT Roller - Exit pinch roller assembly - Includes static brush

51020497KT Roller - Exit roller assembly - Shaft with gear on right side and five rollers on the shaft

51020629KT Roller - Upper paper guide roller - Shaft/roller that is part of the upper/lower paper guide assembly

55020022KT Roller - Duplex feed roller - Shaft with two rollers - Installs on left side of front edge of main top cover

55020052KT Roller - Pinch roller - Part of upper/lower paper guide assembly

55020260KT Roller - Duplex feed roller

61020320KT Roller - Feed roller assembly - For lower paper input tray

61020323KT Roller - Upper pickup roller assembly - For upper paper input tray

61020336KT Roller - Timing roller assembly - Paper feed belt is routed around this shaft/roller assembly and the upper and lower paper feed rollers

21421209KT Sensor - Sensor assembly - Senses size of paper

21421333KT Sensor - Sensor assembly - Senses size of paper

51020077KT Sensor - Out tray full sensor - Senses when paper out tray is full

51020372KT Sensor - Paper exit sensor - Senses when paper jams have occured

53020088KT Sensor - HP Sensor for LaserJets

54020061KT Sensor - 'B' sensor assembly

54020284KT Sensor - 'A' sensor assembly

C4000-60007 Service Manual - HP 5000 model C30 & C30D software/manual kit - Includes paper specification and operations guides, function code software (2 disks), and font software (2 disks)

C4002A-Manual_Laser Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

55020026KT Solenoid - Duplex feed roller solenoid

55020248KT Solenoid - Duplex route separator paper exit solenoid

21421610KT Strap - Support strap - For right side of front cover

51220072KT Strap - Support strap - For left side of front cover

21420515KT Switch - Front interlock switch - Part of AC power supply - Activated when front cover is opened

21421937KT Switch - Switch - Detects if paper input tray is installed

21421962KT Switch - Rear interlock switch - Part of AC power supply - Activated when rear cover is opened

RG5-3579-020CN Transfer Assembly - Transfer Roller Assembly

C4014A Tray - HP 5000C Series Paper input tray

c30/c30d cut sheet printer parts list
