See HP parts for this model:

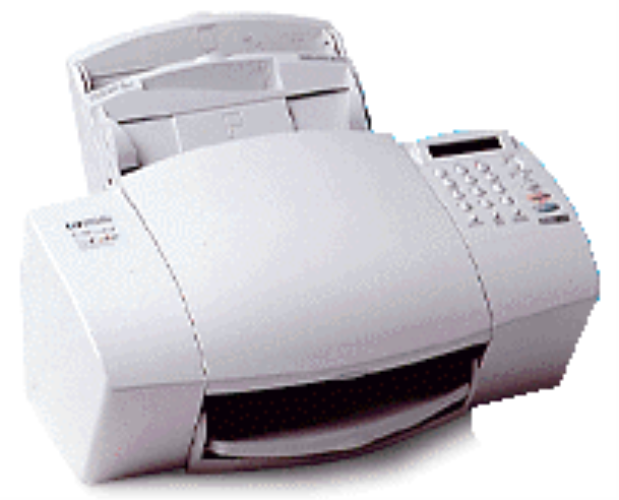

HP parts available for C5315A HP OfficeJet 630

C3801-80059 Absorber - Spittoon sponge - Absorbs excess ink from black cartridges
C3801-80060 Absorber - Spittoon sponge - Absorbs excess ink from color cartridges
C3801-80061 Absorber - Spittoon sponge - Located in bottom of spittoon
C5315A-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.
C5315A-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
C5315A-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).
C5315A-ADF_Arm ADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.
C5315A-ADF_Feed_Assy ADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).
C5315A-ADF_Input_Tray Adf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.
C5315A-ADF_Motor ADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.
C5315A-ADF_Output_Tray ADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit, we will ship the entire ADF Assembly.
C5315A-ADF_Pad ADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing, scanning, or copying.
C5315A-ADF_PC_BRD ADF PC Board - Control Board on the ADF unit
C5315A-ADF_Roller_Kit ADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan, copy, or faxed.
C5315A-ADF_Scanner ADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly, scanner lens assembly (includes the charge coupled device (ccd)), the scanning lamp, ADF analog processor board, and ADF inverter board - this is the assembly that scans, copies documents.
C5315A-ADF_Sensor_BRD ADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly
C5315A-ADF_Unit_Assy ADF Unit Assembly - Complete replacement assembly unit for Officejet Copier, top assembly only. This includes the ADF (automatic document feeder) for this unit.
C5316-69001 All-In-One InkJet - Replacement OfficeJet 600, 610, 630 - Does NOT include the LIU assembly, control panel overlay, or power cord
C3801-60040 Arm - Tension arm - Maintains tension on carriage belt
C5315A-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
C5315A-Arm_Door Arm Door - Carriage access door sensor arm
C5315A-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper
C5315A-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter
C5315A-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray
C5315A-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt
C3801-00012 Base - Base - Sheet metal used as bottom of unit
C5315A-Battery Battery - Battery pack for hp printer
C3801-80036 Belt - Carriage drive belt - Black with small teeth
C5324-40044 Belt - Carriage drive belt (Gray with very small teeth) - For use only with matching carriage motor and carriage belt clip
C5315A-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit
C5315A-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod
C5315A-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit
C5315A-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.
C5315A-Belt_Scanner Belt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.
C5315A-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel
C3801-00062 Brace - Brace for HP OfficeJet 700 Series
C6659-69002 Brace - Line interface unit (LIU) - Plug-in fax/phone line module - Does NOT come with LIU to wall socket cable (for Israel, Korea, and Taiwan)
C5315A-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)
C5315A-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)
C5315A-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley
5063-1256 Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long
5063-1257 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 3.0m (9.8ft) long
8121-0811 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)
C2950A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long
C2951A Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m (9.8ft) long
C2990A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36-pin (M) Centronics (type B) - 1.8m (6ft) long
C2991A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36-pin (M) Centronics (type B) - 3.0m (10ft) long
C3801-80007 Cable - Ribbon cable - Has 30-pin (M) connectors - 13.3cm (5.2in) long
C3801-80020 Cable - Cable assembly - Has 3-pin (F) connectors - 25.0cm (9.8in) long
C3801-80029 Cable - Cable assembly - Has 3-pin (F) connectors - 18.1cm (7.1in) long
C3801-80069 Cable - Cable assembly - Has 14-pin (F) connectors - 40.6cm (16in) long
C3801-80073 Cable - Centronics parallel interface cable - 25-pin (M) with thumbscrews to 36-pin Centronics (M) - 2m (6.6ft) long
C3803-60013 Cable - Rear panel power socket/power cable assembly - C14 (M) power socket to an 18cm (7.1in) cable with a 3-pin (F) connector and a 22.3cm (8.8in) ground wire with a ring terminal
C5316-80002 Cable - Ribbon cable - Has 15-pin (M) edge connectors - 17.2cm (6.8in) long
C6680-80003 Cable - Centronics parallel interface cable - 25-pin (M) with thumbscrews to 36-pin Centronics (M) - 2m (6.6ft) long miniconnector
C6735-80001 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)
Q3500-80001 Cable - Telephone cable (2 Conductor) - RJ11 (M) to RJ11 (M) 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal and Spain)
C5315A-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor
C5315A-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.
C5315A-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism
C5315A-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.
C5315A-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.
C5315A-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position
C3801-40158 Cap - Cap - Holds left end of carriage rod in print mechanism
C3801-40159 Cap - Cap - Holds right end of carriage rod in print mechanism
C5315A-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.
C6659-60045 Carriage - Carriage assembly with two flexible cables
C5315A-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.
C5315A-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base
C5315A-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.
C5315A-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
C5315A-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage
C5315A-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
C5315A-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
C5315A-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).
C5315A-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
51629A Cartridge - HP InkJet Crtg 29A Black Large NAM
51629AA Cartridge - HP Inkjet Crtg 29A Black Large AP
51629AC Cartridge - HP 29A Black InkJet Large Cartridge
51629AL Cartridge - HP Inkjet Crtg 29A Large Black LAR
51629G Cartridge - Black Print Cartridge (regular) - Prints approximately 325 pages based on 5% density on a 8-inch (20.3cm) by 10-inch (25.4cm) print area (USA)
51629GA Cartridge - HP 29 Economy Black InkJet Print Cartridge - Prints approximately 325 pages based on 5% density on a 20.3cm by 25.4cm print area (Asia Pacific)
51629GC Cartridge - Black print cartridge (regular) - Prints approximately 325 pages based on 5% density on a 20.3cm by 25.4cm print area (Canada)
51629GE Cartridge - BHP InkJet Crtg 29G Black Econ EUR
51629GL Cartridge - HP 29 Economy Black InkJet Print Cartridge - Prints approximately 325 pages based on 5% density on a 20.3cm by 25.4cm print area (Latin America)
51629TE Cartridge - Black print cartridges (regular) - (two-pack of 51629A) - Each prints approximately 325 pages based on 5% density on a 20.3cm by 25.4cm print area (Europe)
51649A Cartridge - HP 49 Tricolor Ink Cartridge (51649A)
51649AA Cartridge - HP Ink Crtg 49A Large Color AP
51649AC Cartridge - HP 49A Large Color Cartridge
51649AL Cartridge - HP Ink Crtg 49A Large Color LAR
51649G Cartridge - Tri-color ink economy print cartridge - Prints approximately 155 pages based on 13.5% total density (4.5% for each color) on a 8-inch (20.3cm) by 10-inch (25.4cm) print area (USA)
51649GA Cartridge - HP 49 Economy Tri-color InkJet Print Cartridge - Prints approximately 155 pages based on 13.5% total density (4.5% for each color) on a 20.3cm by 25.4cm print area (Asia Pacific)
51649GE Cartridge - Tri-color ink economy print cartridge - Prints approximately 155 pages based on 13.5% total density (4.5% for each color) on a 20.3cm by 25.4cm print area (Europe)
51649GL Cartridge - HP 49 Economy Tri-color InkJet Print Cartridge - Prints approximately 155 pages based on 13.5% total density (4.5% for each color) on a 20.3cm by 25.4cm print area (Latin America)
5183-5267 Cartridge - Return kit with box and instructions - For returning defective Thermal InkJet (TIJ) 2.0 cartridges
C6612AN Cartridge - Black print cartridge (high capacity) - (two-pack of 51629A) each prints approximately 650 pages based on 5% density on a 8-inch (20.3cm) by 10-inch (25.4cm) print area (USA)
C6617AN Cartridge - Tri-color ink print cartridges - (two-pack of 51649A) - Each prints approximately 310 pages based on 13.5% total density on a 8-inch (20.3cm) by 10-inch (25.4cm) print area (USA)
C3801-40057 Case - Lower front case (Quartz Gray, U-shaped) - Supports the media output tray
C3801-40189 Case - Lower back case (Quartz Gray) - Rear panel (with LIU module slot)
C3801-60085 Case - Right side case (Quartz Gray)
C5316-60012 Case - Left side case (Quartz Gray)
C5315A-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
C3801-40020 Clamp - Clamp - Holds carriage trailing cable in place
C3801-40019 Clip - Carriage belt clip - Only for black carriage drive belt with small teeth
C5324-40045 Clip - Carriage belt clip
C5315A-Clutch_ADF Clutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder
C5315A-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
C3801-60127 Control Panel - Control panel replacement kit - Includes the control panel assembly (U. S. version) , instruction sheet, and panel removal tool
C5315A-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.
C6659-60052 Control Panel - Control panel/keypad and display assembly (Old style) - Has male male pin connector for control panel cable - No longer available - Order New style main logic PC board, New style control panel, New style control panel cable
C6659-60053 Control Panel - Control Panel/Keypad and Display Assembly (New Style) - Has
C6659-60038 Cover - Scanner cover assembly (Upper ADF) - Covers the scanner glass - Helps to feed documents over the scanner assembly - Has hard black plastic rollers
C5315A-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.
C5315A-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
C5315A-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
C3801-60052 Deflector - Paper deflector - Directs paper from the media chassis to the print section of the printer chassis assembly
C5315A-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly
C5315A-Display Display - Status led display (LCD display assembly).
C3801-60157 Door - Print cartridge access door (Quartz Gray) - Large lift-up door on top of the OfficeJet
C5315A-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.
C5315A-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.
C5315A-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.
C5315A-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.
C5324-60010 Drive Assembly - Media chassis assembly (Paper drive) - Moves paper from ADF assembly to scanner assembly - Includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs
C5315A-Drive_Assy_ADF Drive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs
C5315A-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability
C5315A-Encoder Encoder - Encoder spring - provides tension for encoder strip
C5315A-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper
C5315A-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference
C5315A-Extender_ADF Extender ADF - Paper extension for the automatic document feeder (ADF) input tray
C5315A-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths
C5315A-Extender_Output Extender Output - Paper exit tray extension
C5315A-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit
C5315A-Fan_Vaccum Fan Vaccum - Vacuum fan assembly
C5315A-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk
C5315A-Feed_Rollers_ADF Feed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.
C3828A Film - Film (Transparency) for OfficeJet R65 Series, PhotoSmart P1000, PhotoSmart P1100, OfficeJet G55 Series Transparency Film 200 SHEETS.
C3832A Film - Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package
C3834A Film - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series
C3835A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series
C3836A Film - Premium High-Gloss Film - A size (8.5 x 11-inches) - 50 sheets
C3837A Film - Film (Glossy) for DeskJet 1600 Series, OfficeJet 700 Series, DeskJet 895, DeskJet 895 Series
C6051A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series
C6053A Film - Film (Transparency) for Color InkJet cp1700 Series, DeskJet 1180 Series, DeskJet 9300 Series, DeskJet 1280 Series
C3801-40100 Flag - Paper detect flag - Mounts on bottom of media chassis - Used to detect edge of paper
C3801-40119 Flag - Paper detect flag - Located on the back, left, rear of the print mechanism - Used to detect edge of paper
C5315A-Flag_ADF Flag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly
C5315A-Flag_Paper Flag Paper - OOPS flag - out of paper sensor
C5315A-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.
C5315A-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons
C3801-40126 Gear - Kick gear cluster (Dual gear)
C3801-40152 Gear - Drive gear cluster (Dual gear)
C5315A-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor
C5315A-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station
C5315A-Gear_Double Gear Double - Transfer gear - has double gear attached on service station
C5315A-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.
C5315A-Gear_Station Gear Station - Gears on shaft of spittoon station
C5315A-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.
C5315A-Glass_Assy Glass Assembly - Main top copier glass assembly.
C5315A-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken
C5315A-Hinge_Cvr Hinge - Single cover end M-Hinge, Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges, this price includes 1pc Hinge.
C5315A-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.
C5315A-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.
C5315A-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly
C5315A-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly
C6049A Iron On Transfers - Iron-On Transfers for DeskJet 2500C Series, HP DeskJet D1400 Printer Series, DeskJet D24XX Series, DeskJet F4180 Series
C3801-40147 Lever - Lever - Used to manually release the pinch roller pressure on the main drive rollers to allow paper removal
C5315A-Lid_Cover_Assy Lid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.
C6659-60002 LIU Module - Line Interface Unit (LIU) - Plug-in fax/phone line module - Does NOT come with LIU to wall socket cable (USA and Canada)
C6663-60069 LIU Module - Line interface unit (LIU) - Plug-in fax/phone line module - Includes attached LIU to wall socket cable (for USA)
C3801-90091 Manual - Control panel removal and replacement instruction guide (English)
C5313-90001 Manual - C5313A/C5314A/C5315A HP OfficeJet Series 600 Users Guide
C5313-90021 Manual - HP OfficeJet Series 600 Ready, Setup, Go quick start guide (English)
C3801-60005 Motor - Carriage drive motor assembly (includes gear only for black carriage drive belt with small teeth)
C3801-60092 Motor - Paper advancement motor assembly (includes gear)
C5324-60024 Motor - Carriage drive motor assembly (includes gear only for gray carriage drive belt with very small teeth)
C5315A-Motor_ADF Motor ADF - ADF motor unit - drives ADF rollers on the feeder assembly
C5315A-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly
C5315A-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.
C5315A-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly
C5315A-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
C5316-60010 Overlay - Control panel overlay (Quartz Gray) - For the OfficeJet 630 - Snaps on top of the control panel assembly (English)
C3801-40128 Pad - Pad installed in the scanner cover assembly - Used along with pad spring to maintain pressure against friction pad
C3801-80046 Pad - Mylar pad - Installed in the scanner cover assembly under the friction pad
C3801-80051 Pad - Separator pad - Mounts on the media chassis assembly
C5315A-Pad_ADF Pad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.
C5315A-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing
51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets
51634Z Paper - InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
C1812A Paper - Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes
C1820A Paper - Banner paper - A size (8.5 x 11-inches), 24 lb, perforated for easy separation - 100 sheets total per pack (5 stacks of 20 continuous sheets)
C1824A Paper - Bright White InkJet Paper - A size (8.5 x 11-inches) - 500 sheets
C1825A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 500 sheets
C3831A Paper - Paper (Glossy) for DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series, DeskJet 660 Series
C3833A Paper - Premium Glossy InkJet Paper - A size (8.5 x 11-inches) - 10 sheets
C5973A Paper - Premium glossy paper - A size (8.5 x 11-inches) - 25 sheets per package
C5976A Paper - Bright white InkJet paper - A size (8.5 x 11-inches) - 200 sheets per package
C5976B Paper - Bright White InkJet Paper - A size (8.5 x 11-inches) - 250 sheets
C5977A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 200 sheets
C5977B Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 250 sheets
C6039A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
C6044A Paper - HP Photo Greeting Cards (Glossy) - A size (8.5 x 11-inches) - 10 scored half-fold glossy cards and envelopes
C6587AN Paper - Printable Expressions all occasions card kit - Includes 20 greeting cards and envelopes, and a CD-ROM with 24 original pieces of art
C6817A Paper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets
C6828A Paper - Greeting card paper pack (Ivory, Matte) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes
C6831A Paper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets
C6944A Paper - Premium Plus Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in) - 20 sheets
C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
C6979A Paper - Premium Photo Paper (Glossy) - A size (8.5 x 11-inches) - 50 sheets
C6983A Paper - Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package
C7007A Paper - Photo Quality InkJet Paper (Matte) - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets
C7013A Paper - Colorfast photo paper - A size (8.5 x 11-inches) - 20 sheets per package
C7018A Paper - Photo Greeting Cards (White, Matte) - A size (8.5 x 11-inches), half fold, pre-scored - Includes 20 cards and 20 envelopes
C7019A Paper - HP Textured Half-fold Greeting Cards (White) - A size (8.5 x 11-inches)
C7020A Paper - Scored Tri-fold Brochure Paper (Glossy) - A size (8.5 x 11-inches) - 100 sheets
Q7852A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
C5315A-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only
C5316-60101 PC Board - Main Logic PC Board - Mounted in Base of OfficeJet
C5316-69002 PC Board - Main logic PC board
C6659-60190 PC Board - Pen driver PC board
C6659-60194 PC Board - Lamp driver PC board - Drives the scanner lamp
C5315A-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.
C5315A-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs
C3801-00029 Plate - Plate/bracket - Installed in the scanner cover assembly over the pre-feed spring
C3801-60167 Plunger - Plunger assembly
8120-6326 Power Cord - Power cord (Dove Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in Australia, New Zealand, and China)
8120-6329 Power Cord - Power cord (Dove Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 240V in South Africa and India)
8120-6330 Power Cord - Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Denmark)
8120-6331 Power Cord - Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Switzerland)
8120-6809 Power Cord - Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in the U.K., Hong Kong, Singapore, Malaysia)
8120-6811 Power Cord - Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 220V in Europe, Saudi Arabia, South Africa, India, and Korea)
8120-6870 Power Cord - Power cord (Dove Gray) - 2.0m (6.6ft) long - Has straight (F) C13 receptacle (For 220VAC in Argentina)
8120-6978 Power Cord - Power cord (Dove Gray) - 18 AWG, 2.0m (6.6ft) long - Has straight (F) C13 receptacle (For 220VAC in Chile)
8120-8384 Power Cord - Power cord (Flint Gray) - 1.8m (6.0ft) long - Has straight (F) C13 receptacle (For 120VAC in the United States, Canada, Mexico, Philippines, and Taiwan)
C5315A-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
C5315A-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
C5315A-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord
C5315A-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).
C5319-60001 Power Supply - Power Supply : Power supply assembly - Does not include rear panel power socket/power cable assembly
C6659-60055 Power Supply - Power supply assembly - Does not include rear panel power socket/power cable assembly
C5315A-Power_Supply_BRD Power Supply Board - High voltage power supply board
C3801-69038 Print Mechanism - Print mechanism assembly - Includes motors, carriage drive belt, carriage assembly, service station, sled, starwheel assembly, and pen driver PC board
C5315A-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.
C5315A-Pulley Pulley - Paper pick up tray motor pulley.
C5315A-Pulley_ADF Pulley ADF - ADF feeder motor pulley
C5315A-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
C3801-20002 Rod - Carriage rod - Shaft that the carriage assembly rides on
C5315A-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on
C5315A-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on
C3801-60015 Roller - Pick roller assembly - Short wide roller
C3801-60051 Roller - Pick roller assembly - Long shaft with multiple rollers - Used in automatic sheet feeder
C5315A-Roller_ADF Roller ADF - Feeder ADF roller for picking up paper from ADF unit.
C5315A-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.
C5315A-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray
C5315A-Scanner Scanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
C5316-60108 Scanner - Scanner assembly - Includes lamp
C5315A-Scanner_Assy Scanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
C5315A-Scanner_Belt Scanner Belt - Scanner belt attaches from the scanner to the scanner motor.
C5315A-Scanner_Cable Scanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.
C5315A-Scanner_Motor Scanner Motor - Scanner driving motor
C5315A-Scanner_Unit Scanner Unit - Scanner unit includes the entire scanner base, but not the ADF portion.
1990-1972 Sensor - Optical sensor for HP OfficeJet 700 Series
C5315A-Sensor_ADF Sensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly
C5315A-Sensor_Exit Sensor Exit - Exit media sensor sv
C5315A-Sensor_Open Sensor Open - Door sensor assembly - open door sensor
C5315A-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray
C5315A-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.
C5315A-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.
C5315A-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
C6659-10101 Service Manual - Service manual, technical support solutions guide and user's guide CD-ROM for print/scan/copy 370/380, OfficeJet 500/520/570/580/590/600/610/630/635/700/710/720/725, fax 910/920, OfficeJet Pro 1150/1170/1175, color copier 140/150
C3801-40029 Service Parts - Gear ASF/ADF
C3801-40102 Service Parts - Flag-ADF
C3801-40104 Service Parts - Shaft-ADF PK Rlr
C3801-40118 Service Parts - HSG-ADF Sensor
C3801-40127 Service Parts - Background-White
C3801-40160 Service Parts - Cushion Foam Endcap
C3801-40169 Service Parts - Plastic Sheet
C3801-60004 Service Parts - Assy-Carr W/Flex
C3801-60011 Service Parts - Actuator-SOL
C3801-60025 Service Parts - Ay-Media Chassis
C3801-60038 Service Parts - ASSY-Print Mech
C3801-60047 Service Parts - Front Pnl Assy/US
C3801-60049 Service Parts - Assy Swing-arm
C3801-60159 Service Parts - Order C6659-60002
C3801-80025 Service Parts - Cable-ADF Sensor
C3801-80042 Service Parts - Spring Extension
C3801-80057 Service Parts - Ca Actuator SOL
C3801-80083 Service Parts - Shield-Main PCA
C5316-00001 Service Parts - Label Serial
C5316-60016 Service Parts - Front Panel ASSY 600
C3801-60002 Service Station - Print cartridge service station assembly
C5315A-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position
C5316-80004 Shield - Main PC board shield
C3801-60044 Sled - Service station sled assembly - Mounts on top of the service station - Performs capping and wiping functions for the print cartridges
C5315A-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly
C5316-80011 Sleeve - Document carrier sleeve - 2 full size and 2 half size sleeves - Sleeve sealed on three sides
C5315A-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.
C3801-60021 Speaker - Speaker assembly
C5315A-Speaker Speaker - Speaker assembly - includes speaker cable.
C3801-60043 Spitton - Spittoon assembly - Holds excess ink from cartridges
C5315A-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process
C3801-00003 Spring - Encoder strip spring
C3801-00019 Spring - Spring for the carriage belt tension arm
C3801-00025 Spring - Pre-feed spring (rectangular)
C3801-80024 Spring - Gimbal spring - Coil spring installed in the scanner cover assembly located under the gimbal
C3801-80031 Spring - ASF plunger spring under the ADF separator
C3801-80071 Spring - Torsion spring - For paper detect flag
C5315A-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge, for carriage belt tension
C3801-60156 Starwheel - Starwheel assembly - Includes starwheel chassis assembly and starwheels
C6822A Stickers - Round re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) round stickers with 3M 'Post-it' adhesive - A size (8.5 x 11-inches) - 10 sheets per package with nine stickers per sheet
C6823A Stickers - Square re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) square stickers with 3M 'Post-it' adhesive - A size (8.5 x 11-inches) - 10 sheets per package with nine stickers per sheet
C3801-80004 Strip - Encoder strip - Used to determine carriage position
C3801-00096 Tool - Hook tool - Special tool required to release the back edge locking tab on the control panel
C5315A-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.
C3801-40055 Tray - Paper output tray - Quartz Gray
C3801-60094 Tray - Automatic document feeder (ADF) tray - Quartz Gray
C5315A-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).
C5315A-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.
C5315A-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.
C5315A-Window Window - Top/front access door assembly - print cartridge access door window.

bottom bar

Helpfull Links:   | HP Printer Parts 1 2 3 4 5 | SmartSearch |
Home
       Contact Us        Support       Order Status       Site Map

Copyright © 2016 Partshere.com   Privacy Policy     Terms and Conditions     Send us your Feedback
