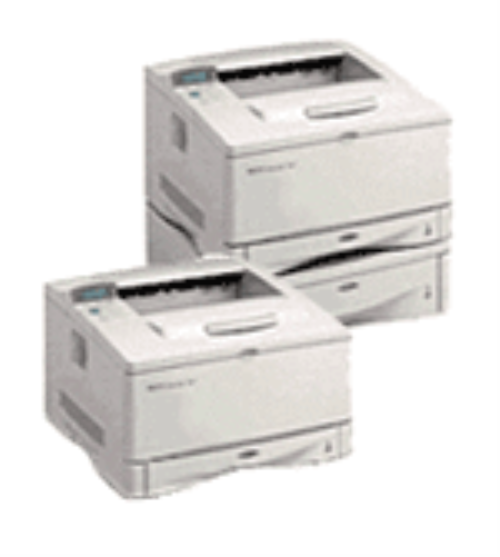

C5620A d640 high-volume printer 120-127v

HP d640 high-volume printer 120-127v (C5620A)

MFG Part Number: C5620A

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

HP parts list for C5620A HP d640 high-volume printer 120-127v

5188-6700 Adapter - Universal AC power adapter - wide-range, 40c - Requires separate country-specific power cord with C7 connector

CA02542-0151FJ Belt - Exit belt - Driven by exit motor

CA02542-0155FJ Belt - Tray timing belt - Part of high capacity output (HCO)

CA98001-6942FJ Belt - Drive unit e belt - Drives ejection unit

CA98001-6943FJ Belt - Paper transport belt - Drives feed rollers

CA31214-C014FJ Bezel - Control panel bezel - Has cutouts for display and standby switch

B96L07200001AFJ Brush - Blower brush - Stored in front cover

CA02542-0154FJ Brush - Antistatic brush

CA02626-0922FJ Brush - Antistatic brush - Eliminates static charge on paper

CA71002-1843FJ Cable - Ribbon cable for HP 5000 D640

CA71002-1891FJ Cable - Cable assembly for HP 5000 D640

CA02626-E049FJ Circuit Breaker - Circuit breaker/power switch

CA04192-E021FJ Cleaner - Developer spill rework kit - Includes foam and mylar gaskets for leaking developer problem - Also includes new tray labels and rear paper fence

B86L24100880AFJ Clutch - Registration roller clutch

CA02626-E401FJ Cover - Paper path transport cover assembly - Has three rollers mounted on cover

CA31214-0200FJ Cover - Top cover - Holds paper after printing

CA31214-0210FJ Cover - Control panel cover - Display and STANDBY switch mounted to cover

CA31214-0280FJ Cover - Upper right side cover - `L` shaped fold down cover - Used to gain access to toner and developer bottles

CA31214-0300FJ Cover - Printer left side cover - Has cutout where optional high capacity output tray (HCO) paper guide is mounted

CA31214-0350FJ Cover - Bottom right cover

CA31214-0360FJ Cover - Left side base cover - Has cutouts for two popout plugs

CA31214-0370FJ Cover - Front bottom cover - Has cutout for circuit breaker

CA31214-E400FJ Cover - Rear cover - Has cutouts for AC receptacle, paper input and paper output accessory connectors

C5632B Developer - Developer mix kit

CA04192-E044FJ Developer - Developer assembly

CA31214-C026FJ Display - Operator panel display assembly

CA02542-0199FJ Door - Front door - Swing out door mounted on front - Part of high capacity output (HCO)

CA31214-0260FJ Door - Floppy disk drive door - Covers front of floppy disk drive

CA31214-C031FJ Door - Front door - Swings out from front of printer - Blower brush mounted in this door

CA81003-5651FJ Door - Swing out door - To load paper - Part of high capacity input (HCI)

CA02626-E732FJ Drive Assembly - Drive unit M - Assembly with four fans

CA02626-F600FJ Drive Assembly - Drive unit D - Mounted In rear large fans as viewed from rear

CA02950-1393FJ Drive Assembly - 1.2GB hard drive - Preloaded with fonts

CA31214-C016FJ Drive Assembly - 3.5-inch floppy disk drive

C5629A Drum - Photocopier drum kit - Includes drum, transfer assembly and package of wipes - Assembly with fold out handle on top

C5620-69084 Duplexer - Duplexer assembly - For 2 sided printing

CA02626-F900FJ Ejector - Ejection unit - Discharges paper to top of printer

CA02626-E125FJ Erase Unit - LED erase unit - Strip of LED'S

CA02626-E159FJ Fan - Tubeaxial fan - 12VDC

CA02626-E715FJ Fan - Tubeaxial fan - 120mm x 120mm, 24VDC

CA02626-E716FJ Fan - Tubeaxial fan - 120mm x 120mm, 12VDC

CA02626-E718FJ Fan - Tubeaxial fan - 80mm x 80mm, 24VDC

C5620-69033 Feeder - Tray 1 and 2 paper feed unit assembly

CA02626-E331FJ Feeder - Tray 3 paper feed unit assembly - For lower paper tray

CA81218-E091FJ Filter - Ozone filter - Mounted in rear cover

C5627A Fuser Assembly - Fusing assembly (For 100V to 127V operation) - Bonds the toner to the paper with heat - Includes fuser cleaning roller (User Installable)

C5628A Fuser Assembly - Fusing assembly (For 200V to 240V operation) - Bonds the toner to the paper with heat - Includes fuser cleaning roller (User Installable)

CA02542-0107FJ Gear - Feed roller gear

CA02542-0109FJ Gear - Guide gear - Mounted on end of reverse roller - Part of high capacity output (HCO)

CA02626-E660FJ Gear - Drive unit `E` - Two sets of belt driven gears

CA02542-0145FJ Gear Assembly - Feed motor gear assembly

CA04267-E501FJ Guide - Transfer guide assembly (Has a handle in front)

CA04192-E012FJ Latch - Paper path transport cover latch

CA98001-3336FJ Latch - Front and side cover latch

C5620-90001 Manual - HP 5000 model D640 cut sheet printer paper specifications guide

C5620-90002 Manual - HP 5000 model D640 cut sheet printer technical reference manual

C5620-90015 Manual - HP 5000 model D640 cut sheet printer installation manual

C5620-90024 Manual - HP 5000 model D640 cut sheet printer users manual

C5620-90026 Manual - Manual for 5000 D640

C5635A Memory - 16MB, 60nS, 72-pin SIMM memory module

J2382-69003 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors

J2383-61005 Module - External token ring interface module - Has DB-9 connector

J2590-69001 Module - External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and three parallel (DB-25) output connectors

J2592-69001 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

J2593-69001 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) input connectors and three parallel (DB-25) output connectors w/power supply.

J3258-61021 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

J4102-61021 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

J4102-69022 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

CA02542-0115FJ Motor - Feed motor - Drives feed and reverse rollers

CA02542-0149FJ Motor - Paper exit motor

CA02542-0180FJ Motor - Offset motor assembly

CA02542-0194FJ Motor - Paper Tray motor

CA02626-E157FJ Motor - Paper lift motor assembly - Lifts paper from paper tray

CA02626-E441FJ Motor - Feed roller drive motor

CA81003-5654FJ Motor - Motor KMOT - Drives paper feed mechanism

CA81003-5655FJ Motor - Motor HMOT - Drives elevator

CA02625-D115FJ Optical Unit - Optical unit - Assembly with glass bottom

CA02542-0181FJ PC Board - Main control board

CA02626-E044FJ PC Board - Mechanism controller board

CA31214-C028FJ PC Board - Main controller board - Board that floppy and hard disk drives are mounted to

CA81003-5656FJ PC Board - Board A for HP 5000 D640

CA81003-5657FJ PC Board - Board B for HP 5000 D640

J2590A PC Board Interface - External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and 3 parallel (DB-25) output connectors

J2591-69001 PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors

J2591A PC Board Interface - External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors

J2594-69001 PC Board Interface - External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and three parallel (DB-25) output connectors

J3258-61041 PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN

J3258B PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN

J3264A PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45) LAN

J3265-69001 PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T and ThinLAN) (10Base-2) input connectors and three parallel (DB-25) output connectors

J3265G PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN

J4101B PC Board Interface - HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network

J4102B PC Board Interface - External JetDirect LAN interface module with EtherTwist (10Base-T) connector

C5630A PostScript - PostScript level 2 upgrade - Includes 16MB SIMM and driver

8120-1351 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, Malaysia, and Brunei)

8120-1369 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in Australia, New Zealand, and China)

8120-1378 Power Cord - Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)

8120-1689 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Europe, Bangladesh, Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam)

8120-2104 Power Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Switzerland)

8120-2956 Power Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Denmark)

8120-4753 Power Cord - Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 100V in Japan)

8120-6302 Power Cord - Daisy chain power cord (Dove Gray) - 18 AWG, 1.2m (4.0ft) long - Has C14 (M) plug for power input and C13 (F) plug for power output

0950-3169 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0950-3171 Power Module - Power supply module - 220-240VAC input, 47-53Hz - 13VDC output, 300mA (U. K. and Hong Kong)

0950-3172 Power Module - Power supply module - 240VAC input, 47-53Hz - 13VDC output, 300mA (Australia)

0950-3350 Power Module - Wall mount power supply module (Leader Electronics 48130625HK) - 200VAC input, 48-52Hz - 13VDC output, 625mA (Hong Kong)

0950-3352 Power Module - Wall mount power supply module (MEI-AH ED12010) - 100VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for use in Japan)

0950-3354 Power Module - Wall mount power supply module (MEI-AH ED12010) - 220-250VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts (South Africa)

0957-2197 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0957-2340 Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0957-2481 Power Module - Pwra brk uni 12vdc 15w

5188-5676 Power Module - Power module (wall mount) - Input voltage 100VAC, 47/63Hz - Output voltage 13VDC, 800mA, 10.4 watts (for use in Japan)

9100-5176 Power Module - Pwer supply, 13v/300ma jpn

0950-2623 Power Supply - Switching power supply (Delta DPS-158ABA) - 100-240VAC input, 47-63Hz - Four DC outputs (5.15V, +12V, -12V, 24V) - 158 watts - Includes upgrade sticker

0957-2192 Power Supply - Power supply module - 209-253VAC input, 47-53Hz - 13VDC output, 800mA (Europe and Israel)

0957-2194 Power Supply - Wall mount power supply module (MEI-AH ED12009) - 220VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (South Korea)

0957-2228 Power Supply - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.

0957-2229 Power Supply - Power module (wall mount)- Input voltage 220-250VAC, 47/53Hz - Output voltage 13VDC, 800mA, 10.4W (Worldwide)

5188-5673 Power Supply - Universal AC power adapter - wide-range, 40c - Requires separate country-specific power cord with C7 connector Power supply module - 120VAC input, 60Hz - 12VDC output, 1.0A

CA02542-0160FJ Power Supply - Power supply - 120VAC input

CA02542-0162FJ Power Supply - Power supply - 240VAC input

CA04192-E034FJ Power Supply - Low voltage and high voltage power supply kit

J4101-61011 Print Server - External JetDirect LAN interface module with EtherTwist 10Base-T/100BaseTX connector

CA02542-0146FJ Pulley - Exit motor pulley - Mounted on exit motor shaft - Drives exit belt - Part of high capacity output (HCO) assembly

CA98001-6948FJ Relay - Power sequencing relay (Power saver relay)

C5620A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

CA02626-G800FJ Reversing Unit - Reversing unit for HP 5000 D640

C5636B Roller - HCI pick roller kit - Includes upper pick roller assembly and the lower roller assembly

CA02542-0140FJ Roller - Reverse roller - Mounted near feed roller - Part of high capacity output (HCO)

CA02542-0141FJ Roller - Feed roller - Belt driven roller that feeds paper into HCO - Part of high capacity output (HCO)

CA02542-0196FJ Roller - Exit idler roller assembly - Includes four idler rollers mounted on a shaft - Part of high capacity output (HCO)

CA02542-E003FJ Roller - Exit roller/pulley kit

CA02626-E118FJ Roller - Lower registration roller and brackets - Roller shaft with metal mounting brackets - Shaft has five white hard plastic

CA02626-E147FJ Roller - Registration roller - Shaft with five roller - Roller before photocopier drum

CA02626-E406FJ Roller - Transport cover roller - Shaft with two rollers mounted in paper path transport cover

CA81218-E094FJ Roller - Fuser cleaning roller - Mounted in fusing assembly

B86L24100822AFJ Sensor - Sensor assembly - Includes paper path de-curling sensor, waste toner sensor, and paper level sensor

CA02542-0122FJ Sensor - Guide sensor for HP 5000 D640

CA02542-0152FJ Sensor - Paper jam sensor

CA02542-0201FJ Sensor - Tray top and Hi-Top sensors

CA02951-5075FJ Sensor - Stacker full sensor

CA55002-0337FJ Sensor - Duplexer paper path sensor

CA55003-1612FJ Sensor - Reversing unit paper sensor

C5620A-Manual_Laser Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

CA02542-0150FJ Solenoid - Guide solenoid for HP 5000 D640

CA31214-0416FJ Strap - Front door strap

CA31214-0417FJ Strap - Upper right side door strap - Mounted to front of chassis

CA31214-0418FJ Strap - Upper right side door strap - Mounted to rear of chassis

CA02542-0138FJ Switch - Power switch - Part of High Capacity Output (HCO)

CA02542-0158FJ Switch - Tray bottom switch - Part of High Capacity Output (HCO)

CA02542-0206FJ Switch - Microswitch - Part of High Capacity Output (HCO)

CA02626-E142FJ Switch - Tray detection switch

CA98001-6946FJ Switch - Interlock switch - Senses when door or cover is open

CA02626-E250FJ Toner Hopper - Toner hopper - Assembly where toner and developer are added to printer

CA81218-E093FJ Transfer Assembly - Transfer assembly - Transfers image from photocopier drum to paper

RG5-3579-020CN Transfer Assembly - Transfer Roller Assembly

C5625A Tray - 500 sheet paper input tray

C5634-60101 Tray - 500 sheet paper input tray

C5634A Tray - 500 sheet paper input tray

d640 high-volume printer 120-127v parts list
