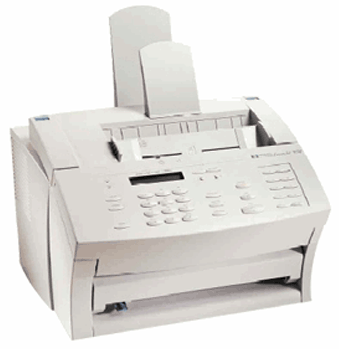

C7082A - LaserJet 3150xi



HP LaserJet 3150xi (C7082A)


MFG Part Number: C7082A

Printer Support
Printer Support Techical Help HP Service Manual paper book for HPLaserJet 3150xi Buy the full service manual
OEM HP Parts List for HP LaserJet 3150xi View full list of service parts
See HP parts for this model:

HP printer parts available for C7082A HP LaserJet 3150xi Printer

RB1-7293-020CN Arm - Paper exit sensor arm - RB1-7293-020CN
C3948-40010 Bezel - I/O bezel - I/O connector bezel - C3948-40010
RB1-7184-000CN Bushing - Pickup roller bushing - RB1-7184-000CN
RB1-7246-000CN Bushing - Pressure roller bushing - RB1-7246-000CN
RB1-7288-020CN Bushing - Exit roller bushing - RB1-7288-020CN
RB2-1690-000CN Bushing - Fuser exit roller bushing - RB2-1690-000CN
5063-1254 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin high density IEEE 1284C (M) connector (type C) - 3.0m (9.8ft) long -- Mini Connector - 5063-1254
5063-1255 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin high density IEEE 1284C (M) connector (type C) - 10m (33ft) long mini-connector. - 5063-1255
5064-3422 Cable - Telephone cable (Australia, New Zealand) - 5064-3422
8121-0811 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain) - 8121-0811
8121-1037 Cable - IEEE 1284 Bi-Tronics parallel interface cable - DB-25 (M) connector (type A) to IEEE 1284C 36-pin (M) connector (type C) - 2.0m (6.6ft) long - 8121-1037
C2946A Cable - 8120-8724 IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin high density IEEE-1284C (M) connector (type C) - 3.0m (9.8ft) long mini connector. - C2946A
C2947A Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin high density IEEE 1284C (M) connector (type C) - 10m (33ft) long - C2947A
C3948-60102 Cable - Ribbon cable - Has 30-pin (M) connectors - 9.1cm (3.6in) long - C3948-60102
C3948-60112 Cable - Telephone cable (Australia/Ireland) - C3948-60112
C3948-60113 Cable - Telephone cable with ferrite - The wall socket end has both a 4-pin (M) connector and a 4-pin (F) tap - The other end has an RJ-ll (M) connector - 2.9m (9.7ft) long (United Kingdom) - C3948-60113
C3948-60114 Cable - Telephone cable (Netherlands) - C3948-60114
C3948-60115 Cable - Telephone cable (France) - C3948-60115
C3948-60116 Cable - Telephone cable (Germany) - C3948-60116
RG5-2029-000CN Cable - Cable assembly for HP LaserJet 5L Series - RG5-2029-000CN
RG5-2032-000CN Cable - Cable assembly for HP LaserJet 5L Series - RG5-2032-000CN
RG5-2033-000CN Cable - Cable assembly for HP LaserJet 5L Series - RG5-2033-000CN
RG5-2035-000CN Cable - Cable assembly for HP LaserJet 5L Series - RG5-2035-000CN
RG5-3661-000CN Cable - Cable assembly for HP LaserJet 6L Series - RG5-3661-000CN
RG5-3662-000CN Cable - Cable assembly for HP LaserJet 6L Series - RG5-3662-000CN
RG5-4233-000CN Cable - Cable assembly for HP LaserJet 3150 Series - RG5-4233-000CN
RG5-4237-000CN Cable - Grounding cable - Document scanner grounding cable - RG5-4237-000CN
RG5-4238-000CN Cable - CIS grounding cable - Scanner grounding cable - RG5-4238-000CN
RH2-5346-000CN Cable - Ribbon cable - Has two 26-pin (M) edge connectors - 15.1cm (6.0in) long - RH2-5346-000CN
5184-5205 Cartridge - Black (Micro-Fine) toner (EP) cartridge - Will print approximately 2,500 pages based on a 5 percent print density - 5184-5205
C3906A Cartridge - Black (Micro-Fine) toner (EP) cartridge - Will print approximately 2,500 pages based on a 5 percent print density - C3906A
WT2-0276-000CN Clamp - Wire clamp - Holds wire/cable in place - WT2-0276-000CN
WT2-0367-000CN Clamp - Cable clamp - Holds cable in place - WT2-0367-000CN
RB1-7223-000CN Clip - Pickup roller shaft grounding clip - RB1-7223-000CN
RB1-7197-000CN Clutch - Clutch - On left side of pickup roller assembly shaft - RB1-7197-000CN
RB1-7197-020CN Clutch - Clutch - On left side of pickup roller assembly shaft - RB1-7197-020CN
VS1-7177-002CN Connector - Fuser electrical connector - VS1-7177-002CN
RG5-4769-000CN Control_Panel - Control panel assembly - RG5-4769-000CN
RB1-7234-000CN Cover - Cap - Covers hole in chassis - Located on the front left side - RB1-7234-000CN
RB2-3341-000CN Cover - Right side chassis cover - RB2-3341-000CN
RB2-3345-000CN Cover - Engine self test switch cover - RB2-3345-000CN
RB2-3349-000CN Cover - Bottom front cover - RB2-3349-000CN
RB2-3360-000CN Cover - Left back side chassis cover - RB2-3360-000CN
RB2-3361-000CN Cover - Back side chassis cover - RB2-3361-000CN
RB2-3450-000CN Cover - Top front chassis cover - RB2-3450-000CN
RB2-3451-000CN Cover - Front left side chassis cover - RB2-3451-000CN
RB2-3452-000CN Cover - Pressure release lever cover - Paper jam release lever - RB2-3452-000CN
RB2-3468-000CN Cover - Left side printer door hinge cover - RB2-3468-000CN
RB2-3469-000CN Cover - Right side printer door hinge cover - RB2-3469-000CN
RG5-3474-020CN Delivery - Delivery assembly - Attaches to the lower center area of the internal chassis - Includes four White 'multi-ridged' and two other delivery rollers and their associated springs - RG5-3474-020CN
RG5-4770-000CN Door - Printer door assembly - RG5-4770-000CN
RG5-3485-030CN Feeder - Feed assembly - Has idler roller, sensor flag and paper input sensor - RG5-3485-030CN
RF5-2663-000CN Foot - Rubber foot - Replacement rubber foot for the bottom support (four used) - RF5-2663-000CN
RB1-7177-000CN Frame - Paper feed frame - Main frame that parts such as pickup roller assembly and separation pad are installed on - RB1-7177-000CN
RG5-4678-000CN Fuser_Assembly - Heating element assembly (For 100V to 120V operation) - Bonds the toner to the paper with heat - RG5-4678-000CN
RG5-4681-000CN Fuser_Assembly - Heating element assembly (For 220V to 240V operation) - Bonds the toner to the paper with heat - RG5-4681-000CN
RS5-0796-000CN Gear - Pressure roller shaft gear - RS5-0796-000CN
RY7-5005-000CN Gear - Gear kit - Includes first five gears on front left side area of the internal chassis - Gear kit #1 - RY7-5005-000CN
RY7-5007-000CN Gear - Fuser release assembly - Gear/tab assembly on left side of internal main chassis - Includes housing, two gears, and fuser release tab - RY7-5007-000CN
RY7-5036-000CN Gear - Gear kit '#3' - Includes first four gears driven by main motor - RY7-5036-000CN
RB1-7129-000CN Ground - Case grounding strap (metal) - RB1-7129-000CN
RB1-7130-000CN Guide - Fuser cable guide - RB1-7130-000CN
RB1-7176-000CN Guide - Sheet guide - Mylar strip paper guide - RB1-7176-000CN
RB1-7247-000CN Guide - Fuser Assembly paper guide - RB1-7247-000CN
RB1-7341-000CN Guide - Right side toner cartridge guide - RB1-7341-000CN
RB2-3350-000CN Guide - Formatter cable guide - RB2-3350-000CN
RB2-3365-000CN Guide - Sheet arching guide - 2 used - Mylar strips that direct paper to output bin - RB2-3365-000CN
RB2-3401-000CN Guide - Duct 1 - For Paper output and aids in cooling - RB2-3401-000CN
RB2-3401-040CN Guide - Duct 1 - For Paper output and aids in cooling - RB2-3401-040CN
RB2-3402-000CN Guide - Duct 2 - Helps provide heat dissipation - RB2-3402-000CN
RB2-3409-000CN Guide - Cable guide for HP LaserJet 3100 Series - RB2-3409-000CN
RB2-3436-000CN Guide - Document scanner guide - RB2-3436-000CN
RF5-1514-000CN Guide - Left side toner cartridge guide - Back half of guide - RF5-1514-000CN
RF5-1515-000CN Guide - Right side toner cartridge guide - Back half of guide - RF5-1515-000CN
RF5-1533-000CN Guide - Pressure roller ground guide - Protects pressure roller ground cable - RF5-1533-000CN
RF5-2358-000CN Guide - Transfer roller guide - RF5-2358-000CN
RG5-3452-000CN Guide - Transfer guide assembly (Ribbed plastic piece) - Mounting support for the transfer roller - RG5-3452-000CN
RG5-3475-000CN Guide - Separation guide assembly - Includes the face-up/face-down paper selection lever/deflector and Fuser Assembly exit roller assembly - RG5-3475-000CN
RG5-3478-000CN Guide - Paper guide - Inside spur assembly - RG5-3478-000CN
RG5-3479-000CN Guide - Paper guide - Outside spur assembly - RG5-3479-000CN
RG5-4768-000CN Guide - Upper paper guide - Guides paper through scanner path - RG5-4768-000CN
WT2-5178-000CN Guide - Cable guide - For the control panel cable - WT2-5178-000CN
WT2-5498-000CN Guide - Frame cable guide - WT2-5498-000CN
RB1-7107-000CN Holder - Gear holder - For gear kit #1 - RB1-7107-000CN
RB2-3366-000CN Holder - Formatter cable guide holder - RB2-3366-000CN
RB2-3465-000CN Holder - Left side hinge holder - RB2-3465-000CN
RB2-3466-000CN Holder - Right side hinge holder - RB2-3466-000CN
RG5-3453-000CN Interlock - Interlock assembly - Detects if EP (Toner) door is open - RG5-3453-000CN
RG5-3497-000CN Laser_Scanner - Laser/scanner assembly - RG5-3497-000CN
C7082A LaserJet - HP LaserJet 3150xi Printer - C7082A
RB1-7185-000CN Leg - Left leg - Small leg on left side of paper kick plate - RB1-7185-000CN
RB1-7186-000CN Leg - Right leg - Small leg on right side of paper kick plate - RB1-7186-000CN
RB1-7105-000CN Lever - Fuser release lever - Part of fuser release assembly - RB1-7105-000CN
RB2-3448-000CN Lever - Paper path lever - Selects 'In Order' or 'Straight Thru' - RB2-3448-000CN
RG5-3476-000CN Lever - Face-up/face-down shaft and media deflector - RG5-3476-000CN
CK-8006-000CN Lubricant - Grease for HP LaserJet 5L Series - CK-8006-000CN
H3975-60001 Maintenance_Kit - Maintenance Kit (120V) - Includes fuser, separation pad kit, transfer roller, pickup roller, exit roller assembly, and idler roller - Procedure may require service manual (sold separately). - H3975-60001
H3975-60002 Maintenance_Kit - Maintenance Kit (220V) - Includes fuser, separation pad kit, transfer roller, pressure roller, pickup roller, exit roller assembly and idler roller - Procedure requires service manual - H3975-60002
5851-1891 Manual - LaserJet quick reference service guide (monochrome) - Volume IV - 5851-1891
C4256-60107 Manual - Manual Kit for LaserJet 3150 Series, LaserJet 3100 Series - C4256-60107
C4256-90904 Manual - Manual for LaserJet 3150 Series - C4256-90904
C4256-90915 Manual - Manual for LaserJet 3150 Series - C4256-90915
C4256-90952 Manual - Manual for LaserJet 3150 Series - C4256-90952
C4256-90956 Manual - Manual for LaserJet 3100 Series, LaserJet 3150 Series - C4256-90956
RH7-1320-000CN Motor - HP Motor for LaserJets - RH7-1320-000CN
RH7-1376-000CN Motor - Scanner motor for HP LaserJet 3150 Series - RH7-1376-000CN
RB2-3346-000CN Mount - Speaker mount/cover - RB2-3346-000CN
RB2-3393-000CN Overlay - Keypad overlay - Allows customer to notate specific fax numbers to the one touch keypad - RB2-3393-000CN
HB1-2895-000CN Pad - Document scanner separation pad holder - HB1-2895-000CN
RB2-3430-000CN Pad - Separation pad - Document scanner separation pad - RB2-3430-000CN
RB2-4114-000CN Pad - Backing pad - Plastic backing support for separation pad - RB2-4114-000CN
RY7-5055-000CN Pad - Scanner separation pad kit - Kit includes separation pad, separation backing pad and separation pad holder - RY7-5055-000CN
RY7-5077-000CN Pad - Printer separation pad kit - Includes main pad, spring, and two smaller subpads - Also order pickup roller assembly (RY7-5008-000CN) - RY7-5077-000CN
C3948-60001 PC_Board - LIU - Phone line input unit - US only - C3948-60001
C3948-60002 PC_Board - LIU - Phone line input unit - World wide unit - C3948-60002
C3949-69002 PC_Board - Formatter (Main Logic) board - C3949-69002
RG5-4690-000CN PC_Board - ECU board - Engine controller unit/power system controller board - Logic and power supply combined PCA - 110V - RG5-4690-000CN
RG5-4691-000CN PC_Board - ECU board - Engine controller unit/power system controller board - Logic and power supply combined PCA - 220V - RG5-4691-000CN
RG5-3484-070CN Pickup_Assembly - Paper pickup assembly - RG5-3484-070CN
RB2-1632-000CN Plate - Gear support plate - For gear kit #2 - RB2-1632-000CN
RB2-3342-000CN Plate - Chassis bottom plate - RB2-3342-000CN
RB2-3364-000CN Plate - Formatter board mounting plate - RB2-3364-000CN
RB2-3467-000CN Plate - Grounding plate - Chassis ground clips - RB2-3467-000CN
RB2-4118-000CN Plate - Grounding plate - Chassis ground for back plate - RB2-4118-000CN
RF5-1517-000CN Plate - Fuser pressure plate - Guides paper over fuser roller - RF5-1517-000CN
RF5-2372-000CN Plate - Paper kick plate (middle) - RF5-2372-000CN
8120-6809 Power_Cord - Power cord (Dove Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in the U.K., Hong Kong, Singapore, Malaysia) - 8120-6809
8120-6810 Power_Cord - Power cord (Flint Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in Australia, New Zealand) - 8120-6810
8120-6811 Power_Cord - Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 220V in Europe, Saudi Arabia, South Africa, India, and Korea) - 8120-6811
8120-6812 Power_Cord - Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 120V in the USA, Canada, Mexico, Philippines, and Taiwan) - 8120-6812
8120-6813 Power_Cord - Power cord (dove gray) - 2.3M (7.5ft) long - Has straight (F) receptacle (For 240VAC in the United Kingdom, Hong Kong, Singapore, Malaysia) - 8120-6813
8120-6814 Power_Cord - Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Denmark) - 8120-6814
RB1-7334-000CN Protector - Jam prevention protector - Installs in the delivery assembly - Allows paper jams to be cleared without damaging the printer - RB1-7334-000CN
RB1-7226-000CN Roller - Idler roller - Shaft with roller on both ends - Part of feed assembly - RB1-7226-000CN
RB1-7284-000CN Roller - Delivery roller #1 - White 'Multi-ridged' roller - Four are used in delivery assembly - RB1-7284-000CN
RB2-1634-000CN Roller - Paper pickup roller for unit. This is the roller that goes on the paper pick up roller shaft - shaft roller assembly that feeds paper from paper input assembly. Roller only. (shaft and roller see part number RG5-3486-040CN) - RB2-1634-000CN
RB2-1685-000CN Roller - Delivery roller #2 - RB2-1685-000CN
RB2-1699-000CN Roller - Idler roller for feed assembly - RB2-1699-000CN
RF5-1534-000CN Roller - Transfer roller - Located underneath toner (EP) cartridge - RF5-1534-000CN
RF5-2364-000CN Roller - Pressure roller - Shaft/roller with gear on left side of roller located underneath the heating element - RF5-2364-000CN
RF5-2365-000CN Roller - Pressure roller - Shaft/roller with gear on left side of roller located underneath the heating element - RF5-2365-000CN
RF5-2367-000CN Roller - Exit roller assembly - Shaft with four black rollers - Rollers are aligned with and work in conjunction with the white 'Multi-ridged' rollers of the delivery assembly - RF5-2367-000CN
RF5-2368-000CN Roller - Fuser exit roller assembly - Shaft and rollers - Attaches to separation guide assembly - RF5-2368-000CN
RG5-3486-040CN Roller - Pickup roller assembly - Shaft/roller assembly that feeds paper from paper input assemblies - Also order separation pad kit - RG5-3486-040CN
RG5-4772-000CN Roller - Paper pickup roller assembly for document scanner - RG5-4772-000CN
RG5-4239-000CN Scanner - Contact image sensor assembly - Scanner LED - RG5-4239-000CN
RG5-4771-000CN Scanner - Document scanner assembly - Includes motor, rollers and guides - Does NOT include image sensor assembly - RG5-4771-000CN
RY7-5009-000CN Sensor - Paper sensor flag/arm - Detects leading and trailing edges of paper - RY7-5009-000CN
RF5-1492-000CN Separator - HEWLETT PACKARD Laserjet sub pad assembly right and left pads. - RF5-1492-000CN
C7082A-Manual Service_Guide - HP LaserJet 3150 Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams. - C7082A-Manual
C7082A-Manual Service_Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams. For LaserJet 3150xi - C7082A-Manual
C7082A-Repair Service_Printer - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available. For LaserJet 3150xi - C7082A-Repair
RG5-1947-000CN Shaft - Idler roller shaft assembly - RG5-1947-000CN
C3948-00002 Shield - RFI shield for HP LaserJet 3100 Series - C3948-00002
RF5-2664-000CN Shield - Back shield - Reinforcement plate - RF5-2664-000CN
C5316-80011 Sleeve - Document carrier sleeve - 2 full size and 2 half size sleeves - Sleeve sealed on three sides - C5316-80011
RB2-3351-000CN Sleeve - Cable sleeve - Protective tube for control panel cable - RB2-3351-000CN
C6072-60304 Software - Software for LaserJet II, LaserJet III, LaserJet 4 Series, LaserJet 4L Series - C6072-60304
C6072-60305 Software - Software for LaserJet 8000 Series, Color LaserJet 4500 Series, LaserJet 5000 Series, LaserJet 4000 Series - C6072-60305
C6072-60306 Software - Software for LaserJet 2100 Series, LaserJet 3100 Series, LaserJet 6P Series, LaserJet 8100 Series - C6072-60306
C6072-60307 Software - Software for LaserJet II, LaserJet III, LaserJet 4 Series, LaserJet 4L Series - C6072-60307
RH7-5139-000CN Solenoid - Paper pickup solenoid - RH7-5139-000CN
RB2-3347-000CN Spacer - ECU PC board spacer between PC board and bottom plate - RB2-3347-000CN
RB2-3454-000CN Spacer - Spacer - Between cable guide and printer door on left side - RB2-3454-000CN
RH6-3845-000CN Speaker - Speaker for HP LaserJet 3100 Series - RH6-3845-000CN
RB1-7172-000CN Spring - Grounding spring - Grounds kick plate - RB1-7172-000CN
RB1-7199-000CN Spring - Grounding spring - Grounds transfer guide - RB1-7199-000CN
RB1-7286-000CN Spring - Spring - Used with the #1 delivery rollers - RB1-7286-000CN
RB1-7287-000CN Spring - Spring - Used with the #2 delivery rollers (two used) - RB1-7287-000CN
RB1-7294-000CN Spring - Spring - For paper exit sensor arm - RB1-7294-000CN
RS5-2501-000CN Spring - Spring - Located underneath paper kick plate - RS5-2501-000CN
RS5-2508-000CN Spring - Compression spring - Provides tension for pressure plate - RS5-2508-000CN
RB2-3354-000CN Strap - Door strap - ADF door support - RB2-3354-000CN
RB1-7255-000CN Support - Left side pressure roller support - RB1-7255-000CN
RB1-7256-000CN Support - Right side pressure roller support - RB1-7256-000CN
RB2-3581-000CN Torque_Limiter - Torque limiter - Limits rotation of feed rollers - RB2-3581-000CN
RB2-3362-000CN Tray - Printer paper input tray - Rear paper input support - RB2-3362-000CN
RB2-3410-000CN Tray - Printer paper output tray - Behind scanner input support - RB2-3410-000CN
RB2-3455-000CN Tray - ADF input tray - Automatic document feeder input support - RB2-3455-000CN
RB2-3470-000CN Tray - ADF output paper tray - Automatic document output support - RB2-3470-000CN
RG5-3488-000CN Tray - Input bin assembly - Paper input supply bin - RG5-3488-000CN
RG5-4763-000CN Tray - Single sheet input slot - Manual feed tray - RG5-4763-000CN

bottom bar

Helpfull Links:   | HP Printer Parts 1 2 3 4 5 | SmartSearch |
Home
       About Us       Contact Us        RFQ       Support       Site Map

Copyright© 2014 Partshere.com   Privacy Policy  Terms and Conditions     Send us your Feedback
