HP printer parts available for

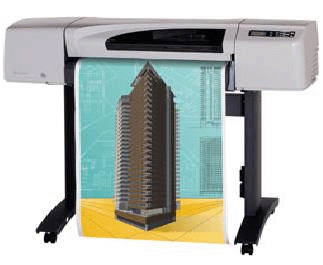

C7769C HP DesignJet 500PS - 24-in/PS Printer
|
| C7769-60182 |
Belt - Carriage belt - Drives the carriage assembly (24-inch) -
C7769-60182 |
| C7770-60023 |
Bin - Media bin (Flint gray) - Plastic tray that mounts to the printer stand legs -
C7770-60023 |
| C7770-60148 |
Bin - Media bin (Flint gray) - Plastic tray that mounts to the printer stand legs - For 42-inch plotters -
C7770-60148 |
| C7780-60002 |
Bin - Media bin (Graphite gray) - Plastic tray that mounts to the printer stand legs -
C7780-60002 |
| C7781-60007 |
Bin - Media bin (Flint gray) - Plastic tray that mounts to the printer stand legs - For 24-inch plotters -
C7781-60007 |
| C7782-60001 |
Bin - Media bin (Flint gray) - Plastic tray that mounts to the printer stand legs -
C7782-60001 |
| C7769-60219 |
Brace - Foot brace assembly - For 24-inch plotters -
C7769-60219 |
| C7770-60031 |
Brace - Foot brace assembly - for 42-inch plotters -
C7770-60031 |
| C7769-60156 |
Bracket - Service station bracket - Installed on right-side of service station -
C7769-60156 |
| C7769-60391 |
Bracket - Service station bracket - Installed on right-side of service station -
C7769-60391 |
| C7769-60169 |
Bushing - Cutter bushing for HP DesignJet 510ps -
C7769-60169 |
| C2392A |
Cable - Universal serial bus (USB) interface cable - Type 'A' connector to type 'B' connector - 5.0m (16ft) long -
C2392A |
| C2951A |
Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m (9.8ft) long -
C2951A |
| C7769-60295 |
Cable - Carriage assembly trailing cable kit - Includes trailing cables, does not include instructions or clips - Cables are 1.4m (4.7ft) long with 30 pin (M) edge connectors - For 24-inch models. -
C7769-60295 |
| C7769-60298 |
Cable - Ribbon cable kit - Includes installation instructions and ribbon cable with ferrite - Cable has 40 pin (F) connectors - 1.6m (5.1ft) long -
C7769-60298 |
| C7769-60305 |
Cable - Carriage assembly trailing cable kit - Includes trailing cables, does not include instructions or clips - Cables are 1.4m (4.7ft) long with 30 pin (M) edge connectors - For 24-inch models. -
C7769-60305 |
| C7770-60267 |
Cable - Ribbon cable kit - Includes installation instructions and ribbon cable with ferrite - Cable has 40 pin (F) connectors - 2.0m (6.5ft) long -
C7770-60267 |
| C6771A |
Canvas - Studio canvas (368 gsm) - 91.4cm (36in) x 10.7m (35ft) roll - For regular ink or UV resistant ink -
C6771A |
| C7769-40153 |
Cap - Hewlett Packard (HP)Hub spindle blue or black svc cap. Cap supports roll paper, spindle takes one on each side. Part number is for one pc. -
C7769-40153 |
| H3642E |
Care_Pack - HP 4 year Next business day Onsite DesignJet 500 Hardware Support -
H3642E |
| H3643E |
Care_Pack - HP 5 year Next business day Onsite DesignJet 500 Hardware Support -
H3643E |
| H4518E |
Care_Pack - HP Network installation DesignJet T23-71XX/400-6200 service -
H4518E |
| H4610PE |
Care_Pack - HP 1 year Post Warranty Next business day Onsite DesignJet 500 Hardware Support -
H4610PE |
| H5652E |
Care_Pack - HP 3 year Next business day Onsite DesignJet 500 Hardware Support -
H5652E |
| HC131PE |
Care_Pack - HP 1 year Post Warranty Phone Assistance DesignJet Midrange Printers Service -
HC131PE |
| U9893E |
Care_Pack - HP Maintenance Kit Replacement DesignJet 5x0/800 24-inch Service -
U9893E |
| US280PE |
Care_Pack - HP 2 year Post Warranty Next business day Onsite DesignJet 500 Hardware Support -
US280PE |
| C7769-60151 |
Carriage - Printhead carriage assembly - Includes carriage, bushings, pen latches, carriage position sensor, and line sensor -
C7769-60151 |
| C7769-60272 |
Carriage - Printhead carriage assembly - Includes carriage, bushings, pen latches, carriage position sensor, and line sensor -
C7769-60272 |
| C7769-60376 |
Carriage - Printhead carriage assembly - Includes carriage, bushings, pen latches, carriage position sensor, and line sensor -
C7769-60376 |
| C7769-69272 |
Carriage - Printhead carriage assembly - Includes carriage, bushings, pen latches, carriage position sensor, and line sensor -
C7769-69272 |
| C7769-69376 |
Carriage - Printhead carriage assembly - Includes carriage, bushings, pen latches, carriage position sensor, and line sensor -
C7769-69376 |
| C4844-60053 |
Cartridge - HP 10 High Capacity Black Ink Cartridge - 69ml, prints approximately 1400 pages at 5% printing density (USA) -
C4844-60053 |
| C4844A |
Cartridge - HP 10 High Capacity Black Ink Cartridge - 69ml, prints approximately 1400 pages at 5% printing density (USA) -
C4844A |
| C4844AA |
Cartridge - No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (Asia/Pacific) -
C4844AA |
| C4844AE |
Cartridge - No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (Europe) -
C4844AE |
| C4844AL |
Cartridge - No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (Latin America) -
C4844AL |
| C4911-61002 |
Cartridge - HP 82 High Capacity Cyan Ink Cartridge - 69ml, prints approximately 1400 pages at 5% printing density (USA) -
C4911-61002 |
| C4911A |
Cartridge - No. 82 standard capacity Cyan ink cartridge (69ml ink) -
C4911A |
| C4912-61003 |
Cartridge - HP 82 High Capacity Magenta Ink Cartridge - 69cc, prints approximately 1400 pages at 5% printing density (USA) -
C4912-61003 |
| C4912A |
Cartridge - HP 82 High Capacity Magenta Ink Cartridge - 69cc, prints approximately 1400 pages at 5% printing density (USA) -
C4912A |
| C4913-61003 |
Cartridge - HP 82 High Capacity Yellow Ink Cartridge - 69cc, prints approximately 1400 pages at 5% printing density (USA) -
C4913-61003 |
| C4913A |
Cartridge - HP 82 High Capacity Yellow Ink Cartridge - 69ml, prints approximately 1400 pages at 5% printing density (USA) -
C4913A |
| Q1427A |
Cartridge - Media for HP C6095V -
Q1427A |
| C7769-60161 |
Control_Panel - Control panel assembly - Includes ribbon cable and english overlay marked with 'Menu', 'Back', 'Enter', 'Cancel', and 'Form feed and cut' -
C7769-60161 |
| C7769-60154 |
Cover - Top cover assembly (Gray) - For the 24-inch DesignJet 500 printer series -
C7769-60154 |
| C7769-60158 |
Cover - Left end cover and EIO cover (Gray) COVER WHITE (SVC) - Right cover Left end cover and EIO cover - White or Gray plastic cover on left side -
C7769-60158 |
| C7769-60159 |
Cover - Right side cover (Gray) - For the DesignJet 500 printer series only -
C7769-60159 |
| C7769-60171 |
Cover - Cover kit for drive roller encoder sensor -
C7769-60171 |
| C7769-60299 |
Cover - Left end cover and EIO cover (Gray) -
C7769-60299 |
| C7769-60406 |
Cover - Cover kit for drive roller encoder sensor -
C7769-60406 |
| C7769-60413 |
Cover - Left end cover and EIO cover - White plastic cover on left side -
C7769-60413 |
| C7770-60154 |
Cover - Top cover assembly (Gray) - For the 42-inch DesignJet 500 printer series -
C7770-60154 |
| C7779-60154 |
Cover - Top cover assembly (Black) - For the 24-inch DesignJet 800 printer series -
C7779-60154 |
| C7779-60159 |
Cover - Right side cover (Black) - For the DesignJet 800 printer series only -
C7779-60159 |
| C7779-60253 |
Cover - Left end cover and EIO cover (Black) -
C7779-60253 |
| C7779-60267 |
Cover - End cover - Left side of plotter end cover - Black in color for use on Model 800 -
C7779-60267 |
| C7780-60154 |
Cover - Top cover assembly (Black) - For the 42-inch DesignJet 800 printer series -
C7780-60154 |
| C7770-60020 |
Cross_Brace - Cross-brace - Brace that connects and supports the two stand legs - For 42-inch plotters -
C7770-60020 |
| C7781-60004 |
Cross_Brace - Cross-brace - Brace that connects and supports the two stand legs - For 24-inch plotters -
C7781-60004 |
| C7769-60163 |
Cutter - Cutter assembly for Hewlett Packard Plotters DesignJet models. -
C7769-60163 |
| C7769-60390 |
Cutter - Cutter assembly for Hewlett Packard Plotters DesignJet models. -
C7769-60390 |
| C7769-60283 |
Deflector - Media deflector kit - Kit includes three deflectors -
C7769-60283 |
| C7769C |
DesignJet - HP DesignJet 500PS Printer -
C7769C |
| C7769-60116 |
Display - Front panel overlay (Spanish) -
C7769-60116 |
| C7769-60118 |
Display - Front panel overlay (Japanese) -
C7769-60118 |
| C7769-60382 |
Display - Control panel assembly - Includes ribbon cable and English overlay marked with Menu; Back; Enter; Cancel and Form Feed/Cut -
C7769-60382 |
| C7769-60254 |
Encoder - Encoder disk assembly - Helps provide position the information of the paper -
C7769-60254 |
| C7769-60150 |
Fan - Vacuum fan assembly (OEM LIMITED SUPPLY). -
C7769-60150 |
| C7769-60407 |
Fan - Vacuum fan assembly (OEM LIMITED SUPPLY). -
C7769-60407 |
| 51642A |
Film - Polyester matte film - 61cm (24in) x 36.6m (120ft) roll -
51642A |
| C3875A |
Film - Clear film (4 mil) - 91.4cm (36in) x 22.9m (75ft) roll -
C3875A |
| C3876A |
Film - Clear film (4 mil) - 61cm (24in) x 22.9m (75ft) roll -
C3876A |
| C3886A |
Film - High gloss white film (4 mil) - 61cm (24in) x 30.5m (100ft) roll -
C3886A |
| C7909A |
Film - Double matte eraseable film - 61cm (24in) x 38.1m (125ft) roll (USA) -
C7909A |
| C7910A |
Film - Film (Matte) for DesignJet 2000, DesignJet 2500, DesignJet 3000, DesignJet 3500 -
C7910A |
| C7911A |
Film - Film (Matte) for DesignJet 2000, DesignJet 2500, DesignJet 3000, DesignJet 3500 -
C7911A |
| C7912A |
Film - Film (Matte) for DesignJet 3000, DesignJet 3500, DesignJet 5000 Series, DesignJet 500 -
C7912A |
| Q1908A |
Film - Film (Adhesive) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1908A |
| Q1914A |
Film - Film (Transparency) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1914A |
| Q1915A |
Film - Film (Transparency) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1915A |
| C7770-60022 |
Foot - Foot assembly (includes casters) - Mounts to the bottom of the left and right printer stand legs (two used) -
C7770-60022 |
| C7769-60111 |
Front_Panel - Front panel overlay (English) -
C7769-60111 |
| C7769-60177 |
Gear - Paper drive transmission gear kit - Includes two gears used to drive the paper drive roller -
C7769-60177 |
| C7769-60408 |
Gear - Paper drive transmission gear kit - Includes two gears used to drive the paper drive roller -
C7769-60408 |
| C7769-60170 |
Guide - Left cutter guide bracket and left encoder holder kit -
C7769-60170 |
| C7769-60179 |
Guide - Cutter guide - Guide bar for the cutter assembly - For 24-inch plotters -
C7769-60179 |
| C7769-60409 |
Guide - Bracket kit - Includes the left cutter guide bracket and left encoder holder -
C7769-60409 |
| C7770-60283 |
Guide - Tube guide - Black plastic guide that ink tube system sits in - For 42 inch model -
C7770-60283 |
| C7770-60290 |
Guide - Tube guide - Black plastic guide that ink tube system sits in - For 42 inch model -
C7770-60290 |
| C7769-60405 |
Hardware - Hardware kit - Includes various screws and nuts for the stand and touch screen assembly -
C7769-60405 |
| C7770-60018 |
Hardware - Hardware kit for printer stand - Includes screwdriver and screws -
C7770-60018 |
| C7769-60373 |
Ink_Supply_Station - Ink Supply Station (ISS) - Includes ink pump motor, pump sensor, and out-of-ink sensors - Installed in right side of printer -
C7769-60373 |
| C7769-60256 |
Ink_System - Ink tubes assembly - For the 24-inch DesignJet 500/800 printer series - Includes 4 ink tubes complete with hardware assemblies at both ends (Carriage crane and ink supply station crane), and 4 setup pens -
C7769-60256 |
| C7769-60381 |
Ink_System - Ink Tubes Assy 24 SV - RCInk tubes assembly - Includes 4 ink tubes complete with hardware assemblies at both ends (carriage crane and ink supply station crane), and 4 setup pens - For the 24-inch Designjet 500/800 printer series -
C7769-60381 |
| C7770-60021 |
Leg - Leg assembly, only one included, not both as shown - Side support for the printer - Does NOT include the foot assembly -
C7770-60021 |
| C7769-60181 |
Lifter - Pincharm lift mechanism - Includes cam (a long bar) , cam bushings, pincharm lever, pincharm lever bushing -
C7769-60181 |
| C7770-60015 |
Lifter - Pincharm lift mechanism - Includes cam (a long bar) , cam bushings, pincharm lever, pincharm lever bushing -
C7770-60015 |
| 6040-0911 |
Lubricant - Special lubricating oil - For carriage slider rod surface - (syringe with 35cc oil) -
6040-0911 |
| C7769-60306 |
Maintenance_Kit - DesignJet 500/800 maintenance kit - Contains lubricant, gloves, cotton wipe, spring tensioner, foams, tubes, belt, encoder strip, setup pens, trailing cable, service station, cutter, and carriage - For 24 inch model only (OEM Limited Supply) -
C7769-60306 |
| C7769-60394 |
Maintenance_Kit - DesignJet 500/800 maintenance kit - Contains lubricant, gloves, cotton wipe, spring tensioner, foams, tubes, belt, encoder strip, setup pens, trailing cable, service station, cutter, and carriage - For 24 inch model only (OEM Limited Supply) -
C7769-60394 |
| C2387A |
Memory - 64MB SO-DIMM memory module HP DesignJet 500 / 800 144pin PC100 Memory Module installs into the formatter EIO board. -
C2387A |
| C2388A |
Memory - 128MB SO-DIMM memory module -
C2388A |
| C7769-60244 |
Memory - 64MB SO-DIMM memory module HP DesignJet 500 / 800 144pin PC100 Memory Module installs into the formatter EIO board. -
C7769-60244 |
| C7769-60245 |
Memory - 128MB SO-DIMM memory module - Can be installed ONLY into the formatter boar -
C7769-60245 |
| C7779-60270 |
Memory - 128MB SO-DIMM memory module - Can be installed ONLY into the formatter board -
C7779-60270 |
| C7779-60144 |
Module - Electronics module - Contains main logic board, connectors for plug-in cards, connector for parallel interface cable, connector for USB cable, and cooling fan -
C7779-60144 |
| C7779-60263 |
Module - Electronics module - Contains main logic board, connectors for plug-in cards, connector for parallel interface cable, connector for USB cable, and cooling fan -
C7779-60263 |
| C7779-69144 |
Module - Electronics module - Contains Main Logic board, connectors for plug-in cards, connector for parallel interface cable, connector for USB cable, and cooling fan -
C7779-69144 |
| C7779-69263 |
Module - Electronics module - ELEC MODULE ASSY. SV - RC FOR HP DESIGNJet PLOTTERS. -
C7779-69263 |
| J4101B |
Module - JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network -
J4101B |
| J4102B |
Module - External JetDirect LAN interface module with EtherTwist (10Base-T) connector -
J4102B |
| C6090-60092 |
Motor - Carriage (Scan-Axis) Motor Assembly - Includes Pulley and power cable -
C6090-60092 |
| C7769-60146 |
Motor - Carriage (scan-axis) motor assembly - Includes cable -
C7769-60146 |
| C7769-60152 |
Motor - Paper axis motor assembly - Includes cablesPaper axis motor assembly - Includes cables -
C7769-60152 |
| C7769-60375 |
Motor - Carriage (scan-axis) motor assembly - Includes cable -
C7769-60375 |
| C7769-60377 |
Motor - Paper axis motor assembly - Includes cablesPaper axis motor assembly - Includes cables -
C7769-60377 |
| C7769-60162 |
Mount - Rollfeed mount kit - Includes left and right housing -
C7769-60162 |
| C7769-60380 |
Mount - Rollfeed mount kit - Includes left and right housing -
C7769-60380 |
| 6040-0858 |
Oil - Lubricant : Special lubricating oil - For carriage slider rod surface - 4oz (113g) plastic bottle of synthetic oil -
6040-0858 |
| Q1254-60025 |
Other_Parts - English/korean for HP 32054F -
Q1254-60025 |
| C7769-60112 |
Overlay - Front panel overlay (Korean) -
C7769-60112 |
| C7769-60113 |
Overlay - Front panel overlay (Taiwanese) -
C7769-60113 |
| C7769-60114 |
Overlay - Front panel overlay (German) -
C7769-60114 |
| C7769-60115 |
Overlay - Front panel overlay (French) -
C7769-60115 |
| C7769-60117 |
Overlay - Front panel overlay (Italian) -
C7769-60117 |
| C7769-60119 |
Overlay - Front panel overlay (Portuguese) -
C7769-60119 |
| C7769-60120 |
Overlay - Front panel overlay (Chinese) -
C7769-60120 |
| 51642B |
Paper - Polyester matte film - 91.4cm (36in) x 36.6m (120ft) roll -
51642B |
| C1860A |
Paper - HP Bright white InkJet paper - 61cm (24in) x 45.7m (150ft) roll -
C1860A |
| C1861A |
Paper - HP Bright white InkJet paper - 91.4cm (36in) x 45.7m (150ft) roll -
C1861A |
| C3859A |
Paper - Paper - transparencies, continuous forms - Roll A0 91.4 cm x 45.7 m) - 67 g/m2 - 1 pcs. -
C3859A |
| C3860A |
Paper - Media for HP C6074B -
C3860A |
| C3868A |
Paper - Media for HP C4708A -
C3868A |
| C3869A |
Paper - Media for HP C6074B -
C3869A |
| C3881A |
Paper - High gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll -
C3881A |
| C3882A |
Paper - High gloss photo paper - 61cm (24in) x 30.5m (100ft) roll -
C3882A |
| C3883A |
Paper - Semi-gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll -
C3883A |
| C3884A |
Paper - Semi-gloss photo paper - 61cm (24in) x 30.5m (100ft) roll -
C3884A |
| C3885A |
Paper - High gloss white film (4 mil) - 91.4cm (36in) x 30.5m (100ft) roll -
C3885A |
| C6019B |
Paper - Media for HP C7790E -
C6019B |
| C6020B |
Paper - Media for HP C6074B -
C6020B |
| C6021B |
Paper - Media for HP C6082A -
C6021B |
| C6023A |
Paper - Semi-gloss photo paper - 61cm (24in) x 30.5m (100ft) roll (USA, Canada, and Latin America) -
C6023A |
| C6024A |
Paper - Semi-gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll (USA, Canada, and Latin America) -
C6024A |
| C6025A |
Paper - High gloss photo paper - 61cm (24in) x 30.5m (100ft) roll (USA, Canada, and Latin America) -
C6025A |
| C6026A |
Paper - High gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll (USA, Canada, and Latin America) -
C6026A |
| C6029C |
Paper - Media for HP C6075A -
C6029C |
| C6030C |
Paper - Media for HP C7769C -
C6030C |
| C6035A |
Paper - Bright white InkJet paper - 61cm (24in) x 45.7m (150ft) roll -
C6035A |
| C6036A |
Paper - Bright white InkJet paper - 91.4cm (36in) x 45.7m (150ft) roll -
C6036A |
| C6559B |
Paper - Media for HP Q1274A -
C6559B |
| C6563A |
Paper - Semi-gloss photo paper - 106.7cm (42in) x 30.5m (100ft) roll (USA, Canada, and Latin America) -
C6563A |
| C6565A |
Paper - High gloss photo paper - 106.7cm (42in) x 30.5m (100ft) roll (USA, Canada, and Latin America) -
C6565A |
| C6569C |
Paper - Media for HP C4724A -
C6569C |
| C6782A |
Paper - Paper based semi-gloss media - 61cm (24in) x 30.5m (100ft) roll -
C6782A |
| C6786A |
Paper - Media for HP C4703A -
C6786A |
| C6787A |
Paper - Media for HP Q1279A -
C6787A |
| C6813A |
Paper - High gloss photo paper - 61cm (24in) x 30.5m (100ft) roll -
C6813A |
| C6814A |
Paper - High gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll -
C6814A |
| C6980A |
Paper - Media for HP C6096A -
C6980A |
| C7874A |
Paper - Paper (Photo) for DesignJet 1050 Series, DesignJet 1055 Series, DesignJet 500, DesignJet 800 Series -
C7874A |
| C7879A |
Paper - Paper (Satin) for DesignJet 5000 Series, DesignJet 500, DesignJet 800 Series, DesignJet Copier CC800PS -
C7879A |
| C7919A |
Paper - Media for HP C7779B -
C7919A |
| C7921A |
Paper - Media for HP C3195A -
C7921A |
| C7922A |
Paper - Media for HP C4703A -
C7922A |
| C7923A |
Paper - Media for HP C6074B -
C7923A |
| C7924A |
Paper - Media for HP Q1279A -
C7924A |
| C7925A |
Paper - Media for HP C6084A -
C7925A |
| C7929A |
Paper - Super Heavyweight Paper - 61cm (24in) x 22.9m (75ft) roll (USA and Asia/Pacific) -
C7929A |
| C7930A |
Paper - Paper for DesignJet 500, DesignJet 800 Series, DesignJet 100 Series -
C7930A |
| C7931A |
Paper - Paper for DesignJet 100 Series, DesignJet 800 Series, DesignJet 500 -
C7931A |
| C7946A |
Paper - Paper (Matte) for DesignJet 2000, DesignJet 2500, DesignJet 3000, DesignJet 3500 -
C7946A |
| C8281A |
Paper - Basic coated paper - 61cm (24in) x 45.7m (150ft) roll (USA and Asia/Pacific) -
C8281A |
| C8282A |
Paper - Basic coated paper - 91.4cm (36in) x 45.7m (150ft) roll (USA and Asia/Pacific) -
C8282A |
| C8310A |
Paper - Basic photo satin paper - 61cm (24in) x 30.5m (100ft) roll (USA and Asia/Pacific) -
C8310A |
| C8311A |
Paper - Basic photo satin paper - 91.4cm (36in) x 30.5m (100ft) roll (USA and Asia/Pacific) -
C8311A |
| C8312A |
Paper - Paper (Photo) for DesignJet 3000, DesignJet 3500, DesignJet 3800, DesignJet 5000 Series -
C8312A |
| C8315A |
Paper - High gloss photo paper - 61cm (24in) x 30.5m (100ft) roll (USA and Asia/Pacific) -
C8315A |
| C8316A |
Paper - High gloss photo paper - 91.4cm (36in) x 30.5m (100ft) roll (USA and Asia/Pacific) -
C8316A |
| C8317A |
Paper - Paper (Photo) for DesignJet 3000, DesignJet 3500, DesignJet 3800, DesignJet 5000 Series -
C8317A |
| Q1396A |
Paper - Paper for DesignJet 1055 Series, DesignJet 800 Series, DesignJet 130 Series, DesignJet 500 -
Q1396A |
| Q1397A |
Paper - Media for HP CQ653A -
Q1397A |
| Q1398A |
Paper - Hewlett Packard Supplies HP paper - bond paper - Roll (42 in x 150 ft) - 80 g/m2 -
Q1398A |
| Q1412A |
Paper - Paper (Coated) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1412A |
| Q1413A |
Paper - Paper (Coated) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1413A |
| Q1419A |
Paper - Paper (Coated) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1419A |
| Q1420A |
Paper - Paper (Photo) for Designjet 820 MFP Series, DesignJet T1100 T160 printer series, DesignJet 2000, DesignJet 3000 -
Q1420A |
| Q1421A |
Paper - HP Universal Semi-gloss Photo Paper - 91.4cm (36in) x 30.5m (100ft) roll -
Q1421A |
| Q1422A |
Paper - Paper (Semi-Glossy) for DesignJet 500, DesignJet 800 Series, DesignJet 5100 Series, DesignJet T1100 T160 printer series -
Q1422A |
| Q1423A |
Paper - Paper (Photo) for DesignJet 5000 Series, DesignJet 500, DesignJet 800 Series, DesignJet 5100 Series -
Q1423A |
| Q1424A |
Paper - Paper (Photo) for DesignJet 5000 Series, DesignJet 500, DesignJet 800 Series, DesignJet 5100 Series -
Q1424A |
| Q1426A |
Paper - Hewlett Packard Supplies HP paper - high-gloss photo paper - Roll A1 (24 in x 100 ft) - 179 g/m2 -
Q1426A |
| Q1428A |
Paper - HP universal high-gloss photo paper - 107cm (42in) x 30.5m (100ft) roll -
Q1428A |
| Q1429A |
Paper - Paper (Glossy) for DesignJet 5000 Series, DesignJet 500, DesignJet 800 Series, OfficeJet Pro K550 Series -
Q1429A |
| Q1430A |
Paper - Paper (Photo) for DesignJet 5000 Series, DesignJet 500, DesignJet 800 Series, Designjet 820 MFP Series -
Q1430A |
| Q1439A |
Paper - Paper (Tracing) for DesignJet 500, DesignJet 800 Series -
Q1439A |
| Q1440A |
Paper - Paper (Tracing) for DesignJet 500, DesignJet 800 Series -
Q1440A |
| Q1442A |
Paper - Coated paper - 59.4cm (23.4in) x 45.7m (150ft) roll -
Q1442A |
| Q1443A |
Paper - Paper (Coated) for DesignJet 5000 Series, DesignJet 500, DesignJet 800 Series, DesignJet 30 -
Q1443A |
| Q1898A |
Paper - Paper (Banner) for DesignJet 2000, DesignJet 3000, DesignJet 3800, DesignJet 5000 Series -
Q1898A |
| Q1898B |
Paper - HP opaque scrim - 91.4cm (36n ) x 15.2 (50ft) roll -
Q1898B |
| Q1901A |
Paper - Paper (Banner) for DesignJet 3000, DesignJet 3800, DesignJet 5000 Series, DesignJet 500 -
Q1901A |
| Q1903A |
Paper - Paper (Matte) for DesignJet 2000, DesignJet 1050 Series, DesignJet 1055 Series, DesignJet 5000 Series -
Q1903A |
| Q1904A |
Paper - Paper (Matte) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1904A |
| Q1906A |
Paper - Paper (Matte) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series -
Q1906A |
| Q1909A |
Paper - Polypropylene Adhesive Back print media - 106.7cm (42in) x 21.3m (70ft) -
Q1909A |
| Q1918A |
Paper - Paper (Fabric) for DesignJet 500, DesignJet 5000 Series, DesignJet 1055 Series, DesignJet 800 Series -
Q1918A |
| Q1919A |
Paper - Paper (Fabric) for DesignJet 500, DesignJet 2000, DesignJet 1055 Series, DesignJet 5000 Series -
Q1919A |
| Q1920A |
Paper - Paper (Fabric) for DesignJet 1055 Series, DesignJet 800 Series, DesignJet 5000 Series, DesignJet 500 -
Q1920A |
| Q1938A |
Paper - Productivity glossy photo paper - 91.4cm (36in) x 30.5m (100ft) roll -
Q1938A |
| Q1943A |
Paper - Productivity photo semi-gloss paper - 91.4cm (36in) x 30.5m (100ft) roll -
Q1943A |
| Q1968A |
Paper - Paper (Matte) for DesignJet 500, DesignJet 800 Series, DesignJet 130 Series, DesignJet 100 Series -
Q1968A |
| Q6574A |
Paper - Paper (Glossy) for DesignJet 500, DesignJet 800 Series, DesignJet 100 Series, DesignJet 5100 Series -
Q6574A |
| Q6579A |
Paper - Paper (Semi-Glossy) for DesignJet 500, DesignJet 800 Series, DesignJet 100 Series, DesignJet 5100 Series -
Q6579A |
| Q6596A |
Paper - Paper for DesignJet 800 Series, DesignJet 500, DesignJet 5100 Series -
Q6596A |
| Q6626A |
Paper - HP Super Heavyweight Plus Matte Paper - 61cm (24in) x 30.5m (100ft) roll -
Q6626A |
| Q7993A |
Paper - HP Premium Instant-dry Gloss Photo Paper - 91.4cm (36in) x 30.5m (100ft) - 36 in roll -
Q7993A |
| Q8675A |
Paper - HP Opaque Scrim - 61cm (24in) x 15.2m (50ft) roll -
Q8675A |
| C7769-60173 |
PC_Board - Interconnect PC board Interconnect PC board - Installed in right-side of printer -
C7769-60173 |
| C7769-60260 |
PC_Board - Formatter upgrade kit - Adds HP-GL/2 DesignJet 500 800 series GL/2 Card C7772A - Plugs into an EIO card slot. GL-2 AND RTL FORMATTER HP-GL/2 and RTL formatter PC board -
C7769-60260 |
| C7769-60385 |
PC_Board - Interconnect PC board - Installed in right-side of printer -
C7769-60385 |
| C7769-60441 |
PC_Board - Formatter upgrade kit - Adds HP-GL/2 DesignJet 500 800 series GL/2 Card C7772A - Plugs into an EIO card slot. GL-2 AND RTL FORMATTER HP-GL/2 and RTL formatter PC board -
C7769-60441 |
| C7769-69260 |
PC_Board - formatter PC board EIO FORMATTER POWER HPGL2 SV - RC EIO WITH PC BOARD HP-GL/2 formatter PC board (Includes C7779-60270 128MB SDRAM 100MHz CL2 and firmware) -
C7769-69260 |
| C7769-69441 |
PC_Board - FORMATTER POWER HPGL2 SV - HP-GL/2 and RTL (Raster Transfer Language) formatter PC board. -
C7769-69441 |
| C7776-60002 |
PC_Board - Formatter upgrade kit - Adds HP-GL/2 DesignJet 500 800 series GL/2 Card C7772A - Plugs into an EIO card slot. GL-2 AND RTL FORMATTER HP-GL/2 and RTL formatter PC board -
C7776-60002 |
| C7779-60272 |
PC_Board - formatter PC board EIO FORMATTER POWER HPGL2 SV - RC EIO WITH PC BOARD HP-GL/2 formatter PC board (Includes C7779-60270 128MB SDRAM 100MHz CL2) -
C7779-60272 |
| C7769-60175 |
Pinch_Assembly - Pincharm assembly with wheels -
C7769-60175 |
| C7769-60155 |
Platen - Back platen assembly - Curved cover/guide that is installed below the paper drive roller (24-inches) -
C7769-60155 |
| C7769-60174 |
Platen - Front platen kit - Includes platens for both the 24-inch and the 42-inch models -
C7769-60174 |
| C7769-60410 |
Platen - Back platen assembly - Curved cover/guide that is installed below the paper drive roller (24-inches) -
C7769-60410 |
| C7770-60155 |
Platen - BACK PLATEN 42" (SVC) - RCBack platen assembly - Curved cover/guide that is installed below the paper drive roller - For use with 42-inch plotters
-
C7770-60155 |
| C7770-60303 |
Platen - BACK PLATEN 42" (SVC) - RCBack platen assembly - Curved cover/guide that is installed below the paper drive roller - For use with 42-inch plotters
-
C7770-60303 |
| 8120-0698 |
Power_Cord - Power cord (Black) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in the USA and Canada) -
8120-0698 |
| 8120-1351 |
Power_Cord - Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, Malaysia, and Brunei) -
8120-1351 |
| 8120-1369 |
Power_Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in Australia, New Zealand, and China) -
8120-1369 |
| 8120-1378 |
Power_Cord - Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam) -
8120-1378 |
| 8120-1689 |
Power_Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Europe, Bangladesh, Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam) -
8120-1689 |
| 8120-2104 |
Power_Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Switzerland) -
8120-2104 |
| 8120-2956 |
Power_Cord - Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (for 220V in Denmark) -
8120-2956 |
| 8120-4211 |
Power_Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in South Africa and India) -
8120-4211 |
| C7769-60145 |
Power_Supply - Power supply assembly - Includes power switch -
C7769-60145 |
| C7769-60387 |
Power_Supply - Power supply assembly for designJet - Includes power switch. (pwr supply for copier module is Q1278-60072) -
C7769-60387 |
| J3110A |
Print_Server - Ethernet 10Base-T (RJ-45) EIO network GENUINE HP JETDIRECT 600N internal print server PC board -
J3110A |
| J3111-61001 |
Print_Server - JetDirect 600N EIO internal print server 10Base-T, 10BASE-2, and LocalTalk LAN interface board - Has one RJ-45, BNC, and 8-pin DIN connector -
J3111-61001 |
| J3111-69001 |
Print_Server - JetDirect 600N EIO internal print server 10Base-T, 10BASE-2, and LocalTalk LAN interface board - Has one RJ-45, BNC, and 8-pin DIN connector -
J3111-69001 |
| J3111A |
Print_Server - Ethernet 10Base-T/10Base2 and LocalTalk (RJ-45, BNC, LocalTalk) EIO network PCA -
J3111A |
| J3112-69001 |
Print_Server - JetDirect 600N EIO internal print server token ring LAN interface board - Has one RJ-45 and DB-9 connector -
J3112-69001 |
| J3112A |
Print_Server - JetDirect 600N token ring LAN interface board - DB-9 and RJ-45 connectors -
J3112A |
| J3113A |
Print_Server - JetDirect 600N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot -
J3113A |
| J3258B |
Print_Server - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN -
J3258B |
| J3258G |
Print_Server - HP JetDirect 170X external print server module (10Base-T) - Connects between printer parallel port and LAN network -
J3258G |
| J3263A |
Print_Server - External JetDirect 300X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) or 100Base-TX (RJ-45) LAN -
J3263A |
| J3263G |
Print_Server - HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network -
J3263G |
| J3264A |
Print_Server - JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45) LAN -
J3264A |
| J3265A |
Print_Server - External JetDirect 500X LAN interface module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN -
J3265A |
| J3265G |
Print_Server - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN -
J3265G |
| J3296A |
Print_Server - HP Jet Direct 300X external print server module (Three pack) (10Base-T and 100Base-T) - Connects between printer parallel port and LAN network - Three Pack -
J3296A |
| J4167-69001 |
Print_Server - JetDirect 600N EIO internal print server token ring LAN interface board - Has one RJ-45 and DB-9 connector -
J4167-69001 |
| J4167A |
Print_Server - JetDirect 610N token ring LAN interface board - DB-9 and RJ-45 connectors -
J4167A |
| J4169-69001 |
Print_Server - JetDirect 610N Internal Print Server (10Base-T and 100Base-TX) LAN Interface Board - Has one RJ-45 connector -
J4169-69001 |
| J4169A |
Print_Server - JetDirect 610N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot - Has a RJ-45 connector. -
J4169A |
| J6035G |
Print_Server - JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port -
J6035G |
| J6057-69001 |
Print_Server - JetDirect 615N internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector. -
J6057-69001 |
| J6057-69011 |
Print_Server - JetDirect 615N internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector. -
J6057-69011 |
| J6057A |
Print_Server - JetDirect 615N internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector -
J6057A |
| J6057AR |
Print_Server - Interface (Product) for Digital Sender 9100C, DeskJet 2200 Series, LaserJet 4000 Series, Color LaserJet 8500 Series -
J6057AR |
| J6058A |
Print_Server - JetDirect 680N internal wireless IEEE-802.11b (Wi-Fi) print server - Plugs into peripheral EIO slot -
J6058A |
| J7934-61001 |
Print_Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector. -
J7934-61001 |
| J7934-61011 |
Print_Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector. -
J7934-61011 |
| J7934-69001 |
Print_Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector. -
J7934-69001 |
| J7934-69011 |
Print_Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector. -
J7934-69011 |
| J7934A |
Print_Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector. -
J7934A |
| J7934G |
Print_Server - JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector -
J7934G |
| J7942G |
Print_Server - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module -
J7942G |
| J7951G |
Print_Server - HP Jetdirect ew2400 802.11g wireless print server module - Includes power supply, USB cable, LAN/Ethernet cable, setup documentation and software -
J7951G |
| J7960A |
Print_Server - Jetdirect 625n internal ethernet print server - Provides 10BaseT, 100BaseTX, or 1000BaseT interface for products with an EIO port -
J7960A |
| J7960G |
Print_Server - Jetdirect 625n internal ethernet print server - Provides 10BaseT, 100BaseTX, or 1000BaseT interface for products with an EIO port -
J7960G |
| C4810-60066 |
Printhead - No. 11 black ink printhead -
C4810-60066 |
| C4810-60067 |
Printhead - HP11 Cyan ink printhead -
C4810-60067 |
| C4810A |
Printhead - No. 11 black ink printhead -
C4810A |
| C4811A |
Printhead - No. 11 cyan ink printhead -
C4811A |
| C4812-60005 |
Printhead - HP11 Magenta ink printhead -
C4812-60005 |
| C4812A |
Printhead - No. 11 magenta ink printhead -
C4812A |
| C4813-60004 |
Printhead - HP 11 - Yellow ink printhead -
C4813-60004 |
| C4813A |
Printhead - No. 11 yellow ink printhead -
C4813A |
| C7769-60164 |
Printhead - Setup printhead kit - Used to prime the ink tubes - Includes 4 setup printheads. Used to remove air and prime the ink system -
C7769-60164 |
| C7769-60276 |
Roller - Paper drive roller kit - Includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (Axial) spring, lint free cloth, rubber glove, and instruction sheets - For 24-inch model -
C7769-60276 |
| C7769-60412 |
Roller - Paper drive roller kit - Includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (Axial) spring, lint free cloth, rubber glove, and instruction sheets - For 24-inch model -
C7769-60412 |
| C7770-60157 |
Roller - Paper drive roller kit - Includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (Axial) spring, lint free cloth, rubber glove, and instruction sheets - For use with 42-inch plotters -
C7770-60157 |
| C7770-60289 |
Roller - Paper drive roller kit - Includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (Axial) spring, lint free cloth, rubber glove, and instruction sheets - For 42-inch model -
C7770-60289 |
| 0591-0090 |
Screw - Plastite screw (threaded insert mold-in, Textron K40) - M4.0 x 0.7, 20mm long, Torx T15 -
0591-0090 |
| C7769-60168 |
Sensor - Media sensor - Installed in the front of the rear platen -
C7769-60168 |
| C7769-60172 |
Sensor - Drive roller encoder sensor -
C7769-60172 |
| C7769-60194 |
Sensor - Pincharm sensor -
C7769-60194 |
| C7769-60289 |
Sensor - Media deflector holders - For the DesignJet 500/800 printer series -
C7769-60289 |
| C7769-60378 |
Sensor - Pincharm sensor - Installed in right front of print chassis -
C7769-60378 |
| C7769-60379 |
Sensor - Media sensor - Installed in the front of the rear platen -
C7769-60379 |
| C7769-60384 |
Sensor - Drive roller encoder sensor -
C7769-60384 |
| C7769C-Manual_DesignJet |
Service_Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams. For DesignJet 500PS - 24-in/PS -
C7769C-Manual_DesignJet |
| C7769C-Repair_DesignJet |
Service_Printer - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available. For DesignJet 500PS - 24-in/PS -
C7769C-Repair_DesignJet |
| C7769-60149 |
Service_Station - Service station - Service St SV - RCService station - Includes wipers, pen caps, and the right hand spittoon - Installed in right side of printer -
C7769-60149 |
| C7769-60374 |
Service_Station - Service station - Includes wipers, pen caps, and the right hand spittoon - Installed in right side of printer -
C7769-60374 |
| C7769-90221 |
Software - Software for DesignJet 500, DesignJet 800 Series, DesignJet Copier CC800PS, DesignJet 815 MFP -
C7769-90221 |
| C2389A |
Spindle - 24-inch rollfeed spindle rod assembly for DesignJet 500/800 series - Includes spindle, hubs, and end caps -
C2389A |
| C7769-60242 |
Spindle - 24-inch rollfeed spindle rod assembly - Includes spindle, hubs, and end caps -
C7769-60242 |
| C7769-60401 |
Spindle - Hewlett Packard (HP)Hub spindle blue svc cap. Cap supports roll paper, spindle takes one on each side. Part number is for one pc. -
C7769-60401 |
| C7769-60165 |
Spitton - Left spittoon assembly - Contains absorbers which hold excess ink from printheads -
C7769-60165 |
| C7781A |
Stand - 24-inch printer stand and media bin kit for 800 series (Graphite Gray) -
C7781A |
| C7782A |
Stand - 24-inch printer stand and media bin kit for 500 series (Flint Gray) -
C7782A |
| C7769-60183 |
Strip - Encoder strip (24-inch) -
C7769-60183 |
| C7769-60176 |
Tensioner - Belt tensioner kit - Keeps carriage belt tight - Includes pulley and pulley mount bracket -
C7769-60176 |
| C7769-60160 |
Trim - Trim kit - Includes the front and back trims for the left and right sides - Installed between the main printer chassis and the left or right end covers -
C7769-60160 |
| C7772A |
Upgrade_Kit - Formatter upgrade kit - Adds HP-GL/2 DesignJet 500 800 series GL/2 Card C7772A - Plugs into an EIO card slot. GL-2 AND RTL FORMATTER HP-GL/2 and RTL formatter PC board -
C7772A |
| C3861A |
Vellum - Vellum - 91.4cm (36in) x 45.7m (150ft) roll -
C3861A |
| C3862A |
Vellum - Media for HP CQ653A -
C3862A |
| C6775A |
Vinyl_Adhesive - Colorfast adhesive vinyl (328 gsm) - 91.4cm (36in) x 12.2m (40ft) roll - For regular ink or UV-resistant ink -
C6775A |
| C7769-60273 |
Wheel - DesignJet 500/800 wheel kit - Metal bar with two attached wheels - Used with the 24 inch stand only -
C7769-60273 |
| C7769-60411 |
Wheel - DesignJet 500/800 foot kit - Contains four rubber feet for bottom of plotter -
C7769-60411 |
Techical Help
Buy the full service manual
View full list of service parts
