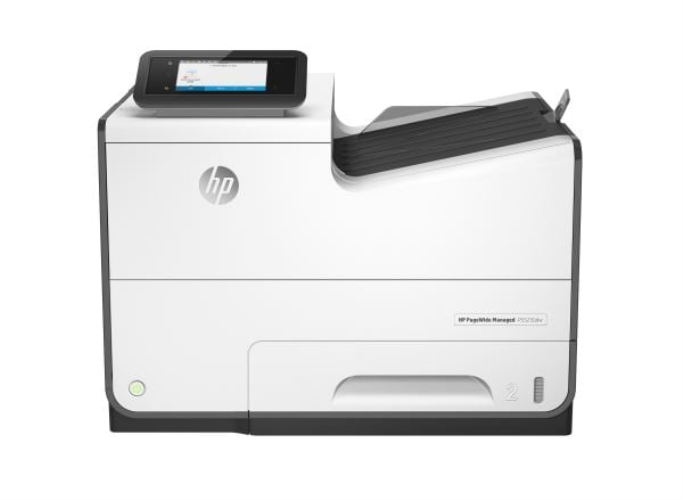

J6U55C PageWide Managed P55250dw printer

HP PageWide Managed P55250dw printer (J6U55C)

MFG Part Number: J6U55C 50ppm black, 50ppm color, 2400 x 1200 DPI, Ethernet,USB 2.0,Wireless LAN

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

HP parts list for J6U55C HP PageWide Managed P55250dw printer

D3Q22-65001 Accessory - GEN-BULK-AccessoryPaperTray4

D3Q23-65001 Accessory - GEN-BULK-AccessoryPaperTray3

P0V03-65001 Accessory - GEN_BULK_AccessoryCart

CN598-67073 ADF Roller Kit - Service-Assembly-OJProX-Sound-Lube-Kit

D3Q24-67020 ADF Roller Kit - SERV ASSY - 500 series Printbar Kit

D3Q24-67075 ADF Roller Kit - SERV ASSY- Sep/Pick Assy Kit

D3Q24-67032 Assembly - SERV ASSY -Stack Wall Output Bin Gen2

D3Q24-67037 Assembly - SERV ASSY- Assy, Flap, Eject

D3Q24-67043 Assembly - SERV ASSY-Assy Output Bin- 500 Series

D3Q24-67062 Assembly - SERV ASSY - 500 series Pigtails

D3Q24-67071 Assembly - SERV ASSY - USB Intercon SF 500 series

CN598-67063 Bar - Printbar dolly

D3Q24-67018 Bar - SERV ASSY -3xFFC, PrntBar - 500 Series

D3Q24-67078 Bearing - ASSY - Rear Feed Bearing Assy

D3Q24-67061 Button - SERV ASSY - Power Button Assembly

8121-0868 Cable - Universal Serial Bus (USB) interface cable (Black) - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long

8121-1186 Cable - Universal Serial Bus (USB) interface cable (Black) - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long

CN598-67039 Cable - 11 pin print zone flat flexible cable

CN598-67040 Cable - 24-pin printbar lifter flat flexible cable

CN598-67041 Cable - 10-pin pick drive encoder flat flexible cable

CN598-67042 Cable - 12-pin print zone Flat flexible cable

CN598-67043 Cable - 5-pin carriage sensor flat flexible cable

CN598-67066 Cap - PB Safety Cap Assy

D3Q24-67041 Cap - SERV ASSY-Assy-FI-Ship-Cap-500-series

CN459-67006 Cleaner - Advanced cleaning kit - Used for resolving shim whiskers print quality issues

D3Q17-67002 Control Panel - Control panel display assembly

D3Q17-67004 Control Panel - SERV ASSY-FFC, Control Panel X55x

D3Q17-67005 Cover - Top cover assembly - Plastic cover that protects the top side of the printer where the control panel mounts on

D3Q24-67023 Cover - SERV ASSY - Rear Cover 500 Series

D3Q15-67003 Door - Output Door Flap With Poron Pads

D3Q24-67039 Door - SERV ASSY- Assy-Left-Door

D3Q24-67016 Drive Assembly - Duplex drive module

CN459-60375 Duplexer - Assy-Duplex-Module-6-Cot Duplex module assembly.

CN459-60375B Duplexer - Assy- Duplex-Module-6--Cot

CN598-67004 Duplexer - Assy-Duplex-Module-6-Cot Duplex module assembly.

CN598-67004-MP Duplexer - Assy-10pk Duplex-Module. Will include 10pcs complete units.

D3Q24-67031 Extension - SERV ASSY -Output Extension Gen 2

D3Q24-67021 Filter - SERV ASSY - Aerosol fan assy

D3Q24-67004 Flapper - SERV ASSY - Output Flap / Sensor Kit

CN598-67031 Gear - 83/30 tooth output idler gear

D3Q24-67003 Gear - Output drive assembly - Eject drive gear module

CN598-67060 Gear Assembly - Drying path gear assembly

D3Q24-67028 Hinge - SERV ASSY - Supply Door Hinge - 500 Ser.

CN459-67010 HP Parts - Service Assy Prntbar Lift Clutch Sprng

D3Q24-67063 IDS - SERV ASSY - 500 series IDS

D3Q24-67030 Insert - SERV ASSY - Output Bin Insert - 500 Ser.

CN459-67006B Kit - Advance Cleaning Kit

CN598-67064 Knob - Printbar lift knob

CN598-67065 Knob - Service sled advance knob

CN598-67020 Lifter - Tray lifter transmission assembly

D3Q24-67008 Lifter - SERV ASSY - Printbar Lift Mechanism Assy

D3Q24-67076 Lifter - SERV ASSY - Printbar Lift Mechanism Assy

D3Q24-67029 Multifunction - SERV ASSY - Case Rt Otput Bin - 500 Ser.

D3Q19-67003 PC Board - Tray 3 Interconnect PCA PageWide A4

D3Q24-67010 PC Board - Duplex presence sensor PC board assembly

D3Q24-67011 PC Board - Pick encoder distribution PC Board assembly

D3Q24-67012 PC Board - Feedshaft encoder PC board assembly

D3Q24-67013 PC Board - SERV ASSY - Print zone distribution PCA

D3Q24-67014 PC Board - SERV ASSY - Media Flag / opto PCA PCA ki

D3Q24-67017 PC Board - SERV ASSY - REDI distribution PCA

D3Q24-67054 PC Board - SERV ASSY-Main PCA - J6U55A

J6U55-67002 PC Board - SERV ASSY-Main PCA - J6U55-v2

CN598-67018 Pickup Assembly - Separator pick up roller. Separation Pick Roller for HP OFFICEJET PRO X451 X476 X551 X576 X585 PageWide MFP 377 477 577 352 452 552 556 586 (see kit D3Q21-67003)

D3Q24-67070 Platen - SERV ASSY - Platen and REDI

D3Q24-67033 Plotter - SERV ASSY -Rear Case Gen2 - 500 Series

D3Q24-67042 Plotter - SERV ASSY-Assy-Front-Case-500-series

8120-6314 Power Cord - Power cord (Black) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in South America, Switzerland, Denmark, Netherlands, and France)

8120-6316 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 100V in Japan)

8120-8373 Power Cord - Power cord (Black) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in China)

8120-8441 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (for 220V in Korea)

8120-8699 Power Cord - Power cord (Black) - 17 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle and EPSR symbol molded into plug (For 220VAC in Hong Kong & UK)

8121-0664 Power Cord - Power cord (Black) - Two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220VAC in Brazil and Thailand)

8121-0870 Power Cord - Power cord (Black) - Two conductor, 1.8m (6.0 ft) long - Has straight (F) C7 receptacle (For 230-240VAC in Australia and New Zealand)

8121-0963 Power Cord - Power cord (Black) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle

8121-1168 Power Cord - Power cord (Black) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (India)

8121-1788 Power Cord - CBL: Power Cord 1.5m UK, HK, Sing, ME

8121-1793 Power Cord - CBL: Power Cord (2W, 1.5M) - AU, NZ

8121-1799 Power Cord - CBL: Power Cord (2W, 1.5M) - TW

D3Q24-67068 Power Supply - SERV ASSY PageWide Pro Power Supply

D3Q24-67069 Power Supply - SERV ASSY PageWide Pro Power Supply HV

D3Q24-67002 Rack Slide - Service Sled Kit 500 Series

J6U55C-Repair_PageWide Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

D3Q21-67004 Restraint - SERV ASSY -Printbar Restraint 500 series

CN598-67048 Rod - Printbar lifter rod Z stop

D3Q15-67005 Roller - SERV ASSY - Grit Roller Assy Kit

D3Q21-67002 Roller - Pick-up and separation roller assembly - For tray 3

D3Q21-67003 Roller - Pick-up and separation roller assembly - For tray 4 and 5

D3Q24-67035 Screw - SERV ASSY - Screw Hole Cover

CN598-67038 Sensor - REDI Sensor for HP OfficeJet X series printers

D3Q24-67005 Sensor - Temperature humidity sensor sensor

D3Q24-67015 Sensors - SERV ASSY - BDD sensor Gen2

CN598-67018B Separator - Separator / Pick Assy Kit

CN598-67018-MP Separator - Separator-20pk Pick Assy Kit

CN598-67038-MP Service Parts - SERV REDI sensor 20pk

D3Q19-67003-MP Service Parts - Tray 3 Interconnect PCA 40pk

D3Q24-67003-MP Service Parts - SERV ASSY - Output drive kit 20pk

D3Q24-67014-MP Service Parts - SERV ASSY-Media Flag/opto PCA Kit 40pk

D3Q24-67016-MP Service Parts - SERV ASSY - Duplex drive module 20pk

D3Q24-67020BU Service Parts - SERV ASSY - 500 series Printbar Kit

D3Q24-67070-MP Service Parts - SERV ASSY - Platen and REDI 20pk

D3Q24-67075-MP Service Parts - Separator-Pick Assy Kit 20pk

D3Q24-67076-MP Service Parts - SERV ASSY-PRINTBR LIFT MECH W CLTCH 20pk

Q8260-00016 Service Parts - Label- serial, 18.3mm

D3Q24-67009 Shaft - SERV ASSY Shaft, Printbar Lift, Clutched

CN598-67002 Strap - Strap-Left_Door

CN598-67003 Strap - Strap-Left_Door_Rear

D3Q24-67007 Strip - Sensor carriage PC board encoder strip assembly

CN598-67067 Switch - Ink Supply Door switch

CN598-67056 Tool - OfficeJet Pro X special tools

D3Q21-67002B Tray - SERV ASSY Sep/Pick Assy Kit -Tray 3

D3Q24-67036 Tray - HP Printers PageWide Pro 452 PageWide Pro 552 PageWide Pro 477 PageWide Pro 577 Cassette Tray. PageWide Pro 477dw MFP 452dn 557dw main Paper Tray Service ASSY- Assy-Main-Tray similar units.

D3Q24-67066 Tray - SERV ASSY - PageWide Pro Tray 3

D3Q24-67067 Tray - SERV ASSY - PageWide Pro Tray 4

D3Q15-60091 Tray Assembly - Assy-Main-Tray

D3Q24-69031 Unit - SERVICE-UNIT-Ver1-PWM-X552dw-KR

D3Q24-69032 Unit - SERVICE-UNIT-Ver1-PWM-X552dw-APJ

D3Q24-69033 Unit - SERVICE-UNIT-Ver1-PWM-X552dw-INCN

PageWide Managed P55250dw printer parts list
