L2698A Scanjet G3110 Flatbed 4800 ? 4800DPI A4 Grey White

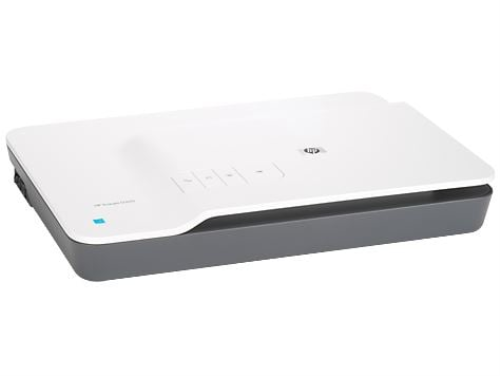

HP Scanjet G3110 Flatbed 4800 ? 4800DPI A4 Grey White (L2698A)

MFG Part Number: L2698A USB 2.0

HP parts list for L2698A HP Scanjet G3110 Flatbed 4800 ? 4800DPI A4 Grey White

L2698A-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
L2698A-ADF_Arm ADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.
L2698A-ADF_Feed_Assy ADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).
L2698A-ADF_Input_Tray Adf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.
L2698A-ADF_Motor ADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.
L2698A-ADF_Output_Tray ADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.
L2698A-ADF_Pad ADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.
L2698A-ADF_PC_BRD ADF PC Board - Control Board on the ADF unit
L2698A-ADF_Roller_Kit ADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.
L2698A-ADF_Scanner ADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.
L2698A-ADF_Sensor_BRD ADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly
L2698A-ADF_Unit_Assy ADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.
L2698A-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
L2698A-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper
L2698A-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit
L2698A-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit
L2698A-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.
L2698A-Belt_Scanner Belt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.
L2698A-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel
8121-0868 Cable - Universal Serial Bus (USB) interface cable (Black) - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long
L2698A-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism
L2698A-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.
L2698A-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.
HC126PE Care Pack - HP 1year Post Warranty Phone Assist LaserJet 1xxx/ P20xx ScanJet 2xxx-6xxx Service
L2698A-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
L2698A-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage
L2698A-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
L2698A-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
L2698A-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
L2698A-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
L2698A-Clutch_ADF Clutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder
L2698A-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
L2698A-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.
L2698-67002 Cover - Transparency Material Adapter document lid - For HP Scanjet G3110 Photo Scanner
L2698-69001 Cover - Transparency Material Adapter document lid - For HP Scanjet G3110 Photo Scanner
L2698A-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.
L2698A-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
L2698A-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
L2698A-Extender_ADF Extender ADF - Paper extension for the automatic document feeder (ADF) input tray
L2698A-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths
L2698A-Extender_Output Extender Output - Paper exit tray extension
L2698A-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit
L2698A-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk
L2698A-Feed_Rollers_ADF Feed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.
L2698A-Flag_ADF Flag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly
L2698A-Flag_Paper Flag Paper - OOPS flag - out of paper sensor
L2698A-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.
L2698A-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons
L2698A-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.
L2698A-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.
L2698A-Glass_Assy Glass Assembly - Main top copier glass assembly.
L2698A-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken
L2698A-Hinge_Cvr Hinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.
L2698A-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.
L2698A-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.
L2698A-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly
L2698A-Lid_Cover_Assy Lid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.
6040-1322 Lubricant - Lubt-grease for HP 213045-001
L2698A-Motor_ADF Motor ADF - ADF motor unit - drives ADF rollers on the feeder assembly
L2698A-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.
L2698A-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
L2698A-Pad_ADF Pad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.
L2698A-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing
L2698A-PC_BRD_Interface PC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.
8121-0889 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 120V in North America, Opt. 953)
8121-0890 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 240V in India, Opt. 960)
8121-0891 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 240V in China)
8121-0892 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (Opt. 952)
8121-0893 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 240V in UK, Singapore, Malaysia, and Hong Kong, Opt. 955)
8121-0894 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Thailand and Brazil, Opt. 961)
8121-0895 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Europe, Opt. 954)
8121-0897 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Korea, Opt. 958)
8121-0898 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Argentina, Opt. 950)
8121-0899 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Chile, Opt. 959)
8121-0969 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (USA and Canada, Opt. 953)
8121-1082 Power Cord - AC power cord - Two conductor, 0.5m (19.6-inch) length
L2698A-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
0957-2291 Power Module - Power module (brick type, 15W) - 2-wire - Input voltage 100-240V, 50/60Hz - Output volatge 12VDC, 1250mAh - Requires a detachable power cord with straight C7 connector (for worldwide operation)
L2698A-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
L2698-67001 Power Supply - Power supply (wall mount, 15W) - 2-wire - Input 120VAC, 50/60Hz - Output 12VDC, 1250mAh
L2698A-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
L2698-69002 Scanner - HP Scanjet G3110 Photo Scanner engine - Does not include document lid
L2698-69004 Scanner - Scanner G3110 ERP Without Doc Lid
L2698A-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
L2694-80008 Service Parts - Pwra,Wmt,Na,2-Cond,12vdc,15w
