Q6510A - LaserJet 3050z AIO

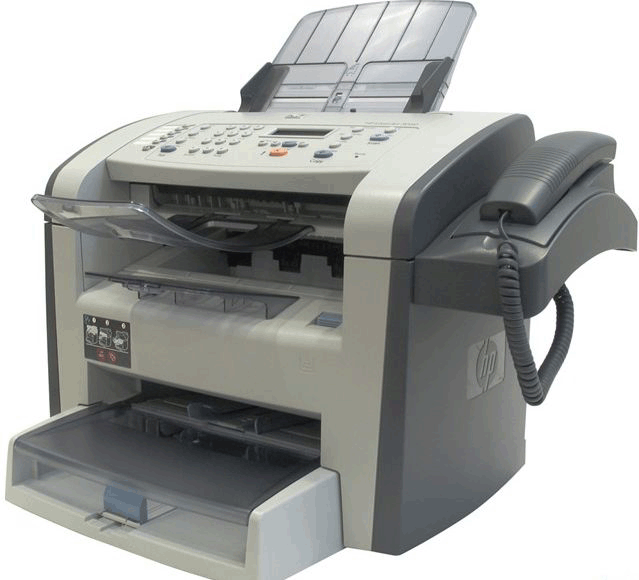

HP LaserJet 3050z AIO (Q6510A)


MFG Part Number: Q6510A

Printer Support
  HP Care Pack for LaserJet 3050z AIO
Printer Support Techical Help HP Service Manual paper book for HPLaserJet 3050z AIO Buy the full service manual
OEM HP Parts List for HP LaserJet 3050z AIO View full list of service parts
See HP parts for this model:

HP printer parts available for Q6510A HP LaserJet 3050z AIO Printer

Q3093-80004 Adapter - Adapter - Two to four wire phone cord adaptor - Q3093-80004
RC1-1953-000CN Bushing - Bushing - Twist locks into place - RC1-1953-000CN
8121-0811 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain) - 8121-0811
C6520A Cable - Universal Serial Bus (USB) interface cable - Type 'A' connector to type 'B' connector - 3.0m (9.8ft) long - C6520A
RK2-1214-000CN Cable - Scanner cable - Flat cable from document scanner assembly - RK2-1214-000CN
RS971AA Cable - HP USB 2.0 Interface Cable - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long - RS971AA
H3110E Care_Pack - HP Network Install InkJet/Personal LaserJet Service - H3110E
HC127PE Care_Pack - HP 1year PostWarranty PhoneAssist LsrJt P3xxx M1xx-P305x CLJ 2xxx ScanJet N6350-8270 8300 Service - HC127PE
U9809E Care_Pack - HP 3 year Return to depot for LaserJet 305x All-in -One and M1522 MFP Service - U9809E
U9810E Care_Pack - HP 3 year Next business day Exchange for LaserJet 305x All-in -One and M1522 MFP Service - U9810E
U9811E Care_Pack - HP 3 year Next business day Onsite LaserJet 305x All-in -One and M1522 MFP Hardware Support - U9811E
U9812PE Care_Pack - HP 1 year Post-Warranty Next business day Exchange for LaserJet 305x AiO and M1522 MFP Service - U9812PE
U9813PE Care_Pack - HP 1 year Post-Warranty Next business day Onsite for LaserJet 305x AiO M1522 MFP hardware Support - U9813PE
UA152PE Care_Pack - HP 1 year Post-Warranty Return to depot for LaserJet 305x All-in -One and M1522 MFP Service - UA152PE
UF925E Care_Pack - HP 1 year Next business day Onsite for LaserJet 305x All-in -One and M1522 MFP Hardware Support - UF925E
Q2612-67901 Cartridge - Black toner cartridge - Will print approximately 2,000 pages based on a 5% print density - Q2612-67901
Q2612A Cartridge - Black toner cartridge - Will print approximately 2,000 pages based on a 5% print density - Q2612A
Q6504-00017 Control_Panel - Control panel overlay - Snaps on top of the control panel assembly (Greek) - Q6504-00017
RK2-1209-000CN Control_Panel - Control panel electronics assembly - Control panel display and buttons assembly (English) - Does not include cover plastic - RK2-1209-000CN
RC1-2474-020CN Cover - Upper rear cover assembly - Small plastic cover that protects the Fuser Assembly - Mounts on the top rear of the printer - Has air louvers for ventilation - RC1-2474-020CN
RC1-2474-040CN Cover - Upper rear cover assembly - Small plastic cover that protects the Fuser Assembly - Mounts on the top rear of the printer - Has air louvers for ventilation - RC1-2474-040CN
RC1-8368-000CN Cover - Lower rear cover assembly - Covers the paper pickup assembly - Larger of the two covers on the rear of the printer - RC1-8368-000CN
RC1-8373-000CN Cover - Left side cover assembly - Slightly curved plastic cover with the HP logo molded into it - Has cutout for the rear panel power switch and power cord receptacle - Covers the power supply assembly - RC1-8373-000CN
RC1-8374-000CN Cover - Right side cover assembly - Slightly curved plastic cover with the HP logo molded into it - Has cutout for the rear panel interface connectors - RC1-8374-000CN
RC1-8416-000CN Cover - LJ3050 scanner top plastic cover - Does not include electronics assembly - RC1-8416-000CN
RL1-1160-000CN Cover - Front cover assembly - Has cutouts for the toner cartridge door release button, and paper input tray assembly - RL1-1160-000CN
RM1-3076-000CN Cover - Left scanner cover - Mounts on the left end of the scanner assembly - RM1-3076-000CN
RM1-3076-020CN Cover - Left scanner cover - Mounts on the left end of the scanner assembly - RM1-3076-020CN
RM1-3077-00CN Cover - Scanner right cover assembly - RM1-3077-00CN
RC1-8372-000CN Door - Print cartridge access door - RC1-8372-000CN
RC1-2476-000CN Foam - Scanner cushion - Square foam pices that cushion the scanner when locked in place - Mount in the square front recesses on the scanner frame assembly - RC1-2476-000CN
RL1-1161-000CN Frame - Scanner support frame - C-shaped plastic frame that mounts to the top of the printer - Has rear hinge pins for the top cover and scanner assembly, and recesses for the scanner link arms, lift springs and cushions - RL1-1161-000CN
RM1-3044-000CN Fuser_Assembly - Fuser Assembly - Bonds the toner to the paper with heat - For 110VAC to 127VAC operation - Mounts to the upper rear of the print engine assembly - RM1-3044-000CN
RM1-3045-000CN Fuser_Assembly - Fuser Assembly - Bonds the toner to the paper with heat - For 220VAC to 240VAC operation - Mounts to the upper rear of the print engine assembly - RM1-3045-000CN
RM1-3045-020CN Fuser_Assembly - Fuser Assembly - Bonds the toner to the paper with heat - For 220VAC to 240VAC operation - Mounts to the upper rear of the print engine assembly - RM1-3045-020CN
RL1-0376-000CN Ground - Scanner ground plane (or sheet) - Flexible sheet that runs from the ground PC board on the right side of the scanner assembly to the top of the printer chassis - RL1-0376-000CN
RM1-3066-000CN Guide - Scanner guide assembly - LaserJet 3050AIO scanner paper guide assembly - RM1-3066-000CN
XA9-1469-000CN Hardware - Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal - XA9-1469-000CN
RM1-2033-030CN Laser_Scanner - Laser/scanner assembly - Mounts on the front support shelf on the printer frame assembly - Mounts just below the engine control unit PC board - RM1-2033-030CN
Q6510A LaserJet - HP LaserJet 3050z All-In-One Printer - Q6510A
RC1-2498-000CN Latch - Left side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area - RC1-2498-000CN
RC1-2499-000CN Latch - Right side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area - RC1-2499-000CN
RC1-8413-000CN Lever - Scanner meida lever - Paper type selctor lever for scanner ADF input tray - RC1-8413-000CN
RC1-2485-000CN Link - Lower coupler link - Connects between the toner cartridge drive gear disengaging cam and the top link coupler (bracket) - RC1-2485-000CN
RC1-2494-000CN Link - Top coupler link - L-shaped plastic bracket - Pulls the the lower coupler link to disengage to toner cartridge drive gear - RC1-2494-000CN
RM1-0896-000CN Link - Left scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access - RM1-0896-000CN
RM1-0897-000CN Link - Right scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access - RM1-0897-000CN
Q2663-60011 LIU_Module - Line interface unit (LIU) PC board - Provides telephone communications (for fax capabilities) to the printer - For the United States and World Wide EXCEPT Europe - Q2663-60011
Q2687-60012 LIU_Module - Line interface unit (LIU) PC board - provides telephone communications (for fax capabilities) to the printer - For use in Europe - Q2687-60012
C6747-60005 Motor - ADF and scanner drive motor assembly - C6747-60005
RK2-0777-000CN Motor - Stepping motor - Main drive motor for the printer - Motor M1 - RK2-0777-000CN
7121-8043 NamePlate - HP logo (jewel) - 7121-8043
7121-8363 NamePlate - HP logo (jewel) - 7121-8363
Q6510-60101 Other_Parts - Lj3050z phone gbt - Q6510-60101
Q6510-60102 Other_Parts - Lj3050z phone tbr38 - Q6510-60102
Q6510-60103 Other_Parts - Lj3050z phone india - Q6510-60103
Q6510-67055 Other_Parts - Rplmt lj 3050z whole unit220v - Q6510-67055
Q6510-67056 Other_Parts - Rplmt lj 3050z whole unit110v - Q6510-67056
Q6510-69055 Other_Parts - Refurb lj 3050z whole unit220v - Q6510-69055
Q6510-69056 Other_Parts - Refurb lj 3050z whole unit110v - Q6510-69056
Q6504-00006 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Italian) - Q6504-00006
Q6504-00007 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Swedish) - Q6504-00007
Q6504-00008 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Norwegian) - Q6504-00008
Q6504-00009 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Finnish) - Q6504-00009
Q6504-00010 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Danish) - Q6504-00010
Q6504-00011 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Russian) - Q6504-00011
Q6504-00012 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Czech) - Q6504-00012
Q6504-00013 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Hungarian) - Q6504-00013
Q6504-00014 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Polish) - Q6504-00014
Q6504-00015 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Slovak) - Q6504-00015
Q6504-00016 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Turkish) - Q6504-00016
Q6504-00018 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Hebrew) - Q6504-00018
Q6504-00019 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Arabic) - Q6504-00019
Q6504-00020 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Traditional Chinese) - Q6504-00020
Q6504-00021 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Korean) - Q6504-00021
Q6504-00022 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Simplified Chinese) - Q6504-00022
Q6504-00023 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Thai) - Q6504-00023
Q6504-00024 Overlay - Control panel overlay - Snaps on top of the control panel assembly (Vietnamese) - Q6504-00024
RM1-0890-000CN Pad - Scanner separation pad assembly - (does not includes the holder/frame, tension spring, feed arm) only the separation pad set is included. - RM1-0890-000CN
RM1-0891-000CN Pad - Scanner separation pad (set) - Includes the pad, clear plastic sheet, and the pad cover - User replaceable - RM1-0891-000CN
RM1-2048-000CN Pad - Separation pad assembly - Includes the holder assembly, separation pad, and spring - The assembly is inserted into the bottom rear of the printer - RM1-2048-000CN
HPJ1124 Paper - Media for HP CB493A - HPJ1124
HPM1120 Paper - Media for HP C8991B - HPM1120
HPP1122 Paper - Media for HP C8179A - HPP1122
HPU1132 Paper - Media for HP Q5986A - HPU1132
Q1298A Paper - LaserJet Satin finish tough paper - A size (8.5 x 11-inches) - Will not tear and will withstand outdoor weather conditions - Can print on both sides - Q1298A
Q2413A Paper - Premium LaserJet cover paper - Heavyweight (75lb), smooth finish on both sides, 96 brightness - A size (8.5 x 11-inches) - 100 sheets per box - Q2413A
Q2415A Paper - Paper (Glossy) for LaserJet 4P Series, LaserJet 2100 Series, Color LaserJet 5500 Series, Color LaserJet 9500 Series - Q2415A
Q2419A Paper - Media for HP Q5964A - Q2419A
Q6541A Paper - Media for HP C8546A - Q6541A
Q6543A Paper - Paper (Matte) for Color LaserJet 4700, LaserJet 1320t Printer, LaserJet P3xxx Printer, Color LaserJet 2605 Printer - Q6543A
Q6545A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet 9500 Series, LaserJet 1022 Seriess, Color LaserJet 3500 Series - Q6545A
Q6549A Paper - Paper (Matte) for Color LaserJet 5500 Series, Color LaserJet 9500 Series, Color LaserJet 1600 Printer, Color LaserJet CM1015 MFP - Q6549A
Q7844-60002 PC_Board - Formatter board - Controls the logic and timing operation of the printer, translates the control panel input, and provides control of the scanner assembly - Mounts on the right side of the printer - For LaserJet 3050AIO model only - Q7844-60002
RM1-3404-000CN PC_Board - Engine control unit (ECU) PC board - Controller board - Provides control logic for the printer mechanical functions - RM1-3404-000CN
RM1-3043-000CN Pickup_Assembly - Paper pickup assembly - Complete assembly that paper pickup roller mounts in - RM1-3043-000CN
RF5-3235-000CN Platen - White platen assembly strip - Used as a white reference for document scanning - RF5-3235-000CN
Q6510-60104 Plug - Lj3050z phone gbt w/pulse - Q6510-60104
8120-8382 Power_Cord - Power cord (Flint Gray) - 18 AWG, 1.8m (6.0ft) long - Has straight (F) receptacle (For 120V in the USA and Canada) - 8120-8382
8121-0516 Power_Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) receptacle (For 220V in Europe) - 8121-0516
8121-0517 Power_Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong, Singapore, and Malaysia) - 8121-0517
8121-0518 Power_Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Denmark) - 8121-0518
8121-0519 Power_Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Switzerland) - 8121-0519
8121-0520 Power_Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240V in India) - 8121-0520
8121-0737 Power_Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 240V in India and South Africa) - 8121-0737
8121-0738 Power_Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220V in Switzerland) - 8121-0738
8121-1004 Power_Cord - Power cord (Flint Gray) - 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Israel) - 8121-1004
RM1-3402-000CN Power_Supply - Power supply assembly - Includes the power supply board with integrated power switch and power cord receptacle - For 110VAC to 127VAC operation - RM1-3402-000CN
RM1-3403-000CN Power_Supply - Power supply assembly - Includes the power supply board with integrated power switch and power cord receptacle - For 220VAC to 240VAC operation - RM1-3403-000CN
J6035D Print_Server - JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port - J6035D
J6035G Print_Server - JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port - J6035G
J7942G Print_Server - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module - J7942G
J7951G Print_Server - HP Jetdirect ew2400 802.11g wireless print server module - Includes power supply, USB cable, LAN/Ethernet cable, setup documentation and software - J7951G
Q6504-69055 Printer - Refurb lj3050 aio printer 220v - Q6504-69055
Q6504-69056 Printer - Refurb lj3050 aio printer 110v - Q6504-69056
RL1-0266-000CN Roller - Paper pickup roller (D-shaped roller) - Picks up media from the paper input tray - RL1-0266-000CN
RM1-0885-000CN Roller - Scanner pickup roller assembly - Includes the pickup roller, drive shaft, gear and bushing/retainer - RM1-0885-000CN
RM1-2062-000CN Roller - Transfer roller assembly - Steel shaft with black spongy roller and drive gear - Mounts on top of the paper pickup assembly - RM1-2062-000CN
RM1-3063-000CN Scanner - Paper scanner frame assembly - Includes all paper scanner parts except scanner top cover and control panel - RM1-3063-000CN
XA9-1420-000CN Screw - M3 pan head phillips screw with captive flat and split-lock washers - 8mm long - XA9-1420-000CN
XA9-1495-000CN Screw - 4 Wafer head machine screw included - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal - XA9-1495-000CN
XA9-1501-000CN Screw - M3 pan-head Phillips screw - 10mm long - XA9-1501-000CN
XA9-1503-000CN Screw - M3 truss head (Flanged) phillips screw (Black oxide finish) - 6mm long - XA9-1503-000CN
XA9-1670-000CN Screw - Screw - M3 X 6mm - XA9-1670-000CN
XB2-7300-605CN Screw - Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal - XB2-7300-605CN
XB2-8300-609CN Screw - M3 screw with captive flat washer - 6mm long - XB2-8300-609CN
XB4-5401-005CN Screw - Screw, p, m4x10 - XB4-5401-005CN
XB4-7300-609CN Screw - Screw - Self tapping BH3X6mm - XB4-7300-609CN
XB4-7300-805CN Screw - Plastic self thread-forming screw - Used to secure parts to plastic holes - XB4-7300-805CN
Q6510A-Manual Service_Guide - HP LaserJet 3050z All-in-One Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams. - Q6510A-Manual
Q6510A-Manual-Laser Service_Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams. For LaserJet 3050z AIO - Q6510A-Manual-Laser
Q6510A-Repair-LaserJet Service_Printer - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available. For LaserJet 3050z AIO - Q6510A-Repair-LaserJet
RM1-3410-000CN Speaker - Speaker assembly - Mounted on right front side of printer - Speaker SP1 - RM1-3410-000CN
RC1-2544-000CN Spring - Torsion spring for HP LaserJet 3000 Series - RC1-2544-000CN
RU5-2196-000CN Spring - Compression spring - RU5-2196-000CN
RU5-2885-000CN Spring - Compression spring - Provides pressure for scanner link - Two used, one on each side - RU5-2885-000CN
5185-7441 Tool - Scanner hinge tool (wire-form) - Used to support the scanner assembly, and to keep it from falling, while the assembly is be removed from the printer (when the scanner link assemblies are being removed) - 5185-7441
RC1-8443-000CN Tray - Document scanner paper delivery guide - RC1-8443-000CN
RM1-3059-000CN Tray - Delivery tray assembly - Paper output tray for LaserJet 3050/3052/3055 AIO series printers - RM1-3059-000CN
RM1-3060-000CN Tray - Paper input tray - Top multi-purpose paper input tray - Holds ten sheets of paper - RM1-3060-000CN
RM1-3419-000CN Tray - Scanner paper input tray assembly - RM1-3419-000CN
