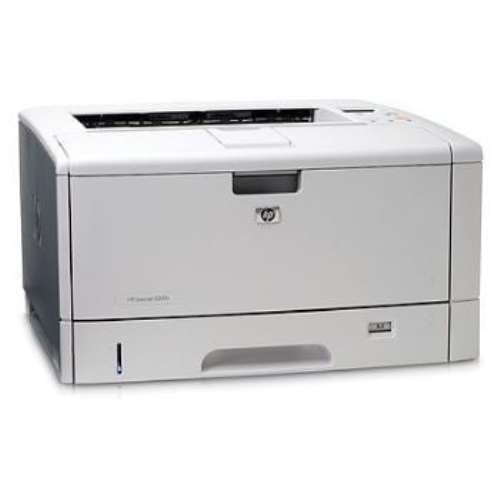

HP LaserJet 5200LX (Q7552A)

MFG Part Number: Q7552A

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

HP parts list for Q7552A HP LaserJet 5200LX Printer

J7934-69011 Backbone - JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector;Click to order the functional equivalent: J7934-69021

J7934-69021 Backbone - JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector

HC128PE Care Pack - HP 1 year Post Warranty Phone Assist LaserJet 33-52xx/ScanJet 7-8xxx service

U3469E Care Pack - HP 3 year Next business day Onsite LaserJet 4350/ 5200 Hardware Support

U3470E Care Pack - HP 3 year 4 hour response 13x5 Onsite LaserJet 4350/ 5200 Hardware Support

U3472PE Care Pack - HP 1 year Post Warranty Next business day Onsite LaserJet 4350 5100 5200 Hardware Support

U3511PE Care Pack - HP 1 year Post Warranty 4 hour response 13x5 OnsiteLaserJet 4350/ 5100/ 5200 Hardware Support

U4665E Care Pack - HP 3 year 4 hour response 9x5 Onsite LaserJet 4350/ 5200 Hardware Support

U6397PE Care Pack - HP 1 year Post Warranty 4 hour response 9x5 OnsiteLaserJet 4350/ 5100/ 52xx Hardware Support

U6407E Care Pack - HP 4 year Next business day Onsite LaserJet 4350/ 5200 Hardware Support

U6408E Care Pack - HP 5 year Next business day Onsite LaserJet 4350/ 5200 Hardware Support

UA191E Care Pack - HP 4 year 4 hour response 13x5 Onsite LaserJet 4350/ 5200 Hardware Support

UA192E Care Pack - HP 5 year 4 hour response 13x5 Onsite LaserJet 4350/ 5200 Hardware Support

UA193E Care Pack - HP 4 year 4 hour response 9x5 Onsite LaserJet 4350/ 5200 Hardware Support

UA194E Care Pack - HP 5 year 4 hour response 9x5 Onsite LaserJet 4350/ 5200 Hardware Support

UC742E Care Pack - HP Network Install Mono Mid-range LaserJet Service

UK665E Care Pack - HP 3 year Next Business Day plus Defective Media Retention for LaserJet 4350 5200 Hardware Support

UK673PE Care Pack - HP 1 yr Post Warranty Next Business Day plus Defective Media Retention LaserJet 4350 5200 Support

UT822PE Care Pack - HP 2 year Post-Warranty Next business day onsite LaserJet 4350 5100 5200 Hardware Support

UT967E Care Pack - HP 4 year Next business day Onsite + Defective Media Retention LaserJet 5200 Support

UU848E Care Pack - HP 5 year Next business day Onsite + Defective Media Retention LaserJet 5200 Support

RK2-1097-000CN Control Panel - Control panel assembly - Includes the plastic shell and the control panel PC board - (Does NOT include overlays) - Mounts to the top right side of printer

RM1-2458-040CN Cover - Toner cartridge door - Fold down door used when accessing the toner cartridge - Front top and front of printer cover

RU5-0546-020CN Gear - 133-tooth gear - Big gear that is located on the gear plate

RU5-0548-000CN Gear - Gear - 52/96 tooth gear - Have 52-tooth on the inside and 96-tooth on the outside - Located on the gear plate

RM1-2555-020CN Laser Scanner - Laser/Scanner assembly - Mounts on the support structue in the print engine frame assembly RM1-2557

RM2-6050-000CN Laser Scanner - Laser Scanner Assy

Q7543-67909 Maintenance Kit - HP Maintenance kit assembly 110v models.

Q6497-69005 PC Board - Formatter (main logic) board PCA - Base unit model only

RM1-2530-000CN Pickup Assembly - Paper pickup assembly for 250 sheet Tray 2 paper cassette - Includes the base structure with the paper pickup roller, paper feed roller, drive gears, and paper sensors.

RM1-2530-090CN Pickup Assembly - Cassette Paper P/U Assy

RM1-2951-030CN Power Supply - Low voltage power supply PC Board - 220-240VAC, 50Hz

RM1-2951-140CN Power Supply - Power Supply Assy

RM1-2958-020CN Power Supply - High voltage power supply PCA assembly - For 220/240 VAC input voltage

Q7552A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

Q7829-67926 Roller - Paper pickup roller - MP/Tray 1 paper pickup roller

RM1-2490-010CN Roller - Face down top output bin delivery roller assembly - Includes all rollers and holders in assembly

RM1-2490-090CN Roller - Assy-Face Down Paper Delivery

RM1-3001-000CN Roller - Registration roller assembly - Includes the roller, bushings, mounting plate, transfer upper guide, left and right registration side plate, registration roller shaft, and upper transfer sheet guide

Q7552A-Manual_Laser Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

RC1-7288-000CN Stop - Link stopper - Stop for lever arm that couples the drive gear to the toner cartridge

LaserJet 5200LX Printer parts list
