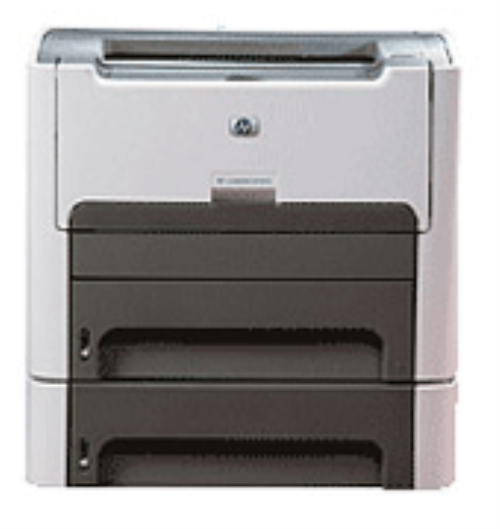

HP LaserJet 1320T (Q7589A)

MFG Part Number: Q7589A 21ppm black, 1200 x 1200 DPI

Printer Support Linksshow

HP parts list for Q7589A HP LaserJet 1320T Printer

RM1-1318-000CN Adjuster - Duplexer paper size adjuster assembly - Includes the adjustment lever, holder bracket, and the two drive gears in a spring loaded arm - Mounts on the top right side of the duplexer assembly

RC1-3551-000CN Arm - Tag arm - Spring loaded arm that holds the memory contact and cable (contacts the memory in the toner cartridge) - Mounts in the tag arm holder (Towards the right end of the laser/scanner support shelf)

Q7589A-ROHS Base - Lj1320t base+tray unit

RM1-1294-000CN Body - 250-sheet (tray 2) body assembly - Includes everything except for the tray front cover assembly (RM1-1293-030CN).

RC1-3665-000CN Bushing - Bushing/shaft retainer (Plastic) - Small plastic cylinder with four nubs that twist - Locks into the side frame

5063-1256 Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long

5063-1257 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 3.0m (9.8ft) long

8121-1036 Cable - Universal Serial Bus (USB) interface cable (Black) - Type A connector to type B connector - 0.6m (24-inches) long - USB 2.0 compliant

C2951A Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m (9.8ft) long

RG0-1074-020CN Cable - Cable assembly with ferrite - 4-pin (F) connector on both ends - 35.7cm (14.1in) long - From laser/scanner assembly to formatter board

RM1-1312-000CN Control Panel - Control panel assembly - Includes the control panel bezel, 'Go' and 'Cancel' buttons, LED light pipe, and sheild plate (PC board NOT included) - Mounts on the right side of the top cover

RC1-3800-000CN Cover - Top cover assembly - Has face-down paper output tray molded into it

RC1-3812-000CN Cover - Left side printer cover - Has moled-in bezel for the interface port connectors (On the formatter board)

RC1-3814-000CN Cover - Right side cover assembly - Has molded-in air intake louvers

RM1-1293-030CN Cover - Tray front cover assembly - Mounts to the front of tray 2 (RM1-1294-000CN).

RM1-1307-080CN Cover - Front cover set - Includes the toner cartridge access door, single sheet priority input slot door, front cover (between tray 2 and the priority input slot), and the noise absorber

RM1-1308-000CN Cover - Rear cover assembly - Includes the rear cover bezel and fold down face-up (or straight through) paper output tray (Tray is NOT sold separately)

RM1-1308-020CN Cover - Rear cover assembly - Includes the rear cover bezel and fold down face-up (or straight through) paper output tray (Tray is NOT sold separately)

RM1-1323-030CN Cover - Tray front cover assembly - Mounts to the front of tray 2

RK2-0428-000CN Fan - Fan assembly - Includes the small cooling fan and cable - Mounts in the fan housing / air flow guide on the right side plate assembly

RM1-1286-000CN Feeder - Paper feed guide assembly - Support structure to guide the paper into the fusing assembly - Ribbed plastic frame with metal guide plate

C2934A Film - Film (Transparency) for Color LaserJet 5, Color LaserJet 5M Series, Color LaserJet 8500 Series, Color LaserJet 4500 Series

C2936A Film - Color LaserJet transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per box

RA0-1087-Film1200 Film - Fuser Film laserjet models 1000 1200 series.

RA0-1087-Film1200 Fixing Assembly - Fuser Film laserjet models 1000 1200 series.

RM1-1289-BULK Fixing Assembly - Fixing assy 110v

RC1-3472-000CN Flag - Paper sensor flag - cylindrical plastic piece with a flag on each end (One senses the paper, the other activates the photo-sensor)

CB356-60001 Formatter - Formatter board assembly (USB and ETHERNET) - Contains the logic circuitry, JetDirect 10/100 Ethernet print server and connector, USB interface and connector, and internal connector for the wireless LAN board - Mounts towards the rear on the left.

Q3697-60001 Formatter - Formatter board assembly (USB and ETHERNET) - Contains the logic circuitry, JetDirect 10/100 Ethernet print server and connector, USB interface and connector, and internal connector for the wireless LAN board - Mounts towards the rear on the left

RM1-1289-010CN Fuser Assembly - Fuser Assembly - Bonds toner to paper with heat - For 110V to 127VAC operation

RM1-1289-080CN Fuser Assembly - Fusing assembly - Bonds toner to paper with heat - For 110V to 127VAC operation

RM1-1461-080CN Fuser Assembly - Fuser Assembly - Bonds toner to paper with heat - For 220V to 240VAC operation

RM1-2337-000CN Fuser Assembly - Fusing assembly - Bonds toner to paper with heat - For 220V to 240VAC operation

RU5-0331-000CN Gear - 29-tooth gear (White plastic) - Main drive gear for the fusing assembly - Mounts on the right end of the fusing assembly

RU5-0332-000CN Gear - 19-tooth gear (White plastic)

RM1-1299-020CN Gear Assembly - Main drive gear assembly - Large plate with ten drive gears and the single sheet priority drive clutch (SL2) - Mounts on the right side plate assembly

RM1-1301-000CN Gear Assembly - Double gear assembly - Includes the gear body, inset gear (both with a toothless area) and compression spring - For driving the paper pickup roller

RM1-1302-000CN Gear Assembly - Duplexing gear assembly - Includes the normal and reverse rotation gear assemblies, and idler gear mounted on a support bracket - Drives the top output bin and rear rollers

RM1-1303-000CN Gear Assembly - Normal rotation gear assembly - Includes the internal/external geared body, two planetary gears, outer gear with shaft, and the black ratchet gear

RC1-3534-020CN Guide - Cartridge guide - Upper right side toner cartridge guide

RC1-3539-020CN Guide - Cartridge guide - Upper left side toner cartridge guide

RC1-3537-000CN Holder - Fan Holder assembly - Plastic fan bezel with airflow ports - Directs airflow to the various parts of the printer - Mounts on the right side plate assembly

RC1-3537-020CN Holder - Fan Holder assembly - Plastic fan bezel with airflow ports - Directs airflow to the various parts of the printer - Mounts on the right side plate assembly

RC1-3728-000CN Holder - Drawer holder - Right side Tray 2 holder - Also Tray 2 connector mount housing

RM1-1320-030CN Interlock - Interlock switch assembly (Has mounting clips for the wireless LAN PC board for the LaserJet 1320nw) - Disables the printer when the left side cover is removed - Mounts in the upper front corner of the left side plate assembly

RM1-1321-000CN Link - Shutter link assembly - Spring loaded link which engages the shutter on the laser/scanner assembly (blocking the laser beam) when the toner cartridge access door is opened - Mounts on the left front of the laser/scanner support shelf

Q5927-90965 Manual - LaserJet 1160 and LaserJet 1320 series combined service manual

C7843A Memory - 16MB, 100-pin SDRAM DIMM memory module

Q7707A Memory - HP 32MB 133 MHz Synchronous SDRAM DIMM

Q7708A Memory - HP 64MB 133 MHz Synchronous DRAM DIMM

Q7709A Memory - 133 MHz 128MB, 100-pin SDRAM DIMM memory module Synchronous DRAM DIMM

Q5927-40001 NamePlate - HP LaserJet 1320 Nameplate - Mounts in the recess on the toner cartridge access door

HPJ1124 Paper - HP LaserJet Paper - A size (8.5 x 11-inches) - 500 sheets

HPJ1424 Paper - HP LaserJet Paper - 21.6cm (8.5in) x 35.5cm (14in) - 500 sheets

HPL285R Paper - HP Color LaserJet Paper - A size (8.5 x 11-inches) - 500 sheets

HPM1120 Paper - HP Multipurpose Paper - A size (8.5 x 11-inches) - 500 sheets

HPM1420 Paper - HP Multipurpose Paper - Legal size (8.5 x 14 inches) - 500 sheets

HPP1122 Paper - HP Printing Paper - A size (8.5 x 11-inches) - 500 sheets

HPU1132 Paper - HP Premium Choice LaserJet Paper - A size (8.5 x 11-inches) - 500 sheets

Q1298A Paper - LaserJet Satin finish tough paper - A size (8.5 x 11-inches) - Will not tear and will withstand outdoor weather conditions - Can print on both sides

Q1298B Paper - LaserJet Satin finish tough paper - A4 size (21.0cm x 29.7cm) - Will not tear and will withstand outdoor weather conditions - Can print on both sides - 50 sheets per box

Q2413A Paper - Premium LaserJet cover paper - Heavyweight (75lb), smooth finish on both sides, 96 brightness - A size (8.5 x 11-inches) - 100 sheets per box

Q2415A Paper - Soft gloss LaserJet paper - Soft gloss finish on both sides, 95 brightness - A size (8.5 x 11-inches) - 500 sheets per box

Q2417A Paper - Soft gloss LaserJet paper - Soft gloss finish on both sides, 95 brightness - A4 size (21.0cm x 29.7cm) - 250 sheets per box

Q6541A Paper - HP Color Laser Soft-gloss Presentation Paper - A size (8.5 x 11-inches) - 200 sheets

Q6542A Paper - Paper (Glossy) for LaserJet 5200 series, LaserJet 1320t Printer, Color LaserJet 2605 Printer, Color LaserJet 2700 Printer

Q6543A Paper - Paper (Matte) for Color LaserJet 4700, LaserJet 1320t Printer, LaserJet P3xxx Printer, Color LaserJet 2605 Printer

Q6544A Paper - Paper (Matte) for LaserJet 4P Series, LaserJet 2100 Series, Color LaserJet 5500 Series, Color LaserJet 9500 Series

Q6545A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet 9500 Series, LaserJet 1022 Seriess, Color LaserJet 3500 Series

Q6547A Paper - Paper (Glossy) for Color LaserJet 5500 Series, Color LaserJet 9500 Series, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP

Q6549A Paper - Paper (Matte) for Color LaserJet 5500 Series, Color LaserJet 9500 Series, Color LaserJet 1600 Printer, Color LaserJet CM1015 MFP

Q6550A Paper - Paper (Matte) for Color LaserJet 5500 Series, Color LaserJet 9500 Series, Color LaserJet CM1015 MFP, Color LaserJet CM1017 MFP

CB355-60001 PC Board - Formatter board assembly - Contains the logic circuitry the parallel interface and connector and the USB interface and connector - Mounts towards the rear on the left side plate assembly

CB355-67901 PC Board - Formatter board assembly - Contains the logic circuitry, the parallel interface and connector, and the USB interface and connector - Mounts towards the rear on the left side plate assembly

CB358-67901 PC Board - Formatter board assembly - Contains the logic, and the parallel and USB interface circuitry and connectors - Mounts towards the rear on the left side plate assembly

RM1-1243-000CN PC Board - Egine controlunit (ecu) pc board - control and power supply board for the printer (for 220v to 240v operation) - does not includes the power cord connector or power switch - mounts in the bottom of the printer

RM1-1243-030CN PC Board - Engine controlunit (ECU) PC board - Control and power supply board for the printer (For 220V to 240V operation) - Does NOT includes the power cord connector or power switch - Mounts in the bottom of the printer

J3258B PC Board Interface - External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN

J3263G PC Board Interface - HP JetDirect 300X external print server module (10Base-T and 100Base-TX) - Connects between printer parallel port and LAN network

J3265G PC Board Interface - HP JetDirect 500X external token ring print server module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45), 10Base2 (BNC), or 100Base-TX (RJ-45) LAN

J6035C PC Board Interface - JetDirect 175X Fast Ethernet external print server - Has on 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port

J6072A PC Board Interface - HP bt1300 Bluetooth wireless printer adapter - Allows for wireless printing from Bluetooth enabled PCs, PDAs, phones, and cameras - Connects to either the parallel or USB port on the printer - Includes the power module and power cord

J7942A PC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module

J7942G PC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module

J7951G PC Board Interface - HP Jetdirect ew2400 802.11g wireless print server module - Includes power supply, USB cable, LAN/Ethernet cable, setup documentation and software

Q7589A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

RM1-1306-000CN Retainer - Paper retainer assembly - Bracket assembly with two flapper levers - Keeps paper in the top output bin from sliding back into the printer

RM1-2340-000CN Retainer - Paper retainer assembly - Bracket assembly with two flapper levers - Keeps paper in the top output bin from sliding back into the printer

RC1-3470-000CN Roller - Idler roller (plastic) - Free wheeling roller - Two used

RL1-0540-000CN Roller - Paper pickup roller - Includes the D shaped pickup roller spindle with the rubber tire - Does NOT include (RC1-3470-000CN) the idler rollers on each side of the pickup roller

RL1-0540BULK100 Roller - Roller paper pickup

RM1-1281-070CN Roller - Registration roller assembly - Includes the frame, the two roller assemblies, and the upper transfer guide - Mounts in the front middle of the print engine assembly

RM1-1471-000CN Roller - Transfer roller assembly - Transfers static charge to the media being printed on - Mounts in front of the paper feed guide assembly

RM1-2339-000CN Roller - Registration roller assembly - Includes the frame, the two roller assemblies, and the upper transfer guide - Mounts in the front middle of the print engine assembly

XA9-1420-000CN Screw - M3 pan head phillips screw with captive flat and split-lock washers - 8mm long

XA9-1495-000CN Screw - 4 Wafer head machine screw included - M3, 6mm long, No. 2 Phillips recess - Secures metal to sheet metal

XA9-1504-000CN Screw - M3 truss head (flanged) screw - 8mm long

XB4-7300-809CN Screw - M3 self-tapping pan head phillips screw (Black oxide finish) - 8mm long

XB4-7401-005CN Screw - M4 truss head (flanged) screw - 10mm long - Typically used to secure plastic parts to the left and right side plates

Q7589A-Manual_Laser Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

Q7589A#ABA Service Parts - HP LJ 1320 Tray Bundle - U.S. Eng

RM1-1289-070CN Service Parts - Fixing Assy 110v

RC1-3471-000CN Shaft - Drive shaft - Drives pickup roller

RK2-0420-000CN Solenoid - 24V DC Solenoid (SL3) - Engages the 'normal' and 'reverse' ratchet gears on the duplex drive gear assembly - Mounts on the right side plate assembly

RK2-0424-000CN Solenoid - 24V DC Solenoid (SL1) - Engages the pickup roller gear/clutch assembly for tray 2 (250-sheet tray) - Mounts on the right side plate assembly

RU5-2335-000CN Spring - Compression spring - Applies downward pressure on the memory tag arm to contact the toner cartridge

RM1-1249-000CN Switch - Power receptacle and switch cable assembly - Includes the power cord receptacle, power switch, and cable assembly - Mounts in the lower rear corner of the right side plate assembly

9175A001AA Tray - Lj1320 250 sht tray (mfg nmbr)

Q5931-67001 Tray - HP Optional 250-sheet paper tray service exchange unit - For LaserJet 1320 - Tray 3

Q5931-69001 Tray - RSTRD Q5931-67001 Optional 250-sheet paper tray service exchange unit - For LaserJet 1320 - Tray 3

Q5931A Tray - Optional 250-sheet paper tray assembly - Includes base assembly and removable paper cassette - Adds an additional bottom paper tray (tray 3) to the LaserJet

RM1-1322-000CN Tray - 250-sheet input paper tray (tray 2) assembly - Includes the tray body and front cover assemblies (please order RM1-1292-080CN)

RM1-1292-080CN Tray Assembly - 250-sheet input paper tray (tray 2) assembly - Includes the tray body and front cover assemblies

RM1-1322-080CN Tray Assembly - 250-sheet input paper tray (tray 2) assembly - Includes the tray body and front cover assemblies

Q5927-67957 Unit - Lj1320 svc replmt unit 220v

Q5927-69057 Unit - Lj1320 svc replmt unit 220v

LaserJet 1320T Printer parts list
