Printer parts diagram for: C8568-69002


C8568-69002 is represented by #5 in the diagram below. 1 RG5-5809-000CN Tray Multi-purpose Tray - Optional Tray 1 drop down paper input tray assembly only - Includes drop down flip out tray and paper width guides 5 C8568-69002 Tray Assembly Optional Tray 1 assembly - Complete Tray 1 assembly including rollers and mechanical drives

C8568-69002 is represented by #5 in the diagram below.

RG5-5809-000CN Tray Multi-purpose Tray - Optional Tray 1 drop down paper input tray assembly only - Includes drop down flip out tray and paper width guides

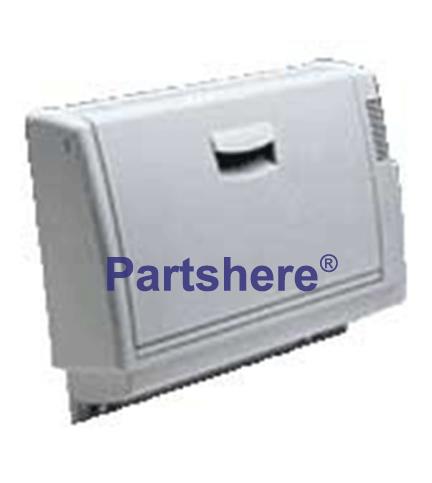

C8568-69002 Tray Assembly Optional Tray 1 assembly - Complete Tray 1 assembly including rollers and mechanical drives
