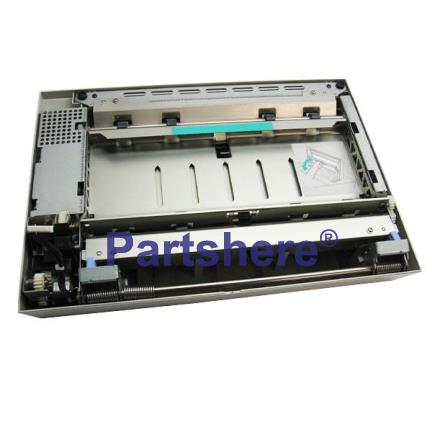

Your Transfer_Assembly RG5-2175-020CN is #12

HP parts picture diagram for RG5-2150-000CN, RG5-2151-000CN, RG5-2156-000CN, RG5-2175-020CN, RS5-1207-020CN
Picture Items

       Description (click to view price and order)

    Transfer assembly - Mounted on right side of 2000 sheet tray - Part: RG5-2175-020CN

    Drive bushing - Paper deck drive assembly bushing - Part: RS5-1207-020CN

    Back paper limit plate - Part: RG5-2150-000CN

    Middle paper limit plate - Paper width adjustment stop - Part: RG5-2151-000CN

    Front paper reference plate - Front length adjustment stop - Part: RG5-2156-000CN
