Printer parts diagram for: RG5-6228-060CN



RG5-6228-060CN is represented by #1 in the diagram below.

RG5-6228-060CN is represented by #1 in the diagram below.
1
C8531-69009 Drive Assembly 2000-sheet feeder drive assembly
1
RG5-6228-040CN Drive Assembly 2000-sheet feeder drive assembly
1

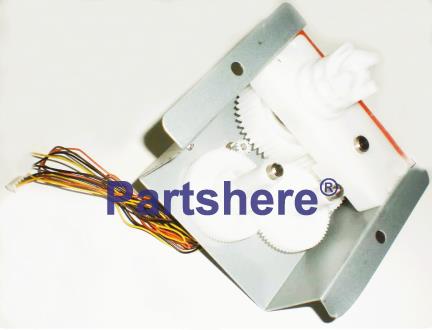

RG5-6228-060CN Drive Assembly Feed drive assembly - Includes the drive motor (M303), support bracket, and the four drive gears - Mounts in the 2,000-sheet paper feeder assembly
2
RH7-1481-020CN Motor Deck drive motor (M303) only - Mounts in the 2,000-sheet paper feeder assembly
