Your Tray RM1-4101-000CN is #1

HP parts picture diagram for FC5-6978-000CN, FM2-1708-000CN, WG8-5593-000CN, RM1-4101-000CN
Picture Items

       Description (click to view price and order)

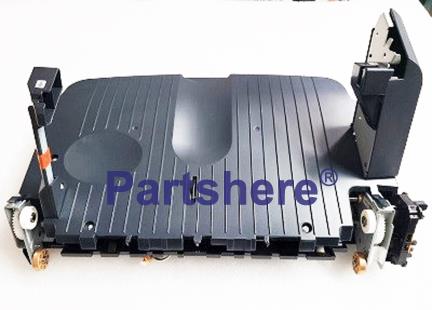

    Stapler/stacker tray - Upper tray assembly for the stapler/stacker (output bin 1) - Part: RM1-4101-000CN

    Sensor PC board - Small board with flag activated photosensor - Part: WG8-5593-000CN

    Option sensor assembly - Includes the photo interrupter (TLP1424) and bracket - Part: FM2-1708-000CN

    Plate, option tray, front - Part: FC5-6978-000CN
