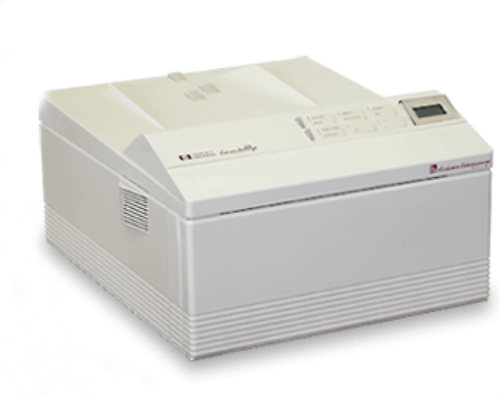

HP parts available for 33471AG HP LaserJet IIP 4ppm Laser Printer
RA1-7629-000CN Arm - Paper guide arm (Black) - Small curved side arms at MP input
RA1-7661-000CN Arm - Sensor arm - For sensing paper in the lower cassette base
5063-1256 Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 2.0m (6.6ft) long
5063-1257 Cable - IEEE 1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36-pin Centronics (M) connector (type B) - 3.0m (9.8ft) long
C2951A Cable - IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m (9.8ft) long
RH2-5104-000CN Cable - Fiber optic cable - From DC controller to fiber optic lens
SG4-6271-000CN Cable - Cable assembly for HP LaserJet II
RA1-7628-000CN Cap - Spring cap for HP LaserJet IIIP
5184-5220 Cartridge - Black toner (EP) cartridge
92275A Cartridge - Black toner (EP) cartridge
RB2-1758-000CN Cover - Display cover - Control panel display cover
RA1-8244-000CN Deflector - Paper deflector - Directs paper to top cover or face-up tray
92296T Film - Film (Transparency) for LaserJet II, LaserJet III, LaserJet 4 Series, LaserJet 4L Series
92296U Film - Film (Transparency) for LaserJet 33x0 MFP Seriess, LaserJet 4100 Series, LaserJet P2xxx Printer, Color LaserJet CM1015 MFP
Q2449BF Flash Card - Ddimm 4mb flash/16mb sra ddimm 4mb flash/16mb sramv.8.1
33471-69019 Fuser Assembly - Fusing assembly (240V, 50Hz) - Bonds toner to paper by heat
RG1-1776-000CN Gear - Gear cluster assembly (Large)
RG1-1777-000CN Gear Assembly - Gear assembly - Right side
RF1-3304-000CN Lamp - Fusing heat lamp (240v, 50Hz)
RG1-1771-000CN Laser Scanner - Scanner motor assembly - Includes motor drive board
5021-8943 Manual - LaserJet quick reference guide - Covers LaserJet Classic, II series, III series, 4 sereis, 5 series, 6 series and 5Si - Volume 1 of 2 volume set
33475-69011 Memory - 2MB memory expansion board
Q2449-67914 Memory - Firmware DIMM memory - 4MB Flash/16MB SRAM combo DIMM
J2382-69003 Module - External JetDirect LAN interface module with EtherTwist (10Base-T) and ThinLAN (10Base-2) connectors
RG1-1771-000CN Motor - Scanner motor assembly - Includes motor drive board
RG1-1912-080CN Pad - Separation pad - Rectangular pad - Behind pickup roller
33471-67905 PC Board - Rear dual port board assembly - Mounted on sheet metal cover
33471-69001 PC Board - Formatter (Main Logic) board
33471-69002 PC Board - DC controller board
RG1-1596-000CN PC Board - Lower cassette board
RG1-1769-020CN PC Board - Laser driver board - Includes laser assembly
8120-1351 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, Malaysia, and Brunei)
8120-4211 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (for 240V in South Africa and India)
8121-0964 Power Cord - Power cord (Black) - 16 AWG (1.25 sq.mm.), 1.9m (6.2ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, and Thailand)
0950-2623 Power Supply - Switching power supply (Delta DPS-158ABA) - 100-240VAC input, 47-63Hz - Four DC outputs (5.15V, +12V, -12V, 24V) - 158 watts - Includes upgrade sticker
33471-69017 Power Supply - Main power supply assembly - 120VAC, 60Hz
C3195-60168 Power Supply - Power Supply Board for Hewlett Packard Plotters.
RG1-1910-020CN Power Supply - Power supply assembly - 240VAC, 50Hz - Main power supply
RA1-7583-030CN Roller - Lower pressure roller - Hard rubber roller - Located in fusing assembly
RA1-7654-000CN Roller - Feed roller assembly - For (Optional) lower cassette input
RA1-7674-000CN Roller - D-shaped pickup roller - Located in lower cassette assembly
RA1-7824-000CN Roller - D-shaped pickup roller - Located in lower cassette assembly
RF1-2394-000CN Roller - Input feed roller/shaft (Only) - Has drive gear between the two feed rollers
RF1-2491-000CN Roller - Hard roller/spring - Rolls against top output roller
RG1-1778-000CN Roller - Feed roller assembly - Roller assembly after paper pickup roller
RG1-1791-070CN Roller - Delivery roller assembly - Has four 'Foam' rollers - For (Face down) top of printer paper output
RG1-1792-000CN Roller - Pickup roller assembly - For multipurpose input tray
RG1-1834-000CN Roller - Delivery roller assembly - Includes three dual knobbed rollers - For (face up) front of printer paper output
WG8-0323-000CN Sensor - Photo sensor for HP LaserJet IIIP
33471AB Service Parts - LaserJet IIP 4ppm Laser Printer
RA1-7656-000CN Service Parts - Ring Ratch A
RA1-7657-000CN Service Parts - Spr Clutch A
RG1-1783-000CN Service Parts - Order Rg1-1910-020cn
RH7-5025-000CN Solenoid - Pickup solenoid (SL2) - For lower cassette pickup roller
RH7-5026-000CN Solenoid - Feed solenoid (SL3) - For lower cassette paper feed
RS5-2439-000CN Spring - Compression spring - Provides tension for the separation pad in the 250-sheet paper cassette tray assembly
RH7-6017-000CN Switch - Power switch (rocker)
RA1-7630-000CN Tray - 'Face-Up' paper output tray - Hooks on front of printer
RG1-1806-070CN Tray - Multi-Purpose input tray - Fold down front cover
LaserJet IIP 4ppm Laser Printer parts list
