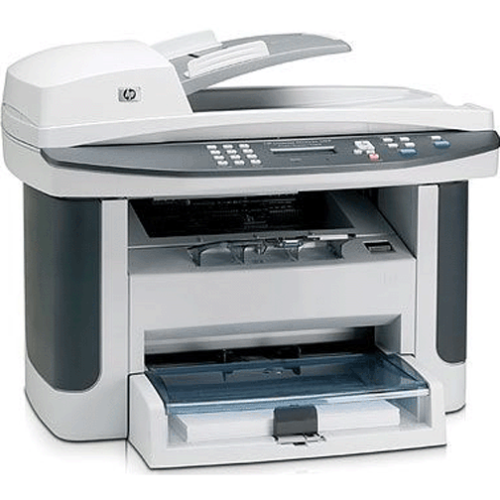

CC372A LaserJet m1522n multifunction printer

HP LaserJet m1522n multifunction printer (CC372A)

MFG Part Number: CC372A 23ppm black, 600 x 600 DPI

HP parts list for CC372A HP LaserJet m1522n multifunction printer

RM1-6872-000CN Accessory - FIXING FILM PAPER DELIVERY Assy (110V)FUSER UNIT FOR PRO SERIES M SERIES P MODELS.
RM1-7542-000CN Accessory - Fuser film assy, 220v / 110v for Hewlett Packard LaserJet printer.
Q3093-80004 Adapter - Adapter - Two to four wire phone cord adaptor
CB534-67901 ADF - Automatic document feeder (ADF) replacement unit - For LaserJet M1522MFP (For use in Asia Pacific)
Q6502-60105 ADF Feed Assembly - ADF Automatic Document Feed Assembly paper feeder
8121-0811 Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)
CB534-60117 Cable - Fax module assembly - Provides fax capabilities - Includes flat flex cable that connects to the formatter board
H3110E Care Pack - HP Network Install InkJet/Personal LaserJet Service
HC127PE Care Pack - HP 1year PostWarranty PhoneAssist LsrJt P3xxx M1xx-P305x CLJ 2xxx ScanJet N6350-8270 8300 Service
U9809E Care Pack - HP 3 year Return to depot for LaserJet 305x All-in -One and M1522 MFP Service
U9810E Care Pack - HP 3 year Next business day Exchange for LaserJet 305x All-in -One and M1522 MFP Service
U9811E Care Pack - HP 3 year Next business day Onsite LaserJet 305x All-in -One and M1522 MFP Hardware Support
U9812PE Care Pack - HP 1 year Post-Warranty Next business day Exchange for LaserJet 305x AiO and M1522 MFP Service
U9813PE Care Pack - HP 1 year Post-Warranty Next business day Onsite for LaserJet 305x AiO M1522 MFP hardware Support
UA152PE Care Pack - HP 1 year Post-Warranty Return to depot for LaserJet 305x All-in -One and M1522 MFP Service
UF925E Care Pack - HP 1 year Next business day Onsite for LaserJet 305x All-in -One and M1522 MFP Hardware Support
CB372-60101 Control Panel - Control panel assembly - Control buttons and display located on top front of printer - For copy models only
CC372-60101 Control Panel - Control panel assembly - Control buttons and display located on top front of printer - For copy models only
RC2-2965-000CN Coupler - Coupling link - Located on the upper right side of the printer chassis
C7309-40153 Cover - Cleanout assembly strip - Green plastic bar with two grab tabs - Can be removed to help clear paper jams in the automatic document feeder assembly
CB534-67907 Cover - Automatic ducoment feeder (ADF) top cover - Plastic cover that protects the paper pick-up mechanism
RC2-2960-000CN Cover - Cartridge access top cover - Protects carriage and printer mechanism
RC2-2971-000CN Cover - Fuser rear cover - Protects the fuser assembly - Located on the top rear side of the printer
RL1-1732-000CN Cover - Top cover assembly - Protects the top part of the printer chassis
RL1-1734-000CN Cover - Front cover assembly - Covers the front and top center of the printer
RL1-1735-000CN Cover - Left cover - Plastic cover that protects the left side of the printer
RL1-1736-000CN Cover - Right cover - Plastic cover that protects the right side of the printer
Q3948-67902 Flag - ADF paper sensor flag replacement kit - Includes the paper sensor flag and spring
RC1-2476-000CN Foam - Scanner cushion - Square foam pices that cushion the scanner when locked in place - Mount in the square front recesses on the scanner frame assembly
RM1-4721-000CN Fuser Assembly - Fuser Assembly - For 110/220 VAC - Bonds toner to paper with heat
RM1-4721-020CN Fuser Assembly - Fuser Assembly - For 110 VAC to 120 VAC operation - Bonds toner to paper with heat
RM1-4726-000CN Fuser Assembly - Fuser Assembly - For 220/240 VAC - Bonds toner to paper with heat
RM1-4728-020CN Fuser Assembly - Fuser Assembly 110V for LaserJet M1120 and M1522 Series printers
RM1-4729-020CN Fuser Assembly - Fusing assembly - For 220/240 VAC - Bonds toner to paper with heat
RM1-8072-000CN Fuser Assembly - Fuser Assembly - For 110 VAC to 120 VAC operation - Bonds toner to paper with heat
RM1-8073-000CN Fuser Assembly - Fusing assembly - For 220/240 VAC - Bonds toner to paper with heat
Q3948-67906 Glass Assembly - ADF glass window replacement kit - Includes the small glass window, the `U` shaped window frame, and mounting screw
RC2-2979-000CN Guide - Left side tray guide
RC2-2980-000CN Guide - Right side tray guide
7121-8285 Label - HP jewel - Small plastic HP logo that attaches to top of printer
RM1-4724-000CN Laser Scanner - Laser/scanner assembly - For Color LaserJet M1522 MFP series
RC1-2498-000CN Latch - Left side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area
RC1-2499-000CN Latch - Right side scanner latch - This latch holds the scanner in place - Cartridge release lever activates this latch to allow scanner to rise and give access to the toner cart area
RM1-0898-000CN Link - Left scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access
RM1-0899-000CN Link - Right scanner link assembly - Connects between the top of the printer and the bottom of the scanner - Allows for limited tilting of the scanner assembly for toner cartridge access
Q1636-40036 Lock - Hinge locking clip - Locks the ADF/scanner lid assembly on the flatbed scanner
RM1-5373-000CN Maintenance Kit - Fuser Maintenance kit - 110v - LJ M1522 / M1120 series includes fuser pad/ rollers and transfer roller.
RM1-4196-000CN Motor - Motor/Gear for LaserJet M1522n MFP Series
CC372-40002 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (English)
CC372-40003 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Spanish)
CC372-40004 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Portuguese)
CC372-40005 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (German)
CC372-40006 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (French)
CC372-40007 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Dutch)
CC372-40008 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Italian)
CC372-40009 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Swedish)
CC372-40010 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Norwegian)
CC372-40011 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Finnish)
CC372-40012 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Danish)
CC372-40013 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Russian)
CC372-40014 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Czech)
CC372-40015 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Hungarian)
CC372-40016 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Polish)
CC372-40017 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Slovak)
CC372-40018 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Turkish)
CC372-40019 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Greek)
CC372-40020 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Hebrew)
CC372-40021 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Arabic)
CC372-40022 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Traditional Chinese)
CC372-40023 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Korean)
CC372-40024 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Simplified Chinese)
CC372-40025 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Thai)
CC372-40026 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Vietnamese)
CC372-40029 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Catalan)
CC372-40030 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Romanian)
CC372-40031 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Croation)
CC372-40032 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Slovenian)
CC372-40033 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Indonesian)
CC372-40034 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Kazakh)
CC372-40035 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Bulgarian)
CC372-40036 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Ukranian)
CC372-40037 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Serbian)
CC372-40038 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Lithuanian)
CC372-40039 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Estonian)
CC372-40040 Overlay - Control panel overlay - Snaps on top of the control panel assembly - For copy models only (Latvian)
Q2665-60125 Pad - ADF paper seperation pad assembly - Mounts in the center of the ADF separation pad frame assembly at the rear of the paper input tray
RM1-4207-000CN Pad - Separation pad assembly - Located on the paper pick-up assembly
RM1-4227-000CN Pad - Separation pad assembly - Located on the paper pick-up assembly
CC368-60001 PC Board - Formatter (Main logic) board - For HP LaserJet M1522nf MFP series - For fax models only. (CC396-60001 for copier models).
CC396-60001 PC Board - Formatter (Main logic) board - For HP LaserJet M1522nf MFP series - For copy models only (CC368-60001 for fax models).
RM1-4932-000CN PC Board - Engine controller PC board assembly - For 110/220 VAC operation - Provides all power supply and motor control functions
RM1-4932-040CN PC Board - Engin control pcb assy
RM1-4935-000CN PC Board - Main motor control PC board assembly
RM1-4936-000CN PC Board - Engine controller PC board assembly - For 220/240 VAC operation - Provides all power supply and motor control functions
RM1-4936-040CN PC Board - Engin control pcb assy
RM1-4722-000CN Pickup Assembly - Paper pickup tray assembly - For the 250-sheet multipurpose input tray
RM1-4727-000CN Pickup Assembly - Paper pick-up assembly - Includes transfer roller and D-shaped pick-up roller
RM1-4730-000CN Pickup Assembly - Paper pick-up roller assembly - Includes transfer roller and D-shaped pick-up roller
8120-8382 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.8m (6.0ft) long - Has straight (F) receptacle (For 120V in the USA and Canada)
8121-0516 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) receptacle (For 220V in Europe)
8121-0517 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong, Singapore, and Malaysia)
8121-0518 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Denmark)
8121-0520 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240V in India)
8121-0737 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240VAC in India and South Africa)
8121-0738 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Switzerland)
8121-1004 Power Cord - Power cord (Flint Gray) - Three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Israel)
CC372A-Repair_LaserJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
5851-2559 Roller - SHAFT ADF pickup roller assembly - Includes *black shaft frame that pickup rollers attach to and both pickup rollersAutomatic document feeder (ADF) paper pick-up roller assembly
5851-3580 Roller - SHAFT ADF pickup roller assembly - Includes *black shaft frame that pickup rollers attach to and both pickup rollers Automatic document feeder (ADF) paper pick-up roller assembly
RL1-1497-000CN Roller - D-shaped pick-up roller - Located on the paper pick-up assembly
RM1-4023-000CN Roller - Transfer roller assembly - Long metal shaft with black roller
RM1-4234-000CN Roller - Transfer roller assembly - Long metal shaft with black roller
CB534-67903 Scanner - Flatbed scanner assembly - For Color LaserJet M1522 MFP - Includes flatbed scanner frame and glass
XA9-1420-000CN Screw - M3 pan head phillips screw with captive flat and split-lock washers - 8mm long
XA9-1501-000CN Screw - M3 pan-head Phillips screw - 10mm long
XA9-1504-000CN Screw - M3 truss head (flanged) screw - 8mm long
XA9-1670-000CN Screw - Screw - M3 X 6mm
XB2-7300-605CN Screw - Machine screw with attached washer - M3, 6mm - Used to hold plastic to metal
XB2-8300-609CN Screw - M3 screw with captive flat washer - 6mm long
XB4-5401-009CN Screw - Machine screw with attached washer - M3, 10mm - Used to hold plastic to metal
CC372A-Manual_Laser Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.
CB534-40037 Shield - ADF motor shield - Plastic cover that protects the ADF motor - Located on the back side of the ADF assembly
Q3948-60113 Speaker - Internal speaker - Located on the left side of the printer
RU5-2885-000CN Spring - Compression spring - Provides pressure for scanner link - Two used, one on each side
5185-7441 Tool - Scanner hinge tool (wire-form) - Used to support the scanner assembly, and to keep it from falling, while the assembly is be removed from the printer (when the scanner link assemblies are being removed)
CB534-60112 Tray - ADF input tray - Automatic document feeder input support
RM1-4725-000CN Tray - Output paper tray assembly - Holds the paper after it has been printed
CB534-67906 Window - Window for LaserJet M1522n MFP Series

LaserJet m1522n multifunction printer parts list
