See HP parts for this model:

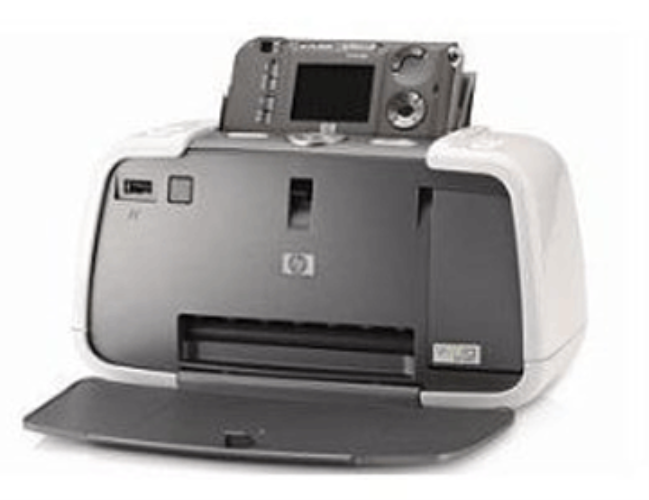

HP parts available for Q6366A HP Photosmart 420 Portable Photo

Q6366A-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.
0957-2120 AC Adapter - AC power adapter - 100-240VAC/50-60Hz - Does not need separate power cord - does not include Australia/New Zealand pin adapter (Worldwide except USA)
0957-2121 AC Adapter - AC power adapter - 120VAC, 60Hz - Does not require a separate power cord (North America)
Q6366A-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
Q3414-90196 Accessory - Reseable media bag - Used to store unused print media
Q6366A-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).
Q6332-80157 Adapter - AC adapter plug - Fits the universal AC power adapter (Europe)
Q6332-80158 Adapter - AC adapter plug - Fits the universal AC power adapter (UK)
Q6332-80160 Adapter - AC adapter plug - Fits the universal AC power adapter (South Africa)
Q6366A-ADF_Arm ADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.
Q6366A-ADF_Feed_Assy ADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).
Q6366A-ADF_Input_Tray Adf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.
Q6366A-ADF_Motor ADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.
Q6366A-ADF_Output_Tray ADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit, we will ship the entire ADF Assembly.
Q6366A-ADF_Pad ADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing, scanning, or copying.
Q6366A-ADF_PC_BRD ADF PC Board - Control Board on the ADF unit
Q6366A-ADF_Roller_Kit ADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan, copy, or faxed.
Q6366A-ADF_Scanner ADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly, scanner lens assembly (includes the charge coupled device (ccd)), the scanning lamp, ADF analog processor board, and ADF inverter board - this is the assembly that scans, copies documents.
Q6366A-ADF_Sensor_BRD ADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly
Q6366A-ADF_Unit_Assy ADF Unit Assembly - Complete replacement assembly unit for Officejet Copier, top assembly only. This includes the ADF (automatic document feeder) for this unit.
Q6366A-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
Q6366A-Arm_Door Arm Door - Carriage access door sensor arm
Q6366A-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper
Q6366A-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter
Q6366A-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray
Q6366A-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt
Q6366A-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit
Q6366A-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod
Q6366A-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit
Q6366A-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.
Q6366A-Belt_Scanner Belt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.
Q6366A-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel
Q6366A-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)
Q6366A-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)
Q6366A-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley
8121-0637 Cable - USB interface cable - Type 'A' connector for a PC with a Type 'Mini-B' connector for the camera - From camera to PC 1.4m (4.6ft) long
8121-1043 Cable - Audio/video cable - Miniature stereo plug (M) to two RCA (M) connectors, 1.85m (6ft) long
Q6366A-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor
Q6366A-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.
Q6366A-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism
Q6366A-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.
Q6366A-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.
Q6366A-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position
Q6366A-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.
Q6366A-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.
Q6366A-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base
Q6366A-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.
Q6366A-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
Q6366A-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage
Q6366A-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
Q6366A-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
Q6366A-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).
Q6366A-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
5069-7146 Cartridge - Ink cartridge return kit (TIJ 2.x) - Includes box and instructions
5969-7553 Cartridge - Ink cartridge return kit (TIJ 2.x, non-US) - Includes box and instructions (Europe)
C8766EE Cartridge - HP 343 Tri-color Inkjet Cartridge - Print cartridge volume 7ml, for everyday color photo and graphics printing - Prints approximately 240 pages (Europe)
C8766WN Cartridge - HP 95 Tri-color Print Cartridge - Print cartridge volume 7ml - Prints 260 pages at 15% coverage (North America)
C9363WN Cartridge - HP 97 Tri-color Print Cartridge - Prints approximately 450 pages at 15% coverage (North America)
C9368AN Cartridge - HP 100 Gray Inkjet Print Cartridge - Print cartridge volume 15 ml (North America)
Q7869A Cartridge - Cartridge for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q6366A-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
Q6366A-Clutch_ADF Clutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder
Q6366A-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
Q6366A-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.
Q6366A-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.
Q6366A-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
Q6366A-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
Q6366A-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly
Q6366A-Display Display - Status led display (LCD display assembly).
Q6366-40017 Door - Pen access door - Provides access to ink cartridges
Q6366A-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.
Q6366A-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.
Q6366A-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.
Q6366A-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.
Q6366A-Drive_Assy_ADF Drive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs
Q6366A-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability
Q6366A-Encoder Encoder - Encoder spring - provides tension for encoder strip
Q6366A-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper
Q6366A-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference
Q6366A-Extender_ADF Extender ADF - Paper extension for the automatic document feeder (ADF) input tray
Q6366A-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths
Q6366A-Extender_Output Extender Output - Paper exit tray extension
Q6366A-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit
Q6366A-Fan_Vaccum Fan Vaccum - Vacuum fan assembly
Q6366A-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk
Q6366A-Feed_Rollers_ADF Feed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.
Q6366A-Flag_ADF Flag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly
Q6366A-Flag_Paper Flag Paper - OOPS flag - out of paper sensor
Q6366A-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.
Q6366A-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons
Q6366A-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor
Q6366A-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station
Q6366A-Gear_Double Gear Double - Transfer gear - has double gear attached on service station
Q6366A-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.
Q6366A-Gear_Station Gear Station - Gears on shaft of spittoon station
Q6366A-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.
Q6366A-Glass_Assy Glass Assembly - Main top copier glass assembly.
Q6366A-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken
Q6366A-Hinge_Cvr Hinge - Single cover end M-Hinge, Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges, this price includes 1pc Hinge.
Q6366A-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.
Q6366A-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.
Q6366A-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly
Q6366A-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly
Q6366A-Lid_Cover_Assy Lid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.
Q6366A-Motor_ADF Motor ADF - ADF motor unit - drives ADF rollers on the feeder assembly
Q6366A-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly
Q6366A-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.
Q6366A-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly
Q6366A-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
Q6366A-Pad_ADF Pad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.
Q6366A-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing
Q6638A Paper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q6638AC Paper - Paper (Glossy) for Photosmart 475 series compact photo printer, PhotoSmart A510 Series, HP Photosmart A510 Printer series, PhotoSmart A430 Series
Q6639A Paper - Paper (Glossy) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series
Q7852A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
Q7860A Paper - Advanced Glossy Paper - 10cm (4in) x 15cm (6in), borderless (without tab) - 20 sheets (Asia Pacific)
Q7861A Paper - Paper (Glossy) for DeskJet 3840 Series, DeskJet 6620 Series, DeskJet 6800 Series, DeskJet D23XX Series
Q7862A Paper - Paper (Glossy) for HP PSC 1300 Series All-In-One, PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210
Q7863A Paper - Paper (Glossy) for DeskJet 3520 Series, DeskJet 3600 Series, DeskJet 5940 Series, DeskJet 6620 Series
Q7867A Paper - Paper (Glossy) for Color LaserJet 4730MFP Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series, OfficeJet 4315 Series
Q7868A Paper - Paper (Glossy) for Photosmart 3200 All-in-One Series, Photosmart 3300 Series, PSC 1500 Series, PSC 1500 Series All-In-One
Q7906A Paper - Advanced Glossy Photo Paper - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets
Q7907A Paper - Paper (Glossy) for PhotoSmart 2575 Series, PSC 1200 Series All-in-One, PSC 1300 Series All in One, PSC 1400 Series
Q7987A Paper - Paper (Glossy) for PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210, OfficeJet 3213
Q8760A Paper - Paper (Semi-Glossy) for PhotoSmart C41X0 Series, Photosmart C4183 All-in-One, PhotoSmart C51XX Series, Photosmart C5180 Series All-In-One
Q8761A Paper - Paper (Semi-Glossy) for DeskJet 640 Series, DeskJet 450 Series, DeskJet 9300 Printer, DeskJet 9800
Q8764A Paper - Paper (Glossy) for DeskJet 640 Series, DeskJet 450 Series, DeskJet 9300 Printer, DeskJet 9800
Q6366A-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only
Q6366A-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.
Q6366A-PC_BRD_Interface PC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.
Q6366A-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs
Q6366A-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
Q6366A-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
Q6366A-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord
Q6366A-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).
Q6366A-Power_Supply_BRD Power Supply Board - High voltage power supply board
Q6366A-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.
Q6366A-Pulley Pulley - Paper pick up tray motor pulley.
Q6366A-Pulley_ADF Pulley ADF - ADF feeder motor pulley
Q6400-60002 Remote Control - Remote control kit - Includes remote control and remote control battery
Q6366A-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
Q6366A-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on
Q6366A-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on
Q6366A-Roller_ADF Roller ADF - Feeder ADF roller for picking up paper from ADF unit.
Q6366A-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.
Q6366A-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray
Q6366A-Scanner Scanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q6366A-Scanner_Assy Scanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q6366A-Scanner_Belt Scanner Belt - Scanner belt attaches from the scanner to the scanner motor.
Q6366A-Scanner_Cable Scanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.
Q6366A-Scanner_Motor Scanner Motor - Scanner driving motor
Q6366A-Scanner_Unit Scanner Unit - Scanner unit includes the entire scanner base, but not the ADF portion.
Q6366A-Sensor_ADF Sensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly
Q6366A-Sensor_Exit Sensor Exit - Exit media sensor sv
Q6366A-Sensor_Open Sensor Open - Door sensor assembly - open door sensor
Q6366A-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray
Q6366A-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.
Q6366A-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.
Q6366A-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
Q6366A-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position
Q6366A-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly
Q6366A-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.
Q6366A-Speaker Speaker - Speaker assembly - includes speaker cable.
Q6366A-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process
Q6366A-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge, for carriage belt tension
Q8046A Stickers - HP CD/DVD Tattoos - 13cm (5in) x 18cm (7in) - 15 sheets (USA, Latin America, and Canada)
Q8047A Stickers - HP CD/DVD Tattoos - 13cm (5in) x 18cm (7in) - 15 sheets (Europe, Middle East, and Africa)
Q6366A-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.
Q6366A-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).
Q6366A-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.
Q6366A-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.
Q6366A-Window Window - Top/front access door assembly - print cartridge access door window.

bottom bar

Helpfull Links:   | HP Printer Parts 1 2 3 4 5 | SmartSearch |
Home
       Contact Us        Support       Order Status       Site Map

Copyright © 2016 Partshere.com   Privacy Policy     Terms and Conditions     Send us your Feedback
