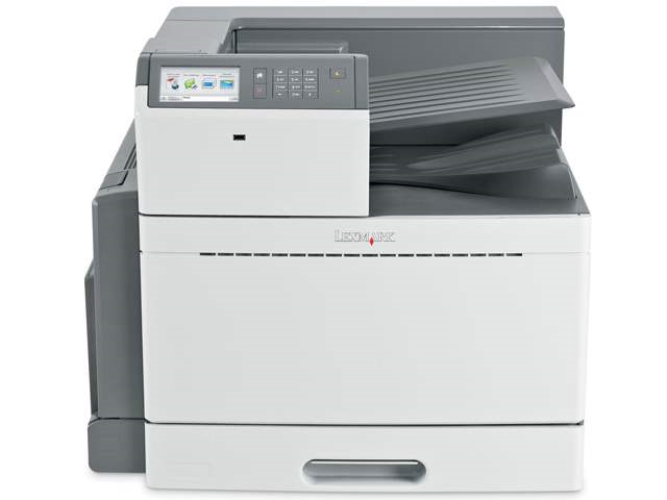

Lexmark Color_Laser C950DE (22Z0000)

MFG Part Number: 22Z0000 50ppm black, 45ppm color, Ethernet, USB 2.0

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

Lexmark parts list for 22Z0000 Lexmark Color_Laser C950DE Printer

40X0587 Actuator - Media out actuator

40X6709 Actuator - MPF media present actuator

40X6722 Bail - Media bail

40X3703 Belt - Sensor (media on belt)

40X6575 Belt - Gear 40T 23T and belt

40X6620 Belt - Front transfer belt retaining bracket

40X6621 Belt - Rear transfer belt retaining bracket

40X6622 Belt - Transfer belt lever

40X6623 Belt - Transfer belt cleaner

40X6624 Belt - Transfer belt assembly

40X6625 Belt - Front transfer belt guide

40X6626 Belt - Belt removal actuator

40X6627 Belt - Rear transfer belt guide

40X6638 Belt - Belt lever lock

40X6639 Belt - Belt lock bracket

40X6996 Bezel - Model bezel

40X6565 Block - Printhead rear block

40X6570 Bracket - Fuser drive release bracket

40X6608 Bracket - Developer bracket

40X6614 Bracket - ATC sensor PCB bracket

40X0880 Bushing - Bushing 6 mm

40X6714 Bushing - Front bushing

40X6717 Bushing - Rear bushing

40X6721 Bushing - Lower redrive front bushing

40X1367 Cable - Parallel cable packaged (3 m)

40X1368 Cable - USB cable packaged (2 m)

40X6306 Cable - UICC to Display cable

40X6764 Cable - Base left wiring cable

40X6765 Cable - Base right wiring cable

40X6766 Cable - Base wiring top cable

40X6767 Cable - Base wiring bottom cable

40X7467 Cable - Operator panel cable kit

C950X2C Cartridge - Lexmark Cartridge High Yield, 24,000 pages

C950X2K Cartridge - Lexmark Cartridge High Yield, 38,000 pages

C950X2M Cartridge - Lexmark Cartridge High Yield, 24,000 pages

C950X2Y Cartridge - Lexmark Cartridge High Yield, 24,000 pages

C950X71 Cartridge - Lexmark Cartridge Standard Yield, 115,000 pages

C950X73 Cartridge - Lexmark Cartridge Standard Yield, 115,000 pages

40X7377 Catch - Magnetic catch

40X6584 Clutch - 1st Transfer retract clutch assembly

40X6660 Clutch - Separation limiter clutch

40X7391 Controller - Controller box cover

40X7462 Controller - Controller card

40X6634 Cover - PC smart chip cover

40X6649 Cover - Motor cover

40X6655 Cover - Media tray compartment cover

40X6708 Cover - MPF top cover

40X6774 Cover - Top cover

40X6781 Cover - Right cover

40X6785 Cover - Input tray interface cover

40X6991 Cover - Operator panel front cover

40X7059 Cover - Operator panel top cover

40X7373 Cover - Plastic motor cover

40X7381 Cover - Inner cover

40X7382 Cover - Left rear upper cover

40X7383 Cover - Left cover

40X7384 Cover - Internal top cover

40X7385 Cover - Internal rear cover

40X7386 Cover - Left top cover

40X7387 Cover - EPSV cover

40X7388 Cover - Right rear cover

40X7389 Cover - Rear upper cover

40X7390 Cover - Filter cover

40X7393 Cover - Top rear cover

40X7535 Cover - Rear lower cover

40X6609 Developer - K Developer carrier

40X6610 Developer - C Developer carrier

40X6611 Developer - M Developer carrier

40X6612 Developer - Y Developer carrier

40X6567 Door - Printhead retract door

40X7372 Door - Left duplex door assembly

40X7379 Door - Front door

40X6723 Drive Assembly - Upper redrive assembly

40X6590 Duct - Fuser fan duct

40X6733 Duct - Suction fan duct

40X6770 Duct - LVPS sub cooling duct

40X6771 Duct - Rear center duct

40X7333 Duct - 1st Transfer conductor housing

40X6588 Fan - Fuser cooling fan

40X6589 Fan - LVPS sub cooling fan

40X6591 Fan - Fuser driver card cooling fan

40X6593 Fan - Front upper cooling fan

40X6594 Fan - Front left cooling fan

40X6595 Fan - Front right cooling fan

40X6596 Fan - PC Developer drive motor cooling fan

40X6597 Fan - Charge roll HVPS cooling fan

40X6598 Fan - Upper exhaust fan

40X6600 Fan - Center exhaust fan

40X6728 Fan - Controller cooling fan

40X6729 Fan - Suction fan

40X6739 Fan - LVPS front fan guide

40X6773 Feeder - Feeder unit slide rail

40X6599 Filter - Suction filter

40X5704 Flash Card - 256MB flash card

40X0588 Fuser Assembly - Sensor (fuser exit media out media level bin full media shift HP)

40X6572 Fuser Assembly - Fuser drive release link

40X6574 Fuser Assembly - Fuser drive lower redrive 1st BTR retract motor

40X6629 Fuser Assembly - Fuser assembly 110-120V

40X6630 Fuser Assembly - Fuser assembly 220-240V

40X6631 Fuser Assembly - Fuser pressure roll retract motor

40X6735 Fuser Assembly - Fuser driver card 110V

40X6736 Fuser Assembly - Fuser power contact 110V

40X7375 Fuser Assembly - Fuser driver card 220V

40X7376 Fuser Assembly - Fuser power contact 220V

40X7532 Fuser Assembly - Fuser assembly 100V

40X0580 Gear - Media tray lift gear kit

40X6632 Gear - Fuser pressure roll retract gear

40X6644 Gear - Waste toner gear bracket

40X6645 Gear - Waste toner gear 29T

40X6646 Gear - Waste toner gear 31T

40X6648 Gear - Actuator gear

40X6713 Gear - Registration 40T gear

40X6718 Gear - Transport 29T gear

40X6719 Gear - Transport 60T gear

40X6720 Gear - Lower redrive 19T gear

40X6650 Guide - Waste toner sensor guide

40X6657 Guide - Media turn guide

40X6659 Guide - Feeder slide guide

40X7058 Hard Drive - 160+ GB hard disk

40X6633 Holder - PC smart chip holder

40X7463 Holder - Speaker holder

40X6615 Housing - Developer housing

40X7332 Housing - Developer housing rear plunger

40X6710 Interlock - Sensor (door interlock)

40X0271 Kit - Power cord 2.5 m 8 ft. Straight UK Ireland Hong Kong

40X4819 Kit - 40X4819

40X6624 Kit - Transfer belt assembly

40X7540 Kit - C950 X95x 160K Maintenance Kit

40X7550 Kit - C950 X95x Fuser Maintenance Kit 320K 110-120V

40X7560 Kit - C950 X95x 480K Maintenance Kit

40X6636 Lamp - Erase lamp

40X7540 Maintenance Kit - C950 X95x 160K Maintenance Kit

40X7550 Maintenance Kit - C950 X95x Fuser Maintenance Kit 320K 110-120V

40X7560 Maintenance Kit - C950 X95x 480K Maintenance Kit

40X7568 Maintenance Kit - C950 X95x Maintenance Kit 320K 100V

40X7569 Maintenance Kit - C950 X95x Fuser Maintenance Kit 320K 220-240V

40X6772 Media Bin - Standard bin insert

40X5301 Memory - 256MB DDR2-DRAM

40X5302 Memory - 512MB DDR2-DRAM

40X5303 Memory - 1024MB DDR2-DRAM

40X6585 Motor - Registration drive motor

40X6586 Motor - PC Developer drive motor assembly

40X6601 Motor - Toner dispense motor

40X6643 Motor - Waste toner agitator motor

40X6658 Motor - Media feed lift motor

40X6716 Motor - Media transport MPF drive motor

40X6725 Motor - Lower redrive shift motor assembly

40X6990 Panel - Operator panel

40X6992 Panel - Operator panel housing

40X6993 Panel - Operator panel speaker

40X4823 PC Board - Parallel 1284-B interface card

40X5969 PC Board - Korean font card

40X5972 PC Board - Japanese font card

40X6337 PC Board - Arabic font card

40X6619 PC Board - Developer HVPS Card

40X6628 PC Board - Transfer roll HVPS Card

40X6726 PC Board - Bridge card

40X6730 PC Board - Upper engine card

40X6731 PC Board - Lower engine card

40X6737 PC Board - Sub LVPS card

40X6762 PC Board - LVPS card

40X6763 PC Board - Charge roll HVPS card

40X6963 PC Board - CAC Card reader

40X6964 PC Board - Small CAC card reader case

40X6965 PC Board - Large CAC card reader case

40X7095 PC Board - Operator panel card

40X7464 PC Board - Bridge card

40X7508 PC Board - Card for PRESCRIBE Emulation, C950

40X7511 PC Board - Card for IPDS, C950

40X7514 PC Board - Forms and Bar Code Card, C950

40X6637 Plate - Inner plate

40X0271 Power Cord - Power cord 2.5 m 8 ft. Straight UK Ireland Hong Kong

40X0273 Power Cord - Power cord 2.5 m 8 ft. Straight Italy Chile Uruguay

40X0303 Power Cord - Power cord 2.5 m 8 ft. Straight PR China

40X1772 Power Cord - Power cord 2.5 m 8 ft. Straight Liechtenstein Switzerland

40X1773 Power Cord - Power cord 2.5 m 8 ft. Straight South Africa Hong Kong Singapore Thailand Malaysia

40X1791 Power Cord - Power cord 2.5 m 8 ft. Straight Taiwan

40X1792 Power Cord - Power cord 2.5 m 8 ft. Straight Korea

40X3141 Power Cord - Power cord 2.5 m 8 ft. Europe Middle East Indonesia Africa (HV)

40X3609 Power Cord - Power cord 2.5 m 8 ft. Straight Japan

40X4596 Power Cord - Power cord 2.5 m 8 ft. Straight Brazil

40X7104 Power Cord - Power cord 2.5 m 8 ft. Right angle US CA LA

40X6734 Power Supply - Main power GFI interface 110V

40X7051 Printer - Lexmark PrintCryption Card

40X6566 Printhead - LED Printhead

40X6569 Printhead - Printhead interface contact

40X6652 Roller - Media tray left roller

40X6653 Roller - Media tray right roller

40X6712 Roller - 2nd Transfer roller

40X6715 Roller - Registration Transport roller assembly

40X6805 Roller - Feed roller kit

40X7534 Roller - MPF feeder roller kit

40X0589 Sensor - Sensor (pre-feed tray 2 feed-out ADF registration)

40X3820 Sensor - Sensor (present tray 3 or 4 feed-out)

40X6613 Sensor - ATC sensor PCB

40X6740 Sensor - Sensor (Image calibration)

40X6761 Sensor - Front door sensor

40X0288 Service Parts - 40X0288

40X0301 Service Parts - Power cord; 2.5 m, 8 ft. Straight, Australia

40X4819 Service Parts - 40X4819

40X5970 Service Parts - 40X5970

40X5971 Service Parts - 40X5971

40X6568 Service Parts - 40X6568

40X6571 Service Parts - 40X6571

40X6587 Service Parts - Coupler

40X6602 Service Parts - Toner smart chip PCB

40X6603 Service Parts - Y Toner drop auger

40X6604 Service Parts - M Toner drop auger

40X6605 Service Parts - C Toner drop auger

40X6606 Service Parts - K Toner drop auger

40X6607 Service Parts - CMYK Toner dispense auger assembly

40X6635 Service Parts - PC smart chip socket

40X6642 Service Parts - Waste toner auger chute

40X6651 Service Parts - Media tray stop

40X6724 Service Parts - Lower redrive guard

40X6732 Service Parts - HCF interface contact

40X7116 Service Parts - 4.3 Touchscreen display

40X7374 Service Parts - Main power GFI interface 220V

40X6647 Shaft - Waste toner shaft gate

40X7472 Shaft - Lower redrive shaft assembly

40X6661 Spacer - Separation spacer

40X6573 Spring - Fuser release link spring

40X6640 Spring - Torsion spring

40X6641 Spring - Plate spring

40X7378 Strap - Front door support strap

40X6738 Switch - Main power switch

40X7533 Switch - Media size switch card

40X6654 Tray - Media tray 1

40X6656 Tray - Tray 1 feeder

40X6707 Tray - MPF tray feeder

Color_Laser C950DE Printer parts list
