40G0100 Monochrome Laser MS810n

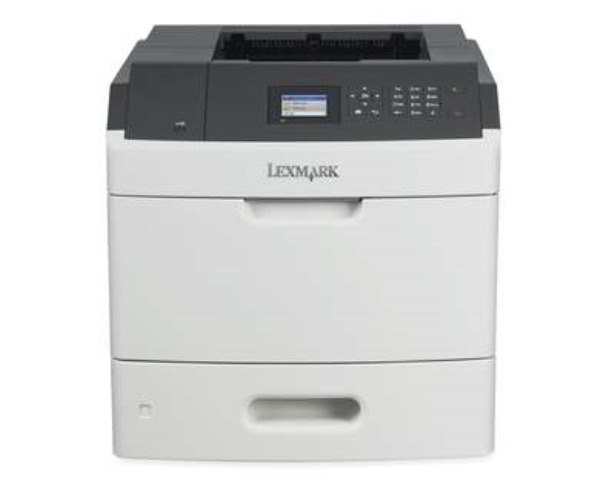

Lexmark Monochrome Laser MS810n (40G0100)

MFG Part Number: 40G0100 52ppm black, Ethernet, USB 2.0

Lexmark parts list for 40G0100 Lexmark Monochrome Laser MS810n

40X8541 Actuator - Media size actuator
40X7606 Arm - Transfer roller right arm
40X7574 Cable - Main motor cable
40X7575 Cable - Top option interface cable
40X7579 Cable - Main cooling fan with cable
40X7598 Cable - MPF feeder lift plate with cable
40X7605 Cable - Transfer roller left arm with cable
40X7682 Cable - Upper redrive motor with cable
40X7683 Cable - Internal duplex with cable
40X7684 Cable - Duplex motor with cable
40X7688 Cable - Input sensor cable
40X7689 Cable - Imaging unit smart chip contact with cable
40X7699 Cable - HVPS/toner cartridge fan cable
40X7704 Cable - USB cable
40X8316 Cable - Right operator panel hinge with cable
40X8595 Cards - MS81xn, dn Card for IPDS
40X8596 Cards - MS81xn, dn Card for PRESCRIBE Emulation
3073173 Cartridge - Lexmark Cartridge Standard Yield
40X7580 Cartridge - Cartridge cooling fan
40X7596 Cartridge - Toner add motor with cable
40X7685 Cartridge - Toner level / imaging unit high voltage contact
40X7692 Cartridge - Cartridge smart chip contact with cable
40X7716 Cartridge - Toner cartridge lock
40X7717 Cartridge - Toner cartridge clamp
52D0HA0 Cartridge - Lexmark Cartridge High Yield, 25,000 pages
52D0ZA0 Cartridge - Lexmark Cartridge Standard Yield, 100,000 pages
52D1000 Cartridge - ms/mx710, 711, 810, 811, 812 6k black toner (rp)
52D1H00 Cartridge - ms/mx710, 711, 810, 811, 812 25k black toner (rp)
40X8093 Caster - Caster base, MS81x, MX71x
40X8359 Caster - Caster front wheel, locking
40X7714 Clamp - Imaging unit clamp
40X7570 Controller - Controller card, 2.4
40X7672 Controller - Controller card access cover
40X7722 Controller - Controller card access shield, MX81x
40X8100 Controller - Controller card access shield, MX71x
40X7669 Cover - Inner left cover
40X7670 Cover - Right inner cover
40X7671 Cover - Rear lower cover, 550-sheet
40X7673 Cover - Top cover
40X7675 Cover - Standard bin cover, 550-sheet
40X7679 Cover - Left cover, 550-sheet
40X7680 Cover - Right cover, 550-sheet
40X7681 Cover - Operator panel front cover
40X8364 Cover - Operator panel left USB cover
40X7587 Deflector - Inner guide deflector
40X7857 Disk - 160+ GB hard disk
40X7584 Diverter - Duplex exit diverter
40X7674 Door - Front door
40X7678 Door - Rear door
40X7695 Fan - Duplex cooling fan
40X7591 Feeder - Media feeder
40X7725 Feeder - Multipurpose feeder
40X7601 Flange - MPF feed roller flange
40X7727 Frame - Left frame extension, 550-Sheet
40X7728 Frame - Right frame extension with tray latch, 550-Sheet
40X7576 Fuser Assembly - Fuser drive motor cable
40X7577 Fuser Assembly - Fuser data cable
40X7588 Fuser Assembly - Fuser access door, belt fuser
40X7595 Fuser Assembly - Fuser drive motor, belt fuser
40X7597 Fuser Assembly - Laser printhead (quad diode), belt fuser
40X7583 Guide - Media turn guide
40X7586 Guide - Media vertical guide
40X7604 Guide - Output bin guide
40X7952 Guide - Duplex jam release guide
40X8315 Hinge - Left operator panel hinge
52D0Z00 Imaging Unit - Lexmark 520z Black Imaging Unit
40X7583 Kit - Media turn guide
40X7599 Kit - Media aligner roller with MPF pick roller
40X7700 Kit - 2.4 inch LCD Operator panel
40X7706 Kit - MS81x, MX71x, MX81x Roller Maintenance Kit
40X7737 Kit - 2.4 inch LCD Operator panel card
40X7743 Kit - MS81x, MX71x, MX81x Return Program Fuser, 110-120V, Type 00, Ltr
40X7745 Kit - MS81x, MX71x, MX81x Return Program Fuser, 100V, Type 02, A4
40X7858 Kit - MarkNet N8350 802.11b/g/n Wireless Print Server Kit
40X8016 Kit - MS81x, MX71x, MX81x Fuser, 110-120V, Type 05, Ltr
40X8019 Kit - MS81x, MX71x, MX81x Fuser, 110-120V, Type 08, A4
40X8420 Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 110-120V, Type 00, Ltr
40X8421 Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 220-240V, Type 01, A4
40X8423 Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 110-120V, Type 03, A4
40X8425 Kit - MS81x, MX71x, MX81x Fuser Maintenance kit, 110-120V, Type 05, Ltr
40X8428 Kit - MS81x, MX71x, MX81x Fuser Maintenance kit, 110-120V, Type 08, A4
52D0Z00 Kit - Lexmark 520z Black Imaging Unit
40X7729 Latch - Operator panel latch
40X7715 Link - Front door support link
40X7706 Maintenance Kit - MS81x, MX71x, MX81x Roller Maintenance Kit
40X8420 Maintenance Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 110-120V, Type 00, Ltr
40X8421 Maintenance Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 220-240V, Type 01, A4
40X8422 Maintenance Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 100V, Type 02, A4
40X8423 Maintenance Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 110-120V, Type 03, A4
40X8424 Maintenance Kit - MS81x, MX71x, MX81x Return Program Fuser Maintenance kit, 220-240V, Type 04, Ltr
40X8425 Maintenance Kit - MS81x, MX71x, MX81x Fuser Maintenance kit, 110-120V, Type 05, Ltr
40X8426 Maintenance Kit - MS81x, MX71x, MX81x Fuser Maintenance kit, 220-240V, Type 06, A4
40X8427 Maintenance Kit - MS81x, MX71x, MX81x Fuser Maintenance kit, 100V, Type 07, A4
40X8428 Maintenance Kit - MS81x, MX71x, MX81x Fuser Maintenance kit, 110-120V, Type 08, A4
40X8429 Maintenance Kit - MS81x, MX71x, MX81x Fuser Maintenance kit, 220-240V, Type 09, Ltr
40X7677 Media Bin - Bin sensor cover
40X7445 Memory - 2GB x32 DDR3 RAM
40X7567 Memory - 1GB x32 DDR3 RAM
40X7594 Motor - Main drive motor
40X7700 Panel - 2.4 inch LCD Operator panel
40X7741 Panel - 2.4 inch LCD Operator panel buttons
40X8334 Panel - Operator panel left bezel, MS810n
40X7737 PC Board - 2.4 inch LCD Operator panel card
40X8555 PC Board - 256MB flash card
40X8556 PC Board - Traditional Chinese font card
40X8557 PC Board - Simplified Chinese font card
40X8568 PC Board - Korean font card
40X8569 PC Board - Japanese font card
40X8570 PC Board - Arabic font card
40X8571 PC Board - Hebrew font card
40X8594 PC Board - MS81xn, dn Forms and Bar Code Card
40X7732 Pivot - Left frame pivot
40X7733 Pivot - Right frame pivot
40X7589 Plate - Fastener plate
40X8034 Plate - Option card cover plate
40X7578 Power Supply - HVPS
40X7581 Power Supply - MS81x, MX71x, MX81x Return Program Fuser, 110-120V, Type 03, A4
40X7694 Power Supply - LVPS (universal)
40X7743 Power Supply - MS81x, MX71x, MX81x Return Program Fuser, 110-120V, Type 00, Ltr
40X8016 Power Supply - MS81x, MX71x, MX81x Fuser, 110-120V, Type 05, Ltr
40X8019 Power Supply - MS81x, MX71x, MX81x Fuser, 110-120V, Type 08, A4
40X7707 Printhead - Printhead power cable
40X7708 Printhead - Printhead video cable
40X8365 Printhead - Printhead access cover
40X7582 Roller - Transfer roller
40X7593 Roller - Pick roller assembly
40X7599 Roller - Media aligner roller with MPF pick roller
40X7600 Roller - Multipurpose feeder pick roller
40X5315 Screw - ISP thumbscrew (2)
40X5317 Screw - ISP standoff with thumbscrew
40X7590 Screw - M5x12 screw
40X7592 Sensor - Sensor
40X7607 Sensor - Sensor (input)
40X7686 Sensor - Sensor (toner density)
40X7691 Sensor - Sensor (standard bin full) with output bin guide
40X7693 Sensor - Sensor (control panel interlock)
40X7697 Sensor - Sensor (duplex path) with cable
40X8036 Sensor - Interrupt sensor, rear door interlock, MX81x
40X7713 Separator - Separator roller assembly
40X7602 Service Parts - Upper redrive
40X7667 Service Parts - Duplex front flap
40X7668 Service Parts - Duplex rear flap
40X7734 Service Parts - MS81x, MX71x, MX81x Return Program Fuser, 220-240V, Type 04, Ltr
40X7744 Service Parts - MS81x, MX71x, MX81x Return Program Fuser, 220-240V, Type 01, A4
40X7745 Service Parts - MS81x, MX71x, MX81x Return Program Fuser, 100V, Type 02, A4
40X8017 Service Parts - MS81x, MX71x, MX81x Fuser, 220-240V, Type 06, A4
40X8018 Service Parts - MS81x, MX71x, MX81x Fuser, 100V, Type 07, A4
40X8020 Service Parts - MS81x, MX71x, MX81x Fuser, 220-240V, Type 09, Ltr
40X8241 Service Parts - 4-Bin Mailbox, complete
40X8416 Service Parts - Staple Punch Finisher, complete
40X8693 Service Parts - Relocation Packaging Kit
40X8855 Service Parts - Bin insert
40X7712 Solenoid - Multipurpose feeder solenoid
40X8409 Spacer - Spacer
40X7702 Speaker - Speaker cable
40X9079 Speaker - Speaker
40X7585 Spring - Recoil spring
40X7690 Spring - Torsion spring
40X7718 Spring - Torsion spring
40X7719 Spring - Torsion spring
40X7720 Spring - Torsion spring
40X7721 Spring - Torsion spring
40X7723 Spring - Torsion spring
40X7724 Spring - Recoil spring
40X7730 Spring - Torsion spring
40X7731 Spring - Torsion spring
40X7726 Support - Rear door support
40X7742 Tray - 550-Sheet tray insert
40X8106 Tray - MS81x, MX71x 550-Sheet tray, complete
40X8152 Tray - MS81x, MX71x 250-Sheet tray, complete
40X8161 Tray - MS81x, MX71x 2100-Sheet tray, complete
40X8184 Tray - 500-Sheet Output Expander
40X8195 Tray - 1500-Sheet High Capacity Output Expander
40X8207 Tray - 500-Sheet Staple Finisher, complete
40X8410 Tray - MS81x, MX71x 250-Sheet lockable tray, complete
40X8411 Tray - MS81x, MX71x 550-Sheet lockable tray, complete

Monochrome Laser MS810n parts list
