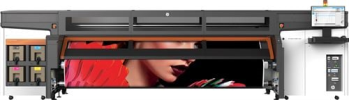

HP parts list for 4DC17A Stitch S1000 large format Thermal inkjet Colour

K4T88-67060 Actuator - Pps Actuator Assy

936297-001 Adapter - DisplayPort to DisplayPort 1.2 adapter cable - 1.8m long (Black color)

4DC17-67002 ADF Roller Kit - WW gears KIT SERV

4DC17-67077 ADF Roller Kit - Drying power Cables Kit SRV

4DC17-67112 ADF Roller Kit - HP Stitch S1000 Basic Uptime Kit

4DC17-67113 ADF Roller Kit - HP Stitch S1000 Expert User Kit w Train

4DC17-67114 ADF Roller Kit - HPStitchS1000Reseller/Extended UptimeKit

4DC17-67126 ADF Roller Kit - SRC eStop Kit Cables SRV

4DC17-67127 ADF Roller Kit - SRC Interlocks Sensors Kit Cables SRV

K4T88-67231 ADF Roller Kit - Ebox Cables Kit

K4T88-67251 ADF Roller Kit - Web Wipe Cables Kit

K4T88-67255 ADF Roller Kit - HP Latex 1500 Cleaning Kit

K4T88-67261 ADF Roller Kit - Pinch Torsion Springs Kit

4DC17-67025 Assembly - PPS Column assy SERV

K4T88-67054 Bar - Trs Barnacle

Q6702-60477 Bearing - Drive roller support bearings set - For the Scitex L65500/LX600/LX800 printer series

4DC17-67084 Belt - Impelling belt assy SERV

K4T88-67287 Belt - Drop Detector Belt

K4T88-67116 Blade - WW Printhead Cleaning Blade

4DC17-67004 Box - Aerosol box assy SERV

4DC17-67081 Box - eBox HDD SERV

CZ056-67045 Box - Print head cleaning transmission box - Includes transmission box and gearbox invertor assemblies. service part designed for large-format industrial printers specifically the HP Latex 3000 series.

K4T88-67150 Box - MO Transmission Box

K4T88-67271 Box - Ly Ebox Psu

4DC17-67121 Bracket - Spread Input brackets

K4T88-67188 Bracket - Screen Mount Bracket

4DC17-67093 Bumper - Output cover bumper SRV

3101-4218 Button - Switch-Pushbutton Blue 24vdc Xb4

CW980-00709 Button - Recovery Button Buzzer Cbl

K4T88-67156 Button - Estop Button

K4T88-67195 Button - Id Buttons And Switches

4DC17-67073 Cabinet - ECabinet User Interaction Label SRV

4DC17-67108 Cabinet - e-Cabinet Bundle Cables

4DC17-67132 Cabinet - e-Cabinet Contactor SRV

K4T88-60419 Cabinet - Ly E-Cabinet Installation Kit

K4T88-67199 Cabinet - E--Cabinet Fan SVR

K4T88-67201 Cabinet - E Cabinet Lock

K4T88-67204 Cabinet - E-Cabinet Vacuum Pump

K4T88-67206 Cabinet - E-Cabinet Psu 24v 100w

K4T88-67207 Cabinet - E Cabinet Pcu 36v-600w

K4T88-67208 Cabinet - E Cabinet Pcu 48v-600w

K4T88-67209 Cabinet - E-Cabinet Pca Fuses

K4T88-67210 Cabinet - E-Cabinet Glass Fuses

K4T88-67214 Cabinet - E-Cabinet Lamps Kit

K4T88-67216 Cabinet - E-Cabinet Lamps Kit Ii

K4T88-67274 Cabinet - E-Cabinet Ac-12awg Cables

K4T88-67275 Cabinet - E-Cabinet Ac-6awg Cables

K4T88-67277 Cabinet - E-Cabinet Power Jumpers

4DC17-67026 Cable - TRS Power Cable 42V SERV

4DC17-67075 Cable - Drying Data Kit Cable SRV

917445-001 Cable - Cable - HDMI-HDMI 1.4 1.8M BLACK-Hotron

917445-002 Cable - Cable - HDMI-HDMI 1.4 1.8M BLACK-Honglin

917463-001 Cable - Cable - DP-DP1.2 1.8M BLACK-Hotron

917463-002 Cable - Cable - DP-DP1.2 1.8M BLACK-Honglin

917463-003 Cable - Cable - DP-DP1.2 1.8M BLACK-Coxoc

924318-001 Cable - Cable - VGA-VGA 1.8M BLACK-Hotron

924318-002 Cable - Cable - VGA-VGA 1.8M BLACK-HongJu

924318-003 Cable - Cable - VGA-VGA 1.8M BLACK-Coxoc

CZ056-67094 Cable - MA motor encoder cable SERV

K4T88-67065 Cable - PPS Cables SERV

K4T88-67247 Cable - MI Resistors Power Cable

K4T88-67248 Cable - Replacement Part designed for industrial large-format printers. It functions as the MO Resistors Power Cable ensuring proper power delivery and electrical connectivity within the printer's electronic subsystems.

K4T88-67272 Cable - Ly Ebox Lan Cable To Ips

4DC17-67038 Cage - WW central cage top cover

4DC17-67117 Cap - Service Station Cap Assy

4DC17-67007 Carriage - Carriage Cables SERV

4DC17-67008 Carriage - Carriage assy SERV

K4T88-67008 Carriage - Carriage Bearings

K4T88-67011 Carriage - Carriage Oiling Felts. carriage oiling felts for the HP Latex 1500 Printer and HP Stitch S1000 large-format printers. These felts are a maintenance part used to lubricate the carriage and other moving components to ensure smooth operation.

4DC17-67099 Cartridge - Capping Ink Tray SRV

4QA82-67001 Cartridge - Serica Ink Collector Module

4DC17-67024 Chain - TRS eChain SERV

4DC17-67105 Circuit Breaker - e-Cabinet circuit-breaker I SRV

K4T88-67213 Circuit Breaker - E-Cabinet Circuit-Breaker Ii

K4T88-67291 Circuit Breaker - Automatic Circuit Breaker 10a 2p

K4T88-67293 Circuit Breaker - Automatic Circuit Breaker Acb 20a

K4G10-67106 Clamp - Pinch Clamps Enhanced

Q6702-60478 Coupler - Drive roller motor coupling - For the Scitex L65500/LX600/LX800 printer series

4DC17-67050 Cover - Front Left Covers SRV

4DC17-67051 Cover - Front Right Covers SRV

4DC17-67055 Cover - Top Center Rear Cover SRV

4DC17-67059 Cover - Left Side Top Cover SRV

4DC17-67060 Cover - Left Front Cover SRV

4DC17-67064 Cover - Right Side Top Cover SRV

4DC17-67065 Cover - Right back Cover SRV

4DC17-67089 Cover - Output cover SRV

4DC17-67091 Cover - Output cover features 1

4DC17-67092 Cover - Output cover features 2

K4T88-67085 Cover - Pinch Front Cover Right

K4T88-67086 Cover - Pinch Front Cover Left

K4T88-67087 Cover - Pinch Front Cover Center

K4T88-67154 Cover - Rear Left Covers

K4T88-67155 Cover - Rear Right Covers

4DC17-67095 Diverter - Top diverter profile SRV

4DC17-67097 Diverter - Bottom Diverter supports

K4T88-67120 Diverter - WW Output Diverter Parts

4DC17-67058 Door - Left Side Bottom Door SRV

4DC17-67068 Door - Right front door SRV

4DC17-67072 Door - ECabinet door SVR

K4T88-67062 Encoder - Pps Encoder Assy

K4T88-67241 Encoder - MI Motor Encoder Cable

K4T88-67244 Encoder - MO Motor Encoder Cable

K4T88-67044 Encoder Strip - Impelling Encoder Strip

K4T88-67219 Encoder Strip - Odd Encoder Strip. HP Latex 1500 Printer an industrial large-format superwide printer. The part is described as an "Odd Encoder Strip" and is a critical printer component.

K4T88-67302 Encoder Strip - Encoder Strip Mid Support SERV

CZ056-67188 Engine - Engine adaptor PCA SERV

CZ056-67475 Engine - Engine PCA for AM v2

K4T88-67067 Engine - Engine PCA SERV

K4T88-67079 Engine - Drop Detector Transmission Engine. It acts as the mechanical transmission/motor assembly that operates the printer's drop detector system. The drop detector tracks individual printhead nozzles to flag blocks or misfires ensuring consistent image quality.

4DC17-67135 Fan - SRC Carriage Fan SERV

K4T88-67110 Fan - Dring Fan Pca

K4T88-67265 Fan - Drying Pca Cooling Fan Filterter

4DC17-67134 Filter - Aerosol extractor filter SRV

CZ056-67137 Filter - E-cabinet fan filter assembly

CZ056-67386 Filter - EBOX fan and filter SERV

K4T88-67286 Filter - Aerosol Removal Filter SERV

CZ056-67186 Formatter - Formatter PCA SERV

K4T88-67012 Frame - Aerosol Frame

CZ056-67471 Gear - Drive Roller Worm Gear

4DC17-67090 Glass - Output cover glass

4DC17-67085 Grommet - Grommet window SVC

K4T88-67218 Guide - Web Wipe Extraction Guide

CZ056-67105 Hardware - Vacuum pump SERV

Q6702-60464 Hardware - Pneumatic gun - For the Scitex L65500/LX600/LX800 printer series

K4T88-67107 Heater - Drying Heater and Fan assembly designed as a replacement part for large-format industrial printers like Latex 1500 Stitch S1000 series and similar.

4DC17-67104 Holder - SIM Connector Holder

CZ056-67049 Hub - Print head cleaning rubber hub

CZ056-67050 Hub - Print head cleaning roll free hub

4DC17-67011 IDS - IDS Cable SERV

4DC17-67012 IDS - IDS Air Circuit SERV

4DC17-67013 IDS - IDS Ink Circuit SERV

4DC17-67014 IDS - IDS Air Pump and Relief valve SERV

4DC17-67015 IDS - IDS Ink Pump SERV

4DC17-67016 IDS - IDS K Cartridge connector with tube SERV

4DC17-67017 IDS - IDS Y Cartridge connector with tube SERV

4DC17-67018 IDS - IDS C Cartridge connector with tube SERV

4DC17-67019 IDS - IDS M Cartridge connector with tube SERV

4DC17-67020 IDS - Ids Ink Pca Serv

4DC17-67082 IDS - Ids Purge Serv

4DC17-67103 IDS - IDS Ink supply tray

K4T88-67018 IDS - Ids Pip Assy. HP K4T88-67018 IDS PIP ASSY LATEX 1500 R1000 R2000 (INC VAT)

K4T88-67037 IDS - Ids Air Pca

K4T88-67038 IDS - Ids Ink Leakage Detector

K4T88-67059 IDS - Ids Ink Cartridge Pca

4DC17-67138 Ink Collector - Ink Collector Holder Magnet assy

K4T88-67294 Interlock - Safety Interlock

724720-001 Keyboard - USB 2.0 Windows keyboard - For use in models with Windows 8 (United States)

K4T88-67269 Keyboard - Keyboard SERV

CZ056-67239 Label - Spindle_Ruler_Label_Srv

4DC17-67136 Latch - Ink Collector blue latch SRV

Q6702-60468 Latch - Spindle latch type A - Can also be used as the back spindle support

Q6702-60469 Latch - Spindle latch type B - Can also be used as the back spindle support

K4T88-67196 LED - Pz Led Lights

K4T88-67121 Lifter - WW Lifters Parts

4DC17-67107 Light - Beacon lights SERV

4DC17-67115 Maintenance Kit - HP Stitch S1000 Printer Maintenance kit

4DC17-67116 Maintenance Kit - RuHP StitchS1000 Printer Maintenance Kit

4DC17-67124 Maintenance Kit - HP StitchS1000 Service Maintenance Kit 1

4DC17-67125 Maintenance Kit - HP StitchS1000 Service Maintenance Kit 2

4DC17-67001 Media - SRC ISM Intermediate tank

K4T88-67040 Media - replacement service part described as the ISM 7x Intermediate Tank designed for large-format commercial printers.

4DC17-67041 Module - WW Extraction Module Kit

K4T88-67295 Monitor - Lyra Ips Monitor

M13930-001 Monitor - P22 G4 21.5-inch-L FHD monitor

1HA07-67083 Motor - TH 1x MIMO motor assy SRV motor assembly unit utilized within the internal motion or drive systems of high-end industrial wide-format printing equipment.

4DC17-67021 Motor - Impelling Motor SERV

CZ056-67190 Motor - Motor DRV PCA SERV

CZ056-67269 Motor - MA motor SERV HP Latex 3000 3100 3500 MA motor unit. (for bracket and motor assembly order CZ056-67228)

K4G10-67109 Motor - TH 1x MIMO motor assy SRV motor assembly unit utilized within the internal motion or drive systems of high-end industrial wide-format printing equipment.

K4T88-67046 Motor - Sax Motor Power Cable

K4T88-67047 Motor - Sax Motor Data Cable

K4T88-67050 Motor - Scan Axis 3rd Motor Support

K4T88-67122 Motor - WW Engaje Motor

K4T88-67227 Motor - Drop Detector System Motor Kit

K4T88-67239 Motor - MA Motor Data Cable

K4T88-67240 Motor - MA Motor Power Cable

K4T88-67242 Motor - MI Motor Data Cable

K4T88-67243 Motor - MI Motor Power Cable

K4T88-67245 Motor - MO Motor Data Cable

K4T88-67246 Motor - MO Motor Power Cable

K4T88-67187 Mount - Screen Mount

674316-001 Mouse - USB laser light optical mouse (Jack Black color) - Has 2-buttons, scroll wheel, and wired USB connector

728562-001 Network - Intel Pro 10/1000 Network interface controller (NIC)

4DC17-67027 PC Board - Encryption PCA SERV

4DC17-67033 PC Board - Drop Detector PCA

4DC17-67076 PC Board - Drying PCA cables Kit SRV

4DC17-67078 PC Board - SOL PCA Kit Cables

4DC17-67094 PC Board - Pixart PCA SRV

4DC17-67101 PC Board - PH Interconnect Rear PCA

4DC17-67102 PC Board - PH Interconnect Front PCA

4DC17-67123 PC Board - SRC eCabinet PCA SERV

4DC17-67128 PC Board - SRC PCA Interlocks Kit Cables SRV

4DC17-67130 PC Board - SRC Drop Detector PCA Cables Kit SRV

906321-001 PC Board - VGA option board (VOLANS, Enterprise)

CZ056-67189 PC Board - Ebox Interconnect PCA SERV

CZ056-67373 PC Board - Carriage interconnect PCA SERV

CZ056-67388 PC Board - DD Mux PCA SERV

K4T88-67017 PC Board - Aerosol Pca

K4T88-67063 PC Board - Pps Safety Pca

K4T88-67070 PC Board - Drying PCA SERV

K4T88-67326 PC Board - Lyra Fiber Optics PCA SVC

4DC17-67087 Pen - 1x Pen pockets

4DC17-67039 Pin - WW Pinch

4DC17-67080 Pin - Pinch Complete Assy

4DC17-67034 Pinch Assembly - Pinch assembly

4DC17-67048 Plate - MI Side Plate Motorized

4DC17-67049 Plate - MI Side Plate Left

4DC17-67098 Plate - Bottom Plate SRV

K4T88-67148 Plate - MO Side Plate Motorized

K4T88-67149 Plate - MO Side Plate Left

4DC17-67043 Platen - Platen extra assy SERV

4DC17-67044 Platen - MAS platen assembly

4DC17-67045 Platen - Platen Assy

K4T88-67003 Plotter - Aerosol Top Case Assy

5185-3205 Plug - Plug Serpentine Vent Bla

849655-001 Power Supply - Power Supply - Picolit, 500WATX, EStar6 Bronze, LiteON

CZ056-67085 Power Supply - E-box power supply assembly

4DC17-67119 Primer - Primer and Latch

4DC17-67035 Printhead - WW Printhead cleaning module

4DC17-67036 Printhead - WW Printhead cleaning roll w structure

4DC17-67037 Printhead - WW Printhead cleaning drive roller

L22630-003 Processor - Intel processor i5-8500 6C 3.0GHz 65W 9MB

4DC17-67010 Protector - Under Carriage Protector assy SERV

K4T88-67190 Protector - Pinch Protector Center Plate

K4T88-67191 Protector - Pinch Protector Left Plate

K4T88-67192 Protector - Pinch Protector Right Plate

K4T88-67193 Protector - Pinch Protector Handle

K4T88-67194 Protector - Pinch Protector Middle Bracket

4DC17-67100 Pulley - Impelling Pulley

4DC17-67009 Reader - Carriage encoder reader SERV

K4T88-67327 Relay - Lyra Ecabinet Safety Relay Serv

CZ056-67073 Reservoir - Ink System Module (ISM) Intermediate Reservoir/Tank Assembly. It is a replacement part used in HP's commercial large-format and industrial digital printers.

4DC17-67040 Roller - WW PH cleaning roller up down

4DC17-67120 Roller - Spread Roller

CZ056-67228 Roller - Media drive roller transimission assembly encoder sensor board MA motor assembly and Drive motor coupling with motor bracket. MEDIA DRIVE ROLLER TRANSMISSION ASSY LATEX (Motor only order CZ056-67269).

CZ056-67374 Roller - Drive Roller Encoder Disc

K4T88-67119 Roller - WW Roller Parts

Q6703-67020 Roller - Drive roller assembly - For the Scitex LX800 printer series

4DC17-67005 Sensors - Line sensor SERV

K4T88-67082 Sensors - Drop Detector Sensors

1410-1886 Service Parts - Bearing Ball 40-Mm-Id 68-Mm-Od Rohs

1D3A8-67011 Service Parts - Output cover SRV

4DC17-67006 Service Parts - Sol Serv

4DC17-67030 Service Parts - Drop Detector Station

4DC17-67031 Service Parts - Drop Detector Positioner

4DC17-67056 Service Parts - Top Center Structure SRV

4DC17-67057 Service Parts - Left Back Corner SRV

4DC17-67061 Service Parts - Left front corner SRV

4DC17-67062 Service Parts - Left Structure SRV

4DC17-67066 Service Parts - Right back corner SRV

4DC17-67067 Service Parts - Right front corner SRV

4DC17-67069 Service Parts - Right front top SRV

4DC17-67070 Service Parts - Right Structure SRV

4DC17-67074 Service Parts - Left Spitoon SRV

4DC17-67109 Service Parts - Residual Current Dev RCD 40A/30mA

4DC17-67118 Service Parts - HP StitchS1000DeltafromLatex1500reseller

4DC17-67131 Service Parts - Ips Serv

4DC17-67133 Service Parts - Left Rotomolding SRV

4DC17-67137 Service Parts - SRC IC Positioner

4DC17-67140 Service Parts - OMAS Sensor PCA SRV Kit

4DC17-67141 Service Parts - CODEWHEEL Cover SRV

4DC17-67142 Service Parts - Complete Platens Assembly

932491-853 Service Parts - GNRC-HDD 500GB 7200RPM 7mm SED Opal2

CZ056-50252 Service Parts - CAN B bus cable

K0Q45-67034 Service Parts - Drying Diffuser

K0Q45-67164 Service Parts - Right Rotomolding SRV

K0Q45-67179 Service Parts - Left -Back -Top -Cover SRV

K0Q45-67187 Service Parts - Right -front -bottom -SRV

K0Q45-67188 Service Parts - Right -front -corner -SRV

K0Q45-67232 Service Parts - SAX Bump SERV

K0Q45-67372 Service Parts - SVS Rotomolding Accessories SRV

K4T88-67080 Service Parts - Drop Detector Transmision Parts

K4T88-67108 Service Parts - Drying Chamber

K4T88-67205 Service Parts - Psu 24v 600w Cosel

K4T88-67267 Service Parts - Screen SERV

K4T88-67290 Service Parts - Lyra Forklift Svc

K4T88-67344 Service Parts - Dual Roll Shims

K4T88-67345 Service Parts - E-Cabinet Terminal Block 16mm2 1000v 76a

K4T88-67351 Service Parts - Left & Right Switch Assy

L16401-001 Service Parts - UDIMM 4GB 1.2v DDR4-2666 NECC

L27294-001 Service Parts - SPS-MBD Trinidad CFL-Q370 RP5

L27294-301 Service Parts - SPS-MBD Trinidad CFL-Q370 RP5 Win10 lot

L27294-601 Service Parts - SPS-MBD Trinidad CFL-Q370 RP5 Win

L32915-001 Service Parts - SKO-PSU 250W SFF RPOS18 EAP92 (Platinum)

L33496-001 Service Parts - SPS-Fan Tobago RP5

L33497-001 Service Parts - SPS-Fan Cover Tobago RP5

L33499-001 Service Parts - SPS-Heatsink Trinidad/Tobago RP5

L33504-001 Service Parts - SPS-Front Bezel Flex Pro-C

L45023-001 Service Parts - SPS-Power Swith Module Flex Pro-C

L49477-001 Service Parts - SPS-Antenna external CA ENT18-DM

M12853-001 Service Parts - SPS-PS2 Headphone Expansion Port

4DC17-67028 Service Station - Service Station Caps Kit Assy

4DC17-67029 Service Station - Service Station Capping Structure

K4T88-67076 Service Station - Service Station Position Spring

4DC17-67063 Sheet - Perforated Sheet Metal Left Top SRV

4DC17-67071 Sheet - Perforated Sheet Metal Right Top SRV

K4T88-67172 Sheet - Perforated Sheet Metal Lateral Left

K4T88-67173 Sheet - Perforated Sheet Metal Left Corner Front

K4T88-67174 Sheet - Perforated Sheet Metal Left Front

K4T88-67184 Sheet - Perforated Sheet Metal Right Back

K4T88-67057 Shelf - Trs Tube Shelf

K4T88-67052 Shutter - Sol Shutter

4DC17-67032 Shuttle - Drop Detector Shuttle w Sensor

4DC17-67022 Slider - Scan Axis Slider rods SERV

4DC17-67046 Slider - MEH Sliders SERV

727149-001 Speaker - Chassis speaker assembly

4DC17-67003 Spindle - Hdrs Single Roll Aluminum Spindle SRV

CZ056-67238 Spindle - Spindle_Journal_Left_Srv

CZ056-67462 Spindle - Hdrs Single Roll Spindle SRV

K4G10-67094 Spindle - Spindle Spring Air Valve SERV

K4T88-67151 Spindle - MI MO Gears Upgrade & Spindles

688952-001 Stand - Chassis stand assembly

4DC17A Stitch - HP Stitch S1000 large format printer Thermal inkjet Colour

4DC17-67129 Strip - MEH Strips SERV

CZ056-67318 Switch - Pinch switch assy SERV

K4T88-67089 Switch - Pinch Switch Assembly

K4T88-67300 Tab - Hp Series 1000 Loading Table Shock Ab

K4T88-67049 Tensioner - Scan Axis Belt Tensioner designed for the HP Latex 1500 Printer series. This service part maintains proper tension on the carriage belt ensuring accurate high-quality printing.

K4T88-67324 Tensioner - dampener for Lyra SAX tensioner SVC

K4T88-67021 Tool - Belt Installation Tool

4DC17-67088 Tower - FI Holders and Towers

K4T88-67009 Tower - Carriage Tower

4DC17-67122 Tractor - Aerosol Extractor spare parts

K4T88-67056 Trailing Cable - Trs Fiber Optics Trailing Cable

4DC17-67023 Tube - TRS Tubes repair SERV

4DC17-67047 Vacuum - Vacuum Support

4DC17-67110 Vacuum - MAS and vacuum cables kit SRV

CZ056-67321 Vacuum - OMAS and Vacuum PCA SERV

K4T88-67141 Vacuum - Vacuum Pipe

K4T88-67142 Vacuum - Vacuum Pump

K4T88-67238 Vacuum - Vacuum Pump Cable Kit

4DC17-67042 Waste - WW Waste Management Parts

K4T88-67099 Waste - VR Waste Container

K4T88-67189 Wheel - Side Structures Wheels

4DC17-67052 Window - Top Center Window Left SRV

4DC17-67053 Window - Top Center Window Center SRV

4DC17-67054 Window - Top Center Window Right SRV

4DC17-67083 Window - Window front arcs 2x

4DC17-67139 Window - MAS Window frame and Glass

K4T88-67163 Window - Front Window Structure

K4T88-67301 Window - Hp Series 1000 Front Window Hinges Sr

K4T88-67307 Window - Gas springs and supports window 4x

HP Stitch S1000 large format printer Thermal inkjet Colour (4DC17A)

HP parts list for 4DC17A HP Stitch S1000 large format printer Thermal inkjet Colour
