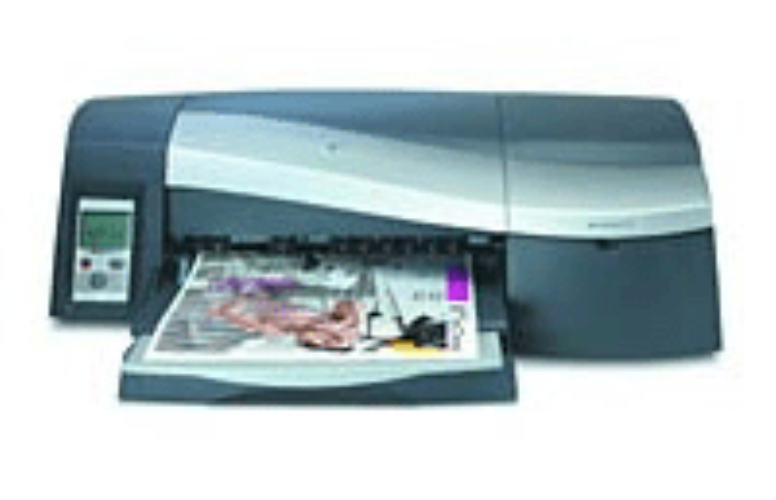

HP DesignJet 30N (C7790E)

MFG Part Number: C7790E 7ppm color

Printer Support Linksshow

HP parts list for C7790E HP DesignJet 30N Printer

C7796-67001 Absorber - Ink Service Station (ISS) rear absorber foam - Absorbs ink during the cleaning process

C8109-67022 Absorber - ISS bottom aborber foam

Q1246-60011 Adapter - Base adaptor kit (two used) - For connecting the base of the plotter to the stand assembly

J7934-69011 Backbone - JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector;Click to order the functional equivalent: J7934-69021

J7934-69021 Backbone - JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector

C8108-67048 Belt - Output Belt (1 per) Svc Output Belt (1 per) Svc

Q1292-67001 Belt - Output Belt (1 per) Svc Output Belt (1 per) Svc

C7791-60215 Bracket - ROLLFEED HARNESS SUP KIT ROHS SVRollfeed support bracket - Used in conjunction with the automatic rollfeed kit. ( For automatic rollfeed kit Q1247A).

Q1292-60238 Bracket - ROLLFEED HARNESS SUP KIT ROHS SVRollfeed support bracket - Used in conjunction with the automatic rollfeed kit. ( For automatic rollfeed kit Q1247A).

C7790-60421 Cable - Front panel cable - Connects the front panel to the main logic PC board

C7790-67001 Cable - Duplexer OOP (Out Of Paper) sensor harness

Q1292-67010 Cable - Front panel cable - Connects the front panel to the main logic PC board

Q1293-67001 Cable - Motor harness b one per svc

C7791-60232 Cam - Pick cam for HP DesignJet 100 series units, Pick cam - Located on the left-side of the print mechanism.

Q1292-67017 Cam - Pick cam for HP DesignJet 100 series units, Pick cam - Located on the left-side of the print mechanism.

C7790-60217 Cap - Electonics end cap

Q1292-67008 Cap - Electronics endcap one per svc

C7790-60460 Carriage - Ink cartridge carriage assembly - Includes carriage PC board

Q1293-60046 Carriage - Ink cartridge carriage assembly - Includes carriage PC board

Q1293-67007 Carriage - Ink cartridge carriage assembly - Includes carriage PC board

C7790-60445 Control Panel - Control panel - Front left control panel

C7796-60208 Control Panel - Control panel - Front left control panel

C7796-67004 Control Panel - Control panel - Front left control panel

Q1292-60023 Control Panel - Control panel - Front left control panel

Q1292-60122 Control Panel - Control panel - Front left control panel

Q1292-67021 Control Panel - Control panel - Front left control panel

Q1292-67032 Control Panel - control panel display for Designjet 30gp

Q1293-60047 Control Panel - Control panel - Front left control panel

C7797-60007 Cutter - Media cutter assembly FOR HP DesignJet 100plus 110 120 130 30 70 90 cutter assembly.

Q1292-60064 Cutter - Media cutter assembly FOR HP DesignJet 100plus 110 120 130 30 70 90 cutter assembly.

C7790-60457 Door - Printhead door assembly - Provides access to the printheads - Includes ink cartridge door hinge

C8108-67036 Door - Rear cleanout door assembly - Paper jam cleanout door

Q1293-60067 Door - Rear cleanout door assembly - Paper jam cleanout door

C8108-67051 Encoder - Paper motor encoder disk Disc-Encoder One Per Svc Paper motor encoder disk

Q1292-67019 Encoder - Disc-encoder one per svc Paper motor encoder disk

Q1292-67039 Encoder - Disc-Encoder One Per Svc Paper motor encoder disk

C3834A Film - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series

C3835A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series

C7790-60146 Filter - Filter Assembly - Located inside the right cover assembly

C7790-60295 Filter - Filter Assembly - Located inside the right cover assembly

Q1292-67009 Filter - Filter assembly - Located inside the right side cover

C7790-60144 Foam - Ink Service Station (ISS) rear absorber foam

Q1246-60009 Foot - Foot assembly - Includes 2 rollers and mounting plate - Also includes mounting hardware and T-handle screw driver tool

C7796-67005 Front Panel - Control panel - Front left control panel

C7791-60202 Guide - Inner paper guide One per svcInner paper guide - Guides the paper through the paper path - Mounts behind the pickup roller assembly

C8108-67002 Guide - Upper paper guide - Spring loaded flat plate

C8108-67049 Guide - Inner paper guide

Q1292-67023 Guide - Inner paper guide One per svcInner paper guide - Guides the paper through the paper path - Mounts behind the pickup roller assembly

Q1293-60066 Guide - Upper paper guide - Spring loaded flat plate

C7790-60104 Holder - Encoder strip holder - Wire loop that connects to the carriage assembly that is used to hold the encoder strip

C7790-60124 Holder - Ink tube holder

Q1292-60152 Holder - Encoder strip holder - Wire loop that connects to the carriage assembly that is used to hold the encoder strip

Q1292-67005 Holder - Ink tube holder

C7790-60446 Ink System - Ink delivery assembly - Transports ink from ink supply station to carriage assembly

Q1293-60065 Ink System - Ink delivery assembly - Transports ink from ink supply station to carriage assembly

Q1246-60007 Leg - Legs assembly (two used) qty listed is per item.

6040-0858 Lubricant - Lubricant : Special lubricating oil - For carriage slider rod surface - 4oz (113g) plastic bottle of synthetic oil

6040-0911 Lubricant - Special lubricating oil - For carriage slider rod surface - (syringe with 35cc oil)

Q1246-60010 Media Bin - Paper bin assembly;Click to order the functional equivalent: CH336-67013

C7790-60459 Module - Main Logic PCA Module - PCA is housed in a metal chassis

C7790-69459 Module - Main Logic PCA Module - PCA is housed in a metal chassis

Q1293-60048 Module - Main Logic PCA Module - PCA is housed in a metal chassis

Q1293-67006 Module - Uly b emodule assy rohs sv

Q1293-69048 Module - Main Logic PCA Module - PCA is housed in a metal chassis

Q1293-69085 Module - Uly B Emodule Assy Rohs Sv

C7790-60110 Motor - Carriage drive motor

C7791-60143 Motor - Carriage drive motor - Drives the carriage belt

C8108-67038 Motor - Paper motor assembly

C8108-67040 Motor - Ramp motor assembly

Q1292-60207 Motor - Carriage drive motor - Drives the carriage belt

Q1292-60218 Motor - Paper motor assembly

Q1292-60219 Motor - Ramp motor assembly

Q1293-60080 Motor - Carriage drive motor

Q7981A Pan - Advanced High-Gloss Photo Paper - 13cm (5in) x 18cm (7in) - 20 sheets (Japan)

51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets

51634Z Paper - InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package

C1825A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 500 sheets

C1853A Paper - Premium InkJet Heavyweight Paper - A4 size (21.0cm x 29.7cm) - Coated on both sides - 100 sheets

C1855A Paper - HP Premium Presentation Paper - B size (11 x 17-inches)- 100 sheets

C1858A Paper - Bright white InkJet paper - A3 size (29.7cm x 42.0cm) - 200 sheets per package

C5977A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 200 sheets

C5977B Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 250 sheets

C6019B Paper - Coated paper (98 gsm) - 61cm (24in) x 45.7m (150ft) roll (USA, Canada, and Latin America)

C6029C Paper - Heavyweight coated paper - 61cm (24in) x 30.5m (100ft) roll - For regular or UV resistant ink

C6039A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper

C6059A Paper - Paper (Photo) for DeskJet 1000 Series, DeskJet 1100 Series, DeskJet 1120 Series, DeskJet 1220 Series

C6818A Paper - Paper (Glossy) for OfficeJet 5615 Series, OfficeJet 5605 Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series

C6820A Paper - Professional InkJet brochure and flyer paper (Glossy) - Glossy on both sides - B size (11 x 17-inches) - 50 sheets

C6821A Paper - Professional glossy InkJet brochure and flyer paper - A3 size (29.7cm x 42.0cm) - Glossy on both sides - 50 sheets per box

C6831A Paper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets

C6832A Paper - Paper (Glossy) for DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series, DeskJet F4135 All-In-One

C6951A Paper - Paper (Matte) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series

C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets

C6979A Paper - Premium Photo Paper (Glossy) - A size (8.5 x 11-inches) - 50 sheets

C7007A Paper - Photo Quality InkJet Paper (Matte) - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets

C7884A Paper - Paper (Semi-Glossy) for DesignJet 10ps 20ps 50ps, DesignJet 30, Designjet 120, DesignJet 130 Series

C7923A Paper - Basic heavyweight paper - 61cm (24in) x 30.5m (100ft) roll (USA and Asia/Pacific)

C8281A Paper - Basic coated paper - 61cm (24in) x 45.7m (150ft) roll (USA and Asia/Pacific)

C8310A Paper - Basic photo satin paper - 61cm (24in) x 30.5m (100ft) roll (USA and Asia/Pacific)

C8315A Paper - High gloss photo paper - 61cm (24in) x 30.5m (100ft) roll (USA and Asia/Pacific)

Q1404A Paper - Hewlett-Packard Paper - coated paper, Coated Paper, Matte - Roll A1 (24 in x 150 ft) - 95 g/m2

Q1412A Paper - Paper (Coated) for DesignJet 2000, DesignJet 3000, DesignJet 1050 Series, DesignJet 1055 Series

Q1420A Paper - Paper (Photo) for Designjet 820 MFP Series, DesignJet T1100 T160 printer series, DesignJet 2000, DesignJet 3000

Q1426A Paper - Hewlett Packard Supplies HP paper - high-gloss photo paper - Roll A1 (24 in x 100 ft) - 179 g/m2

Q1442A Paper - Coated paper - 59.4cm (23.4in) x 45.7m (150ft) roll

Q1443A Paper - Paper (Coated) for DesignJet 5000 Series, DesignJet 500, DesignJet 800 Series, DesignJet 30

Q1785A Paper - Paper (Glossy) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, DeskJet 640 Series

Q1786A Paper - Paper (Glossy) for DeskJet 450 Series, OfficeJet V40 Series, PSC 700 Series All in One, PSC 900 Series All-in-One

Q1966A Paper - Paper (Glossy) for DesignJet 30, Designjet 120, DesignJet 130 Series, DesignJet 100 Series

Q1987A Paper - Paper (Glossy) for OfficeJet G85 Series, OfficeJet K60, OfficeJet K80 Series, PSC 500 Series

Q2509A Paper - Paper (Semi-Glossy) for DesignJet 130 Series, DeskJet 1220 Series, Business InkJet 2600 Series, DeskJet 450 Series

Q5495A Paper - Premium Plus Photo paper (High Gloss) - B size (11 x 17-inches) - 25 sheets

Q6568A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DesignJet 1055 Series, DeskJet 5550 Series

Q6569A Paper - Premium Plus Soft-Gloss Photo Paper (Matte) - A size (8.5 x 11-inches) - 25 sheets (North America)

Q6595A Paper - HP Premium Presentation Paper - B size (11 x 17-inches)- 100 sheets

C7791-60219 PC Board - Cleanout interconnect PCA

Q1292-60208 PC Board - Cleanout interconnect PCA

Q1292-67020 PC Board - Pca-cleanout interconnect

J4169A PC Board Interface - JetDirect 610N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot - Has a RJ-45 connector - Comes with software on CD-ROM and manual

J7934G PC Board Interface - HP JetDirect 620n internal print server - 10BaseT and 100BaseTX LAN interface board - Plugs into peripheral EIO slot - Has an RJ-45 connector - Comes with software on CD-ROM and manual on CD-ROM

J7942A PC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module

J7942G PC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module

J7960G PC Board Interface - HP Jetdirect 625n internal ethernet print server - Provides 10BaseT, 100BaseTX, or 1000BaseT interface for products with an EIO port

C8108-67039 Pickup Assembly - Pickup roller assembly - Shaft with large rollers and 1 gear - Feeds paper from the paper input tray into the print mechanism

C7796-60026 Pivot - Pivot assembly - Black plastic part under platten - Supports pick roller

C7796-60217 Pivot - Pivot assembly - Black plastic part under platten - Supports pick roller

8120-6798 Power Cord - Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 100VAC in Japan)

8120-6810 Power Cord - Power cord (Flint Gray) - 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V operation in Australia, New Zealand)

8120-6811 Power Cord - Power cord (Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 220V in Europe, Saudi Arabia, South Africa, India, and Korea)

8120-6812 Power Cord - Power cord (Flint Gray) - 18 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 120VAC in the United States, Canada, Mexico, Philippines, and Taiwan)

8120-6813 Power Cord - Power cord (Dove Gray) - Three Conductor, 2.3M (7.5ft) long - Has straight (F) C13 receptacle (For 240VAC in the United Kingdom, Hong Kong, Singapore, Malaysia)

8120-6814 Power Cord - Power cord (Flint Gray) - 17 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220VAC in Denmark)

8120-6815 Power Cord - Power cord (Flint Gray) - 17 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220VAC in Switzerland)

8120-6869 Power Cord - Power cord (Flint Gray) - 3-wire, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Argentina)

8120-8705 Power Cord - Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 240V in the UK, Hong Kong, Singapore, and Malaysia)

8120-8707 Power Cord - Power cord (Flint Gray) - 17 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220VAC in China)

8120-8871 Power Cord - Power cord (Black) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Thailand, Cambodia, Vietnam, and the Philippines)

C7790-60091 Power Supply - Power supply rohs sv power supply rohs sv Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan

Q1292-67033 Power Supply - Power supply rohs sv power supply rohs sv Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan

Q1292-67038 Power Supply - POWER SUPPLY ROHS SV Worldwide input power supply - 100-240VAC 50/60Hz 68W - Includes fan. Does not include Formatter board C7796-69156

Q1293-60053 Power Supply - Power supply rohs sv power supply rohs sv Worldwide input power supply - 100-240VAC, 50/60Hz, 68W - Includes fan

Q1293-69050 Print Mechanism - PRINT ENGINE 30n ROHS SV

J6057A Print Server - JetDirect 615N internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector

J7934-61001 Print Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector.

J7934-61011 Print Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector.

J7934-69001 Print Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector.

J7934A Print Server - JetDirect 620N Ethernet Print Server, internal print server LAN interface board - 10Base-T and 100Base-TX - Plugs into peripheral EIO slot, has RJ-45 connector.

Q1293-60050 Printer - DesignJet 30N print engine - Basic print mechanism - Does not include covers

C9420A Printhead - No. 85 cyan printhead

C9421A Printhead - No. 85 magenta printhead

C9422A Printhead - 85 Yellow DesignJet Printhead

C9423A Printhead - 85 Light Cyan DesignJet Printhead

C9424A Printhead - No. 85 light magenta printhead

C7790E-Repair_DesignJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

C8108-67041 Roller - Output mechanism assembly

0515-2565 Screw - Edc Screw

0515-4659 Screw - Machine screws M3.0x.05 7mm long (pan head)

C7790-60119 Sensor - Door sensor assembly - Senses when the access door is opened or closed

C7791-60229 Sensor - OOPS sensor and connector are included. Out-of-paper sensor (OOPS) - Detects when paper supply is empty

Q1292-60150 Sensor - OOPS sensor and connector are included. Out-of-paper sensor (OOPS) - Detects when paper supply is empty

Q1292-60209 Sensor - OOPS sensor and connector are included. Out-of-paper sensor (OOPS) - Detects when paper supply is empty

Q1292-67022 Sensor - Door sensor assembly - Senses when the access door is opened or closed

Q1293-60054 Sensor - Door sensor assembly - Senses when the access door is opened or closed

C7790E-Manual_DesignJet Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.

C7790-69463 Service Parts - Rstrd c7790-60463

C7790-60089 Service Station - Ink supply station assembly ISS Service KitInk supply service station (ISS) assembly - Holds the ink cartridges and pumps ink out to the printheads

C7790-60279 Service Station - Service station assembly 6 foam ink drain pockets.

C7790-60419 Service Station - Ink supply service station (ISS) assembly - Holds the ink cartridges and pumps ink out to the printheads

C7790-60482 Service Station - Ink supply service station (ISS) assembly

Q1293-60049 Service Station - Ink supply service station (ISS) assembly - For DesignJet 30/90/130 series printers

Q1293-60052 Service Station - Ink supply service station (ISS) assembly

C7791-60203 Spitton - Ink spittoon for HP DesignJet 30

C7790-60125 Spring - Belt tensioner spring

Q1292-67006 Spring - Belt tensioner spring

Q1246A Stand - DesignJet 100 series printer stand and media bin

C8108-67042 Support - Output mechanism support assembly

Q1246-60012 Support - Input tray support

Q1293-60068 Support - Output mechanism support assembly

C7791-60212 Turnaround Assembly - Turnaround assembly

Q1292-67012 Turnaround Assembly - Turnaround assembly

CH336-67013 Wheel - Stand svc kit 24 inch

DesignJet 30N Printer parts list
