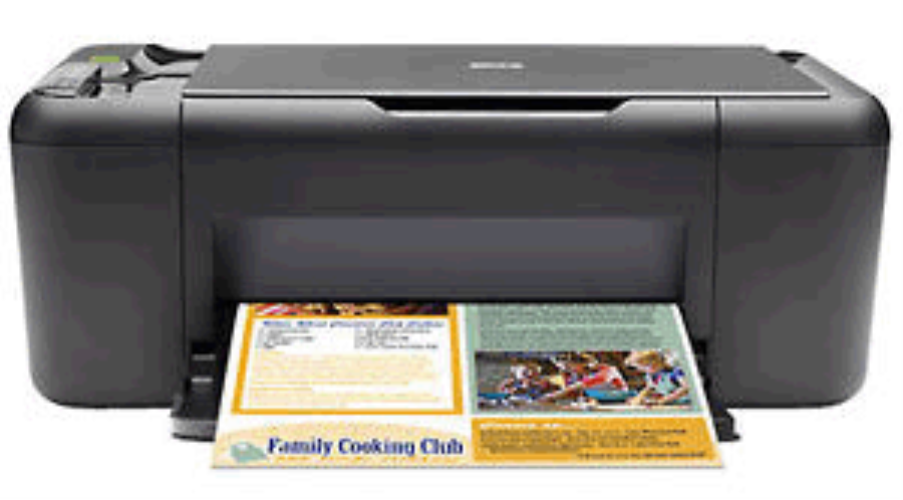

HP parts list for CB745A HP deskjet f4480 all-in-one printer
C9000-80012Absorber - Absorber - Absorbs excess color ink during the cleaning process
C9017-80033Absorber - Absorber - Absorbs excess color ink during the cleaning process
CB605-80012Absorber - Absorber for DESKJET F4480, HP DESKJET D2660 PRINTER, Photosmart C4700 All-in-One printer series
CB745A-AbsorberAbsorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.
CB745A-AC_AdapterAC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
CB745A-ActuatorActuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).
CB745A-Arm_DeliveryArm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
CB745A-Carriage_AssyCarriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.
CB745A-Carriage_BaseCarriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base
CB745A-Carriage_BeltCarriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.
CB745A-Carriage_CableCarriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
CB745A-Carriage_Latch_CVRCarriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
CB745A-Carriage_MotorCarriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
CB745A-Carriage_OnlyCarriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).
CB745A-Carriage_PC_BRDCarriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
CC641WNCartridge - 60XL Black Ink Cartridge - Prints approximately 600 standard pages (North America)
CC644WNCartridge - 60XL Tri-color Ink Cartridge - Prints approximately 440 standard pages (North America)
CB745A-ChassisChassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
CB745A-Clutch_FeedClutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
CB745A-Control_PanelControl Panel - Control panel assembly - control buttons and display on top front of the unit.
CB745-60007Cover - Document cover - Plastic lid that covers scanner glass
CB745A-Cover_BackCover Back - Back cover of printer, it is usually removed to clear paper jams.
CB745A-Cover_CartridgeCover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
CB745A-Cover_MainCover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
CB745A-DeflectorDeflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly
CB745A-MTR_Srvce_StationMotor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly
CB745A-OverlayOverlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
CB605-60067Paper Path Module - Cleanout assembly - Mechanical part assembled from molded plastic and steel components - Enables straight paper path for printing of thick media and odd sized media - Enables easier paper jam clearance
CB745A-PC_BRDPC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only
CB745A-PC_BRD_DCPC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.
CB745A-PC_BRD_InterfacePC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.
CB745A-PinchwheelPinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs
8121-0889Power Cord - Power cord (Black) - 2-wire, 18 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 120V in North America, Opt. 953)
8121-0891Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 240V in China)
8121-0892Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (Opt. 952)
8121-0893Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 240V in UK, Singapore, Malaysia, and Hong Kong, Opt. 955)
8121-0894Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Thailand and Brazil, Opt. 961)
8121-0895Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Europe, Opt. 954)
8121-0897Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Korea, Opt. 958)
8121-0898Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Argentina, Opt. 950)
8121-0899Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Chile, Opt. 959)
8121-0969Power Cord - Power cord (Black) - 2-wire, 18 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (USA and Canada, Opt. 953)
8121-1082Power Cord - AC power cord - Two conductor, 0.5m (19.6-inch) length
CB745A-Power_CordPower Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
0957-2269Power Module - Power module - Input voltage 100-240VAC, 50/60Hz, 625mA - Output voltage 32VDC, 20 watts - Requires a separate 2-wire AC power cord
CB745A-Power_MDLEPower Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
CB745A-Power_MDLE_AssyPower Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord
CB745A-Power_SupplyPower Supply - Power supply board (internal pwr supply unit in the office machine).
CB745A-Print_MchnsmPrint Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.
CB745A-Repair_InkJetRepair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
CB745A-Sensor_OutSensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray
CB745A-Sensor_SpotSensor Spot - Spot sensor assembly is attached to the carriage assembly.
CB745A-SeparatorSeparator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.
CB745A-GuideService Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
CB745A-Service_StationService Station - Service station assembly - for conditioning the printheads when the carriage is in its home position
CB745A-SLED_AssySLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly
CB745A-SliderSlider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.
