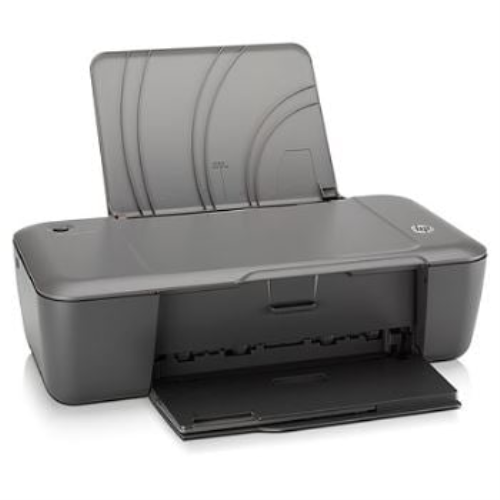

HP Deskjet 1000 printer (CH340D)

MFG Part Number: CH340D 6ppm black, 4ppm color, 4800 x 1200 DPI, USB 2.0

Printer Support Linksshow
- Repair It
- Exchange It
- View Supplies
- Service Diagrams
- Service Manual
- Partsurfer Tool

HP parts list for CH340D HP Deskjet 1000 printer

CH340D-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.

0957-2271 AC Adapter - Emerald 2.0 5x5 50W AC power adapter - Requires separate AC power cord (Worldwide)

CB057-60070 AC Adapter - Power module - Input voltage 100-240VAC 50-60Hz - Output voltage 32VDC 1.56mA 50 watt - Requires separate AC power cord (Worldwide)

CH340D-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.

CB760-60012 Accessory - PCA-CARRIAGE with RAMSES2 (versionB)

CB760-80010 Accessory - Encoder strip for HP CR232A

CH340D-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).

CH340D-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm

CH340D-Arm_Door Arm Door - Carriage access door sensor arm

CH340D-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper

CH340D-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter

CH340D-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray

CH340D-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt

CH340D-Battery Battery - Battery pack for hp printer

CH340D-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod

CH340D-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.

CH340D-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel

CH340D-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)

CH340D-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)

CH340D-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley

8121-0868 Cable - Universal Serial Bus (USB) interface cable (Black) - Type 'A' connector to type 'B' connector - 1.83m (6.0ft) long

8121-1585 Cable - Cable Assy Usb A-B 1.5-M-Lg Black

CH340D-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor

CH340D-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.

CH340D-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism

CH340D-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.

CH340D-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.

CH340D-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position

CH340D-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.

UG604A Care Pack - HP 2 year Care Pack w/Next Day Exchange for Printers

UG604E Care Pack - HP 2 year Care Pack w/Next Day Exchange for Printers

UG607A Care Pack - HP 3 year Care Pack w/Next Day Exchange for Printers

UG607E Care Pack - HP 3 year Care Pack w/Next Day Exchange for Printers

UH608E Care Pack - HP 4 year Care Pack w/Next Day Exchange for Printers

US284E Care Pack - HP Basic Installation Service for one consumer printer with wireless capability

US285E Care Pack - HP Premium Installation Service with wireless network setup for up to three PCs and/or printers

CH340D-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.

CH340D-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base

CH340D-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.

CH340D-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).

CH340D-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage

CH340D-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.

CH340D-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.

CH340D-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).

CH340D-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.

CH340D-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism

CH340D-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.

CH340D-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.

CH340D-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.

CH340D-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.

CH340D-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.

CH340D-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly

CH340D-Display Display - Status led display (LCD display assembly).

CH340D-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.

CH340D-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.

CH340D-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.

CH340D-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.

CH340D-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability

CH340D-Encoder Encoder - Encoder spring - provides tension for encoder strip

CH340D-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper

CH340D-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference

CH340D-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths

CH340D-Extender_Output Extender Output - Paper exit tray extension

CH340D-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit

CH340D-Fan_Vaccum Fan Vaccum - Vacuum fan assembly

CH340D-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk

C3828A Film - Film (Transparency) 8.5 x 11 5mil thick. for OfficeJet R65 Series PhotoSmart P1000 PhotoSmart P1100 OfficeJet G55 Series Transparency Film 200 SHEETS.

C3834A Film - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series

CH340D-Flag_Paper Flag Paper - OOPS flag - out of paper sensor

CH340D-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.

CH340D-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons

CH340D-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor

CH340D-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station

CH340D-Gear_Double Gear Double - Transfer gear - has double gear attached on service station

CH340D-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.

CH340D-Gear_Station Gear Station - Gears on shaft of spittoon station

CH340D-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.

CH340D-Glass_Assy Glass Assembly - Main top copier glass assembly.

CH340D-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken

CH340D-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.

CH340D-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.

CH340D-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly

CH340D-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly

C6049A Iron On Transfers - Iron-On Transfers for DeskJet 2500C Series, HP DeskJet D1400 Printer Series, DeskJet D24XX Series, DeskJet F4180 Series

C6065A Iron On Transfers - Iron-On Transfers for DeskJet 6620 Series, OfficeJet V40 Series, PSC 2100 Series All in One, DeskJet 640 Series

Q1974A Iron On Transfers - Iron-On Transfers for OfficeJet G55 Series, OfficeJet 7100 Series All in One, DeskJet 3700 Series, Deskjet 460 Series

Q7901A Label - White address labels - 1/2 inch x 1-3/4 inches - 15 sheets per package

Q7902A Label - White address labels - 1 inch x 2-5/8 inches - 15 sheets per package

CH340D-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly

CH340D-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly

CH340D-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.

51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets

C1812A Paper - Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes

C6042A Paper - Paper (Matte) for DeskJet D14XX Series, DeskJet D42XX Series, PhotoSmart 7350 Printer, PhotoSmart 7150 Printer

C6044A Paper - HP Photo Greeting Cards (Glossy) - A size (8.5 x 11-inches) - 10 scored half-fold glossy cards and envelopes

C6045A Paper - HP Photo Greeting Cards (Glossy) - A4 size (21.0cm x 29.7cm) - 10 scored half-fold glossy cards and envelopes

C6817A Paper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets

C6828A Paper - Greeting card paper pack (Ivory, Matte) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes

C6829A Paper - Paper (Textured) for PSC 2100 Series All in One, OfficeJet V40 Series, DeskJet 1280 Series, Color InkJet cp1700 Series

C6831A Paper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets

C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets

C7007A Paper - Photo Quality InkJet Paper (Matte) - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets

C7007AC Paper - Paper (Matte) for DeskJet 450 Series, Deskjet 460 Series, OfficeJet Pro K850 Series, DeskJet 3550 Series

C7018A Paper - Photo Greeting Cards (White, Matte) - A size (8.5 x 11-inches), half fold, pre-scored - Includes 20 cards and 20 envelopes

C7020A Paper - Scored Tri-fold Brochure Paper (Glossy) - A size (8.5 x 11-inches) - 100 sheets

C7891A Paper - Paper (Glossy) for OfficeJet 5110 Series All in One, PhotoSmart 230 Series, PhotoSmart 7260 Series, Photosmart 7200 Printer

C7894A Paper - Paper (Glossy) for DeskJet 3300 Series, DeskJet 3400 Series, DeskJet 3800 Series, DeskJet 6100 Series

C7896A Paper - Paper (Glossy) for DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series, DeskJet F4135 All-In-One

C7897A Paper - Paper (Glossy) for DeskJet F4140 Series, DeskJet F4135 All-In-One, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series

CHP910 Paper - HP Copy Paper - A4 size (21.0cm x 29.7cm) - 500 sheets

HPDR14 Paper - Media for HP Q8332A

INP160300 Paper - HP Advanced Paper - A size (8.5 x 11-inches) - 500 sheets

INP160310 Paper - HP Advanced Paper - A size (8.5 x 11-inches) - 500 sheets

Q1787A Paper - Linen Half-fold Greeting Card Paper (Ivory) - A size (8.5 x 11-inches) - 20 cards

Q1788A Paper - Linen Half-fold Greeting Card Paper (White) - A size (8.5 x 11-inches) - 20 cards

Q2509A Paper - Paper (Semi-Glossy) for DesignJet 130 Series, DeskJet 1220 Series, Business InkJet 2600 Series, DeskJet 450 Series

Q2509AC Paper - Paper (Semi-Glossy) for PSC 1300 Series All in One, PSC 2300 Series, PhotoSmart 130 Series, PSC 2100 Series All in One

Q5440A Paper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5550 Series, DeskJet 640 Series

Q5440AC Paper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5550 Series, DeskJet 640 Series

Q5443A Paper - Paper (Matte) for Deskjet D1300 printer series, DeskJet D13XX Series, DeskJet D41XX Series, Deskjet D1341 Printer

Q5445A Paper - Paper (Matte) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series

Q5451A Paper - Paper (Glossy) for Photosmart 7400 Series, Photosmart 7450, PhotoSmart 8250 Series, PhotoSmart 8230 Series

Q5456A Paper - HP Advanced Gloss Photo Paper 25 Sht

Q5458A Paper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series

Q5498A Paper - Paper (Glossy) for OfficeJet 4100 Series All in One, OfficeJet 6100 Series, Digital Copier Printer 410, PSC 1110 Series All in One

Q5499A Paper - Paper (Matte) for OfficeJet 7300 Series All in One, OfficeJet 7400 Series All in One, OfficeJet 7200 Series, OFFICEJET 7205

Q7854A Paper - Paper (Glossy) for DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series

Q7867A Paper - Paper (Glossy) for Color LaserJet 4730MFP Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series, OfficeJet 4315 Series

Q7871A Paper - Paper (Glossy) for PSC 1300 Series All in One, Color LaserJet 2820 Series, OFFICEJET 7205, PSC 1600 Series

CB760-60035 PC Board - Salsa/Mambo/Sumba CPCA

CH340-60001 PC Board - Logic PCA DJ 1000

CH340-60025 PC Board - Logic PCA DJ 1000

CH340-60029 PC Board - MPCA(Logic PCA)

CH340D-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only

CH340D-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.

CH340D-PC_BRD_Interface PC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.

CH340D-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs

8121-0891 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 240V in China)

8121-0895 Power Cord - Power cord (Black) - 2-wire, 17 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For use in Europe, Opt. 954)

8121-1167 Power Cord - Power cord (Black) - 2-wire, 18 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 240V in India, Opt. 960)

CH340D-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.

CH340D-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord

CH340D-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord

0957-2286 Power Supply - Hewlett Packard Deskjet printer models Power Supply Unit.

0957-2289 Power Supply - Power Supply (Only China and India)

0957-2290 Power Supply - Agate 10W Power Supply(HV) - China India

CH340D-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).

CH340D-Power_Supply_BRD Power Supply Board - High voltage power supply board

CH340D-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.

CH340D-Pulley Pulley - Paper pick up tray motor pulley.

CH340D-Repair_InkJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.

CH340D-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on

CH340D-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on

CH340D-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.

CH340D-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray

CH340D-Sensor_Exit Sensor Exit - Exit media sensor sv

CH340D-Sensor_Open Sensor Open - Door sensor assembly - open door sensor

CH340D-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray

CH340D-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.

CH340D-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.

CH340D-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.

CH340-69005 Service Parts - Deskjet 1000 - AP service Region 4

CH340D-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position

CH340D-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly

CH340D-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.

CH340D-Speaker Speaker - Speaker assembly - includes speaker cable.

CH340D-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process

CH340D-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge for carriage belt tension

CH340D-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.

CH340D-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).

CH340D-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.

CH340D-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.

CH340D-Window Window - Top/front access door assembly - print cartridge access door window.

Deskjet 1000 printer parts list
