Q3066A psc 2170 all-in-one

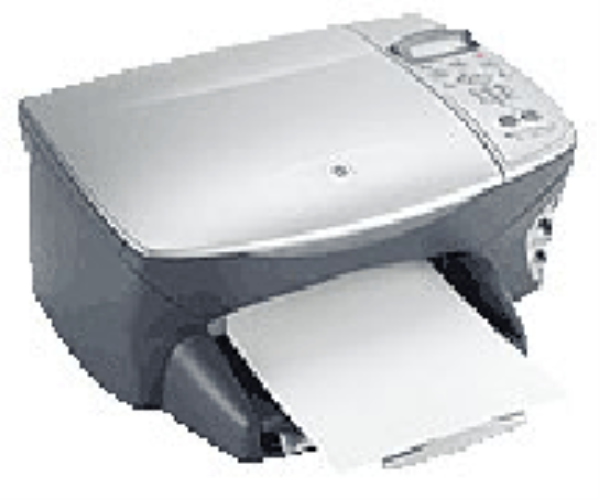

HP psc 2170 all-in-one (Q3066A)

MFG Part Number: Q3066A

HP parts list for Q3066A HP psc 2170 all-in-one

C6487-80005 Absorber - Sponge - Absorbs excess ink left over from cleaning print cartridges
Q3066A-Absorber Absorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.
Q3066A-AC_Adapter AC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
Q3066A-Actuator Actuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).
Q3066A-ADF_Arm ADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.
Q3066A-ADF_Feed_Assy ADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).
Q3066A-ADF_Input_Tray Adf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.
Q3066A-ADF_Motor ADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.
Q3066A-ADF_Output_Tray ADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.
Q3066A-ADF_Pad ADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.
Q3066A-ADF_PC_BRD ADF PC Board - Control Board on the ADF unit
Q3066A-ADF_Roller_Kit ADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.
Q3066A-ADF_Scanner ADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.
Q3066A-ADF_Sensor_BRD ADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly
Q3066A-ADF_Unit_Assy ADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.
Q3066A-Arm_Delivery Arm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
Q3066A-Arm_Door Arm Door - Carriage access door sensor arm
Q3066A-Arm_Pickup Arm Pick Up - Paper detection arm - for registration plate on picking up paper
Q3066A-Arm_Plate Arm Plate - Lever arm - used to lift the pressure plate lifter
Q3066A-Arm_Sensing Arm Sensing - Arm assembly senses paper in bottom tray
Q3066A-Arm_Tension Arm Tension - Tension arm - maintains tension on carriage belt
Q3066A-Belt_ADF Belt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit
Q3066A-Belt_Carriage Belt Carriage - Carriage belt - moves the carriage assembly across the carriage rod
Q3066A-Belt_Duplex Belt Duplex - Duplex timing belt - small belt that goes on the duplexer unit
Q3066A-Belt_Paper Belt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.
Q3066A-Belt_Scanner Belt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.
Q3066A-Bezel Bezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel
Q3072-60002 Bezel - Control panel bezel (French)
Q3072-60003 Bezel - Control panel bezel (German)
Q3072-60006 Bezel - Control panel bezel (Spanish)
Q3066A-Bracket_Left Bracket Left - Left bracket - carriage rod adjustment bracket (left)
Q3066A-Bracket_Right Bracket Right - Right bracket - carriage rod adjustment bracket (right)
Q3066A-Bracket_Tension Bracket Tension - Belt tension bracket - holds the carriage belt idler pulley
C6518A Cable - Universal Serial Bus (USB) interface cable - Type 'A' connector to type 'B' connector - 2.0m (6.6ft) long
Q3066A-Cable_Carriage Cable Carriage - Cable assembly which connects the main logic board to the carriage motor
Q3066A-Cable_Interface Cable Interface - Parallel cable - connects from your printer to computer via your parallel port.
Q3066A-Cable_Mchnsm Cable Mechanism - Cable assembly which connects the main logic board to the print mechanism
Q3066A-Cable_Panel Cable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.
Q3066A-Cable_USB Cable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.
Q3066A-Cam Cam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position
Q3066A-Cap_Lifter Cap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.
C9000-60011 Carriage Assembly - Blue and Gray carriage unit for HP PSC model and compatible models. Two piece carriage latch.
Q3066A-Carriage_Assy Carriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.
Q3066A-Carriage_Base Carriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base
Q3066A-Carriage_Belt Carriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.
Q3066A-Carriage_Cable Carriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
Q3066A-Carriage_Latch Carriage Latch - A-arm latch - retains latch over the printheads on the carriage
Q3066A-Carriage_Latch_CVR Carriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
Q3066A-Carriage_Motor Carriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
Q3066A-Carriage_Only Carriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).
Q3066A-Carriage_PC_BRD Carriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
Q3066A-Chassis Chassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
Q3066A-Clutch_ADF Clutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder
Q3066A-Clutch_Feed Clutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
Q3066-60002 Control Panel - Control panel assembly
Q3066-60012 Control Panel - Control panel assembly
Q3066A-Control_Panel Control Panel - Control panel assembly - control buttons and display on top front of the unit.
C8654-40020 Cover - Control panel LCD cover
Q3066-40002 Cover - Right-side cover
Q3066-40004 Cover - Left-side cover
Q3066-60009 Cover - Document cover - Plastic lid that covers scanner glass - Includes white backing and HP logo jewel
Q3066A-Cover_Back Cover Back - Back cover of printer, it is usually removed to clear paper jams.
Q3066A-Cover_Cartridge Cover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
Q3066A-Cover_Main Cover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
Q3066A-Deflector Deflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly
Q3066A-Display Display - Status led display (LCD display assembly).
C8644-60009 Door - Cleanout assembly door - Rear access door that provides access to paper jams
Q3066-60010 Door - Rear cleanout door assembly - Paper jam cleanout door
Q3066A-Door_Carriage Door Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.
Q3066A-Door_Cartridge Door Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.
Q3066A-Door_Rear Door Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.
Q3066A-Drive_Assy Drive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.
Q3066A-Drive_Assy_ADF Drive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs
Q3066A-Duplexer Duplexer - Auto duplexer assembly - provides double sided printing capability
C6487-80011 Encoder - Encoder strip (clear strip with position marks) - Used by the sensor in the carriage assembly to determine position
C8963-80074 Encoder - Encoder strip (clear strip with position marks) - Used by the sensor in the carriage assembly to determine position
Q3066A-Encoder Encoder - Encoder spring - provides tension for encoder strip
Q3066A-Encoder_Disk Encoder Disk - Disk encoder - helps to provide position information of the paper
Q3066A-Encoder_Strip Encoder Strip - Encoder strip - carriage position sensor reference
Q3066A-Extender_ADF Extender ADF - Paper extension for the automatic document feeder (ADF) input tray
Q3066A-Extender_Input Extender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths
Q3066A-Extender_Output Extender Output - Paper exit tray extension
Q3066A-Fan_PC_BRD Fan PC Board - Fan to cool power supply unit
Q3066A-Fan_Vaccum Fan Vaccum - Vacuum fan assembly
Q3066A-Feed_Rollers Feed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk
Q3066A-Feed_Rollers_ADF Feed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.
C3828A Film - Film (Transparency) 8.5 x 11 5mil thick. for OfficeJet R65 Series PhotoSmart P1000 PhotoSmart P1100 OfficeJet G55 Series Transparency Film 200 SHEETS.
C3832A Film - Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package
C3834A Film - Film (Transparency) for DeskJet 1600 Series, DeskJet 2000 Series, DeskJet 800 Series, DeskJet 600 Series
C3835A Film - Film (Transparency) for DeskJet 1200 Series, DeskJet 500 Series, DeskJet 550C Series, DeskJet 850 Series
Q1973A Film - Film (Glossy) for DeskJet 3600 series, DesignJet 100 Series, DeskJet 450 Series, OfficeJet T65 Series
Q3066A-Flag_ADF Flag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly
Q3066A-Flag_Paper Flag Paper - OOPS flag - out of paper sensor
Q3066A-Formatter Formatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.
Q3066A-Front_Panel Front Panel - Front panel assembly - includes lcd and actuator buttons
Q3066A-Gear_Assy Gear Assembly - ADF gear assembly driven by ADF main motor
Q3066A-Gear_Cluster Gear Cluster - Cluster gear, large gear on service station
Q3066A-Gear_Double Gear Double - Transfer gear - has double gear attached on service station
Q3066A-Gear_Main Gear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.
Q3066A-Gear_Station Gear Station - Gears on shaft of spittoon station
Q3066A-Glass_ADF_Window Glass ADF Window - Small glass piece used when scanning - copying - faxing with ADF feeder for this unit will ship Q5888-00002.
C8644-60020 Glass Assembly - Scanner glass assembly
C8644-80012 Glass Assembly - Scanner glass assembly
Q3066A-Glass_Assy Glass Assembly - Main top copier glass assembly.
Q3066A-Guide_Paper Guide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken
C8644-40036 Hinge - Document lid hinge - Lifts document lid to allow books or magazines to be scanned
Q3066A-Hinge_Cvr Hinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.
Q3066A-Holder Holder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.
Q3066A-Idler Idler - Scanner belt idler assembly - maintains scannter belt tension.
Q3066A-Ink_DLVRY Ink Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly
Q3066A-Ink_Supply_Station Ink Supply Station - Ink supply service station (iss) assembly
C6039-60009 Kit - Media pack - Includes two pieces of 8.5 x 11-inches glossy photo paper, two pieces of 8.5 x 11-inches matte photo paper, and 2 greeting cards with envelopes
C6040-60009 Kit - Media sample kit - Contains plain and photo paper sample print media (Europe)
Q2550A Label - Label for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series
Q2551A Label - Label for PSC 1118 Series, PSC 1200 Series All-in-One, PSC 1200 Series All in One, HP PSC 1210 All-in-One
Q2587A Label - White labels - 2.5cm (1.0in) x 6.6cm (2.6in) - 30 labels per sheet, 25 sheets per box
Q2588A Label - Label for OfficeJet 6100 Series, Digital Copier Printer 410, PSC 1110 Series All in One, PSC 1118 Series
Q2589A Label - Label for LaserJet 2400 Series, PhotoSmart 7830 Series, HP Photosmart 7850 Photo Series, Photosmart 7850 Photo Printer
Q2590A Label - Label for PSC 900 Series All in One, PhotoSmart 100 Printer, PhotoSmart 130 Series, Color LaserJet 9500 Series
Q2591A Label - Label for PSC 1200 Series All-in-One, PSC 1200 Series All in One, HP PSC 1210 All-in-One, OfficeJet 5110 Series All-in-One
Q2592A Label - Label for OfficeJet D Series All in One, OfficeJet 7100 Series All in One, OfficeJet V40 Series, PSC 900 Series All-in-One
Q2593A Label - Label for PSC 1200 Series All in One, Color LaserJet 5500 Series, OfficeJet D Series All-in-One, OfficeJet D Series All in One
Q2594A Label - White address labels - 8.4cm (3.3in) x 10cm (4in) - 6 labels per sheet, 100 sheets per box
Q3066A-Lid_Cover_Assy Lid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.
6040-1322 Lubricant - Lubt-grease for HP 213045-001
Q3066A-Motor_ADF Motor ADF - ADF motor unit - drives ADF rollers on the feeder assembly
Q3066A-Motor_Carriage Motor Carriage - Carriage motor - motor that drives the carriage assembly
Q3066A-Motor_Scanner Motor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.
Q3066A-MTR_Srvce_Station Motor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly
Q3066A-Overlay Overlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
Q3066A-Pad_ADF Pad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.
Q3066A-Pad_Tray Pad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing
51634Y Paper - HP Premium Inkjet Paper - A size (8.5 x 11-inches) - 200 sheets
51634Z Paper - InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
C1825A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 500 sheets
C5977A Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 200 sheets
C5977B Paper - Bright White InkJet Paper - A4 size (21.0cm x 29.7cm) - 250 sheets
C6039A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
C6817A Paper - Brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches), 98 brightness - 50 sheets
C6831A Paper - HP Premium Plus Glossy Photo Paper - A size (8.5 x 11-inches) - 20 sheets
C6832A Paper - Paper (Glossy) for DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series, DeskJet F4135 All-In-One
C6955A Paper - Professional Brochure and Flyer Paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
C6979A Paper - Premium Photo Paper (Glossy) - A size (8.5 x 11-inches) - 50 sheets
C6983A Paper - Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package
C6984A Paper - Paper (InkJet Photo) for DeskJet 3400 Series, PSC 2210 Series All in One, DeskJet 3800 Series, DeskJet 3325 Series
C7006A Paper - Paper (InkJet Photo) for DeskJet 6620 Series, PhotoSmart 100 Printer, PSC 900 Series All in One, PSC 900 Series All-in-One
C7020A Paper - Scored Tri-fold Brochure Paper (Glossy) - A size (8.5 x 11-inches) - 100 sheets
C7040A Paper - Paper (Glossy) for Business Inkjet 2280 Series, Business InkJet 1100 Series, Business Inkjet 2300 Series, DeskJet 9600 Series
C7893A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series
Q1785A Paper - Paper (Glossy) for DeskJet 1220 Series, DeskJet 1200 Series, DesignJet 1055 Series, DeskJet 640 Series
Q1787A Paper - Linen Half-fold Greeting Card Paper (Ivory) - A size (8.5 x 11-inches) - 20 cards
Q1788A Paper - Linen Half-fold Greeting Card Paper (White) - A size (8.5 x 11-inches) - 20 cards
Q1933A Paper - Paper (Glossy) for OfficeJet 6200 Series, OfficeJet 6205, OfficeJet 6215, OfficeJet 6208
Q1935A Paper - Paper (Glossy) for Photosmart 475 series compact photo printer, PhotoSmart A430 Series, PhotoSmart D71XX Series, PhotoSmart D73XX Series
Q1951A Paper - Paper (Glossy) for PhotoSmart D71XX Series, PhotoSmart D73XX Series, HP Photosmart D7300 series, PhotoSmart D5155 Series
Q1952A Paper - Paper (Glossy) for PSC 2170 Series All in One, PSC 2350 All-In-One, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series
Q1969A Paper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series
Q1971A Paper - Paper (Photo) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series
Q1976A Paper - Paper (Semi-Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 420C, DeskJet 1220 Series
Q1977A Paper - Paper (Glossy) for Deskjet 460 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800
Q1977AC Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 20 sheets (Canada)
Q1978A Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets
Q1978AC Paper - Premium Plus Photo Paper (High Gloss) - 10.2cm (4in) x 15.2cm (6in), finished size - 10.2cm (4in) x 16.5cm (6.5in), with tab - 60 sheets (Canada)
Q1979A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 20 sheets
Q1980A Paper - Premium Plus Photo Paper (High Gloss) - 10.0cm (3.9in) x 15.0cm (5.9in), finished size - 10.0cm (3.9in) x 16.3cm (6.4in), with tab - 60 sheets
Q1988A Paper - Paper (Glossy) for PhotoSmart 420 Series, HP Photosmart 422 Portable Photo Studio, PhotoSmart 475 Series, Photosmart 475 series compact photo printer
Q1991A Paper - Paper (Glossy) for PhotoSmart 230 Series, PhotoSmart 245 Series, PSC 2170 Series All-in-One, PSC 2170 Series All in One
Q2506A Paper - Premium Plus Photo Paper (Satin Matte) - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 60 sheets
Q2507A Paper - Premium Plus Photo Paper (Satin-matte) - 10.0cm (3.9in) x 15.0cm (5.9in) finished size - 10.0cm (3.9in) x 16.3cm (6.4in) with tab - 60 sheets
Q2508A Paper - Premium Plus Photo Paper (Satin-Matte) - 10.0cm (3.9in) x 15.0cm (5.9in) finished size - 10.0cm (3.9in) x 16.3cm (6.4in) with tab - 60 sheets
Q2509A Paper - Paper (Semi-Glossy) for DesignJet 130 Series, DeskJet 1220 Series, Business InkJet 2600 Series, DeskJet 450 Series
Q2525A Paper - Paper (Glossy) for Business InkJet 3000 Series, Business InkJet 2230 Series, Business Inkjet 2300 Series, DeskJet 9300 Series
Q5431A Paper - Paper (Satin) for PhotoSmart A310 Series, PhotoSmart D50XX Series, PhotoSmart A520 Series, HP Photosmart A820 series Compact Photo Printers
Q5451A Paper - Paper (Glossy) for Photosmart 7400 Series, Photosmart 7450, PhotoSmart 8250 Series, PhotoSmart 8230 Series
Q7852A Paper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
Q7906A Paper - Advanced Glossy Photo Paper - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets
Q8030A Paper - Paper (Matte) for DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series
C6487-60003 PC Board - Carriage PC board - Contains the print cartridge control circuitry
Q3066A-PC_BRD PC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only
Q3066A-PC_BRD_DC PC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.
Q3066A-PC_BRD_Interface PC Board Interface - Internal print server lan interface board - plugs into peripheral eio. usefull for networking and multiple users.
Q3066A-Pinchwheel Pinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs
8120-6800 Power Cord - Power cord (Flint Gray) - 3-wire, 16 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 240V in Israel)
8120-8382 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.8m (6.0ft) long - Has straight (F) receptacle (For 120V in the USA and Canada)
8121-0516 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) receptacle (For 220V in Europe)
8121-0517 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong, Singapore, and Malaysia)
8121-0518 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Denmark)
8121-0519 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Switzerland)
8121-0520 Power Cord - Power cord (Flint Gray) - 18 AWG, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240V in India)
8121-0564 Power Cord - Power cord (Black) - 2.0m (6.6ft) long - Has straight (F) C13 receptacle (For 240V in India)
8121-0729 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Argentina)
8121-0730 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 240V in Australia)
8121-0731 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220V in Europe)Limited supply only.
8121-0734 Power Cord - Power cord (Black) - 18 AWG, three conductor, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (For 220V in Brazil and Thailand)
8121-0735 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220V in Chile)
8121-0737 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240VAC in India and South Africa)
8121-0738 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 220VAC in Switzerland)
8121-0739 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (6.25ft) long - Has straight (F) C13 receptacle (For 240V in Singapore, Hong Kong and the U.K.)
8121-0740 Power Cord - Power cord (Black) - 3-wire, 18 AWG, 1.9m (75in) long - Has straight (F) C13 receptacle (for 120V in the USA, Canada, Mexico, and Taiwan)
8121-0742 Power Cord - Power cord (Black) - 18 AWG, three conductor, 1.9m (75in) long - Has straight (F) C13 receptacle (For 220VAC in China)
8121-0790 Power Cord - Power cord - 18 AWG, 1.9m (6.25ft) long - Has straight (F) receptacle (for 100V in Japan)
Q3066A-Power_Cord Power Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
Q3066A-Power_MDLE Power Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
Q3066A-Power_MDLE_Assy Power Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord
Q3066-60011 Power Supply - Power supply assembly
Q3066A-Power_Supply Power Supply - Power supply board (internal pwr supply unit in the office machine).
Q3066A-Power_Supply_BRD Power Supply Board - High voltage power supply board
Q3066A-Print_Mchnsm Print Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.
5064-4554 Protector - Print cartridge protector - Covers and protects the print cartridge when not in use
Q3066A-Pulley Pulley - Paper pick up tray motor pulley.
Q3066A-Pulley_ADF Pulley ADF - ADF feeder motor pulley
C6487-60054 Rail - Paper pusher rail
C8644-00031 Restraint - Restraint - Cartridge, Shipping
C6487-20001 Rod - Carriage rod - Slider/guide rod for the pen carriage assembly
Q3066A-Rod_Carriage Rod Carriage - Carriage rod - shaft that the carriage assembly rides on
Q3066A-Rod_Scanner Rod Scanner - Scanner rod - shaft that the scanner assembly rides on
Q3066A-Roller_ADF Roller ADF - Feeder ADF roller for picking up paper from ADF unit.
Q3066A-Roller_Exit Roller Exit - Paper exit rollers - out put assembly.
Q3066A-Roller_Pickup Roller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray
Q3066A-Scanner Scanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q3066A-Scanner_Assy Scanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Q3066A-Scanner_Belt Scanner Belt - Scanner belt attaches from the scanner to the scanner motor.
Q3066A-Scanner_Cable Scanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.
Q3066A-Scanner_Motor Scanner Motor - Scanner driving motor
Q3066A-Scanner_Unit Scanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.
Q3066A-Sensor_ADF Sensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly
Q3066A-Sensor_Exit Sensor Exit - Exit media sensor sv
Q3066A-Sensor_Open Sensor Open - Door sensor assembly - open door sensor
Q3066A-Sensor_Out Sensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray
Q3066A-Sensor_Spot Sensor Spot - Spot sensor assembly is attached to the carriage assembly.
Q3066A-Separator Separator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.
Q3066A-Guide Service Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
Q3066-90192 Service Parts - Pstr: Us Eng
C6487-60065 Service Station - Service station assembly - For conditioning the ink cartridges when the carriage is in its home position
Q3066A-Service_Station Service Station - Service station assembly - for conditioning the printheads when the carriage is in its home position
Q3066A-SLED_Assy SLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly
Q3066A-Slider Slider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.
Q3066A-Speaker Speaker - Speaker assembly - includes speaker cable.
Q3066A-Spitton Spitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process
Q3066A-Spring_Cmprsn Spring Compression - Compression spring - on pulley wedge for carriage belt tension
Q3066A-Trailing_Cbl Trailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.
C8654-60024 Tray - Photo Tray - Holds 4 inch x 6 inch media
Q3066-60004 Tray - Output paper tray
Q3066-60005 Tray - Input paper tray
Q3066A-Tray_Assy Tray Assembly - Paper input tray assembly for loading paper (bottom).
Q3066A-Tray_Assy_CVR Tray Assembly Cover - Tray cover - the top cover for the paper pick up tray unit.
Q3066A-Tray_Base Tray Base - Tray base- bottom base of the paper input tray.
Q3066A-Window Window - Top/front access door assembly - print cartridge access door window.
C6487-60030 Wingframe - Left wingframe assembly
C6487-60031 Wingframe - Right wingframe assembly

psc 2170 all-in-one parts list
bottom bar
