T0B51A DesignJet z5600 postscript printer 24-in

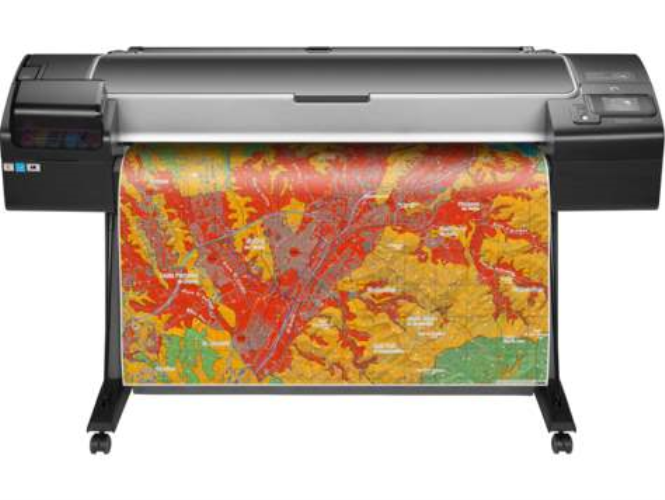

HP DesignJet z5600 postscript printer 24-in (T0B51A)

MFG Part Number: T0B51A 2400 x 1200 DPI, Ethernet, USB 2.0

HP parts list for T0B51A HP DesignJet z5600 postscript printer 24-in

Q6675-60093 Adapter - 3-inch spindle adaptor kit, includes two adaptors.
T0B51-67008 ADF Roller Kit - Puma 44-in PM Kit SV
T8W15-67023 ADF Roller Kit - PM Kit 1 - 24 6inks graphics
T8W15-67060 ADF Roller Kit - HDD SV kit Z6 Z9+ T1700
T8W16-67016 ADF Roller Kit - PM Kit 1 - 44 6inks graphics
T8W18-67024 ADF Roller Kit - PM Kit 2 - 6inks graphics
W3Z71-67009 ADF Roller Kit - PM Kit 1 - 24 9inks graphics
W3Z72-67005 ADF Roller Kit - PM Kit 1 - 44 9inks graphics
X9D24-67005 ADF Roller Kit - Balam Cables SV kit
CH538-67018 Belt - Belt assembly - Includes belt tensioner - For 44-inch plotters
CQ305-60016 Belt - Belt assembly - For 24-inch plotters
CH539-69001 Bracket - Foot Svs Black 2 pcs Foot Assembly SV Foot assembly (Black) - Includes two feet
CH538-67051 Bumper - Left and right side upper roll support bumpers - For the Designjet T series printers
CH538-67052 Bumper - Left and right side lower roll support bumpers - For the Designjet T series printers
Q5669-60687 Bushing - one Carriage rear bushing (one sold) Carriage Rear Bushing For HP T610 T620 Z2100 Z3100 T1100 T770 T790 and compatible models.
T8W15-67030 Button - Power button Service Kit
E1L21-67034 Cable - Z5400/Z5600 Interconnect Cables 44in SV
X9D24-67006 Cable - JDI Power cable SV kit
Q6675-60043 Carriage - Carriage rail oiler For HP DesignjetT1200/T770/T790/T620/T110/T610/T1120/T2300/Z5200 Rial oiler assy svc
T0B51-67010 Carriage Assembly - Puma Carriage w/o Cutter SV
F9J95A Cartridge - 745 130-ml Magenta DesignJet Ink Cartridge
F9J96A Cartridge - 745 130-ml Yellow DesignJet Ink Cartridge
F9J97A Cartridge - 745 130-ml Cyan DesignJet Ink Cartridge
F9J98A Cartridge - 745 130-ml Photo Black DesignJet Ink Cartridge
F9J99A Cartridge - 745 130-ml matte black designjet ink cartridge
F9K00A Cartridge - 745 130-ml Chromatic Red DesignJet Ink Cartridge
F9K01A Cartridge - 745 300-ml magenta designjet ink cartridge
F9K02A Cartridge - 745 300-ml yellow designjet ink cartridge
F9K03A Cartridge - 745 300-ml cyan designjet ink cartridge
F9K04A Cartridge - 745 300-ml Photo Black DesignJet Ink Cartridge
F9K05A Cartridge - 745 300-ml matte black designjet ink cartridge
F9K06A Cartridge - 745 300-ml Chromatic Red DesignJet Ink Cartridge
P2V78A Cartridge - 746 300-ml Magenta DesignJet Ink Cartridge
P2V79A Cartridge - 746 300-ml Yellow DesignJet Ink Cartridge
P2V80A Cartridge - 746 300-ml Cyan DesignJet Ink Cartridge
P2V81A Cartridge - 746 300-ml Chromatic Red DesignJet Ink Cartridge
P2V82A Cartridge - 746 300-ml Photo Black DesignJet Ink Cartridge
P2V83A Cartridge - 746 300-ml Matte Black DesignJet Ink Cartridge
P2V84A Cartridge - 747 300-ml Chromatic Green DesignJet Ink Cartridge
P2V85A Cartridge - 747 300-ml Chromatic Blue DesignJet Ink Cartridge
P2V86A Cartridge - 747 300-ml Gray DesignJet Ink Cartridge
P2V87A Cartridge - 747 300-ml Gloss Enhancer DesignJet Ink Cartridge
CN727-67041 Control Panel - T2300 T790 T1300 Series front touch panel signed service
CH538-67002 Cover - Lower roll cover assembly - With pinches - For DesignJet printers
CH538-67003 Cover - Upper roll cover assembly - Includes pinches - For Designjet printers
CH538-67047 Cover - T1200 Roll Cover bi-stable spring. Roll cover bi-stable springs left and right - For Designjet printers
CH538-67050 Cover - Roll cover freewheel assembly - For Designjet printers
CK837-67002 Cover - Carriage cover - For the DesignJet T1120/620 printer series
CN727-60091 Cover - Back cover assembly (Carbonite) - Includes deflector
Q6659-60165 Cover - Front side chassis cover - For 44-inch DesignJet Z2100/Z3100 photo printer series
T0B51-67020 Cover - Puma 44-in Top cover SV
T0B51-67026 Cover - Back Cover Assy -44in SVC
T0B51-67028 Cover - Lower Roll Cover assy without ARSS S
T0B51-67028B Cover - Lower Roll Cover assy without
T8W16-67001 Cover - Upper Roll Cover assy wo ARSS Service Ki
T8W18-67001 Cover - Lower Roll Cover assy w ARSS SV
T8W18-67023 Cover - Control pannel cover graphics ServiceKit
Q6659-60236 Cross Brace - Cross-brace - Connects and supports the two stand legs - For 44-inch plotters
Q5669-60713 Cutter - Cutter assembly - Auto cutter assembly for rollfeed paper individual cutter with blue handle.
T8W15-67004 Cutter - Front Trims wo V-Cutter Service Kit
T8W15-67016 Cutter - PM Kit 3 - H-Cutter module
T8W15-67024 Cutter - Carriage 3 wo/ Cutter Service Kit
T8W15-67048 Cutter - Horizontal Cutter Cover Service Kit
T8W15-67054 Cutter - Rack Rail 24 Cutter W Supp
T8W15-67056 Cutter - PMKit3 - Horitz. Cutter module
T8W15-67059 Cutter - Horiz Cutter mod CSR SVkit Z6&Z9+
T8W18-67003 Cutter - Engine cables V-cutter 6ink Service Kit
T8W18-67004 Cutter - Front Trims w V-Cutter Service Kit
T8W18-67007 Cutter - Anti-ESD Media Output V-cutter Assy SK
T8W18-67008 Cutter - V-Cutter PCA Service Kit
T8W18-67009 Cutter - PM Kit 4 - V-Cutter modules
T8W18-67010 Cutter - V-cutter cover Service Kit
T8W18-67011 Cutter - Cover frame V-cutter 6inks Service Kit
T8W18-67012 Cutter - V-cutter transmission Service Kit
T8W18-67013 Cutter - V-Cutter Drive shaft assy Service Kit
T8W18-67014 Cutter - V-Cutter Trenches assy Service Kit
T8W18-67015 Cutter - V-Cutter Modules Positioner Motor SV
T8W18-67018 Cutter - V-Cutter Motor Cover Service Kit
T8W18-67019 Cutter - V-Cutter Structure Assy Service Kit
T8W18-67020 Cutter - V-Cutter Belt w Support Service Kit
T8W18-67028 Cutter - Rack Rail 44 Cutter W Supp
W3Z72-67006 Cutter - Carriage 6 wo/ Cutter Service Kit
X9D24-67001 Cutter - Engine cables V-cutter 9ink Service Kit
X9D24-67002 Cutter - Cover frame assy V-cutter 9ink Service K
T0B51-67001 Door - Left Ink Cartridge Door PU SV
T0B51-67006 Door - Puma Left Cover w/ink door SV
T8W15-67040 Encoder Strip - Spring, Encoder Strip 24 and Sensor SK
T0B51-67002 Engine - Puma Engine PCA w/Bender PSU SV
T0B51-67025 Engine - Engine Cables for 44-in Touch screen
T0B51-67029 Engine - Engine Cables 44in SV
E1L21-67032 Fan - Aerosol Fan Cable SV
E1L21-67033 Fan - Aerosol Fan with Cable SV Main PCA / power supply fan - 3wire black connector (for 2 wire white connector order Q5669-60664)
Q6659-60182 Foam - Full bleed foam kit - For 44-inch plotters
T8W15-67061 Foam - Left Spittoon Top Cover Foam SV kit
CN727-60056 Foot - Stand Foot w/ extension- Includes extension and screws (x2).
Q5669-60715 Foot - Foot assembly - Includes one foot and one support tube;The following part(s) are related to part Q5669-60715. May we suggest CH539-69001
T8W15-67008 Formatter - Formatter w PSU wo CryptoAsic ServiceKit
W6B56-67002 Formatter - Juno Formatter w PSU wo CryptoAsic
W6B56-67003 Formatter - Juno Formatter PCA SV
Q6675-60044 Guide - Right side roll guide assembly
Q6675-67026 Guide - Right Roll Guide SVC
Q6677-60019 Guide - Left side roll guide assembly - For 44-inch plotters;Click to order the functional equivalent: Q6677-67006
Q6677-67006 Guide - Left Roll Guide SVC
CH538-67022 Hardware - Converger assembly - For the 44-inch Designjet printers
X9D24-67004 Harness - Harness cables SV kit
X9D24-67003 IDS - IDS cables SV kit
T0B51-67004 Ink Supply Station - Puma Left Ink Supply Station SV
W3Z71-67012 Ink Supply Station - Ink Supply Station PCA Left 24 Service K
Q6675-67004 Ink System - Ink system purgers -for Hewlett Packard plotter units, ink system purge, - includes six units.
CH538-67006 Kit - Cable kit - For the Designjet T series printers
CH538-67080 Kit - Engine Cables 2R 44in SV
CN727-67016 Kit - Cables kit - eMFP and ferrite cables
F9J86A Kit - HP 744 Photo Blk and Cyan Printhead
F9J87A Kit - HP 744 Magenta and Yellow Printhead
F9J88A Kit - HP 744 Mat Blk and Chrmtc Red Printhead
W3Z72-67009 Kit - PM Kit 2 - 9inks graphics
CK837-67001 Latch - Carriage latch - For the DesignJet T1120/620 printer series
Q5669-60716 Leg - Leg assembly - Left and Right Side support leg for the plotter - Does NOT include the foot assembly
Q6718-67013 Lifter - Starwheel lifter assembly - For DesignJet printers
T8W15-67049 Lifter - Auto Pinch Lifter Assy Service Kit
Q5669-60692 Lubricant - Lubrification kit - For DesignJet printers
T0B51-67013 Media - Puma Anti-ESD Media Output Assy 44 SV
T8W18-67016 Media - Retractable Media Output Ribs ServiceKit
Q6659-60237 Media Bin - Media bin (Gray) - Includes bin and support - Mounts to the printer stand legs - For 44-inch plotters
CH538-67027 Motor - T1200/T770 Media Advance Trans Media advance transmission - For DesignJet printers
CH538-67076 Motor - Scan Axis Motor Poly-V, SCAN AXIS MOTOR - HP T1200 T1300 T2300 T770 T790
Q6718-67017 Motor - Starwheel motor assembly - For the DesignJet printers T series and Z series.
T0B51-67022 Multifunction - Puma Case Right Assy SV
Q6675-60042 Overdrive Assembly - Print zone overdrive assembly - For 24-inch plotters
Q6677-60018 Overdrive Assembly - Print zone overdrive assembly - For 44-inch plotters
CQ113-67007 Panel - Left side panel - For the DesignJet Z5200 photo printer series
CH538-67039 Paper Path Module - Clean out - For the 44-inch Designjet T1200/T770 printer series
Q6687-60093 Paper Path Module - Paper advance calibration kit - For 44-inch plotters
CK837-67005 PC Board - Carriage PCA - Controls movement of carriage assembly - For the DesignJet T1120/620 printer series
CN727-67020 PC Board - Interconnect PCA - For the DesignJet T2300 printer series
CN727-67020B PC Board - T2300 Interconnect PCA SV
CN727-67042 PC Board - Formatter board only - (will not include the hard disk drive CK837-67035) - For the Hewlett Packard Designjet T2300/T790/T1300/Z5400 Formatter SV series Formatter board - (Formatter with hard disk drive/ with current firmware order CR647-67027).
CR647-67023 PC Board - MSG signed analog encoder PC board (for calibration and alignment line sensor order Q6683-67004)
CH538-67037 Pinch Assembly - Pincharm assembly for roll cover - For the Designjet T1200 printer series
T0B51-67015 Pinchwheel - Puma Pinchwheel Assy SV
CR647-67010 Power Supply - Power Supply Unit 110v (PSU) - For the DesignJet T1200/T770 printer series
F9J86A Printhead - HP 744 Photo Blk and Cyan Printhead
F9J87A Printhead - HP 744 Magenta and Yellow Printhead
F9J88A Printhead - HP 744 Mat Blk and Chrmtc Red Printhead
P2V25A Printhead - HP 746 Printhead
T0B51A-Repair_DesignJet Repair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
CH538-67033 Sensor - Single sheet sensor - For the Designjet T series printers
CH538-67041 Sensor - T1200 Roll Cover Sensor w/cabl Lower left support sensor with cable - For the DesignJet T series printers
CH538-67071 Sensor - WINDOW SENSOR W SHIELD SVWindow position sensor - Includes shield
Q5669-60666 Sensor - Drop detector sensor assembly
Q5669-60684 Sensor - Color sensor ESP (spectrophotometer) - For the DesignJet Z2100/Z3100/Z3200 photo printer series
Q5669-67068 Sensor - Out of paper sensor (OOPS - paper sensor.(for media sensor unit order CN727-69003).
Q5669-67801 Sensor - Out of paper sensor (OOPS - paper sensor.(for media sensor unit order CN727-69003).
T0B51-67011 Sensors - Puma Signed Line sensor SV
T8W15-67025 Sensors - Signed Line Sensor 6ink graphics Service
E1L21-67025 Service Kit - Cheetah spindle MOD service kit
T8W15-67001 Service Kit - Engine cables 6inks 24inch Service Kit
T8W15-67002 Service Kit - Carriage Cover 3 Service Kit
T8W15-67003 Service Kit - Carriage 3 PCA w TC24 Service Kit
T8W15-67006 Service Kit - Stand 24 Service Kit
T8W15-67007 Service Kit - JESTER JDI PCA Service Kit
T8W15-67009 Service Kit - Mechatronics PCA Service Kit
T8W15-67010 Service Kit - SATA HDD w/ FW Graphics 6ink Service Kit
T8W15-67011 Service Kit - Opaque Window 24 Service kit
T8W15-67012 Service Kit - Upper Right Roll Support Service Kit
T8W15-67013 Service Kit - Upper Left Roll Support Service Kit
T8W15-67014 Service Kit - Aerosol Fan with Cable Service Kit
T8W15-67015 Service Kit - Drop Detector Service Kit
T8W15-67018 Service Kit - Left Spittoon Service Kit
T8W15-67019 Service Kit - Front Cover 24 Service Kit
T8W15-67020 Service Kit - Starwheel Motor Service Kit
T8W15-67021 Service Kit - Serial Label Service Kit
T8W15-67022 Service Kit - ISS graphics 6ink Service Kit
T8W15-67026 Service Kit - Service Station Graphic 6ink Service Kit
T8W15-67027 Service Kit - Front Panel Service Kit
T8W15-67028 Service Kit - CryptoAsic PCA Service Kit
T8W15-67029 Service Kit - Ink Supply Station PCA Right Service Kit
T8W15-67032 Service Kit - Left Ink Cover Graphics 6ink Service Kit
T8W15-67033 Service Kit - Right Ink Cover Graphics Service Kit
T8W15-67034 Service Kit - WIFI cover Service Kit
T8W15-67035 Service Kit - Cover frame assy 24 6inks Service Kit
T8W15-67036 Service Kit - Upper Roll cover assy 24 Service Kit
T8W15-67037 Service Kit - Converger 24 Service Kit
T8W15-67039 Service Kit - Clean Out Assy24 Service Kit
T8W15-67041 Service Kit - Back Cover 24 Service Kit
T8W15-67042 Service Kit - Stand - Basket 24 Service Kit
T8W15-67044 Service Kit - Tube System 24 6inks Assy Service Kit
T8W15-67045 Service Kit - Anti-ESD Media Output 24 Service Kit
T8W15-67046 Service Kit - Left Cover Graphics 6inks Service Kit
T8W15-67047 Service Kit - Right Cover Graphics 6inks Service Kit
T8W15-67050 Service Kit - Trailing Cable 24 Service Kit
T8W16-60040 Service Kit - Mechatronics PCA Service Kit
T8W16-67002 Service Kit - Engine cables 6ink 44inch 1R Service Kit
T8W16-67003 Service Kit - Converger Assy 1Roll Service Kit
T8W16-67004 Service Kit - Media Advance kit 44 Service Kit
T8W16-67005 Service Kit - Clean Out assy 44 Service Kit
T8W16-67006 Service Kit - Carriage 3 PCA w TC44 Service Kit
T8W16-67007 Service Kit - Stand 44 TUR compatible Service Kit
T8W16-67008 Service Kit - Back Cover 44 Service Kit
T8W16-67009 Service Kit - Opaque Window 44 Service kit
T8W16-67011 Service Kit - Stand - Basket 44 Service Kit
T8W16-67012 Service Kit - Front Cover 44 Service Kit
T8W16-67014 Service Kit - Spindle 44 Service Kit
T8W16-67015 Service Kit - Tube System Graphics 44 6ink Service Kit
T8W16-67017 Service Kit - Anti-ESD Media Output Assy Service Kit
T8W16-67018 Service Kit - Cover frame assy 44 6inks Service Kit
T8W16-67019 Service Kit - Trailing Cable 44 Service Kit
T8W18-67002 Service Kit - Upper Roll Cover assy w ARSS Service Kit
T8W18-67005 Service Kit - Low Right Support assy Service Kit
T8W18-67006 Service Kit - Low Left Support assy Service Kit
T8W18-67021 Service Kit - Formatter PCA Service Kit
W3Z71-67002 Service Kit - Engine cables 9inks 24inch Service Kit
W3Z71-67003 Service Kit - Carriage Cover 6 Service Kit
W3Z71-67004 Service Kit - Carriage 6 PCA w TC44 Service Kit
W3Z71-67005 Service Kit - Carriage 6 PCA w TC24 Service Kit
W3Z71-67006 Service Kit - SATA HDD w/ FW Graphics 9ink Service Kit
W3Z71-67007 Service Kit - Translucid Window 24 Service kit
W3Z71-67008 Service Kit - Right ISS graphics 9inks Service Kit
W3Z71-67010 Service Kit - Line sensor 10inks graphics Service Kit
W3Z71-67013 Service Kit - Left Ink Cover Graphics 9ink Service Kit
W3Z71-67014 Service Kit - Cover frame assy 24 9inks Service Kit
W3Z71-67015 Service Kit - Tube System 24 9inks Assy Service Kit
W3Z71-67016 Service Kit - Left Cover Graphics 9inks Service Kit
W3Z71-67017 Service Kit - Right Cover Graphics 9inks Service Kit
W3Z71-67018 Service Kit - Single Sheet Sensor w Holder Service Kit
W3Z71-67019 Service Kit - Left ISS graphics 9inks Service Kit
W3Z72-67002 Service Kit - Engine cables 9ink 44inch 1R Service Kit
W3Z72-67003 Service Kit - Translucid Window 44 Service kit
W3Z72-67007 Service Kit - ISS PCA Left 44 Service Kit
W3Z72-67008 Service Kit - Cover frame assy 44 9inks Service Kit
T0B51A-Manual_DesignJet Service Manual - Printer Service Manual - Includes troubleshooting, error messages, paper jams, parts and parts diagrams.
T0B51-67003 Service Parts - Puma Serial Label SV
T0B51-67007 Service Parts - Puma SATA HDD w/ FW SV
T0B51-67014 Service Parts - Puma Print Zone Overdrive 44 SV
T0B51-67024 Service Parts - Puma Stormbolt SV
T0B52-67012 Service Parts - Puma 24-in Print Zone Overdrive SV
T0B51-67023 Service Station - SERVICE STATION Z with Foam Designjet Z2600 Z5600 Service Station
W3Z71-67011 Service Station - Service Station Graphics 9inks Service K
Q5669-67807 Solenoid - Pen to paper space (PPS) solenoid - For the DesignJet T1100/T610 printer series
CH538-67046 Spacer - Left and right side wall spacers - For the Designjet T series printers
T8W15-67031 Speaker - Speaker and USB Host Service Kit
Q6687-67001 Spindle - 44-inch take-up reel spindle assembly
T8W15-67043 Spindle - Spindle 24 svc Kit
Q5669-67049 Spitton - Left-side spittoon assembly - Holds expelled ink from cartridge during refresh cycle
T8W16-67020 Stand - Stand Service HW kit
Q6687-60060 Starwheel - Starwheel assembly - For 44-inch plotters
Q6718-67014 Starwheel - Starwheel assembly - Does not include the actuator - Ensures paper handover from feedrollers to output rollers - For 24-inch plotters
Q6718-67017B Starwheel - Z3200 Starwheel Motor SV
Q6719-67004 Starwheel - Starwheel assembly - Does not include the actuator - Ensures paper handover from feedrollers to output rollers - For 24-inch plotters
T0B51-67012 Starwheel - Puma Starwheel Support Assembly SV
CK839-67005 Strip - Encoder strip - Includes the encoder - For the 44inch DesignJet T1120/620 printer series
E1L21-67004 Support - Upper Right Roll Support Z
E1L21-67005 Support - Upper Left Roll Support Z SV
E1L21-67014 Support - Lower Right Roll Support Z SV
E1L21-67023 Support - Low Left Support SV
Q5669-60690 Tool - Flex contacts cleaning tool
Q6675-67017 Tool - Spanner tool for HP HP DesignJet T1120 SD Multifunction Printer
Q6675-67018 Tool - Media driver tool kit - Includes the handle for media driver tool support and the media driver ddjustment tool
Q6683-67001 Tool - Tool Kit - Includes the flex cleaner, screwdriver torx T-15, dispenser oil, insert spring tool, alignment manual pinch arm, and media driver tool - For use with the DesignJet Z and T printer series
Q6683-67028 Tool - Tool Kit - Includes the flex cleaner, screwdriver torx T-15, dispenser oil, insert spring tool, alignment manual pinch arm, and media driver tool - For use with the DesignJet Z and T printer series
Q6687-60084 Tool - Pinchwheel insertion tool - For Designjet printers
W3Z71-67021 Tray - Z9&Z9+-ServiceStation-with-Tray-SvKit
W3Z71-67022 Tray - PM Kit 2 with SVS Tray - 9inks graphics
CN727-60053 Trim - Integrated front trim (Carbonite) - Includes both right and left sides
T8W18-67035 Trim - V-Trim mod CSR SVkit Z6&Z9+
Q5669-67063 Tube - Basket tubes - For Hewlett Packard DesignJet printers
T0B51-67005 Tube - Puma Tube System 44 Assy SV
T0B51-67017 Tube - Tube System 44 PM Kit SV PU
W3Z72-67004 Tube - Tube System Graphics 44 9inks Assy SK
Q5669-67070 Wedge - Extra high PRS wedge SVC kit
CR651-67002 Window - T1300 window 44 SV

DesignJet z5600 postscript printer 24-in parts list
bottom bar
