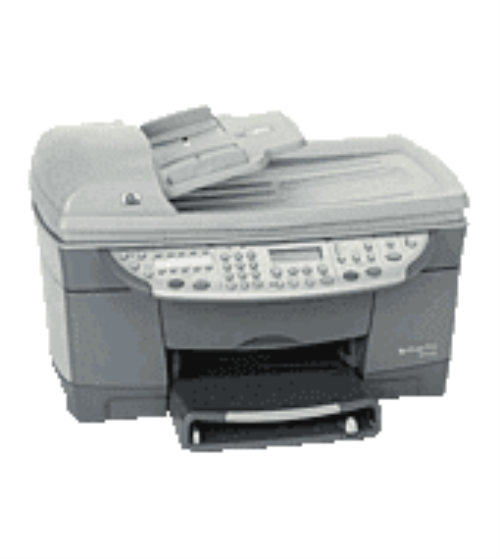

HP parts list for Y2231A HP officejet 7115 all-in-one printer
Y2231A-AbsorberAbsorber - Ink service station (ISS) bottom absorber foam - absorbs ink during the cleaning process. Service station absorber (sponge) - soaks up used ink during cartridge cleaning. Works as sled filters.
Y2231A-AC_AdapterAC Adapter - Power supply module or adapter - one end for connecting to the printer and other end to the power cord, or your ac adapter may have the pwr cord attached.
C8374-60004Accessory - Fax module kit - includes fax module
Y2231A-ActuatorActuator - Actuating unit. this part usually causes the carriage assembly to stalls on the left side of the printer, verify that the clutch actuator arm (slider arm).
C7309-69002ADF - Automatic document feeder (ADF) and flatbed scanner lid - Includes the lid, the ADF feed mechanism, scanner input tray, and hinge lock
Y2231A-ADF_ArmADF Arm - Senses paper in the ADF area tray / feeder tray. this is a front flapper arm - part of the paper separation mechanism for the paper pickup assembly - mounts just in front of the front separation belts in the ADF assembly.
Y2231A-ADF_Feed_AssyADF Feed Assembly - ADF assembly - does not include ADF input tray. ADF assembly includes the complete ADF assembly (motor, gears, rollers, sensor, does not include the ADF pad or plastic flatbed cover. (for entire unit please see ADF unit assembly).
Y2231A-ADF_Input_TrayAdf Input Tray - ADF tray ( for automatic document feeder) this is where papers are placed for feeding into unit.
Y2231A-ADF_MotorADF Motor - ADF motor - the scanner ADF motor is located on left rear corner of ADF drive, location varies from each unit. however, this is the main motor on the ADF unit.
Y2231A-ADF_Output_TrayADF Out Put Tray - ADF out put tray is where paper come out of ADF (automatic document feeder). For this unit we will ship the entire ADF Assembly.
Y2231A-ADF_PadADF Pad - ADF paper seperation pad assembly - mounts in the center of the ADF separation pad frame assembly. this pad prevents from multiple feeding or preventing paper jams while faxing scanning or copying.
Y2231A-ADF_Roller_KitADF Roller Kit - ADF upper pick roller replacement kit. these are the rollers that feed paper into the feeder to be scan copy or faxed.
Y2231A-ADF_ScannerADF Scanner - ADF scanner (optical) assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - this is the lower assembly that scans copies documents.
Y2231A-ADF_Sensor_BRDADF Sensor Board - ADF sensor pc board assembly - narrow strip pc board with the two document skew sensors, registration sensor, and timing sensor - mounts on top of the registration guide assembly in the ADF main assembly
Y2231A-ADF_Unit_AssyADF Unit Assembly - Complete replacement assembly unit for Officejet Copier top assembly only. This includes the ADF (automatic document feeder) for this unit.
Y2231A-Arm_DeliveryArm Delivery - Paper sensing arm - for 'paper out' or delivering paper sensing arm
Y2231A-Belt_ADFBelt ADF - Transport belt motor - provides the drive to transport paper through the ADF unit. this belt goes in the ADF assembly drive unit
Y2231A-Belt_CarriageBelt Carriage - Carriage belt - moves the carriage assembly across the carriage rod
Y2231A-Belt_DuplexBelt Duplex - Duplex timing belt - small belt that goes on the duplexer unit
Y2231A-Belt_PaperBelt Paper - Paper drive belt (usually a small belt) - this belt attaches to a gear which is driven by the paper drive motor assembly.
Y2231A-Belt_ScannerBelt Scanner - Scanner assembly belt. belt moves the scanner while copying or scanning documents.
Y2231A-BezelBezel - Front panel overlay (bezel) - (english) control panel bezel - frame around display and control panel
Y2231A-Bracket_LeftBracket Left - Left bracket - carriage rod adjustment bracket (left)
Y2231A-Bracket_RightBracket Right - Right bracket - carriage rod adjustment bracket (right)
Y2231A-Bracket_TensionBracket Tension - Belt tension bracket - holds the carriage belt idler pulley
8121-0811Cable - Telephone cable (2-wire) - RJ11 (M) connectors - 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal, and Spain)
Q3500-80001Cable - Telephone cable (2 Conductor) - RJ11 (M) to RJ11 (M) 3m (10ft) long (USA, Canada, Mexico, Latin America, Greece, Poland, Saudi Arabia, Portugal and Spain)
Y2231A-Cable_CarriageCable Carriage - Cable assembly which connects the main logic board to the carriage motor
Y2231A-Cable_InterfaceCable Interface - Parallel cable - connects from your printer to computer via your parallel port.
Y2231A-Cable_MchnsmCable Mechanism - Cable assembly which connects the main logic board to the print mechanism
Y2231A-Cable_PanelCable Panel - Cable Panel assembly - includes ribbon cable this is the cable that connects to the control panel or display.
Y2231A-Cable_USBCable USB - This interface cable is the standard 2.0 usb cable that connects to your printer and computer for printing.
Y2231A-CamCam - Drawer cam - short, spring loaded lever attached to the paper tray frame - used to draw input tray into position
Y2231A-Cap_LifterCap Lifter - These lifter caps hold the pressure plate lifter and the kicker spring in place.
Y2231A-Carriage_AssyCarriage Assembly - Ink cartridge carriage assembly - includes carriage, felt, felt retainers, ink cartridge latches, trailing cable, pc board, belt attachment hardware, and slider.
Y2231A-Carriage_BaseCarriage Base - Carriage base or pre-loader assembly - mounted to bottom of carriage base
Y2231A-Carriage_BeltCarriage Belt - Carriage drive belt, this belt is attached to the carriage and carriage motor, it moves the carriage side to side while priting.
Y2231A-Carriage_CableCarriage Cable - Flex circuit cable which connects the head driver board to the carriage assembly. in some units it is also known as the trailing cable, this cable moves along with the carriage unit (side to side).
Y2231A-Carriage_LatchCarriage Latch - A-arm latch - retains latch over the printheads on the carriage
Y2231A-Carriage_Latch_CVRCarriage Latch Cover - The carriage latch is used to keep the cartridge(s) in place. this latch(s) hold the cartridge(s) in place while carriage is printing or idle.
Y2231A-Carriage_MotorCarriage Motor - Carriage motor moves the carriage unit side to side. the carriage belt goes arround this motor, which controls carriage movement.
Y2231A-Carriage_OnlyCarriage Only - Carriage only - includes carriage, felt, felt retainers, ink cartridge latches - does not include trailing cable, pc board, belt attachment hardware, or slider (for complete carriage unit, please see carriage assembly).
Y2231A-Carriage_PC_BRDCarriage PC Board - This pc board attaches on the carriage, it is usually a small pc board that has carrage cable attached to it.
Y2231A-ChassisChassis - Chassis assembly - the large plastic item that forms the base of the print mechanism
Y2231A-Clutch_ADFClutch ADF - ADF paper clutch unit. clutch that controls movement on the ADF feeder
Y2231A-Clutch_FeedClutch Feed - Clutch unit resposible for unit picking up paper from the pick up unit.
Y2231A-Control_PanelControl Panel - Control panel assembly - control buttons and display on top front of the unit.
Y2231A-Cover_BackCover Back - Back cover of printer, it is usually removed to clear paper jams.
Y2231A-Cover_CartridgeCover Cartridge - This is the cover/ door that is opened to remove the cartridge(s) - usually, when this door opens the carriage moves.
Y2231A-Cover_MainCover Main - This is the main cover of the printer. it is the biggest piece of plastic the printer is made off.
Y2231A-DeflectorDeflector - Paper deflector - guides paper out of dispose assembly - through the internal paper path cover. paper deflector - directs paper from the media chassis to the print section of the printer chassis assembly
Y2231A-DisplayDisplay - Status led display (LCD display assembly).
Y2231A-Door_CarriageDoor Carriage - Main front access door - covers the top of the printer and provide access to the carriage when open.
Y2231A-Door_CartridgeDoor Cartridge - Small front access door (drop down door) - for accessing print cartridge window - for print cartridge access door.
Y2231A-Door_RearDoor Rear - Rear cleanout door assembly - rear paper jam clean out door assembly.
Y2231A-Drive_AssyDrive Assembly - Paper drive roller kit - includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust (axial) spring.
Y2231A-Drive_Assy_ADFDrive Assy ADF - Media chassis assembly (paper drive) - moves paper from ADF assembly to scanner assembly - includes media chassis, rollers, gears, flag, sensor, deflector, cable, springs
C6437ADuplexer - Duplexer Assembly - Automatic two sided printing accessory
Y2231A-EncoderEncoder - Encoder spring - provides tension for encoder strip
Y2231A-Encoder_DiskEncoder Disk - Disk encoder - helps to provide position information of the paper
Y2231A-Encoder_StripEncoder Strip - Encoder strip - carriage position sensor reference
Y2231A-Extender_ADFExtender ADF - Paper extension for the automatic document feeder (ADF) input tray
Y2231A-Extender_InputExtender Input - Tray extension assembly (stopper) - tray with a paper stop on the input tray - extends to accomodate different media lenths
Y2231A-Feed_RollersFeed Rollers - Feed roller assembly - includes frame asembly, shaft with rollers, and encoder disk
Y2231A-Feed_Rollers_ADFFeed Rollers ADF - ADF feed roller kit - includes all rollers that feed paper through the feeder.
Y2231A-Flag_ADFFlag ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounths on the front frame of the ADF paper pickup assembly
Y2231A-FormatterFormatter - Formatter board assembly, this board communicates with your computer device and has MAC port connector.
Y2231A-Front_PanelFront Panel - Front panel assembly - includes lcd and actuator buttons
Y2231A-Gear_AssyGear Assembly - ADF gear assembly driven by ADF main motor
Y2231A-Gear_ClusterGear Cluster - Cluster gear, large gear on service station
Y2231A-Gear_DoubleGear Double - Transfer gear - has double gear attached on service station
Y2231A-Gear_MainGear Main - Paper pickup drive assembly - gear assembly located on right side of paper pickup assembly. gear moves the main paper pick up roller.
Y2231A-Guide_PaperGuide Paper - Upper paper guide - spring loaded flat plate that presses the media against the top of the feed roller assembly - caution: this part can easily be broken
Y2231A-Hinge_CvrHinge - Single cover end M-Hinge Hinge is for top cover supporting opening and closing of the cover. Most covers use 2 hinges this price includes 1pc Hinge.
Y2231A-HolderHolder - Ink cartridge holder - located on carriage unit, holder secures ink cartridge in place.
Y2231A-IdlerIdler - Scanner belt idler assembly - maintains scannter belt tension.
Y2231A-Ink_DLVRYInk Delivery System - RIDS assembly - replaceable ink delivery system - transports ink from ink supply station to carriage assembly
Y2231A-Lid_Cover_AssyLid Cover Assy - Top glass copier cover. Lid that pressed document onto the glass for copying or scanning document.
C8388-90141Manual - OfficeJet 7100 Series user's manual (English)
Q7865AMemory - Memory for Photosmart C4283 All-in-One, PhotoSmart C42X0 Series, HP Photosmart C4200 All-In-One printer series, PhotoSmart C4210 Series
Y2231A-Motor_ADFMotor ADF - ADF motor unit - drives ADF rollers on the feeder assembly
Y2231A-Motor_CarriageMotor Carriage - Carriage motor - motor that drives the carriage assembly
Y2231A-Motor_ScannerMotor Scanner - Scanner unit motor - drives the scanner unit to scan documents to be copied, fax, or scanned.
Y2231A-MTR_Srvce_StationMotor Service Station - Service station stepper motor (does not include cable) - moves the rack vertically in the service station assembly
C8380-60012Overlay - Control panel overlay (English)
Y2231A-OverlayOverlay - Overlay unit which covers the control button or display (english overlay only), control panel or display sold seperately.
Y2231A-Pad_ADFPad ADF - Pad separator - (located on ADF unit) assembled from plastic and rubber components; to help in separating sheet of media during faxing, scanning, or copying.
Y2231A-Pad_TrayPad Tray - Pad separator - (located on tray) assembled from plastic and rubber components; to help in separating sheet of media during printing
Q7981APan - Advanced High-Gloss Photo Paper - 13cm (5in) x 18cm (7in) - 20 sheets (Japan)
C8380-40005Panel - Front panel for HP OfficeJet 7100 Series All in One
C8380-40006Panel - Front left panel - Includes memory slots for various memory cards
C1846ACPaper - Paper (Glossy) for DeskJet 640 Series, DesignJet 100 Series, DeskJet 450 Series, Deskjet 460 Series
C8380-90155Paper - Poster for OfficeJet 7100 Series All in One
C8380-90156Paper - Poster for OfficeJet 7100 Series All in One
Q5458APaper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q5495APaper - Premium Plus Photo paper (High Gloss) - B size (11 x 17-inches) - 25 sheets
Q5513APaper - Paper (Matte) for Photosmart 7700 Series Printer, PSC 2405 Series, PSC 2410 PhotoSmart Series, PSC 2500 PhotoSmart Series
Q6564APaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5600 Series, DeskJet 640 Series
Q6568APaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DesignJet 1055 Series, DeskJet 5550 Series
Q6568ACPaper - Paper (Glossy) for PhotoSmart C52XX Series, Photosmart C5200 Series All-in-One Printer Series, PhotoSmart D50XX Series, PSC 1400 Series
Q6569APaper - Premium Plus Soft-Gloss Photo Paper (Matte) - A size (8.5 x 11-inches) - 25 sheets (North America)
Q6569ACPaper - Paper (Matte) for Photosmart 7600 Printer, Photosmart 7600 Series Printer, PhotoSmart 7700 Printer, PhotoSmart 7700 Series Printer
Q6590APaper - Paper (Matte) for PhotoSmart 7900 Series Printer, PhotoSmart 7150 Printer, PhotoSmart 7350 Printer, Photosmart 7550v printer
Q6592APaper - Paper (Matte) for Photosmart 7200 Printer, Photosmart 7200 Series Printer, Photosmart 7600 Printer, Photosmart 7600 Series Printer
Q6593APaper - HP Premium Presentation Paper - A4 size (21.0cm x 29.7cm) - 150 sheets
Q6597APaper - Paper (Glossy) for DeskJet 660 Series, DeskJet 300, DeskJet 5600 Series, DeskJet 640 Series
Q6603APaper - Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes
Q6638APaper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q6638ACPaper - Paper (Glossy) for Photosmart 475 series compact photo printer, PhotoSmart A510 Series, HP Photosmart A510 Printer series, PhotoSmart A430 Series
Q6639APaper - Paper (Glossy) for PSC 1400 Series, OfficeJet 5610 Series, OfficeJet 5605 Series, OfficeJet 5615 Series
Q7852APaper - HP Delux Advance Glossy Photo Paper 25 sheets of A size HP Advanced glossy photo paper
Q7852ACPaper - Paper (Glossy) for Deskjet D1341 Printer, DeskJet D13XX Series, DeskJet D1311 Series, DeskJet F4180 Series
Q7853APaper - Paper (Glossy) for Business Inkjet 1200 Series, OfficeJet Pro K550 Series, Business Inkjet 2800 Series, DeskJet 9800
Q7854APaper - Paper (Glossy) for DeskJet D1311 Series, DeskJet F4180 Series, HP Deskjet F4100 All-in-One printer series, DeskJet F4140 Series
Q7860APaper - Advanced Glossy Paper - 10cm (4in) x 15cm (6in), borderless (without tab) - 20 sheets (Asia Pacific)
Q7861APaper - Paper (Glossy) for DeskJet 3840 Series, DeskJet 6620 Series, DeskJet 6800 Series, DeskJet D23XX Series
Q7862APaper - Paper (Glossy) for HP PSC 1300 Series All-In-One, PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210
Q7863APaper - Paper (Glossy) for DeskJet 3520 Series, DeskJet 3600 Series, DeskJet 5940 Series, DeskJet 6620 Series
Q7864APaper - Paper (Glossy) for OfficeJet 6205, OfficeJet 6215, OfficeJet 6208, PhotoSmart 3110 Series
Q7867APaper - Paper (Glossy) for Color LaserJet 4730MFP Series, OfficeJet 6310 All-in-One, OfficeJet 6301 Series, OfficeJet 4315 Series
Q7868APaper - Paper (Glossy) for Photosmart 3200 All-in-One Series, Photosmart 3300 Series, PSC 1500 Series, PSC 1500 Series All-In-One
Q7871APaper - Paper (Glossy) for PSC 1300 Series All in One, Color LaserJet 2820 Series, OFFICEJET 7205, PSC 1600 Series
Q7892APaper - Paper (Glossy) for HP Photosmart 428 Series Portable Photo Studio, PhotoSmart D5155 Series, PhotoSmart D5145 Series, PhotoSmart A430 Series
Q7906APaper - Advanced Glossy Photo Paper - 10.2cm (4in) x 15.2cm (6in) finished size - 10.2cm (4in) x 16.5cm (6.5in) with tab - 100 sheets
Q7907APaper - Paper (Glossy) for PhotoSmart 2575 Series, PSC 1200 Series All-in-One, PSC 1300 Series All in One, PSC 1400 Series
Q7986APaper - Paper (Glossy) for PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210, OfficeJet 3213
Q7987APaper - Paper (Glossy) for PSC 1300 Series All in One, OfficeJet 6200 Series, OfficeJet 6210, OfficeJet 3213
Q8015APaper - Holiday Photo Cards - 10.2cm (4in) x 21.6cm (8.5in) - Includes 40 cards, 40 envelopes, and a CD-ROM with 150 holiday templates
Q8016APaper - Holiday Photo Cards - 10.2cm (4in) x 21.6cm (8.5in) - Includes 20 cards, 20 envelopes, and a CD-ROM with 150 holiday templates
Q8690APaper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q8695APaper - Paper (Glossy) for HP Photosmart C3100 Series All-in-one, PhotoSmart C3180 Series, PhotoSmart C3150 Series, PhotoSmart C3140 Series
Q8696APaper - Paper (Glossy) for DeskJet 300, DeskJet 640 Series, Designjet 30gp, DesignJet 130 Series
Q8698APaper - Paper (Glossy) for PhotoSmart 2575 Series, OfficeJet 5605 Series, OfficeJet 5615 Series, OfficeJet 6310 All-in-One
Y2231A-PC_BRDPC Board - Ink cartridge carriage assembly pc board - includes carriage pc board only
Y2231A-PC_BRD_DCPC Board DC - Internal power supply board - power cable plugs on this assembly, remove covers to install pc board.
J6035DPC Board Interface - HP JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port
J6035GPC Board Interface - JetDirect 175X external print server - Has one 4-pin USB connector and one RJ-45 LAN connector - Connects to the printer via the USB port and the network via the LAN port
J7942APC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module
J7942GPC Board Interface - HP JetDirect en3700 external print server - Fast Ethernet Internet connector for sharing peripherals with USB ports, in a 10/100 TX LAN environment - Has one USB 2.0 printer port and one RJ-45 10/100 Base-TX connector - Includes software and power module
J7951GPC Board Interface - HP Jetdirect ew2400 802.11g wireless print server module - Includes power supply, USB cable, LAN/Ethernet cable, setup documentation and software
Y2231A-PinchwheelPinchwheel - Pinch assembly kit - includes all required pinch wheels, pinchwheel mounts and springs
8120-6260Power Cord - Power cord (Black) - 18 AWG, 3-wire, 1.0m (3.3ft) long - Has straight (F) C13 receptacle (for USA, Canada, Taiwan, Latin America, and Saudi Arabia)
8121-0889Power Cord - Power cord (Black) - 2-wire, 18 AWG, 0.5m (1.6ft) long - Has straight (F) C7 receptacle (For 120V in North America, Opt. 953)
Y2231A-Power_CordPower Cord - Power module power cord- wall outlet cable to power module only. does not include power module.
0957-2340Power Module - Wall mount power supply module - 120VAC input 60Hz power supply AC DC 15W UNIVERSAL ADAPTER Power module (wall mount)- Input voltage 100-240 VAC - Output voltage 12 VDC, 15 watts output, 1.0A - for Jet Direct power and other accessories.
C7296-60024Power Module - Power module - World wide (universal) - 100/240VAC input, 50/60Hz - Requires a separate AC power cord p/n 8120-6260
Y2231A-Power_MDLEPower Module - World wide power module - includes power module and power module to printer cord - does not include outlet to power module cord
Y2231A-Power_MDLE_AssyPower Module Assy - World wide power module - includes power module and power module to printer cord - also, include outlet to power module cord
Y2231A-Power_SupplyPower Supply - Power supply board (internal pwr supply unit in the office machine).
Y2231A-Print_MchnsmPrint Mechanism - Print mechanism assembly - complete mechanism with carriage movement, paper picking and service station - does not include covers, printer base, print heads, ink cartridges, or any consumables.
5183-5269Recovery Kit - Return kit - For returning defective Thermal InkJet (TIJ) 3.0 cartridges - Includes box and instructions
Y2231A-Repair_InkJetRepair Service - Ship your product to us for a small diagnostic fee; and a professional service job. We will contact you with repair total and your diagnostic fee will be waived if unit is repaired. Service warranty is 30days labor and 90days for parts. Extended warranty option is available.
Y2231A-Rod_CarriageRod Carriage - Carriage rod - shaft that the carriage assembly rides on
Y2231A-Rod_ScannerRod Scanner - Scanner rod - shaft that the scanner assembly rides on
Y2231A-Roller_ADFRoller ADF - Feeder ADF roller for picking up paper from ADF unit.
Y2231A-Roller_PickupRoller Pickup - Pick up roller assembly for paper bottom tray. Lower feed roller assembly - for lower paper input tray
Y2231A-ScannerScanner - Copier scanner (optical) assembly - includes scanner assembly only scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Y2231A-Scanner_AssyScanner Assembly - Copier scanner & glass assembly - includes the chassis assembly scanner lens assembly (includes the charge coupled device (ccd)) the scanning lamp ADF analog processor board and ADF inverter board - major portion of the ADF main assembly.
Y2231A-Scanner_BeltScanner Belt - Scanner belt attaches from the scanner to the scanner motor.
Y2231A-Scanner_CableScanner Cable - Flex circuit cable which connects to the scanner assembly. also known as flat cable, this cable moves along with the scanner unit (side to side) as it scans documents.
Y2231A-Scanner_UnitScanner Unit - Scanner unit includes the entire scanner base but not the ADF portion.
Y2231A-Sensor_ADFSensor ADF - Photo-sensor assembly - includes the sensor and mounting bracket - paper pickup roller home position sensor - activated by the sensor flag on the pickup roller assembly - mounts on the front frame of the ADF paper pickup assembly
Y2231A-Sensor_OutSensor Out - OOPS sensor - out of paper sensor - detects the presence of the paper in the printer tray
Y2231A-Sensor_SpotSensor Spot - Spot sensor assembly is attached to the carriage assembly.
Y2231A-SeparatorSeparator - Pad separator - assembled from plastic and rubber components; to help in separating sheet of media during printing from bottom trays.
Y2231A-GuideService Guide - Printer Reference Guide (not a service manual) - Contains information such as product information, operation overview, paper behavior, maintenance, ink safety, and removal / replacement of parts. This is not a service manual for technical repair.
C6039-60022Service Parts - HP Sample of 3 Premium and 3 Photo Shts
Y2231A-Service_StationService Station - Service station assembly - for conditioning the printheads when the carriage is in its home position
Y2231A-SLED_AssySLED Assembly - Sled assembly - white plastic piece with spring, wipers and boot (assembly that the ink cartridge parks on) - mounts on top of the service station assembly
Y2231A-SliderSlider - Carriage base slider - plastic piece on the front end of the carriage that allows the carriage to slide side to side.
5011-4616Software - Software for DeskJet 640 Series, DesignJet 130 Series, OfficeJet Pro K5400 Series, DeskJet 800 Series
Y2231A-SpeakerSpeaker - Speaker assembly - includes speaker cable.
Y2231A-SpittonSpitton - Spittoon base - the bottom and main housing of the service station assembly - holds any residual ink from the print cartridge cleaning process
Y2231A-Spring_CmprsnSpring Compression - Compression spring - on pulley wedge for carriage belt tension
Q6625AStickers - HP Printable iPod Tattoos - 14.0cm (5.5in) x 21.6cm (8.5in) - 10 sheets
Q7982AStickers - HP Printable iPod Mini Tattoos - 10.2cm (4in) x 15.2cm (6in) - five sheets
Y2231A-Trailing_CblTrailing Cable - Trailing cable for scanner - cable connects from scanner to pc board.
Repair It
Exchange It
View Supplies
Service Manual
